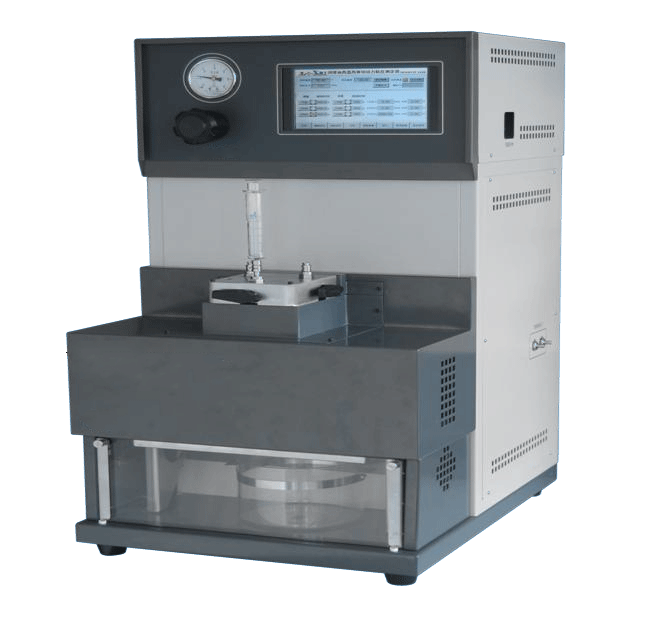

The equipment features a touch LCD display with advanced PLC control, enabling fully automatic operation with a one-button start after sample injection. It includes an automatic cleaning function and a mini printer for pressure and flow time printouts. Additionally, the device provides calculating software for HTHS (High-Temperature High-Shear) viscosity measurements. Key specifications include a machine power of 1.2KW, temperature control range from ambient to 150°C with ±0.1°C precision, three viscosity cells, a 7±1ml sample size, and a pressure range of 350kPa to 3500kPa with ±1% precision.
Characteristics:
- Touch LCD display with advanced PLC control.
- Fully automatic operation with a one-button start after sample injection.
- Includes an automatic cleaning function for convenience.
- Equipped with a mini printer for pressure and flow time printouts.
- Provides calculating software for HTHS (High-Temperature High-Shear) viscosity.
Parameters:
- Machine Power: 1.2KW
- Temperature Control Range: Ambient to 150°C
- Temperature Precision: ±0.1°C
- Viscosity Cell: 3
- Sample Size: 7±1ml
- Pressure Range: 350kPa to 3500kPa
- Pressure Precision: ±1%
