Vertical Flame Tester for Single Cable QualiFlame™-VFTSC
Vertical Flame Tester for Single Cable designed in accordance with IEC 60332, the QualiFlame™-VFTSC assesses the resistance of a single vertical electrical insulated conductor, cable, or optical fiber cable to a 1 kW pre-mixed flame.
Flame Propagation Test - Vertical Flame Test Procedure for a Single Insulated Cable:
- Secure a 600mm-long insulated cable in a vertical position.
- Set up the ignition source as per IEC 60695-11-2 and adjust the burner angle to 45 degrees.
- Apply the flame to the insulated cable at a distance of 475mm.
- Observe the reaction and remove the flame after the designated exposure time.
- Conduct two additional tests.
- Analyze the results.

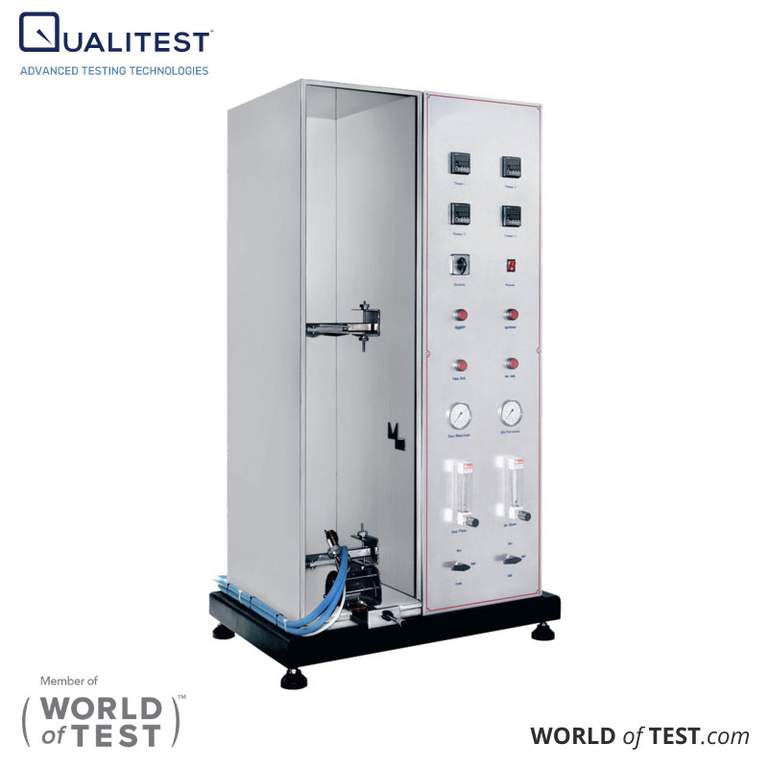

Vertical Flame Tester for Single Cable QualiFlame™-VFTSC
Vertical Flame Tester for Single Cable consists of
- A stainless steel chamber with an interior anti-corrosion coating for durability.
- A stainless steel sample support arm.
- A 1 kW air-gas pre-mixed burner.
- Flowmeters for precise propane gas and air control.
- Individual gas and air regulators with pressure gauges.
- A spark ignition system.
- A flame height measuring gauge.
- Flame calibration kits compliant with IEC 60695-11-2.
- An automatic flame application timer with four selectable modes (60/120/240/480 seconds) for quick adjustments.
Advance:
- Floor mounted integrated fume cupboard.
