Wire and Cable Fire Safety: Test Standards & Equipment

Could the greatest fire hazard in your facility be running unseen directly above your ceiling tiles?

Electrical distribution faults consistently rank among the leading causes of commercial structural blazes, where failing polymer insulation turns hidden lines into flame-spreading conduits within minutes. Protecting your facility demands moving beyond self-declarations to verify true wire and cable fire safety through physical, real-world combustion testing.

This guide outlines international regulatory standards, critical burning behaviors, and the testing machinery required to secure compliance.

Key Takeaways

• Severe Thermal Hazards: Bundled conductors trigger convective chimney effects, releasing dense smoke, corrosive hydrochloric acid, and extreme heat during an electrical fire.
• The Single-Wire Testing Gap: Passing an isolated single-cable test does not predict real-world fire spread, making bunched ladder testing under EN 50399 and IEC 60332-3 essential.
• Early Material Screening: Upstream evaluation using Limiting Oxygen Index (LOI) chambers and Cone Calorimeters catches polymer compounding flaws before full-scale extrusion.
• Circuit Continuity Demands: Emergency infrastructure requires specialized testing under IEC 60331 and BS 6387 to ensure critical circuits remain energized during active combustion.
• Essential Facility Planning: Operating high-temperature testing apparatus requires stable technical gas delivery, dedicated exhaust scrubbing, and verified calibration protocols.


Cable Combustion Dynamics and Thermal Hazards

A single isolated cord resting on a concrete floor presents a manageable risk. However, when dozens of conductors sit bundled in vertical risers or horizontal trays, convective forces create a chimney effect that accelerates flame travel upward at high speed. The metallic conductor acts as either a thermal sink or a heat source depending on the conductor volume.

Once heat levels exceed the transition heat flux threshold, the insulation breaks down and releases significant thermal energy. Concurrently, traditional jacketing polymers like general-purpose PVC release hydrogen chloride (HCl) gas when burned, producing peak heat release rates more than 17 times higher than halogen-free options.

Particulate emissions present an equal threat. Heavy smoke blankets exit routes, creating severe visibility loss and acute toxicity hazards long before flames reach occupants.

Furthermore, emergency circuits must remain operational during active combustion. If fire compromises the electrical lines feeding smoke extraction fans, sprinkler pumps, or emergency lighting, passive fire plans fail. Realizing effective cable and wire fire safety requires eliminating these four hazards through rigorous physical testing.

Real-World Precedent: The Danger of Hidden Cable Emissions

The 1996 Düsseldorf Airport terminal fire demonstrated what occurs when cable-filled ceiling voids go unmonitored.

During construction work on an expansion joint, hot bitumen dripped into a suspended ceiling void containing non-compliant polystyrene insulation alongside electrical and communication cable trays. While the combustible foam provided initial ignition fuel, the burning PVC cable jacketing generated the most lethal element of the disaster: dense particulate smoke and corrosive hydrogen chloride (HCl) gas.

Drawn directly into air-conditioning ducts and carried into passenger lounges, these toxic emissions caused 17 fatalities and injured more than 60 people. This disaster became the defining catalyst for modern Low Smoke Zero Halogen (LSZH) regulations, demonstrating why cable jacket chemistry, optical smoke density, and acid gas evolution must be verified in the laboratory before materials enter commercial facilities.

Critical Operating Environments and Sector Mandates

Combustion characteristics carry different consequences depending on the installation environment. The industrial move toward Low Smoke Zero Halogen (LSZH) compounds provides a safer baseline across high-density facilities.

Rail Transit: EN 45545-2 Compliance

Underground passenger compartments provide minimal evacuation space. International rolling stock standards enforce strict limits on flame travel, optical smoke density, and toxic gas release, requiring materials to self-extinguish as soon as an ignition flame clears.

Telecommunications & Data Facilities: NFPA 262 Plenum Standards

Server rooms circulate massive air volumes through raised floors and drop ceilings. If a conductor burns inside an air plenum, circulation blowers spread smoke throughout the building. Cables must meet strict plenum flame travel and smoke density thresholds to prevent fire progression through air-handling pathways.

Marine and Offshore Platforms: SOLAS and Class Approvals

Offshore platforms offer no exterior evacuation ground. Marine-rated lines endure constant mechanical vibration and salt air. They must satisfy classification society approvals (such as DNV, ABS, and Lloyd’s Register) that verify continuous circuit operation under direct flame.

Photovoltaic Arrays: EN 50618 Weathering and Flame Spread

Solar installations face decades of ultraviolet radiation, intense heat, and weather cycles. Compounds must maintain structural integrity and self-extinguishing performance over decades of outdoor exposure without cracking or degrading.

International Fire Testing Standards

Since 2011, European codes have classified electrical cables as construction products under the Construction Products Regulation (CPR), making reaction-to-fire ratings mandatory across commercial building markets. Supplying international markets requires alignment with these primary standards:

Upstream Polymer R&D and Compound Screening

Verifiable wire and cable fire safety starts during polymer compounding, long before extruding compound over metal cores. Screening formulations early avoids costly batch rejections during final qualification.

Limiting Oxygen Index (LOI) Chamber

Operating under ASTM D2863 and ISO 4589-2, the LOI Limiting Oxygen Index Chamber establishes the minimum oxygen concentration needed to support candle-like combustion in an oxygen-nitrogen stream.

Built with a quartz glass chimney and digital flow controls, it delivers steady gas delivery during compound screening. Because thermal aging degrades PVC jackets and reduces LOI values over service life, routine batch verification is critical. High standard ratings on finished plastics do not guarantee high LOI performance across every additive formulation.

The Cone Calorimeter

The Cone Calorimeter (ISO 5660-1 & 2 / ASTM E1354) serves as the primary quantitative tool for modern fire analysis. Featuring a conical radiant heater supplying heat fluxes up to 100 kW/m², it evaluates time to ignition, mass loss rate, and oxygen-depletion heat release.

Cone calorimetry studies show that heavy electrical cables exhibit the highest peak heat release compared to data or fiber lines, supplying predictive data ahead of full-scale bundle testing.

Smoke Density and Glow Wire Testing

The Smoke Density Tester (ASTM D2843) utilizes an XP2 chamber to evaluate light absorption from burning plastic plaques, serving as an effective screening tool for compounding departments.

To confirm zero-halogen performance under IEC 60754, standardized tube furnace systems burn polymer samples to evaluate pH drops and conductivity spikes, confirming non-corrosive properties. The Glow Wire Tester (QualiFlame GWT / IEC 60695-2-10) evaluates resistance to glowing electrical elements from 500°C to 1000°C with an automated motorized specimen carriage.

Wire and Cable Fire Safety Equipment: Assemblies and Bundles

Evaluating finished lines requires specialized wire and cable fire safety equipment configured to simulate real installation configurations.

Single Conductor Flame Testing

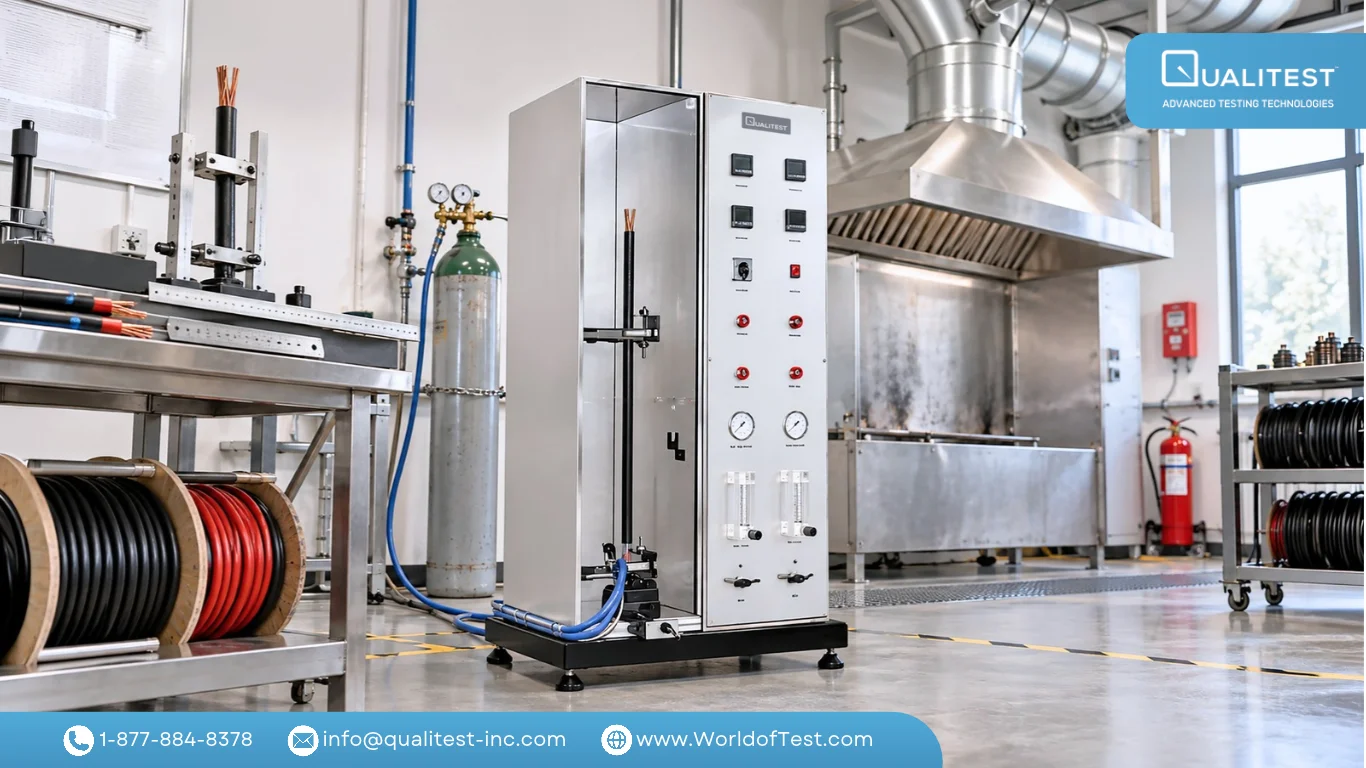

Draft-free enclosures verify whether an isolated line self-extinguishes. The Vertical Flame Tester for Single Cable (QualiFlame™-VFTSC) is engineered in accordance with IEC 60332-1, securing a 600 mm vertical specimen inside a draft-free stainless steel chamber while a 1 kW air-gas pre-mixed burner applies a calibrated flame at a 45-degree angle per IEC 60695-11-2.

For North American horizontal compliance, the Wire and Cable Horizontal Flame Tester (QualiFlame™ UL2556) executes the UL 2556 horizontal FT2 burning test. The system features automated PLC touch-screen controls, an adjustable 0 to 999.99 second burn timer, and a wedge-mounted burner adjustable from 0 to 45 degrees, eliminating operator variation during horizontal specimen burns.

Single vs. Bunched Cable Performance Discrepancy

An isolated control line tested on a single-conductor vertical rig (QualiFlame™-VFTSC / IEC 60332-1) may self-extinguish in twenty seconds with minor char damage, earning an uncomplicated pass.

However, mounting twenty-four meters of that exact same cable on a vertical steel ladder inside an EN 50399 chamber changes the thermal behavior entirely. The mutual heat feedback between adjacent burning lines traps energy within the bundle.

The compound softens, drips flaming plastic that forms secondary floor pool fires, and emits heavy smoke, resulting in a failing CPR Euroclass (Fca). This divergence proves why single-conductor data cannot predict bunched fire behavior.

Bunched Cable Vertical Flame Spread Systems

The EN 50399 Burning Behaviour of Bunched Cable Tester serves as the benchmark system for European CPR Euroclass B1ca through Dca ratings. Built with a stainless steel exhaust duct, an instrumentation hood, and paramagnetic gas analyzers, it tracks real-time Heat Release Rates (HRR), Smoke Production Rates (SPR), and flaming droplets.

For vertical flame spread testing without heat analytics, the Bunched Cable Vertical Flame Spread Tester (QualiFlame™-BCVFST) fulfills the IEC 60332-3 series, testing bundled runs on a steel ladder with regulated air intake.

North American Tray, Riser, and Plenum Classifications

In North America, the National Electrical Code (NEC) governs cable fire safety through installation tiers rather than European Euroclasses. Engineers and specifiers evaluate cables according to specific operational locations:

• Plenum Spaces (CMP): Ceiling voids and raised floors used for environmental air circulation demand the strictest flame and smoke thresholds. Cables must pass NFPA 262 (formerly UL 910) inside a 25-foot horizontal Steiner tunnel. For laboratories qualifying lines to this tier, Qualitest supplies the Steiner Tunnel Test Furnace for Optical Fibre Cable UL 910.
• Riser Shafts (CMR): Cables running vertically floor-to-floor between building levels must satisfy UL 1666 to prevent vertical fire spread between stories.
• General Cable Trays (CM / CMG): Commercial tray installations reference UL 1685 or CSA FT4 (IEEE 1202 with an angled 20-degree burner) to evaluate vertical-tray flame propagation and smoke release.
• Circuit Integrity: For critical emergency circuits requiring two-hour operational survival, North American specifications reference UL 2196 alongside international standards like IEC 60331.

While domestic projects reference these NEC designations, wire and cable producers operating globally deploy the EN 50399 Bunched Cable Tester and QualiFlame™-BCVFST to satisfy IEC and European CPR export requirements simultaneously.

Circuit Integrity Testing

Critical emergency supply lines must maintain electrical current under active fire conditions for anywhere from 15 minutes under BS 6387 Protocol Z to 180 minutes under BS 6387 Protocol C. The Wire & Cable Fire Resistance Tester (QualiFlame™-CFRT) evaluates circuit continuity under a regulated gas flame across a temperature span from 650°C to 950°C.

Engineered to assess energized cable specimens under continuous thermal exposure, the system supports major international fire resistance standards, including IEC 60331 (Parts 1, 2, 3, 11, 21, 23, and 25), BS 6387, BS 8434, BS 8491, and EN 50200. This ensures life-safety circuits feeding emergency lighting, communication lines, and water pumps operate without interruption during an active structural blaze.

Smoke Density Chambers and Tunnel Furnaces

The Wire & Cable Smoke Density Tester Cube (QualiCSDT™ 3) provides a sealed 3m x 3m x 3m walk-in enclosure built to IEC 61034-1 & 2 and BS 6853. Using an alcohol fuel tray, an internal fan, and an optical photometric system, it monitors light transmission drops to verify LSZH performance.

For plenum-rated communication lines, the Steiner Tunnel Test Furnace for Optical Fibre Cable UL 910 evaluates NFPA 262 and UL 910 standards across a 25-foot horizontal furnace.

Selecting a Wire and Cable Fire Testing Apparatus

When evaluating a new wire and cable fire testing apparatus, prioritize features that ensure repeatable results and protect long-term equipment life:

• Digital Gas Control: Manual valves invite test drift. Digital mass flow controllers (MFCs) guarantee identical gas-to-air ratios across changing ambient room conditions.
• Corrosion-Resistant Interiors: Burning polymers discharge corrosive compounds. Interior chambers must feature heavy-gauge stainless steel liners and protected sensor housings to avoid premature rust.
• Multi-Standard Modularity: Selecting a frame capable of switching between North American UL fixtures and international IEC burners minimizes capital expense and optimizes laboratory footprint.
• Automated Data Acquisition: Digital DAQ software recording temperature profiles, heat release curves, and light transmission logs automates compliance reporting and simplifies third-party audits.


Laboratory Infrastructure and Setup Checklist

Commissioning an industrial wire and cable fire testing apparatus requires careful facility preparation:

• Verify Continuous Gas Delivery: Burners require steady supplies of commercial-grade propane or natural gas and clean, moisture-free compressed air to prevent flame fluctuation mid-test.
• Install Adequate Exhaust Scrubbing: Bunched cable burns produce significant particulate soot and acidic fumes. Facilities require high-capacity exhaust fans, balanced draft dampers, and wet scrubbing equipment to satisfy emissions regulations.
• Confirm Room Clearances: A 3m cube smoke chamber requires walk-around clearance for window cleaning and sample setup. Bunched cable test towers (EN 50399 / IEC 60332-3) demand clear ceiling heights of at least 4.5 meters.
• Maintain Calibration Tools: Keep NIST-traceable thermocouple calibrators, certified heat flux meters, and optical calibration filters available to satisfy ISO/IEC 17025 accreditation requirements.
