| PHYSICAL |
| Weight: |
13.5 ounces (with batteries). |
| Size: |
2.5 W x 6.5 H x 1.24 D inches (63.5 W x 165 H x 31.5 D mm). |
| Operating Temperature: |
-14° to 140°F (-10° to 60°C). |
| Keyboard: |
Membrane switch with twelve tactile keys. |
| Case: |
Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed). |
| Display: |
1/8in VGA grayscale display (240 x 160 pixels), viewable area 2.4 x 1.8in (62 x 5.7mm); EL backlit (on/off/auto invert). |
| ULTRASONIC SPECIFICATIONS |
| Measurement Modes: |
Pulse-Echo (flaws, pits, corrosion).
Echo-Echo (thru-paint-chassis). |
| Pulser: |
150 volt square wave pulser. |
| Receiver: |
Manual or AGC gain control with 50dB range, depending on mode selected. |
| Timing: |
Precision TCXO timing with single shot 100MHz 8 bit ultra low power digitizer. |
| DISPLAY |
| Display Views: |
Large Digits: Standard thickness view; Digit Height: 0.700 in (17.78mm).
B-Scan: Time based cross section view. Display speed variable (10 to 200 readings per second).
Scan Bar: Speed 10Hz. Viewable in B-Scan and Large Digit views.
Bar Graph: Indicates stability of measurement. Viewable in B-Scan and Large Digit views. |
| POWER SOURCE |
| Line Power: |
USB-C to PC or power outlet. |
| Batteries: |
Three AA cells. Alkaline - 35 hrs, Nicad - 10 hrs and NI-MH - 35hrs.
Auto power off if idle 5 minutes.
Battery status icon. |
| MEASURING |
| Range: |
Pulse-Echo Mode (P-E) - (Pit & Flaw Detection) measures from 0.025 to 36 inches (0.63 to 914.4mm). Range dependent on material and transducer type.
Echo-Echo Mode (E-E) - (Thru Paint & Coatings) measures from 0.100 to 4.0 inches (2.54 to 101.6mm). Range will vary depending on the coating thickness and material type. |
| Resolution: |
+/- .001 inches (0.01mm). |
| Velocity Range: |
0.0122 to 0.7300 inches/µs (309.88 to 18542 meters/sec). |
| Calibration: |
Single and Two point calibration option, or selection of basic material types. |
| Units: |
English & Metric |
| MEMORY |
| Data Structure: |
Grid (alpha numeric)

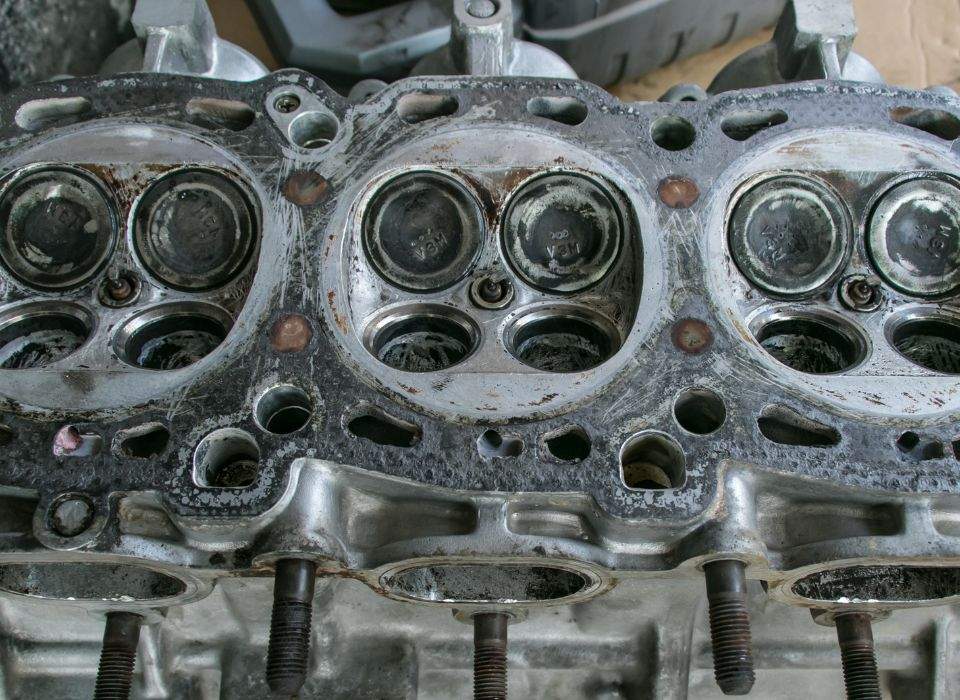

Engine Map (cylinder scans). |
| Screen Capture: |
Bitmap graphic capture for quick documentation (.tif).
OBSTRUCT to indicate inaccessible locations. |
| Capacity: |
4Gb internal memory. |
| Data Output: |
USB-C 1.1 PC & OSX connectivity. |
| TRANSDUCER |
| Transducer Types: |
Dual Element (1 to 10MHz).
Locking quick disconnect “00” LEMO connectors.
Standard 4 foot cable.
Custom transducers and cable lengths available. |
| CERTIFICATION |
| Calibration: |
Factory calibration traceable to NIST & MILSTD-45662A. |
| WARRANTY |
| Warranty Period: |
2 year limited. |
| REPLACEMENT |
| Replacement Models: |
RX8-DL replaces PR-8V |
| FEATURES |
| Setups: |
64 custom user-definable setups; Factory setups can be edited. |
| Selectable Transducers: |
Selectable transducer types with built-in dual path error correction for improved linearity. |
| Alarm Mode: |
Set Hi and Lo tolerances with audible beeper and visual LEDs. |
| Scan Mode: |
Takes 250 readings per second and displays the minimum & maximum readings found when the transducer is removed. |
