Ultrasonic Thickness Gauging: Operating Principles & Methods
Acoustic Physics and TOF Principles

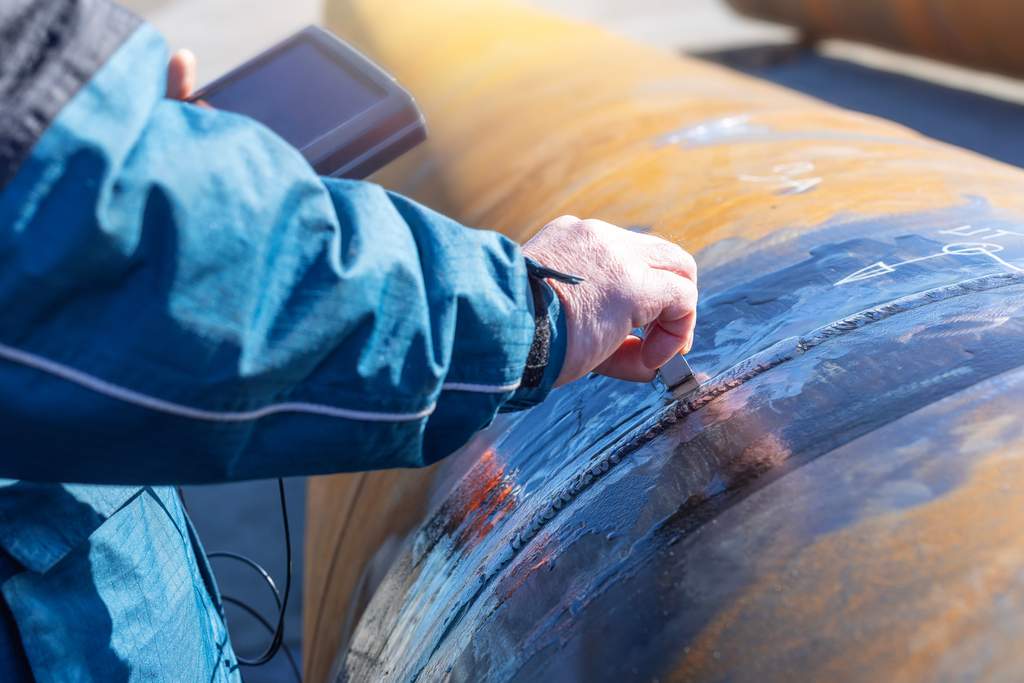

Ultrasonic thickness gauging provides instantaneous, one-sided dimensional readings, eliminating the need to take destructive physical cutouts from active equipment. The technique calculates remaining wall thickness by transmitting a high-frequency sound pulse through a component, recording its round-trip transit time, and scaling that duration against the verified acoustic velocity of the test material.
Transducer / Probe
+--------------------+
| [Piezo/EMAT] |
Couplant -> ~~~~~~~~~~~~~~~~~~~~
====================================== <- Front Surface (Echo 1 / Interface)
| |
| Material Under Test | Thickness (d) = (v × t) / 2
| (Sound Velocity: v) |
| |
====================================== <- Back Wall (Echo 2 / Reflection)
Acoustic Reflection (Z2 ≠ Z1)
Fundamental Equation:
d = (v × t) / 2
- d: Remaining physical wall thickness (in decimal millimeters or thousandths of an inch).
- v: Calibrated acoustic sound velocity (carbon steel transmits near 5,900 m/s; acrylic moves significantly slower).
- t: Measured round-trip transit duration (nanosecond-level time-of-flight registered by digital timing circuits).
The total transit duration is divided by two because the acoustic wave travels the entire thickness twice (down to the back wall and returning to the transducer face). Reflection occurs due to an acoustic impedance boundary (Z = ρ · v). When ultrasound traveling through high-density metal reaches an air or fluid boundary, the massive impedance mismatch (Zair << Zsteel) reflects nearly 100% of the acoustic energy back to the probe.
The exact same high-speed acoustic transit physics calculates mechanical elongation, clamping load, stress, and strain in structural fasteners using dedicated monitors such as the BT1-DL and BT2 Bolt Tension Monitor series.
Measurement Modes and Industrial Methods
Depending on component geometry, surface condition, and the presence of protective coatings, thickness gauges operate across three primary acoustic modes:
MODE 1: Pulse-Echo (Direct) MODE 2: Interface-to-Echo MODE 3: Multi-Echo / Echo-to-Echo
[Transducer Excitation] [Delay Line Interface] [Thru-Coat / ThruPaint™]
| | |
|==========> Back Wall |---- Delay ----> Interface |==> Echo 1 (Substrate top)
|<========== Echo | |====> Back |==> Echo 2 (Substrate back)
- Mode 1: Pulse-Echo (Direct Contact): Measures the duration between the initial excitation pulse and the first back-wall reflection. Handheld instruments such as the ZX Series and the multi-functional QTG I & QTG II Series utilize this mode for heavy forgings, raw castings, structural fabrications, and general quality checks where zero-point dead zones are not a factor.
- Mode 2: Interface-to-Echo (Delay Line): Clocks the time between the reflection at the end of a delay tip and the interior back-wall echo. Dedicated high-resolution instruments such as the PCX Series and PZX Series use this method to isolate initial excitation ring-down from near-surface returns, enabling sub-millimeter measurements on thin sheet metal, small-diameter medical tubing, and specialized automotive components (such as cylinder walls, head ports, and chassis tubes evaluated with the RX8-DL and PR-9 Sonic Tester series).
- Mode 3: Echo-to-Echo / ThruPaint™: Evaluates the interval between two consecutive back-wall reflections (Echo 1 to Echo 2). Built directly into the PZX Series and CMX Series, this method completely ignores paint, epoxy, and protective lining layers to measure true underlying metal thickness without scraping or repainting surfaces.
| Measurement Method | Operating Principle | Key Operational Advantage | Practical Limitation | Target Models & Applications |
|---|
| Pulse-Echo TOF | Tracks single acoustic pulse round trip | Direct single-sided contact testing on heavy parts | Susceptible to near-surface dead zones | QTG I & II, ZX Series, CX Series (Structural steel, heavy pipelines, forgings) |
| Multi-Echo (ThruPaint™) | Measures time delta between consecutive back-wall returns | Evaluates base metal without stripping surface coatings | Requires parallel, unpitted interior surfaces | PZX Series, CMX Series (Marine hulls, painted storage tanks, coated fuel lines) |
| Precision Delay Line | Clocks time from delay tip interface to back wall | High resolution on ultra-thin walls, plastics, and tubing | Delay tips wear down over extended abrasive contact | PCX Series, PMX Series, RX8-DL (Thin sheets, engine blocks, precision machining) |
| A-Scan / B-Scan Verification | Real-time RF waveform and cross-sectional profiling | Direct visual confirmation of internal pitting and wall loss | Requires larger display screens and higher battery drain | PMX Series, MX Series, Ultrasonic Flaw Detectors (Critical asset integrity, pressure vessels) |
Transducer Configurations and Acoustic Beam Selection
Selecting the right transducer configuration prevents erratic readings and false defect calls on the shop floor:
DUAL-ELEMENT TRANSDUCER SINGLE-ELEMENT (DELAY LINE)
----------------------- ---------------------------
[ Transmitter | Receiver ] [ Single Transducer ]
\ / |
Delay\ /Delay [Delay Line]
===== X ===== (V-Path) ============
\ / |
\ * / Focus Zone v
--------------- -----------------
Back Wall Back Wall
- Dual-Element Transducers (Corrosion & Pitting Specialists): Feature separate transmitter and receiver crystals angled slightly inward. Built for instruments such as the CMX Series and MX Series, this pitch-catch V-path layout eliminates transducer ringing, providing clean echo detection for identifying localized pitting and rough back-wall corrosion on boilers, tanks, and pipelines.
- Single-Element Delay Line Probes (Precision Manufacturing): Operating at high frequencies (10 MHz to 30 MHz), these units focus acoustic energy for high-resolution measurement on thin walls and tight-tolerance components, standard on the PCX Series and PZX Series.
Live Signal Diagnostics: A-Scan and B-Scan Displays
Basic numeric-only gauges can register misleading numbers when encountering heavy rust, laminated inclusions, or geometry changes. High-end diagnostic units integrate visual waveform tracking directly on screen:
- Live A-Scan Waveform Display: Standard on the PMX Series, MX Series, and Ultrasonic Flaw Detectors, the live RF and rectified A-scan trace allows technicians to adjust measurement gates, inspect signal amplitude, verify zero-cross points, and prevent false trigger errors in real time.
- Timed / Encoded Cross-Sectional B-Scan: Displays a continuous side-profile view of the component along a scan stroke. This cross-sectional visualization highlights hidden corrosion trenches, wall drop-outs, and internal material flaws immediately.
Inspection Variables, Calibration, and Standards
| Operational Variable | Physical Mechanism | Metrological Effect | Engineering Mitigation Strategy |
|---|
| Thermal Gradients | Changes elasticity and sound velocity (dv/dT) | Velocity drift introduces ~1% dimensional error per 55°C shift | Apply high-temperature delay line probes and input thermal velocity correction factors |
| Couplant Layer Variations | Acoustic impedance mismatch and variable fluid gap | Creates acoustic phase lag, signal jitter, and false interface triggers | Standardize couplant viscosity; apply steady probe contact force |
| Transducer Face Wear | Shifts physical zero-point transit timing | Induces systemic baseline zero offset drift | Perform periodic two-point zero verification on certified calibration step blocks |
| Curved Component Geometry | De-focuses acoustic sound beam and distorts wave paths | Reduces returning echo amplitude and shifts perceived wall thickness | Fit radius-matched delay shoes or select small-diameter contact probes (standard on RX8-DL / PR-9 packages) |
| Porous Protective Coatings | Induces structural scattering and acoustic damping | Distorts echo phase and attenuates high-frequency signal energy | Switch directly to ThruPaint™ multi-echo mode (PZX / CMX Series) |
| Contact Pressure Shifts | Variable couplant compression layer | Produces operator-dependent reading variations | Maintain steady probe contact pressure or use fixtured holders |
Metrological Traceability & Calibration: To ensure inspection data holds up during quality audits, testing routines utilize two-point calibration: setting the electronic zero offset on a thin step and acoustic velocity on a thick block to guarantee linearity across the entire measuring range.
All measurement modes across the QTG, CX, ZX, PZX, PCX, CMX, PMX, and MX Series comply with core international non-destructive testing codes:
- ASTM E797 / E797M: Standard practice for manual pulse-echo contact thickness measurement.
- ISO 16809 & EN 15317: Verification and characterization benchmarks for industrial ultrasonic thickness equipment.
- SAE ARP2654A & ASME Section V: Quality baselines for aerospace thin-walled components, boiler headers, and pressurized refinery assets.
