Unplanned structural failures wipe out operating budgets in an instant.
The PAUT vs UT decision determines how fast you catch flaws. Phased Array Ultrasonic Testing (PAUT) steers beams electronically using multi-element probes, whereas conventional Ultrasonic Testing (UT) uses a single transducer for direct readings.
This guide breaks down phased array vs ultrasonic testing to help you pick the right tool for your budget and compliance needs.
Key Takeaways
- Core Technology Difference: Conventional UT relies on a single transducer for direct A-scan readings, while PAUT uses multi-element probes to steer sound beams electronically across multiple angles.
- Primary Applications: Use conventional UT for fast corrosion mapping, routine wall thickness checks, and coated pipe testing. Reserve PAUT for critical weld evaluations and complex geometries.
- Thru-Paint Capability: Modern conventional UT gauges utilize Echo-Echo (ThruPaint™) technology to measure base metal thickness without stripping surface coatings.
- Cost & ROI: Conventional UT features low capital expenditure and quick operator training, whereas PAUT requires higher initial investment and specialized Level II or III certifications.
- Hybrid Strategy: Deploying portable conventional UT gauges for routine thickness checks alongside PAUT for high-risk welds optimizes both inspection speed and equipment budget.
What is Conventional Ultrasonic Testing (UT)?
We will state it plainly: conventional Ultrasonic Testing (UT) remains the unapologetic, reliable workhorse of industrial material testing. Conventional UT sends ultrasound waves into a material through a single transducer, requiring physical probe manipulation or wedge replacement to achieve angle changes.
How It Operates
Your single-element probe shoots a focused acoustic beam straight into a metal plate or pipe wall at a fixed angle. The moment that sound wave hits an interface (such as the inner back wall of a corroded steel vessel or a hidden internal crack), it reflects directly back to the sensor. The unit captures this echo and displays a clean, signal-spike graph known as an A-scan. (And every quality assurance manager who relies on direct numerical thickness readouts knows exactly what we are talking about!)
Key Features & Technical Capabilities
- Thru-Paint / Echo-Echo Performance: Precision instruments (such as our PZX Series and PMX Series precision thickness gauges) come equipped with ThruPaint™ (Echo-Echo) functionality. This feature measures the underlying metal thickness straight through painted or coated surfaces, eliminating the need to scrape or strip protective layers beforehand. That saves field crews hours of tedious surface prep on site!
- Dedicated Wall-Thinning Evaluation: Dedicated corrosion meters (such as our CMX Series and MX Series) feature large displays equipped with both A-Scan and B-Scan options, allowing technicians to map pipeline wall loss visually.
- Full Standard Compliance: These dependable instruments adhere strictly to established global testing codes, keeping your team fully aligned with ASTM E797 (for manual pulse-echo thickness measurement), ASME Section V, ISO 16809, and EN 12668.
- Grab-and-Go Portability: Entry-level models (such as our ZX Series and menu-driven QTG Series) are compact, lightweight, easy for technicians to operate with zero specialized training, and ready to record accurate measurements the moment they are turned on.

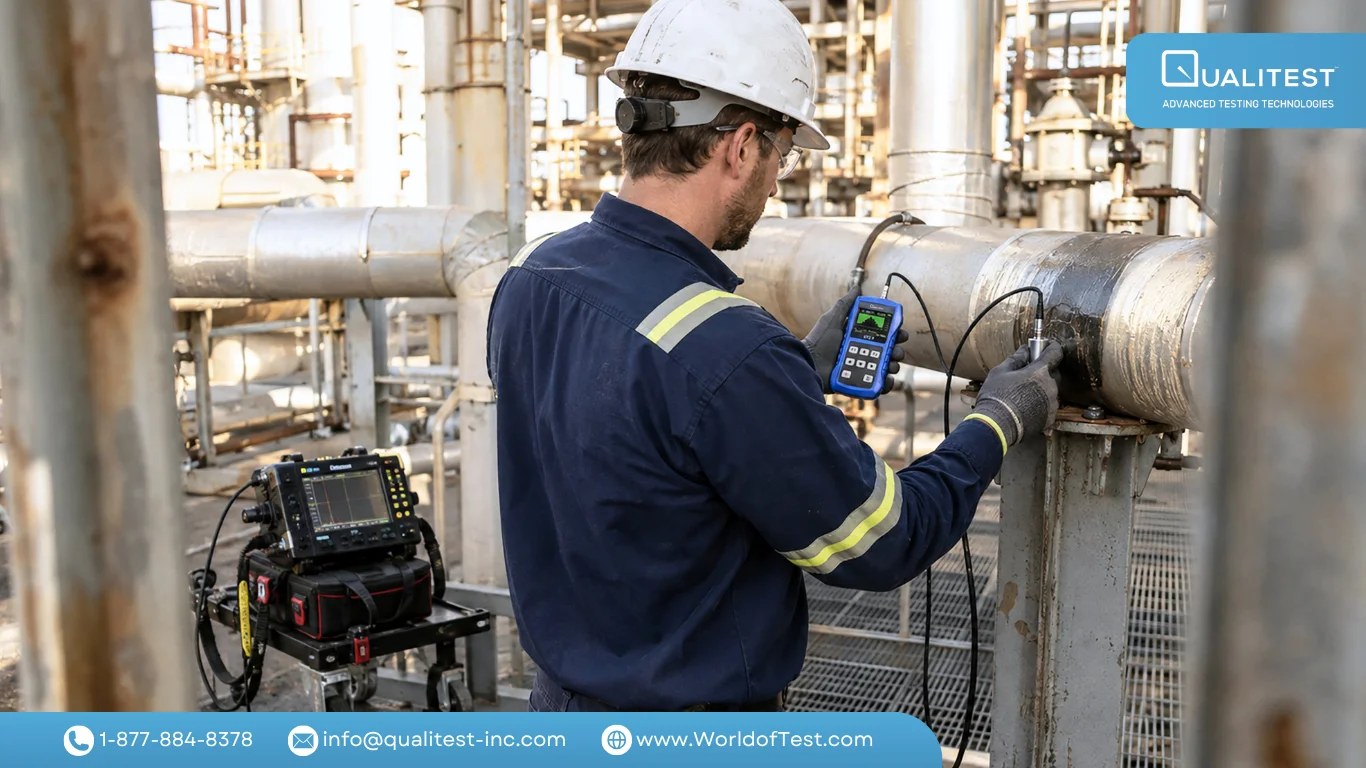

- Typical Field Scenario (Refinery Piping Maintenance): Consider an offshore maintenance crew performing routine corrosion screening across hundreds of painted elbow joints on a chemical processing line. Equipping technicians with a hand-held PZX Series or QTG Series gauge lets them take dozens of precise thickness readings through protective paint coatings per hour, avoiding time-consuming grit blasting or coating re-application.
In our view, comparing phased array vs ultrasonic systems frequently proves that conventional UT remains pure perfection for fast, point-by-point wall thickness verification.
What is Phased Array Ultrasonic Testing (PAUT)?
If standard UT is a focused spotlight, Phased Array Ultrasonic Testing (PAUT) is a high-resolution wide-angle scanner. Rather than relying on a single piezo-element, PAUT probes employ 16 to 256 individually controlled piezoelectric elements, each fired in a programmed time-delayed sequence so that the superimposed wavefront steers and shapes the resultant beam.
How It Operates
This electronic beamforming allows PAUT to perform sectorial (S-scan) and linear scanning at multiple angles simultaneously, effectively equivalent to having multiple single-angle probes operating at once.
Furthermore, PAUT's focusing capability concentrates acoustic energy at desired depths, yielding higher sensitivity and resolution than the unfocused beams typical of single-element transducers. In composite testing, PAUT has detected flaws as small as 0.8 mm with penetration depth up to 25 mm, overcoming limitations like high attenuation and low signal-to-noise ratio (SNR) in anisotropic materials.
Key Features & Technical Capabilities
- Multi-Angle Visual Mapping: Sweeps across a wide angular spectrum (40° to 70°) at once, generating color-coded cross-sectional images (S-scans and B-scans).
- Precise Flaw Sizing: Provides a detailed visual representation of internal material conditions, making it straightforward to calculate defect depth, length, and exact spatial orientation within a weld joint.
- Wider Coverage Speed: Evaluates large volumetric weld zones in a single pass, shortening overall inspection windows on thick joints.
- Typical Field Scenario (Heavy Vessel Weld Inspection): In a heavy manufacturing facility inspecting thick circumferential butt welds on a reactor pressure vessel, a PAUT probe mounted on a manual crawler sweeps the entire weld volume in a single pass. The system generates real-time sectorial images that immediately highlight sub-surface lack-of-fusion flaws without moving the transducer back and forth.
While advanced multi-element imaging or specialized Ultrasonic Flaw Detectors provide deep insight into internal voids, inclusions, and welding inconsistencies, we often remind client teams that configuring complex focal laws and handling massive data files is not always necessary if your primary goal is basic wall thinning evaluation!
Application Guide & Technical Boundaries: When to Choose UT vs Phased Array
Selecting between these methodologies is not about crowning an absolute winner; it is about matching equipment capabilities with your precise operational needs when evaluating UT vs phased array tools.
From our vantage point as an equipment manufacturer, we frequently advise quality management teams against over-specifying their inspection fleet: deploying an advanced multi-element system solely for routine pipe wall checks is akin to sending a heavy transport truck to deliver a small package!
Choose Conventional UT When:
- Executing Daily Corrosion Checks & Wall Thickness Readings: For monitoring storage tanks, boilers, and insulated steam piping, compact gauges like the ZX Series or multi-functional QTG Series yield immediate, precise digital readings without operational fuss. (Field Scenario: Conducting rapid grid-based wall loss checks on insulated boiler tubes during a scheduled 48-hour plant turnaround).
- Measuring Coated or Painted Equipment: Utilizing ThruPaint™ mode on precision models like the PZX Series lets you measure true metal wall thickness without damaging protective coatings.
- Working in Restricted Field Locations: Lightweight, hand-held UT meters like the CMX Series are built for rope access, narrow ladder climbs, and harsh outdoor job sites.
- Managing Strict Budget Constraints: When capital expenditure must be controlled, entry-level models provide dependable accuracy in line with ASTM E797 standards at an accessible price point.
Choose PAUT When:
- Inspecting High-Risk Structural Welds: In weld inspection specifically, PAUT has become the preferred choice for thick welded sections because it offers faster inspection flexibility, accurate defect characterization, and the ability to scan at various angles while keeping the transducer stationary. (Field Scenario: Verifying 100% volumetric weld integrity on high-pressure gas transmission pipelines prior to commissioning).
- Evaluating Complex Part Geometries: Assessing components with intricate surface contours, such as gear teeth where sector scanning overcomes incomplete volume coverage, or complex geometries adaptable without probe movement.
- High-Speed Automated Production Lines: When you require rapid, automated scanning with complete digital record-keeping while eliminating radiation hazards associated with radiographic testing.
Material & Defect Limitations to Consider:
Despite its advantages, PAUT cannot effectively detect small dense porosity, showing a high miss rate where radiographic testing remains superior, and both methods encounter challenges with defects oriented perpendicular to the ultrasound beam. Furthermore, material structure plays a major role:
- Austenitic Stainless Steel Welds: In coarse anisotropic materials (such as heavy nuclear piping joints), beam scattering causes severe attenuation. Utilizing Dual Matrix Array (DMA) probes helps overcome acoustic impedance mismatches compared to standard linear arrays.
- Industrial Gear Teeth & Additive Metals: Inspecting complex automotive or industrial gear root profiles benefits from PAUT sectorial scanning to cover geometric dead zones that standard single-element probes cannot reach.
- Aerospace Composite Structures: Detecting internal micro-delaminations down to 0.8 mm in carbon-fiber reinforced polymer (CFRP) panels requires the high energy focusing of multi-element phased arrays.
- Combining Methods: For challenging microcracks and dense porosity in small-diameter pipe welds, combining PAUT with radiographic testing improves overall defect detection rates and prevents missed inspections.
Our Recommended Strategy (The Smart Hybrid Approach): We consider combining both tools to be the most financially prudent choice for industrial facilities. Reserve advanced PAUT equipment for high-risk weld evaluations, and equip your daily field technicians with portable conventional UT thickness gauges (like our CMX or PMX Series) for high-volume wall thinning checks.
Key Differences & Total Cost of Ownership: Ultrasonic Testing vs Phased Array
When comparing ultrasonic testing vs phased array instruments, examining the complete financial picture gives you a clear view of overall operational value:
1. Equipment Capital vs. Ongoing Expenses
- Conventional UT: Exceptionally easy on your capital budget. Transducers are economical, replacement components are readily accessible, and annual calibration costs remain low.
- PAUT: Requires a larger upfront capital commitment for multi-channel flaw detectors, array probes, and analysis software, alongside higher long-term probe maintenance costs.
2. Personnel Training & Labor Overhead
- Conventional UT: Operates on standard Level I or II NDT certification frameworks. Training courses are concise, enabling technicians to become field-ready quickly without excessive training costs.
- PAUT: Demands specialized Level II or III certifications. Under SNT-TC-1A and CP-189 guidelines, formal PAUT certification requires roughly 80 hours of dedicated training on top of an 80-hour conventional UT prerequisite, doubling the initial training investment before technicians are fully field-ready.
From our perspective as equipment suppliers, standard UT gauges (such as our ZX and QTG Series) deliver an immediate return on investment for high-volume routine maintenance, whereas PAUT justifies its higher price tag on mission-critical, high-risk assets.
Comparison Summary Matrix
| Attribute / Dimension | Conventional Ultrasonic Testing (UT) | Phased Array Ultrasonic Testing (PAUT) |
|---|
| Beam Steering | Physical probe movement or wedge change | Electronic, multiple angles simultaneously |
| Inspection Speed | Single angle per pass | Simultaneous multi-angle scanning |
| Volumetric Coverage | Point measurements; incomplete volume coverage possible | Comprehensive sector scanning |
| Complex Geometries | Challenging, requires repositioning | Adaptable without probe movement |
| Data Output & Visuals | 1D signal traces (A-scan) | 2D/3D visual slices (B-scan, C-scan, S-scan, 3D) |
| Coating Testing | Measures through paint cleanly using ThruPaint™ mode (PZX/PMX Series) | Measuring through paint requires specific focal law adjustments |
| Compliance Codes | ASTM E797, ASME Sec V, ISO 16809, EN 12668 | ASME Sec V Art. 4, ISO 18563, ASTM E2700 |
| Investment & ROI | Low CapEx/OpEx; fast payback on routine tasks | Higher initial CapEx; best suited for high-risk critical assets |
Qualitest: Reliable NDT Instruments for Your Budget
At Qualitest, we provide industrial crews, plant managers, and testing labs worldwide with durable testing instruments built for challenging field conditions. We offer a comprehensive range of cost-effective ultrasonic thickness gauges engineered for high sensitivity, straightforward operation, and full compliance with global standards like ASTM, ISO, and EN.
Our team stands ready to help you select the ideal instrument for your exact testing requirements and budget.
References (Click to expand)
- Murat, M., Yelbay, H. İ., & Hakan, C. (2016). PoD Analysis of Phased Array and Conventional Ultrasonic Techniques.
- Herceg, A., Maglić, L., Grizelj, B., & Marušić, V. (2023). Comparison of Ultrasonic Phased Array and Film Radiography in Detection of Artificially Embedded Defects in Welded Plates. Materials, 16.
- Kumar, S., Menaka, M., & Venkatraman, B. (2019). Simulation and experimental analysis of austenitic stainless steel weld joints using ultrasonic phased array. Measurement Science and Technology, 31.
- Na, Y., He, Y., Deng, B., Lu, X., Wang, H., Wang, L., & Cao, Y. (2025). Advances of Machine Learning in Phased Array Ultrasonic Non-Destructive Testing: A Review. AI.
- Sharma, S. (2025). Advancements in Non-Destructive Evaluation: A Comprehensive Study on Phased Array Ultrasonic Testing (PAUT). International Journal for Research in Applied Science and Engineering Technology.
- Shi, H., Ebrahimi, M., Zhou, P., Shao, K., & Li, J. (2022). Ultrasonic and phased-array inspection in titanium-based alloys: A review. Proceedings of the Institution of Mechanical Engineers, Part E: Journal of Process Mechanical Engineering, 237, 511–530.
- Soneson, G. R., Matz, N., & Turner, J. A. (2024). Ultrasonic phased array testing to quantify material texture for metal additive manufacturing. The Journal of the Acoustical Society of America.
- Taheri, H., & Hassen, A. (2019). Nondestructive Ultrasonic Inspection of Composite Materials: A Comparative Advantage of Phased Array Ultrasonic. Applied Sciences.
- Uzun, H., & Gustiani, D. (2024). Review of Phased Array Ultrasonic Testing of Weld Joints. Journal of Marine and Engineering Technology.
- Wang, L., & C. (2024). Phased array ultrasonic testing of gear tooth. Cogent Engineering, 11.
- Xie, L., Wang, T., & Zhang, Y. (2021). Comparative experimental study on phased array and X-ray detection of small diameter pipe weld. Journal of Physics: Conference Series, 1885.
