Selecting the Right Ultrasonic Flaw Detector for NDT

What if you could verify total structural integrity deep inside your materials without causing a single scratch?

Ultrasonic flaw detectors make complete internal quality assurance simple. By bouncing high-frequency acoustic waves through solid metals, plastics, and composites, these handheld digital instruments deliver real-time A-scan displays and automated code compliance ratings on the spot.

In this guide, we break down essential ultrasonic principles, compare flaw detectors with thickness gauges, review key selection factors, and highlight field-ready solutions for your quality program.

Key Takeaways

• Non-Destructive Defect Sizing: Ultrasonic flaw detectors use sound waves (0.5 to 25 MHz) to locate internal cracks and voids without damaging materials.
• Flaw Detection vs. Thickness Gauging: Flaw detectors evaluate complete A-scan and B-scan waveforms, while thickness gauges focus specifically on wall thinning.
• Key Selection Specs: Prioritize an IP65 waterproof rating, a 0 to 10,000 mm steel testing range, and built-in software curves like AWS D1.1 and DAC.
• Featured Equipment: The Qualitest QFD-200 Plus handles full flaw detection, while the Qualitest QTG Series manages dedicated wall thickness checks.
• Code Compliance: Satisfies quality assurance standards across construction, oil and gas, aerospace, and power generation per AWS D1.1 and API 5UE.


What is an Ultrasonic Flaw Detector?

An ultrasonic flaw detector is a portable non-destructive testing (NDT) instrument that transmits short-wavelength mechanical sound waves into a material and analyzes reflected or diffracted echoes to detect, locate, and size internal flaws without damaging the test object. The magnitude of the reflected pulse is proportional to the flaw size as viewed from the transmitting probe, and the time-of-flight display indicates the exact distance to the reflector.

In our view, what makes modern digital flaw detectors indispensable is their capability to transform complex acoustic reflections into clear, actionable visual data on screen.

The Basic 4-Step Action:

1. Pulse Emission: A piezoelectric transducer generates a short ultrasonic pulse coupled directly to the test surface.
2. Sound Propagation: The pulse travels through the material at a velocity characteristic of that specific medium.
3. Echo Return: When encountering a boundary between media with differing acoustic properties, energy reflects back as an echo while part continues or diffracts around the flaw tip.
4. Signal Presentation: The instrument plots echo amplitude versus time-of-flight on an oscilloscope screen (A-scan), allowing the operator or algorithm to estimate flaw size and depth.


How Ultrasonic Flaw Detection Works: The Pulse-Echo Principle

Ultrasonic flaw detectors operate by emitting mechanical waves that penetrate material media to great depth, refracting and reflecting when they encounter boundaries between materials with different acoustic impedance. Conventional portable detectors use piezoelectric transducers in pulse-echo mode, where the same probe transmits and receives signals, forming the foundation of many advanced array imaging techniques.

1. Pulse Generation: The main instrument sends a controlled electrical impulse to the handheld transducer probe.
2. Piezoelectric Conversion: A piezoelectric element inside the transducer converts that electrical impulse into high-frequency mechanical sound vibrations.
3. Sound Propagation: Acoustic waves travel through the object at a velocity determined by material density and elasticity (for instance, approximately 5,920 meters per second in carbon steel).
4. Reflection and Reception:
   When the sound wave strikes a far boundary or encounters an internal crack, a portion of the acoustic energy reflects back. Acoustic reflection occurs due to a change in acoustic impedance at the interface:
   Acoustic Impedance (Z) = Material Density × Sound Velocity
5. Signal Presentation: The transducer receives the returning echo, converts it back into an electrical signal, and displays an A-scan waveform showing time-of-flight (depth) versus echo amplitude (defect severity).

Conventional single-element probes easily form blind spots in the 2 to 3 mm near-surface region, a limitation that phased array instruments compensate for with higher detection flexibility. Despite technological advances, the physical principles underlying ultrasonic flaw detection limit defect dimension measurement accuracy to approximately 1 mm error margin.

The Role of Couplants and Surface Preparation

An essential practical factor to remember: high-frequency ultrasound cannot travel through air gaps. A layer of liquid or gel couplant must be applied between the transducer face and the material surface to eliminate trapped air.

The acoustic impedance of the couplant directly affects energy transmission. In fact, comparative research shows that viscous substances like honey can even outperform water and baby oil in flaw sizing accuracy during carbon steel weld testing.

Selecting the proper couplant depends on your workspace conditions, temperature levels, and testing angle:

• Standard Ambient Gel: Best for smooth metallic plates, flat shop welds, and general laboratory testing.
• High-Viscosity Paste: Recommended for overhead testing, vertical pipe walls, and rough cast surfaces where liquid gels run off quickly.
• High-Temperature Paste: Formulated specifically for hot pipeline and refinery inspections operating at temperatures up to 500°C without vaporizing instantly.
• Water / Immersion Systems: Used in automated production lines where components are submerged for continuous testing.

Proper surface preparation is equally important. Heavy scale, loose rust, and thick paint coatings attenuate sound waves and distort signal amplitude. Wire brushing or light grinding ensures clear sound transmission and accurate echo evaluation.

Ultrasonic Flaw Detector vs. Ultrasonic Thickness Gauge: What is the Difference?

We frequently see equipment buyers confuse Ultrasonic Thickness Gauges (UTG) with Ultrasonic Flaw Detectors (UFD) during procurement. Clarifying this distinction is vital to ensuring you select the correct tool for your application:

• Ultrasonic Thickness Gauge (UTG): Dedicated instruments like our Qualitest QTG Series (QTG I and QTG II) cover this spectrum with straightforward Pulse-Echo measurement, while our Qualitest PZX Series adds specialized ThruPaint (Echo-to-Echo) technology to measure underlying metal thickness directly through painted coatings without stripping protective paint.
• Ultrasonic Flaw Detector (UFD): Displays complete waveform visualization (A-scan and cross-sectional B-scan displays). It allows inspectors to identify flaw depth, orientation, defect type, and signal amplitude. Flaw sizing techniques are generally grouped into amplitude-based, temporal, imaging, and inversion categories, each with distinct practical applications.

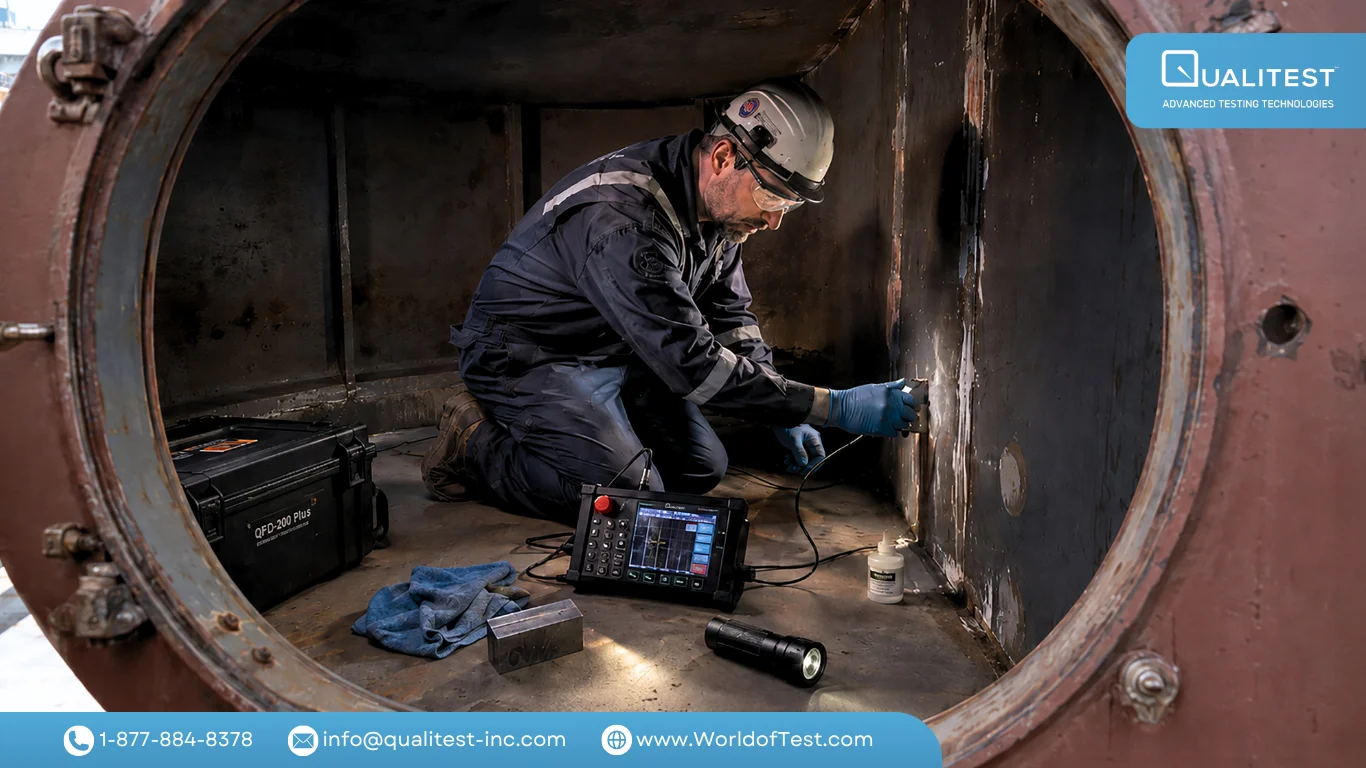

Typical Facility Workflow Scenario

To visualize how this operational distinction works during plant maintenance, consider a standard chemical processing facility inspection:

• Thickness Measurement Scenario: When evaluating shell wall thinning on an acid storage tank, a technician uses a dedicated tool like the Qualitest QTG III with Thru-Paint technology to measure underlying steel thickness directly through 2 mm of protective epoxy coating without stripping the paint.
• Flaw Detection Scenario: When inspecting the load-bearing support leg welds on the same tank for subsurface fatigue cracking, the technician switches to the Qualitest QFD-200 Plus Flaw Detector with a 70° angle beam probe to evaluate internal sound paths, flaw orientation, and echo amplitude.


Key Components & Technologies in Modern Flaw Detectors

1. Transducer Probes and Switching Circuits

The probe serves as the primary sensor for detecting hidden material flaws. Modern detectors use specialized switching circuits to select among angle-beam, normal-beam, and combined transmit-receive probe configurations:

• Straight Beam Probes: Emit longitudinal waves perpendicular to the surface; ideal for thickness gaging, plate lamination checks, and internal voids.
• Angle Beam Probes: Emit shear waves at set angles (45°, 60°, or 70°); essential for inspecting weld seams and vertical cracks. 70° angle probes are preferred for weld plates under 25 mm thickness, while the 45° to 70° range covers varying joint geometries.
• Dual-Element Probes: Feature separate transmitter and receiver elements, providing clear readings on thin materials or corroded pipe walls. Specialized corrosion gauges like the Qualitest CMX Series rely on dual-element configurations specifically to track internal pipeline wall loss and pitting.


Transducer Frequency Reference Guide

Higher transducer frequencies improve spatial resolution, but this comes at the cost of reduced penetration depth, creating a trade-off that depends on the material properties and expected defect sizes.

2. Pulser-Receiver Units

The pulser controls pulse frequency and acoustic energy. We recommend instruments featuring adjustable Pulse Repetition Frequency (PRF) from 20 Hz to 2,000 Hz, allowing fast manual scanning across large plates without signal wraparound.

3. Display Visualization Modes

Digital flaw detectors present inspection data in multiple formats:

• A-Scan: The standard 2D plot showing time-of-flight along the horizontal axis and echo amplitude on the vertical axis.
• B-Scan: A cross-sectional profile view providing a visual depth map along the scan path. While standard flaw detectors feature full B-scan mapping, advanced thickness gauges like the Qualitest QTG IV also integrate A-scan and B-scan displays to bridge the gap between simple thickness tools and full waveform evaluation.
• Color B-Scan: Uses color gradient intensity to represent echo height, helping operators identify corrosion pitting quickly.


4. Software Evaluation Tools

Built-in evaluation curves simplify compliance and eliminate manual calculations:

• DAC Curves: Equalizes signal amplitude across varying material depths to compensate for acoustic attenuation.
• AVG / DGS: Evaluates flaw size relative to an equivalent flat-bottom hole reference standard.
• AWS D1.1 Weld Rating: Calculates weld defect severity (D-value) automatically for structural steel compliance.


5. Equipment Calibration & Reference Standards (IIW V1, V2 Blocks)

Calibration against a standard reference block with known sound velocity and dimensions is essential to minimize measurement errors. When calibrated speed of sound and material thickness are verified, equipment achieves a maximum measurement error of roughly 0.8%.

• IIW Type 1 (V1) Block: Used to verify time base scale, sound velocity, zero offset, and angle-beam probe index points.
• IIW Type 2 (V2) Block: A compact field calibration block ideal for quick angle checks in space-restricted areas.

Because one incompatible parameter configuration can compromise inspection validity, operator knowledge and proper parameter selection remain critical to mitigate parameter errors.

What Types of Defects Can You Detect?

Ultrasonic flaw detectors identify a wide range of subsurface and surface-breaking discontinuities across manufacturing processes:

• In Welds: Lack of fusion, incomplete root penetration, heat-affected zone (HAZ) cracking, and slag inclusions.
• In Castings & Forgings: Shrinkage cavities, porosity, internal flakes, and stress bursts.
• In Composites: Layer separation (delamination), unbonded cores, and impact damage.
• In Metal Pipes: Fatigue cracks, stress corrosion cracking (SCC), and wall thinning from internal corrosion.


Practical Industrial Defect Examples

To see how these defect categories apply to specific components, consider these typical industry scenarios:

• Power Generation: Detecting sub-surface thermal fatigue cracking near bolt holes in forged steel steam turbine shafts before final assembly.
• Aerospace Composites: Identifying internal carbon-fiber delaminations caused by minor impact damage on commercial aircraft wing spars.
• Heavy Equipment & Vessels: Locating lack of sidewall fusion buried deep within 50 mm thick heavy-wall pressure vessel girth welds.


Troubleshooting Signal Artifacts, Material Scattering, and False Echoes

Not every echo peak displayed on an A-scan represents an actual defect. Learning to differentiate between genuine flaws, material noise, and non-relevant signal artifacts is a key requirement for inspection accuracy:

• Mode Conversion: Occurs when a sound wave reflects off a geometry corner and converts from a shear wave to a longitudinal wave, creating a secondary ghost peak on screen.
• Surface Contour Reflections: Sound waves bouncing off the weld root bead, crown reinforcement, or backing strip can generate signals that mimic heat-affected zone cracking.
• Grain Noise in Scattering Materials: In coarse polycrystalline metals such as austenitic steel welds, anisotropy and coarse grains scatter and attenuate acoustic signals significantly. Reliable detection requires scan plans that account for wave mode, frequency, and flaw position, or advanced processing like adaptive template matching to separate grain noise from flaw echoes. Using at least two complementary inspection methods based on flaw shape and orientation enables reliable detection in challenging anisotropic materials.
• Defect Height Sizing Limitations: Because equipment manufacturers focus heavily on sensitivity rather than linear defect height measurement errors, assessing defect height near ultrasonic wavelength limits is challenging. Phase spectrum analysis offers a complementary approach that changes more sensitively as defect height increases, even when the defect does not exceed the ultrasonic wavelength.

Consider a standard field scenario during stainless steel pipe weld inspection: an inspector observes an A-scan echo peak at 80% screen height. Rather than declaring a severe root crack, evaluating the beam path using trigonometric sound path calculations reveals that the acoustic wave is simply bouncing off the outer weld root bead geometry. Identifying this surface contour artifact prevents an unnecessary, costly weld cutout.

Advantages of Ultrasonic Testing Over Other NDT Methods

While Radiographic Testing (RT) provides permanent film records, UT offers a safer operational profile on active job sites by using harmless sound waves and eliminating radiation safety zones.

Conventional UT vs. Phased Array (PAUT) and Emerging Innovations

Choosing between Conventional UT and Phased Array Ultrasonic Testing (PAUT) depends on application complexity, inspection speed requirements, and equipment budget:

• Conventional UT: Uses a single transducer element (such as classic Olympus EPOCH 600 style units) allowing parameter adjustments including speed-of-sound input and time-of-flight reference selection. It is highly portable, cost-effective, quick to calibrate, and serves as a dependable tool for routine weld inspections, plate testing, and thickness mapping.
• Phased Array (PAUT): Uses multi-element antenna arrays (16 to 128 elements) to steer and focus sound beams electronically. Phased array detectors compensate for near-surface blind spots (2 to 3 mm) and offer higher inspection flexibility. Their two-parameter assessment capability reduces the probability of missing unacceptable defects by 16% compared to single-parameter conventional inspection.

Emerging Industry Form Factors & Automation:

• Smartphone-Based Detectors: Compact systems pairing a Bluetooth sensor unit with a smartphone for processing, achieving roughly 1% relative error on 5 to 10 mm thicknesses.
• Voice-Controlled Detectors: Portable units integrating offline speech recognition to resolve glove contamination and dark-environment operation issues.
• Automated & AI-Assisted NDT: Automated scanner systems combined with deep learning networks (such as YOLO, SSD, or convolutional neural networks) achieve automated defect classification precision above 84% to 89%, reducing reliance on manual screen interpretation.


Industry Applications & Regulatory Compliance Standards

Ultrasonic flaw detectors are essential quality assurance instruments across major industries:

• Construction & Infrastructure: Inspection of structural steel welds, bridge girders, and skyscraper moment connections according to AWS D1.1 standards (for instance, generating automated inspection logs directly on the QFD-200 Plus for structural engineer sign-off).
• Oil & Gas Pipelines: Inspection of pressure vessels, storage tanks, and cross-country pipelines per API 5UE and ASME Section V codes (such as performing volumetric weld inspections on natural gas transmission lines to satisfy federal pipeline safety mandates).
• Aerospace & Defense: Detecting composite delaminations and turbine blade defects per ASTM E2375.
• Power Generation: Inspecting steam turbine rotors, boiler tubes, and nuclear components.
• Automotive & Manufacturing: Evaluating spot welds, engine blocks, and raw steel billets prior to final machining.


Key Factors to Consider When Selecting an Ultrasonic Flaw Detector

When selecting a portable ultrasonic flaw detector, evaluate potential instruments against these four practical criteria:

1. Detection Range and Frequency Bandwidth

Select an instrument that covers your required material thickness range. We suggest portable units offering detection ranges from 0 to 10,000 mm in steel with broad frequency support (0.2 to 25 MHz), providing high resolution on thin sheet metal as well as deep penetration in heavy forgings.

2. Environmental Protection (IP Rating)

An IP65 rating is essential if your equipment will be deployed in dusty, wet field environments. Sealed keypads and water/dust resistance prevent unexpected equipment downtime on job sites.

3. Built-in Code Compliance Functions

Choose equipment with pre-programmed evaluation software:

• AWS D1.1 for structural steel weld inspection.
• API 5UE for pipeline testing.
• EN 12668-1 for standard equipment verification.

4. Data Logging & Reporting

Select flaw detectors equipped with high-capacity onboard memory, USB data export, real-time B-scan video recording, and automated report creation.

5. Budgeting Factors and Total Cost of Ownership

When evaluating ultrasonic equipment for your facility, consider the complete lifecycle investment rather than just the initial device hardware. Key factors that influence the total project quotation and ongoing operational costs include:

• Included Software & Code Packages: Verify whether standard evaluation curves (such as AWS D1.1, DAC, AVG, and TCG) are pre-loaded in the firmware or require additional software license fees.
• Probe & Accessory Configurations: Required transducers, cables, and calibration blocks (such as IIW V1 or V2 blocks) vary based on material geometry, which directly impacts the initial package setup.
• Environmental Enclosure Ratings: Devices engineered with sealed IP65 enclosures reduce long-term field repair costs and prevent unexpected jobsite downtime.
• Ongoing Service & Calibration: Factor in long-term operational needs, including annual ISO 17025 recalibration, probe replacement wear, and technical warranty support.

Because equipment setups depend on specific material thicknesses, inspection standards, and probe requirements, we recommend contacting our NDT technical specialists to receive a customized quotation matched to your exact testing application.

Featured Solutions: Portable Ultrasonic Testing & Thickness Gauging

To address demanding field requirements, Qualitest offers a complete lineup of non-destructive testing and thickness measurement instruments engineered for industrial reliability.

Flagship Flaw Detection: Qualitest QFD-200 Plus

For full internal flaw detection and structural inspection, the Qualitest QFD-200 Plus Portable Ultrasonic Flaw Detector offers high measurement precision inside a rugged, field-ready enclosure:

• Extended Measurement Range: 0 to 10,000 mm (in steel)
• Rugged Enclosure: IP65 rated waterproof and dustproof
• Built-In Compliance Curves: Automatic AWS D1.1, DAC, AVG (DGS), and TCG functions
• High-Resolution Screen: Real-time color B-scan display and video recording
• Broad Frequency Bandwidth: Supports high-precision probes up to 25 MHz


Dedicated Thickness Monitoring: Qualitest QTG & CMX Series

For targeted wall thickness monitoring and corrosion inspection without full flaw detection requirements, our Qualitest Ultrasonic Thickness Gauges provide tailored solutions:

• QTG Series (QTG I to QTG IV): From entry-level wall thickness gaging to advanced models with Thru-Paint (E-E) measurement and onboard A/B-scan displays.
• CMX Series: Heavy-duty corrosion gauges designed specifically for tracking internal pipe and pressure vessel wall loss.

Whether checking structural steel welds under AWS D1.1 or monitoring pipeline wall thinning at a processing facility, Qualitest provides the measurement accuracy, software automation, and battery life required for field inspections.

Explore Technical Specifications & Request a Quote: See how the Qualitest Ultrasonic Flaw Detector Series and Ultrasonic Thickness Gauges can support your quality inspection workflows.

Select the Right Ultrasonic Flaw Detector with Qualitest

Selecting the proper ultrasonic flaw detector comes down to balancing field portability, software compliance features, testing range, and environmental protection. Integrating a dependable, IP65-rated flaw detector into your testing program ensures accurate defect identification, reduces risk, and simplifies compliance reporting.

Need assistance selecting the ideal flaw detector or probe setup for your operations? Contact our team of technical specialists at Qualitest today to discuss your testing requirements or request an equipment demonstration.
