How to Choose Ultrasonic Thicknesss Gauge Guide
Qualitest Team

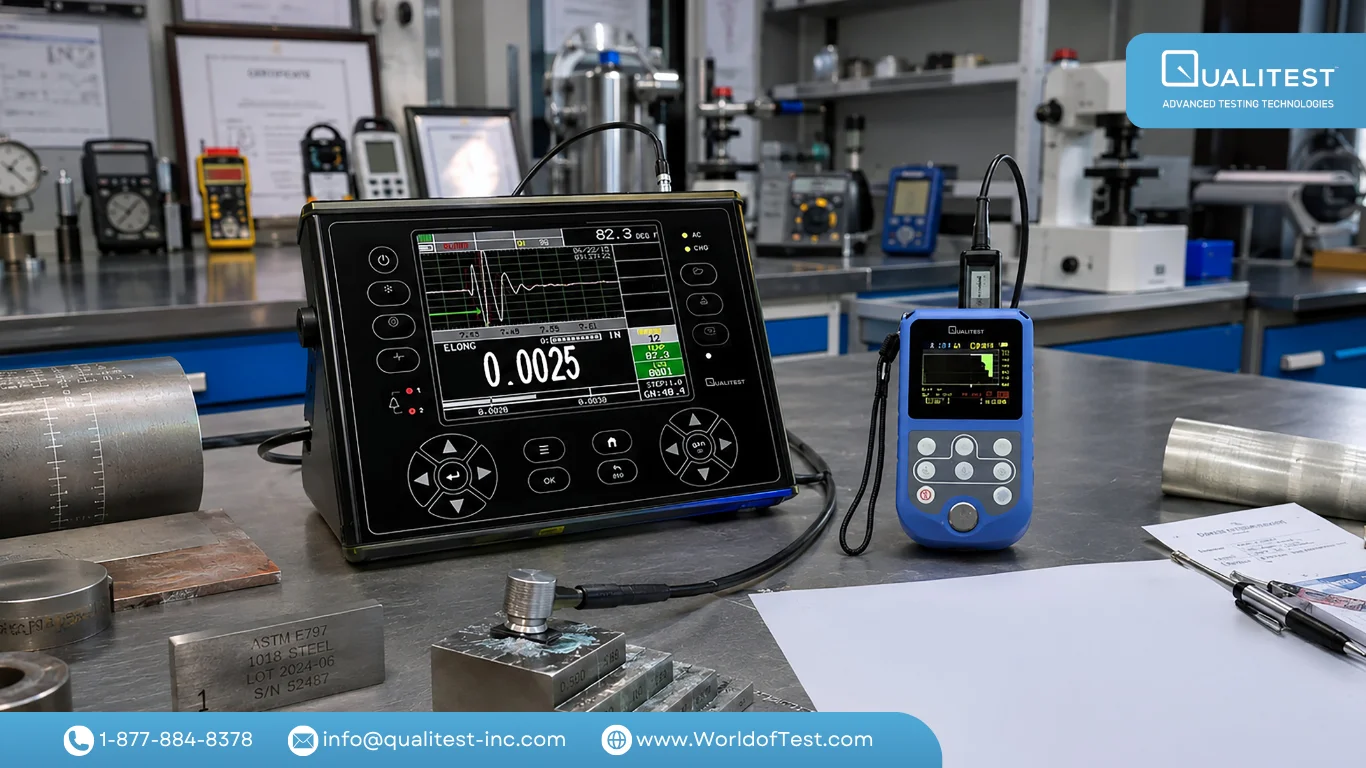

How to Choose Ultrasonic Thicknesss Gauge Guide

Securing your plant's structural integrity with the proper measurement setup is the most reliable way to guarantee seamless operations and maximize equipment lifespan. If you want to know how to choose ultrasonic thicknesss gauge instruments that deliver satisfyingly spot-on results, this guide provides a quick, practical roadmap.

Key Takeaways

  • Match your hardware to your required thickness span first, as distinct measurement techniques cover vastly different material depths.
  • Check material wave speed compatibility and sound attenuation before relying on catalog accuracy.
  • Choose your specific testing mode (such as standard Pulse-Echo or advanced Echo-to-Echo for painted substrates) based strictly on surface conditions.
  • Treat your sensor choice as a top priority, ensuring frequency, thermal tolerance, and technology like EMAT match your specific metals or extreme heat limits.


1. Aligning Material Properties and Measurement Modes

Before you even think about signing off on a new purchase order, you need to know exactly what kind of physical material you are shooting acoustic waves into. You must match the testing gadget to your expected structural depth span first, because different acoustic methods cover vastly different measurement spans.

Are you sizing up flexible plastic sheets, thick cast-iron water pipes, or weirdly layered composite blocks? You must check material compatibility, including sound attenuation and wave-speed behavior, before blindly trusting the quoted accuracy printed on the cardboard box.

For routine steel or aluminum parts sitting at standard room temperatures, a standard contact pulse-echo system is usually the most straightforward starting point. The standard pulse-echo method is fantastically suited for clean, bare metal sections generally ranging up to about 300 mm.

For example, our highly economical, menu-driven QTG Series (QTG I and QTG II) perfectly utilizes this technology, shooting a localized sound beep and timing how long it takes to bounce back.

If your facility regularly measures a completely wild variety of materials, relying on a highly versatile instrument like our PCX Series or the CX Series will accurately calculate material thickness and velocity across nearly any material you throw at it.

Then there is the massive headache of protective industrial paint. If you have a painted metal pipe, are you really going to manually strip off that protective layer? (In our view, that is a massive waste of precious labor hours!) Echo-to-Echo settings tell the machine to completely ignore the paint layer (just like our highly precise PZX Series units do with ThruPaint™ tech) and only size up the real structural metal hiding underneath. If your surface is hot, rough, coated, physically moving, or completely inaccessible, choose a hardware architecture built specifically for those ugly conditions.


Consider a typical dry dock scenario: A field technician must inspect a colossal vessel hull layered in thick, rubbery anti-fouling paint. Forcing that crew to manually grind down the protective coating at every single testing location is an incredibly wasteful expenditure of hard-earned labor hours.

By utilizing a high-spec Echo-to-Echo device like our CMX Series (which is specifically engineered for severe corrosion applications and actively tracks paint thickness), the technician can measure right through the paint. Meanwhile, checking a clean, bare aluminum structural wing panel on an aircraft is a remarkably great fit for a standard Pulse-Echo setup, which gets the job done quickly with satisfyingly spot-on results.

2. Evaluating Core Instrument Specifications

Trying to make sense of an ultrasonic thickness gauge specification sheet can trigger serious eye fatigue. But instead of getting lost in a confusing sea of technical numbers, here are the non-negotiable details you need to watch.

Thickness Range and Resolution

Make sure the device can read both the paper-thin sheets and the chunky metal blocks with satisfyingly spot-on accuracy. For very wide inspection requirements, look for multi-method setups or advanced processing methods that drastically improve your signal strength and distance resolution. If your facility needs automated mapping of curved or exceptionally large parts, choose an on-machine scanning system equipped with physical posture control.

Thermal Calibration

For temperature-varying parts, prefer systems packed with strong calibration features and thermal compensation tools. Changing temperatures will severely mess with your sound speed, which is a major source of inspection errors.

Visual Display Types

A basic screen that just spits out a plain number is completely fine for quick spot checks. However, if you want to be absolutely sure you are getting a legitimate reading, you want the live, wavy color graphs found in our MX Series and PMX Series. Those units feature large, easy-to-read displays that offer both A-Scan and B-Scan visual options for hyper-precise measurements.


Consider a classic chemical refinery scenario: A testing technician is checking an old acid storage tank that has developed severe internal localized pitting and hydrogen blistering. A basic digital screen might capture the echo from the top of an internal blister and output a completely safe thickness number.

However, by using a live A-Scan waveform (or by bringing in our dedicated Ultrasonic Flaw Detector which is purposely designed for precise flaw detection of internal cracks, voids, and welding inconsistencies), the operator can see the true reflection profile on the spot, completely preventing a disastrous, false safe reading on a dangerously thinned metal wall.

3. Selecting the Correct Transducer

A lot of folks get totally obsessed with the main plastic box of the device. However, we strongly believe the little probe on the end of the connecting wire is where the real technical magic happens.

Frequency and Sensor Technology

Low-frequency probes act like deep-penetrating acoustic pulses that can punch sound right through thick, stubborn cast iron. High-frequency probes provide ultra-fine structural resolution.

For paper-thin sections, you should ask whether the system supports higher-frequency or resonance-based measurement rather than just basic pulse-echo configurations. Additionally, for harsh metallic environments, an EMAT-based gadget works wonders because it completely avoids the annoying dependence on messy liquid couplants.

Specialized Testing Demands

You absolutely must match the tool to the trade. For example, if you are working in the highly demanding automotive racing sector, a standard pipe probe will not cut it. You need specialized tools like our Racing Thickness Gauge Sonic Tester (PR-9) or the Sonic Tester RX8-DL, which are ideally suited for checking heavily machined cylinder walls, head ports, racing decks, chassis tubing, and custom body panels.

High-Temperature Durability

If you are pressing a probe against a sizzling hot boiler pipe, standard sensors will absolutely fail above roughly 250°C. For these scorching scenarios, waveguide-based high-temp gauges are the only relevant choice for long-term monitoring. The physical waveguides protect the fragile transducer from melting into a ruined, useless component.


Consider a power generation scenario: Active high-pressure steam pipes regularly exceed temperatures of 400°C. Pressing a standard acoustic probe against that blistering hot steel will fry the sensor in a matter of seconds.

In this situation, utilizing a dry-coupled waveguide system allows the plant to safely monitor the remaining metal thickness on a live line without forcing a massive, outrageously expensive facility shutdown.

4. Comparative Analysis of Instrument Models

If you are hunting for the best ultrasonic thickness gauge for your crew, you do not necessarily need the most outrageously expensive machine with fifty buttons your technicians will never press. It is all about finding something that happily handles your daily operational grind.

Here is a quick, highly readable breakdown of how our core Qualitest models stack up side-by-side:

Model SeriesPrimary Application AreaNoteworthy Technical AdvantagesMeasurement Mode
ZX SeriesNo-fuss daily checksHighly cost-effective, straightforward operation requiring no specialized trainingPulse-Echo
PZX SeriesTackling painted partsThruPaint™ tech that expertly ignores coatingsPulse-Echo & Echo-to-Echo
MX SeriesHeavy fieldwork with lots of notesLarge, easy-to-read displays; saves heaps of data so you do not lose your mindPulse-Echo (with A-Scan/B-Scan)
PMX SeriesHigh-precision visual workFull-color live wave graphs for incredibly accurate evaluationPulse-Echo & Echo-to-Echo
CMX SeriesGnarly, rusty corrosion checksHeavy-duty construction, specifically tracks paint thickness tooPulse-Echo, Echo-to-Echo, & Coating Measurement

(Side Note: If your structural integrity checks also require monitoring heavy industrial fasteners, do not forget to look at our Bolt Tension Monitor BT1-DL or the Benchtop Bolting System Model BT2, which accurately measure fastener elongation, load, stress, and strain down to the nanosecond!)

Find the Best Ultrasonic Thickness Gauge at Qualitest

We believe that acquiring reliable acoustic testing instruments should not exhaust your capital budget. Our global mission is to provide highly cost-effective products that handle challenging field assignments without added complexity.

If you are ready to modernize your physical testing procedures, explore our complete selection of cost-effective and high-precision ultrasonic thickness measurement devices. Contact our specialists to discuss your testing needs.
