Introducing our programmable Sand & Dust Test Chamber, meticulously crafted by Qualitest to evaluate the resilience of mechanical, electrical, and electronic equipment in dry sand or dusty environments. Ideal for automotive parts and electronic components, this chamber ensures durability and operational integrity under challenging conditions.

Key features include precise time and temperature control, built-in safety measures, soundproof design, and a convenient cable port for seamless testing. Shake off dust effortlessly with the integrated vibrator function. Trust Qualitest for reliable sand and dust testing solutions.

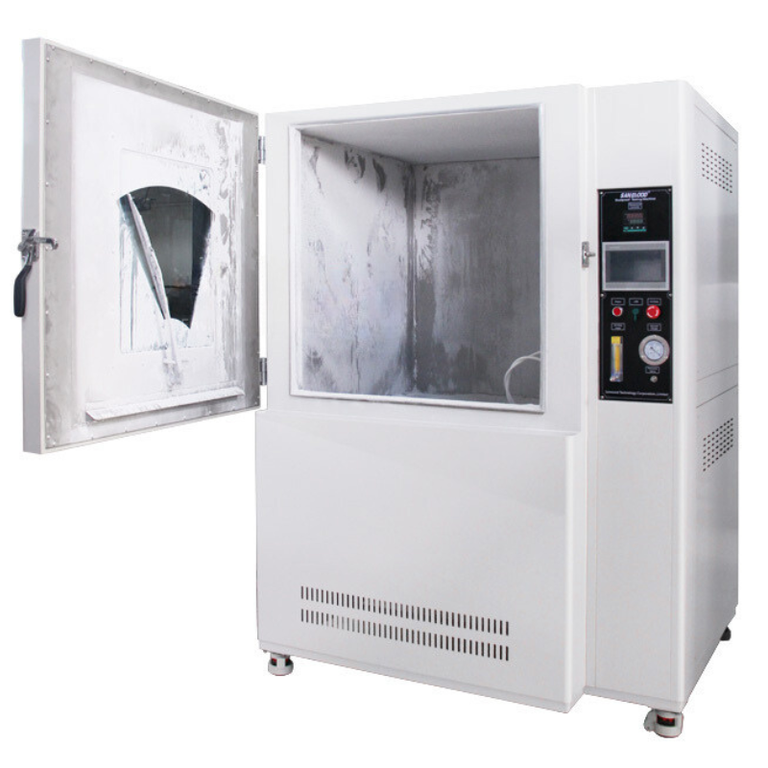

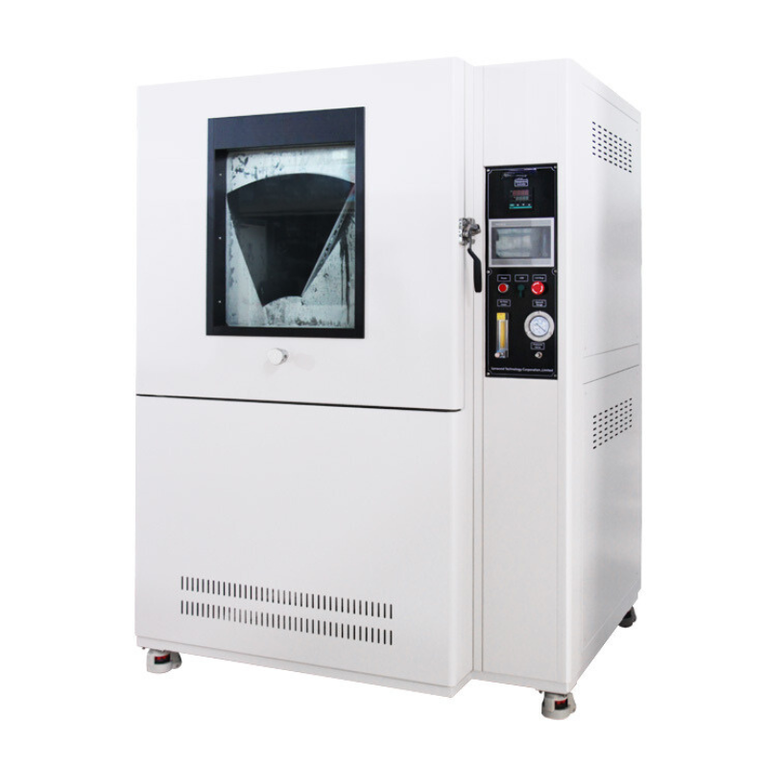

Sand & Dust Test Chamber Overview:

dust test chamber, sand test chamber

The programmable Sand and Dust Test Chamber from Qualitest is designed to assess the durability of various mechanical, electrical, electronic, electrochemical, and electromechanical equipment when exposed to dry sand or dusty atmospheres. Typical applications for our Sand and Dust Test Chambers are for assessing automotive parts and electronic components. It evaluates their resistance to such conditions and their ability to function and remain operational.

dust test chamber, sand test chamberdust test chamber, sand test chamber
dust test chamber, sand test chamberdust test chamber, sand test chamber

Sand & Dust Test Chamber Key features include:

  • Precise control of time and temperature through the controller.
  • Equipped with an air switch to prevent overcurrent and short circuits.
  • Dustproof socket for added protection.
  • Soundproof cotton lining on both sides effectively reduces operational noise.
  • Convenient cable port for easy power-on testing.
  • The Vibrator functions to shake off dust adhering to chamber walls, maintaining the required test concentration.

Sand & Dust Test Chamber Technical Specifications:

Model

QT-SDC-500CQT-SDC-1000CQT-SDC-2000

Testing room volume

500L1000L2000L
Technical
Characteristics		Standard Spacing Of

50um

Standard Spacing

75um

Amount of Talc

2Kg/m2~4Kg/m2

Dustfall Form

1. Free fall dust type: The dust is blown to 1/5 of the tank top by centrifuge to make it free-settling

2. Dust blowing: Bottom air blast, three grades pressure is adjustable

Size

Inner Size

800*800*8001000*1000*10001000*2000*1000

Outer Size

1450*1700*10001650*1900*12001650*2900*1200
Control systemTesting Room

Advanced brushed stainless steel

Testing Room

Cold plate rust proof and plastics proving treatment

Operation Panel

Digital smart touch key input

Operation Mode

Constant operation

Input

PT-100 sensor

Auxiliary Function

Timing
Standard ConfigurationWith dust drying device. vibrator. sample holder. observation window (door)
Safety ProtectionOverload breaking protection, earthing protection, etc
Power SupplyAC380V TN-S
