Semi Auto Drop Tester QDT-Semi-Auto-A2

Parent Product

Semi-Auto Drop Tester for Electronic Products

Standards

IEC 60068-2-32

View PDF

Semi Auto Drop Tester QDT-Semi-Auto-A2

Semi Auto Drop Tester QDT-Semi-Auto-A2 is built to assess how product performance is affected when accidentally dropped during everyday use. Ideal for small consumer electronics—including mobile phones, tablets, e-readers, telephones, electronic dictionaries, headphones, chargers, batteries, and remote controls—this tester delivers precise impact targeting to the intended areas.

Compliance Standards

IEC 60068-2-32 – Environmental Testing for Electrical and Electronic Products, Part 2: Test Method 1 – Free Fall

Semi Auto Drop Tester QDT-Semi-Auto-A2 Features

Reliable Height Adjustment
Equipped with a Panasonic servo motor and synchronous pulley system, the drop height adjustment mechanism is built for long-term durability.
Advanced Touch Control Interface
Features an MCGS touch screen and Mitsubishi PLC for action control and settings. Drop height can be entered directly, and the system automatically stops when the target height is reached. The interface handles all functions, including drop height, suction height, reset, drop count, and speed measurement. Power-down memory ensures data is retained after shutdown.
Precision Drop Angles with Vacuum Chuck
Uses a vacuum chuck to securely hold the mobile device. With selectable angles of 0°, 45°, and 90°, it enables accurate edge, corner, and flat surface drops.
Seven Drop Positions with Height Compensation
Offers seven selectable drop locations. The system automatically adjusts the drop height to maintain consistency across different drop points.
Accurate Drop Alignment
Devices are dropped from a height of 300 mm, maintaining alignment close to the set test angle for accurate impact simulation.
Enclosed Safety Structure
Built with an aluminum frame and fully enclosed housing, including a safety door. In automatic mode, tests begin only when the door is closed. The door locks during testing and unlocks only when the cycle is complete. In manual mode, the safety door remains unlocked for flexible operation while still enhancing safety.
Durable Pneumatics
All pneumatic components are high-performance and reliable, ensuring long-term durability and stable operation.
Multiple Drop Surface Options
Compatible with a variety of drop plates, including steel, wood, and marble, to meet international testing standards.
Automatic Drop Count Function
The device tracks drop cycles automatically and stops once the preset number of drops is completed.

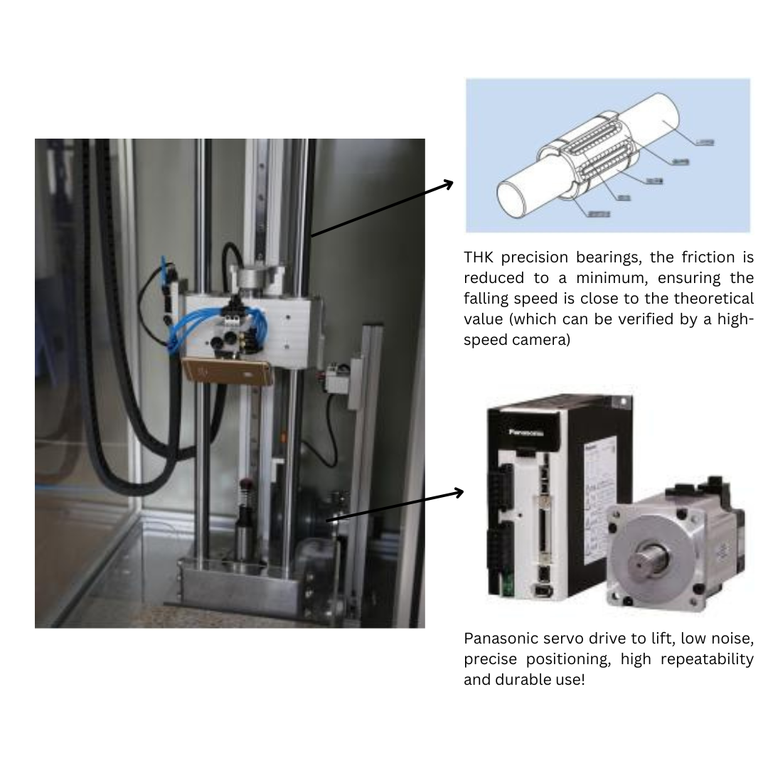

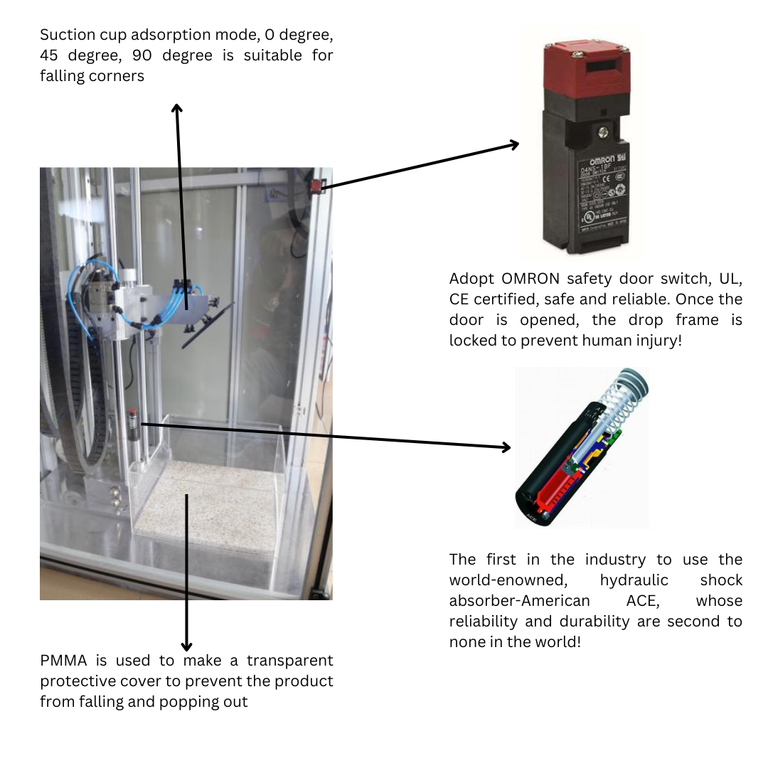

Detail of the machine

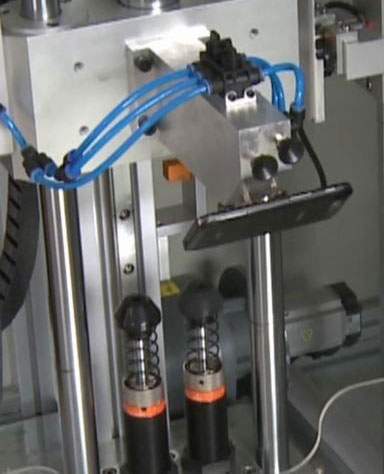

Edge test

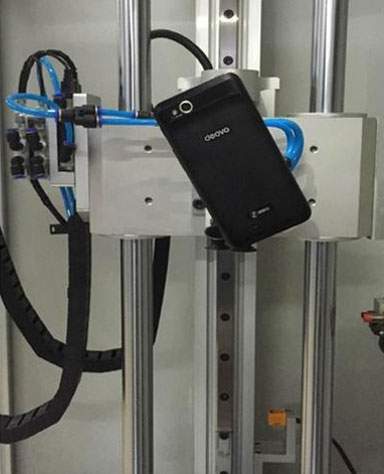

Corner test

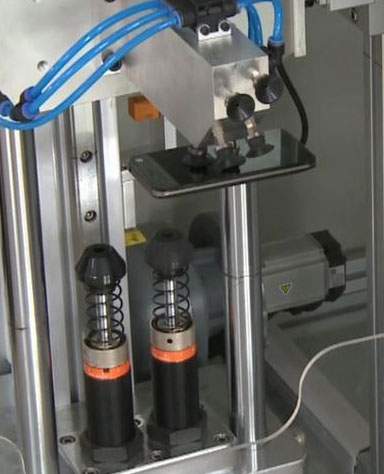

Face test

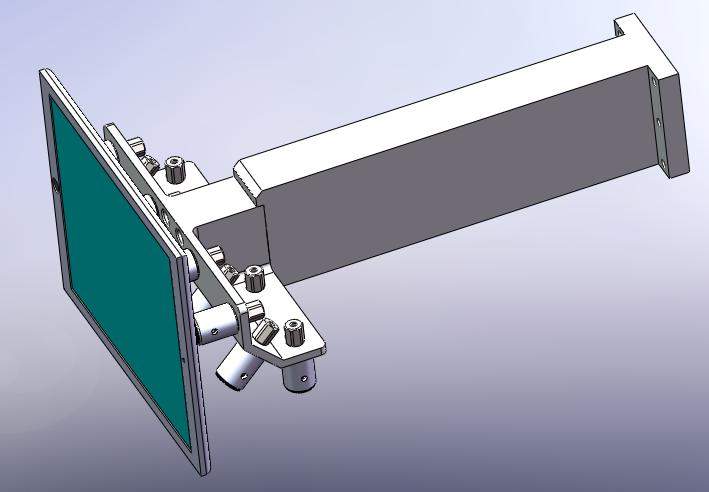

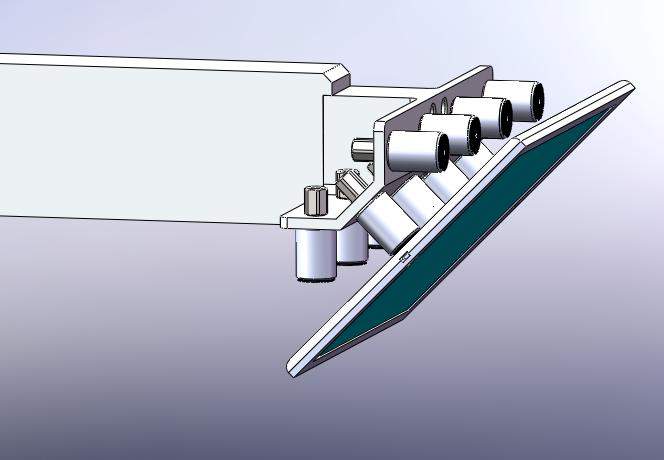

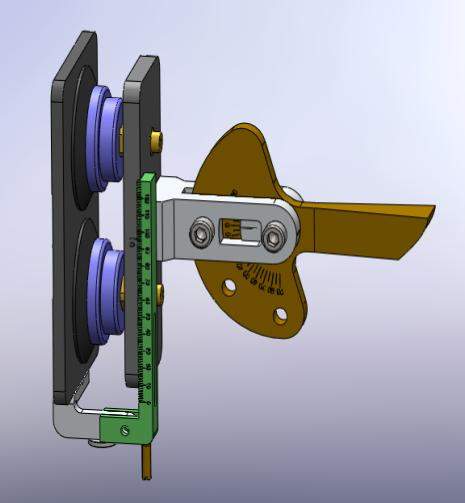

A variety of optional adsorption and clamping fixtures

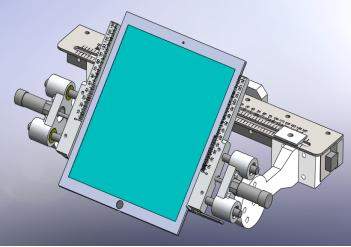

Optional large-size adsorption fixture to meet the drop test of large-size products such as pad and laptops

Clamping Fixtures Detail

Dual Vacuum Suction System
Equipped with a dual vacuum suction device capable of handling products up to 2 kg, this system supports edge, corner, and surface drop testing. It offers three positioning modes—0°, 45°, and 90°—for accurate drop orientation.

Product Compatibility
Supports devices up to W220 × L200 × D20 mm, meeting the testing needs of mobile phones, tablets, e-readers, electronic dictionaries, and similar compact electronics.

Double-Cylinder Clamping Fixture
Features a double-cylinder clamping fixture with a maximum clamping capacity of 5 kg, suitable for edge, corner, and surface drop testing. Supports four positioning modes—0°, 45°, 90°, and 135°—for versatile drop configurations.

Product Compatibility
Accommodates devices up to W220 × L200 × D20 mm, making it ideal for testing mobile phones, tablets, e-readers, electronic dictionaries, and other compact electronic products.

3×2 Vacuum Suction Device
Equipped with a 3×2 vacuum suction system, this device supports a maximum suction weight of 2 kg and is designed for edge, corner, and surface drop testing. It offers three positioning modes—0°, 45°, and 90°—for precise drop control.

Product Compatibility
Supports products up to W200 × L210 × D20 mm, meeting the drop testing requirements for mobile phones, tablet PCs, e-readers, electronic dictionaries, remote controls, and similar devices.

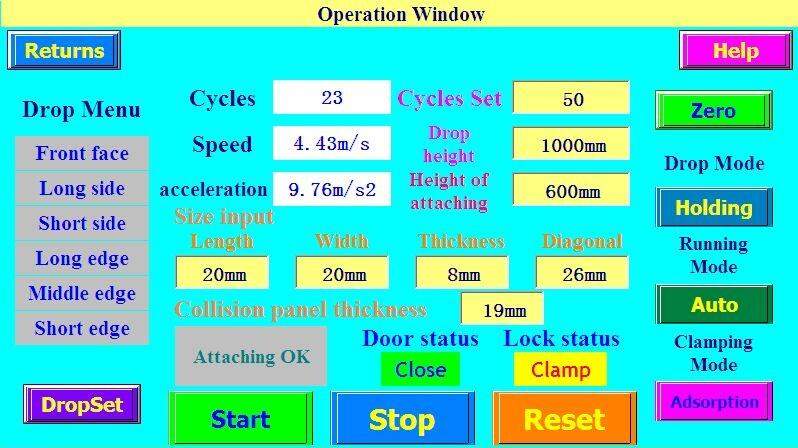

Operation Interface Overview

Software Features:

Automatically displays drop speed (m/s) upon test completion.
Three vacuum suction cups can be electrically switched with ease.
After each drop, the system automatically returns to the suction (pickup) position.
Drop height and suction height are adjustable; drop count can be displayed and reset.
Built-in safety door protection enhances operational safety.

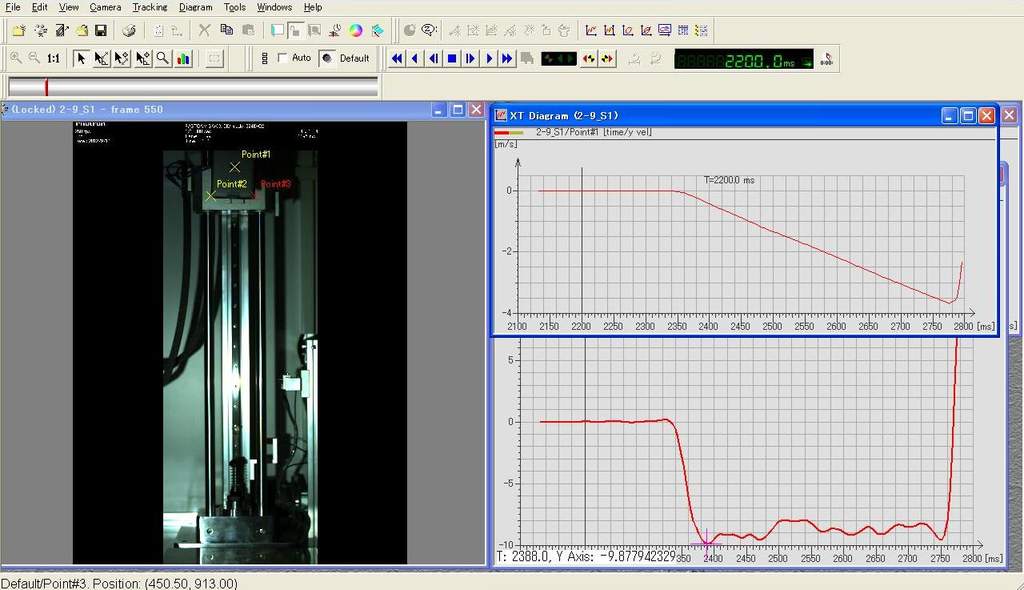

Dropping speed meter (actual speed is in accordance with that captured by high speed camera or laser seismograph)

Point Verified (mm)	Standard Speed (m/s)	Indication Speed (m/s)					Average value	Error of Indication
Point Verified (mm)	Standard Speed (m/s)	1	2	3	4	5	Average value	Error of Indication
760	3.86	4.02	3.99	4.02	4.04	3.99	4.01	+3.88%
1000	4.43	4.39	4.34	4.29	4.31	4.27	4.32	-2.5%
1250	4.95	4.86	4.84	4.82	4.80	4.83	4.83	-2.4%
1500	5.42	5.26	5.24	5.24	5.24	5.22	5.24	-3.3%
1750	5.85	5.59	5.56	5.58	5.57	5.58	5.58	-4.6%

Note:
The client is responsible for providing a high-speed camera, laser seismograph, and any related software. For specific calibration methods, please consult a qualified engineer.

Semi Auto Drop Tester QDT-Semi-Auto-A2 Technical Specifications

Specification	Value
Maximum test height	300~1800mm or 2000mm
Maximum test weight	2 KG
Dropping height setting	Setting in touch screen
Minimum test height	300mm
Counter (Test range)	0~999999
Product holding mode	Vacuum adsorption or clamp
Drop impact surface	Steel plate, Wooden board, Marble board
Gas source used	≥0.5MPa (compressor prepared by customer)
Machine dimension	W1000 x D1180 x H2415 mm
Weight of machine	420 KG
Power supply	AC220V 50Hz 3A (110V is also available)
