Densimeter Specific Gravity Tester for Solid and Liquid Density Measurement
Verifying material density at the point of production catches formulation errors, contamination, and batch inconsistencies before they reach assembly or shipment. A densimeter specific gravity tester gives QC labs and R&D teams a direct, repeatable way to measure the density and relative density of solids, liquids, and powders in under a minute, all from a single benchtop instrument.
This equipment applies the hydrostatic weighing method, a technique rooted in Archimedes' principle, to determine density without cutting, grinding, or chemically altering the sample. Because the test is non-destructive, operators can return measured parts to the production line. The instrument serves industries that process rubber, plastics, composite materials, ceramics, and powder metallurgy components, where density directly reflects material composition and process quality.
These test methods encompass both qualitative and quantitative analyses for assessing the composition of rubber products within the "R" family. They provide detailed procedures for determining the specific gravity (relative density) and density of solid plastics in various forms such as sheets, rods, tubes, or molded items. Additionally, these methods outline the process for determining the density and relative density of non-cellular plastics, spanning a range of formats including sheets, films, tubes, molded objects, and various forms like powders, granules, and pellets.
How a Densimeter Specific Gravity Tester Works
A densimeter specific gravity tester calculates density by comparing a sample's weight in air to its apparent weight when submerged in a liquid of known density, typically distilled water. The difference between those two weights equals the buoyant force, which reveals the sample's volume. Dividing the air weight by that volume yields density.
The Underlying Principle: Archimedes' Law of Buoyancy
Archimedes' principle states that a body immersed in a fluid experiences an upward buoyant force equal to the weight of the fluid it displaces. For a solid object fully submerged in water, the displaced volume equals the object's own volume. The instrument exploits this relationship with a simple formula:
Density = (Weight in air / (Weight in air - Weight in water)) x Density of water
The weighing sensor measures both values in sequence. A built-in temperature sensor reads the water temperature, and the instrument applies a correction factor because the density of water changes with temperature (for example, 0.99754 g/cm3 at 23 °C versus 0.99821 g/cm3 at 20 °C). This water temperature compensation step removes a common source of error in manual hydrostatic tests.
How the Instrument Executes the Measurement
The operator places the sample on the upper tray, which rests on the weighing sensor. The sensor records the weight in air. Next, the operator moves the sample to a submerged tray suspended inside the water tank. Because only the tray and sample sit inside the immersion liquid, and the water tank rests on an independent platform with no mechanical contact to the sensor, the tank's own weight does not influence the reading. The sensor records the apparent weight in water.
The microprocessor then applies the Archimedes formula with the temperature-corrected water density value and displays the result as density (g/cm3), specific gravity (dimensionless ratio), or volume, depending on the selected mode. Models with an auto-weighing function detect when the reading stabilizes and lock the value automatically. This eliminates operator judgment about when the display has settled, which improves repeatability across shifts and users.
Liquid Density Mode
To measure the density of a liquid instead of a solid, the instrument reverses the logic. The operator uses a reference sinker, a solid object of known volume, and weighs it first in air, then submerged in the unknown liquid. The buoyant force the liquid exerts on the sinker reveals the liquid's density. Room-temperature mode uses the ambient reading directly, while compensation mode corrects the result to a standard reference temperature.
Key Technical Parameters That Affect Results
Selecting the right densimeter model depends on the samples you test and the precision your process or standard requires. The following parameters determine instrument capability.
- Density resolution: ranges from 0.0001 g/cm3 on high-resolution models to 0.01 g/cm3 on production-floor units. A resolution of 0.001 g/cm3 satisfies most rubber and plastics QC applications under ASTM D297 and ASTM D792.
- Weighing capacity: models span from 220 g to 3,000 g. Larger capacity lets operators measure whole molded parts without cutting test specimens, which saves preparation time and preserves part integrity.
- Sample maximum size: physical tray and tank dimensions set the upper bound. Units accepting samples up to 120 x 100 x 35 mm handle larger molded goods directly.
- Measurement time: as short as 10 seconds on fixed-cycle models. Selectable timing on other models lets the operator extend the stabilization window for samples that release air bubbles slowly.
- Immersion liquid volume: typically 50 cc for standard water tanks. Liquid density mode may require additional liquid depending on the sinker and beaker size.
- Power supply: AC100-240V 50/60Hz universal input, compatible with lab power worldwide.
Applications Across Materials and Industries
Density measurement with a densimeter specific gravity tester serves a wide range of material verification tasks.
Rubber Compounding and Vulcanization
ASTM D297 specifies hydrostatic methods for determining the composition of vulcanized rubber products. A densimeter verifies that the rubber compound's density matches the formulation target, which confirms correct filler loading (carbon black, silica, calcium carbonate) and polymer ratio. Out-of-spec density flags mixing errors before the batch moves downstream.
Plastics and Polymer Processing
ASTM D792 and JIS K7112 govern density testing of plastics by displacement. Density tracks crystallinity, filler content, and void fraction in injection-molded, extruded, or thermoformed parts. Because density shifts with changes in processing temperature or cooling rate, QC teams use densimeter readings to monitor process stability across production runs.
Composite Materials and Ceramics
Fiber-reinforced plastics and ceramic green bodies require density checks to detect delamination, porosity, and incomplete consolidation. A densimeter measures the as-received part non-destructively, which avoids sectioning that could mask the defect.
Powder Metallurgy and Sintered Components
Sintered metal parts derive mechanical strength from achieved density. Measuring the density of green compacts and finished parts against the theoretical maximum reveals the degree of sintering and the residual porosity. Models with powder density capability can also measure loose powder apparent density for incoming inspection of metal and ceramic powders.
Precious Metals and Mineral Identification

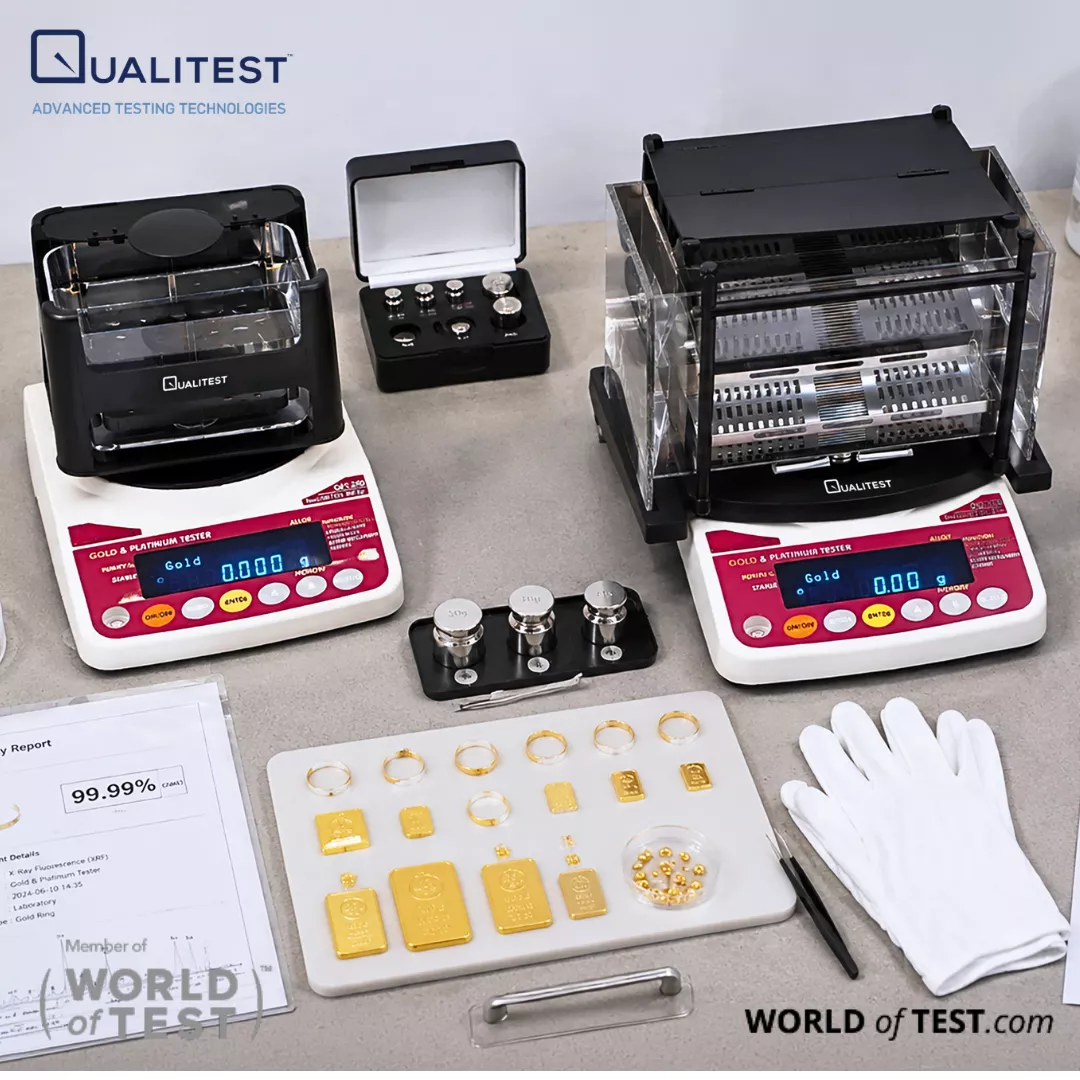

Gold testers in the GK-Series use the same hydrostatic principle to verify karat purity. Because gold alloys of different purity have distinct densities (for example, 24K at 19.32 g/cm3 versus 14K at approximately 13.0 to 14.5 g/cm3), a densimeter can screen items non-destructively.
How to Choose the Right Model for Your Lab
Matching a densimeter to your application requires balancing resolution, capacity, and workflow speed.
Start with the standard you must meet. ASTM D792 Procedure A requires a specimen weighing at least 1 g and a balance readable to 0.1 mg for high-precision work. If your standard demands a density resolution of 0.001 g/cm3, a model with 0.0001 g weighing resolution provides sufficient margin. For routine QC checks at 0.01 g/cm3 resolution, a compact unit with a 10-second fixed cycle maximizes throughput.
Consider sample size and form. If your production parts exceed the tray dimensions of a compact model, choose a unit with a larger water tank and higher weighing capacity. Testing pellets, films, or powders requires accessories or modes that smaller models may not support.
Evaluate liquid density needs. If your lab also tests liquid samples (resins, solutions, dispersions), choose a model that includes liquid density mode with temperature compensation. Not all models offer this capability.
Factor in operator skill level. Auto-weighing eliminates subjective judgment about reading stability, which benefits labs with rotating or less experienced operators. Selectable measurement time gives experienced users control over stabilization for difficult samples such as porous or absorbent materials.
Frequently Asked Questions
What Is the Difference Between Density and Specific Gravity?
Density expresses mass per unit volume in absolute units, typically g/cm3 or kg/m3. Specific gravity (also called relative density) is the dimensionless ratio of a substance's density to the density of water at a reference temperature. In practice, because water's density is close to 1.000 g/cm3, the numerical values are nearly identical for measurements in CGS units.
How Does Water Temperature Affect Densimeter Accuracy?
Water density decreases as temperature rises. At 20 °C, distilled water has a density of approximately 0.998 g/cm3, while at 30 °C it drops to about 0.996 g/cm3. Without compensation, this shift introduces a systematic error into every reading. Electronic densimeters with built-in temperature sensors apply a correction automatically, referencing published water density tables to adjust the calculation.
Can a Densimeter Measure Floating Samples?
Yes. Samples lighter than water, such as certain polyethylene and polypropylene grades, require a sinker wire or cage to force complete immersion. The instrument subtracts the sinker's known buoyancy contribution so the reading reflects only the sample. Most models support this procedure, which aligns with ASTM D792 Procedure B for buoyant specimens.
What Sample Preparation Does a Densimeter Require?
The hydrostatic method requires minimal preparation. The sample surface should be clean and free of oil, dust, or loose particles that could trap air bubbles. For porous or absorbent materials, coating the surface with a thin layer of paraffin wax or using a non-aqueous immersion liquid prevents liquid absorption that would distort the weight-in-liquid reading.
How Often Should a Densimeter Be Calibrated?
Most labs verify calibration at the start of each testing session using a reference standard of known density, such as a certified glass float or a metal reference block. Full recalibration intervals depend on the applicable quality system, but annual calibration by an accredited service provider satisfies most ISO 17025 and in-house QC requirements.
Which ASTM and JIS Standards Apply to Densimeter Testing?
Key standards include ASTM D297 (rubber composition analysis), ASTM D792 (density of plastics by displacement), JIS K6268A (rubber testing), and JIS K7112 (plastics density). Each standard specifies specimen dimensions, immersion liquid requirements, temperature conditions, and calculation methods that the electronic densimeter automates.
