Standard Pure Water System - QualiPWS™ S

QualiPWS™ S is a type 2 laboratory water purification system that draws directly from a tap water supply and produces both RO water and deionized water at up to 60 liters per hour. Qualitest North America supplies the Standard Pure Water System to analytical, clinical, pharmaceutical, and academic laboratories that need a dependable bulk supply of reagent grade water. Three production rates cover 20, 40, and 60 L/h. A 60-liter storage tank buffers demand peaks.

Deionized water from the system reaches a resistivity above 17.5 MΩ·cm at 25 °C, comfortably above the ASTM D1193 Type II threshold. That quality suits reagent preparation, buffer makeup, and glassware rinsing. The same host also dispenses first-pass RO water for autoclaves, washers, and environmental chambers. One unit therefore serves two water grades from a single tap connection, dispensing at up to 2 liters per minute in general or quantitative mode.

A 5-inch capacitive touchscreen runs the system and shows cartridge life, tank level, RO rejection rate, and live water quality on one screen. Ethernet and WiFi connect the unit to a cloud platform for remote monitoring, alarm notification, and record export. Operating data stays on the host for up to five years, and PDF reports support traceability reviews. Multi-user accounts assign dispensing volumes and consumable costs to individual departments or projects.

Standard Pure Water System - QualiPWS™ S Applications

The QualiPWS™ S covers the general-purpose water demand of a working laboratory, from bulk instrument feed to final rinse water. Both the RO and deionized outlets serve distinct roles across the following environments.

  • Autoclaves and Sterilizers: RO or deionized feed water reduces scale buildup in chambers, steam generators, and heating elements
  • Glassware Washing and Final Rinsing: deionized final rinse leaves no mineral residue or spotting on volumetric and analytical labware
  • Buffer, Reagent, and Media Preparation: reagent grade water for microbiological media, titrant dilution, and standard solution makeup
  • Feed Water for Type I Polishing Systems: pretreated low-ionic supply that extends the service life of downstream ultrapure cartridges
  • Clinical and Analytical Instrumentation: dilution and rinse water for automated analyzers, titrators, and spectrophotometers
  • Environmental Chambers and Humidity Generators: low-conductivity water for humidity control without deposit formation on nozzles and sensors
  • Pharmaceutical Quality Control: purified water for wet chemistry, dissolution testing, and cleaning validation rinse sampling
  • Histology and Pathology Laboratories: staining and rinse water where mineral carryover would affect slide quality
  • Academic and Teaching Laboratories: shared bulk supply with per-user dispensing records and cost allocation

Standards

Water produced by the QualiPWS™ S is designed to align with the reagent water grades defined in the following specifications. Verification against any single grade depends on feed water quality, cartridge condition, and sampling technique.

  • ASTM D1193 - Standard Specification for Reagent Water (Type II)
  • ISO 3696 - Water for Analytical Laboratory Use: Specification and Test Methods (Grade 2)
  • JIS K0557 - Water Used for Industrial Water and Wastewater Analysis
  • USP - United States Pharmacopeia, Purified Water technical requirements
  • EP - European Pharmacopoeia, Purified Water technical requirements
  • JP - Japanese Pharmacopoeia, Purified Water technical requirements

Standard Pure Water System - QualiPWS™ S Key Features

The QualiPWS™ S combines a two-grade water train with instrumentation, consumable tracking, and connectivity normally found on larger installations.

  • Two Water Grades from One Host: separate RO and DI outlets on the same unit, with the storage tank providing a third dispensing point
  • Three Production Rates: 20, 40, or 60 L/h to match daily consumption without oversizing the installation
  • 5-Inch Capacitive Color Touchscreen: 800 × 480 glass-panel display with selectable interface themes and dual-language operation

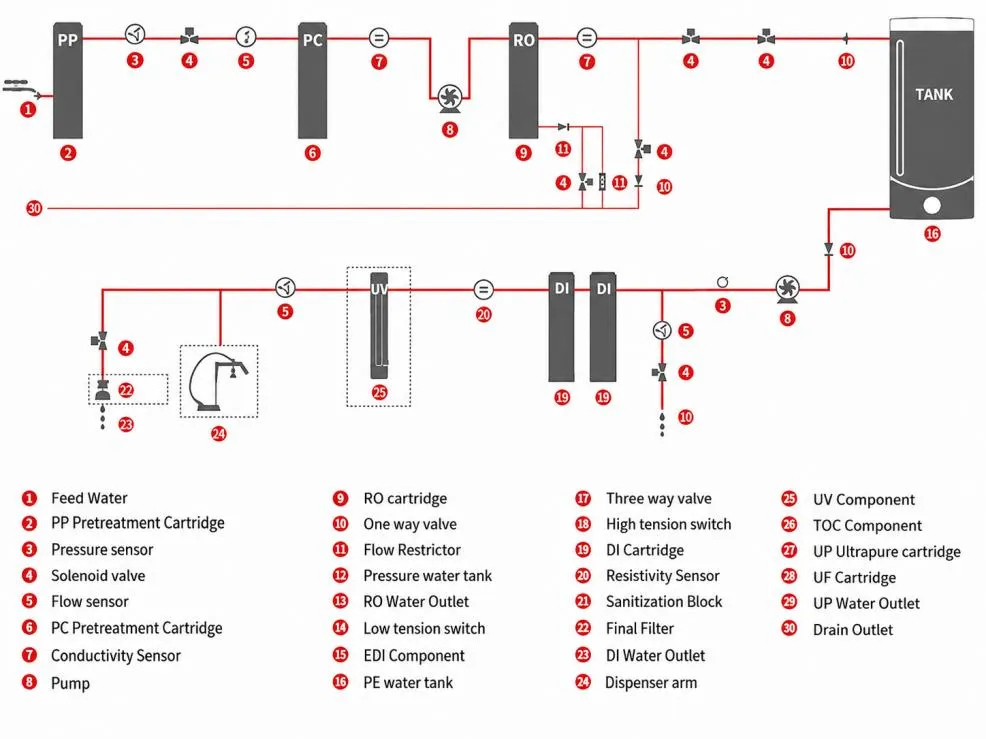

  • Live System Overview Screen: one diagram showing process flow, cartridge configuration, water quality, RO rejection rate, cartridge life, and tank status
  • Multi-Point Quality Monitoring: sensors on feed, RO, and DI water with a 0.01 cm⁻¹ electrode constant, 0.1 °C temperature sensitivity, and simultaneous display of compensated conductivity, resistivity, and water temperature
  • Quantitative Dispensing: flow sensors meter the RO and DI channels while a separate channel totalizes feed water consumption
  • Inlet Pressure Sensing: real-time display of supply pressure so operators catch feed problems before quality drifts
  • Automatic RO Flushing: adjustable interval and duration clears the membrane surface, limits scaling, and extends module life
  • 12-Inch Pretreatment Cartridge: a 5 μm depth-folded polypropylene stage and a catalytic activated carbon fiber stage combined in one body for longer replacement intervals
  • High-Capacity DI Cartridges: patented full-droop flow path prevents resin stratification, with 1.36 liters of resin per 12-inch cartridge
  • Patented Three-Chamber Cartridge Housing: a common body for pretreatment, RO, and DI packs, with a quick clamping mechanism and error-proofing that blocks wrong-position installation
  • Encrypted Cartridge Serial Codes: confirms consumable authenticity and logs every fitting and replacement event
  • Consumable Life Management: remaining life shown as a percentage with blue, yellow, and red status icons, plus scan-to-reorder from the cartridge screen
  • 60-Liter PE Storage Tank: double-layer HDPE with an anti-UV outer layer to suppress algae growth, a pure PE inner layer to limit leaching, cone-bottom drain valve, sealed oversize cover, and a compound air filter that absorbs CO₂ and organics
  • Independent Tank Instrumentation: dedicated pressure sensor, level control module, and LCD readout of level, stored volume, and fill percentage, synchronized with the host display
  • Optional Tank UV Disinfection: an add-on module that sterilizes the stored volume and suppresses bacterial growth in the tank
  • Five-Year Onboard Data Retention: records dispensing, alarm, and cartridge replacement history, exportable by USB or cloud download as tamper-resistant PDF reports
  • Cloud and IOT Connectivity: Ethernet and WiFi access for remote monitoring, alarm response, work order handling, and LIMS or BMS integration
  • Multi-User Account Control: independent IDs and passwords for secondary users, lock-screen switching between operators, and dispensing records that allocate consumable cost by user
  • Layered Safety Design: 24 V DC control architecture, three-level permission management, dual leak sensors covering the cabinet and benchtop, and alarms for no feed water, low inlet pressure, high system pressure, full tank, out-of-spec quality, and expired cartridges
  • Optional Remote Dispensing Arms: up to five per host, each with a color readout of resistivity, temperature, flow rate, and single or cumulative volume, 360-degree horizontal positioning, host circulation, general, quantitative, and instant modes, and an optional 0.2 μm terminal microfilter
  • Complete Interface Set: USB for data export and firmware updates, RJ45 network port, leak sensor input, dispensing arm port, tank signal port, and foot switch input
  • Injection-Molded Housing: a single-piece molded shell with sealed geometry that resists splash and simplifies cleaning

Theory and Method

Reverse osmosis drives the first purification stage. A pump raises feed water pressure above the osmotic pressure of the dissolved salts, forcing water molecules through a semipermeable membrane while ions, organics, and particles flush to drain. The membrane rejects 98 to 99 percent of inorganic ions and more than 99 percent of organics above 300 Dalton. Upstream cartridges protect it: a 5 μm polypropylene depth filter removes particles, and a catalytic carbon fiber block strips free chlorine that would oxidize the membrane.

Ion exchange completes the job. RO permeate passes through cartridges holding cation resin in the hydrogen form and anion resin in the hydroxide form. Residual cations swap for H⁺, residual anions swap for OH⁻, and the released ions recombine into water rather than adding to the dissolved load. Removing charge carriers raises electrical resistivity, so the reading climbs toward the 18.2 MΩ·cm theoretical limit of pure water at 25 °C. The QualiPWS™ S holds output above 17.5 MΩ·cm.

Conductivity cells with a 0.01 cm⁻¹ electrode constant measure the water at each stage, and a temperature sensor resolving 0.1 °C lets the controller compensate readings to 25 °C. Resistivity can also display as a non-temperature-compensated value, which USP conductivity testing calls for. On the bacteria and particle configuration, a terminal microfilter with 0.45 μm and 0.2 μm PES layers sits at the outlet and retains organisms and particulates released during storage. Laboratories specify that build when downstream work is sensitive to microbial load.

Standard Pure Water System

Standard Pure Water System - QualiPWS™ S Technical Specifications

ParameterQualiPWS™ S-20 / S-40 / S-60QualiPWS™ S-20UT / S-40UT / S-60UT
ConfigurationStandardBacteria and particle reduction
Production Rate (1)20 L/h (S-20), 40 L/h (S-40), 60 L/h (S-60)20 L/h (S-20UT), 40 L/h (S-40UT), 60 L/h (S-60UT)
Dispensing Rate (2)Up to 2 L/minUp to 2 L/min
DI Water Resistivity at 25 °C (3)(4)>17.5 MΩ·cm>17.5 MΩ·cm
DI Water Conductivity at 25 °C (3)<0.057 µS/cm<0.057 µS/cm
DI Water Particles (5)Not applicable<1 per mL (>0.2 µm)
DI Water Bacteria (5)Not applicable<0.01 CFU/mL
RO Ion Rejection Rate (6)98% to 99% with new RO module98% to 99% with new RO module
RO Organic Rejection Rate (6)>99% (MW >300 Dalton)>99% (MW >300 Dalton)
RO Particle and Bacteria Rejection Rate (6)>99%>99%
Feed Water SourceTap waterTap water
Feed Water Pressure1 to 6 bar1 to 6 bar
Feed Water Temperature5 °C to 40 °C5 °C to 40 °C
Feed Water Conductivity<2,000 µS/cm<2,000 µS/cm
Feed Water Total Hardness (as CaCO₃)<300 ppm<300 ppm
Feed Water TOC<2,000 ppb<2,000 ppb
Feed Water Free Chlorine<3 ppm<3 ppm
Feed Water pH4 to 104 to 10
Feed Water Dissolved CO₂<30 ppm<30 ppm
VoltageS-20: 100 to 240 V, 50/60 Hz; S-40 and S-60: 200 to 240 V, 50/60 HzS-20UT: 100 to 240 V, 50/60 Hz; S-40UT and S-60UT: 200 to 240 V, 50/60 Hz
Total PowerS-20: 120 W; S-40 and S-60: 240 WS-20UT: 120 W; S-40UT and S-60UT: 240 W
Host Dimensions (L × W × H)370 × 623 × 600 mm (14.6 × 24.5 × 23.6 in)370 × 623 × 600 mm (14.6 × 24.5 × 23.6 in)
Tank Dimensions (L × W × H)392 × 518 × 772 mm (15.4 × 20.4 × 30.4 in)392 × 518 × 772 mm (15.4 × 20.4 × 30.4 in)
Host WeightApprox. 27 kg (59.5 lb)Approx. 27 kg (59.5 lb)
Tank WeightApprox. 16 kg (35.3 lb)Approx. 16 kg (35.3 lb)

(1) Affected by inlet water quality, pressure, temperature, and RO membrane condition. (2) Affected by tank status and terminal filter. (3) Typical values that vary with the nature and concentration of feed water contaminants. (4) Resistivity can be displayed as a non-temperature-compensated value to suit USP requirements. (5) Requires the terminal microfilter, professional operating procedures, and correct sampling conditions. (6) Affected by the type of organics present in the feed water.

Standard Configuration

ItemQuantityDescription
Main Host1 setPurification host with control system, touchscreen, and RO and DI dispensing outlets
Cartridge Set1 setComplete pretreatment, RO, and DI cartridge complement for the configured model
Pure Water Tank1 set60-liter PE storage tank with level sensing, LCD readout, and air filter
