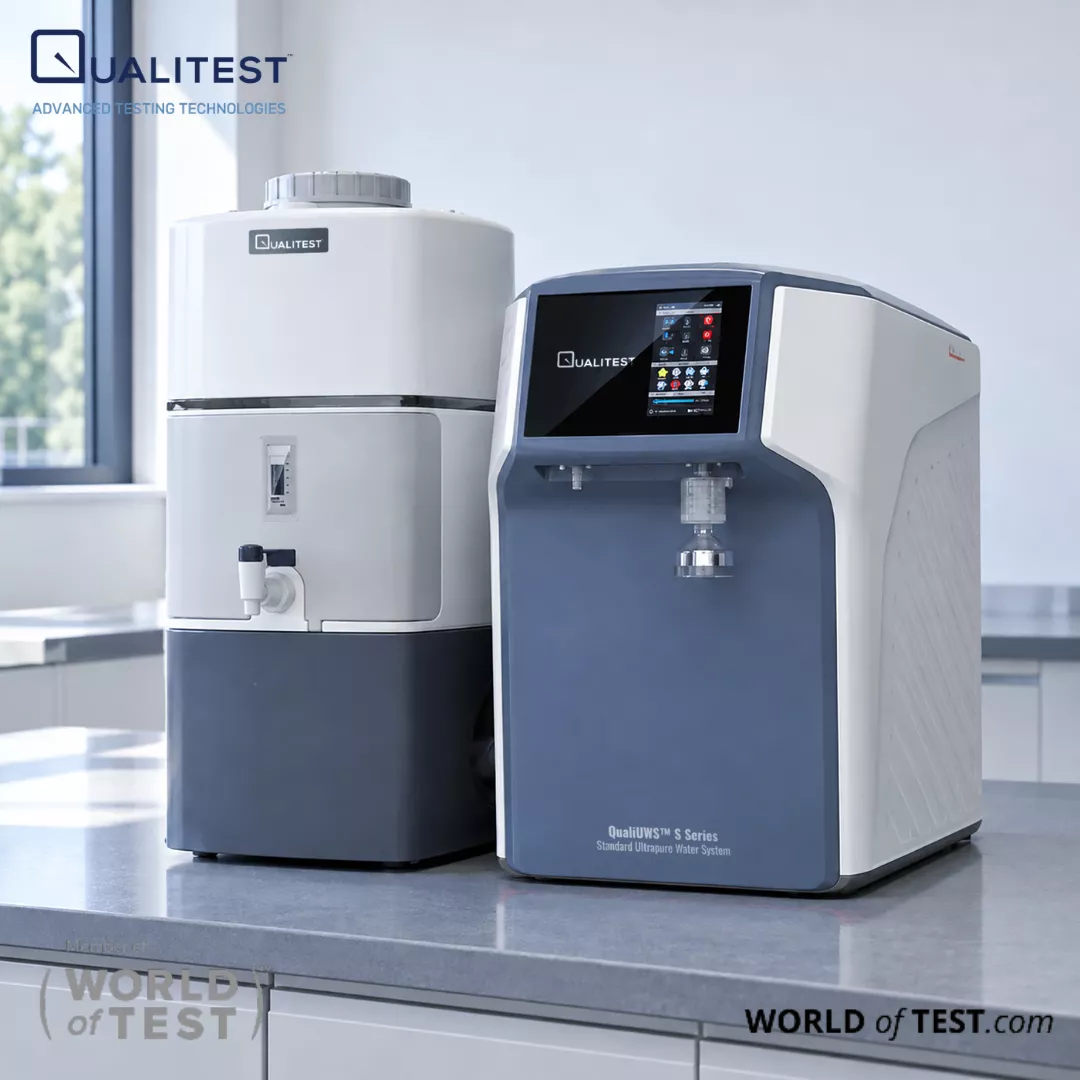

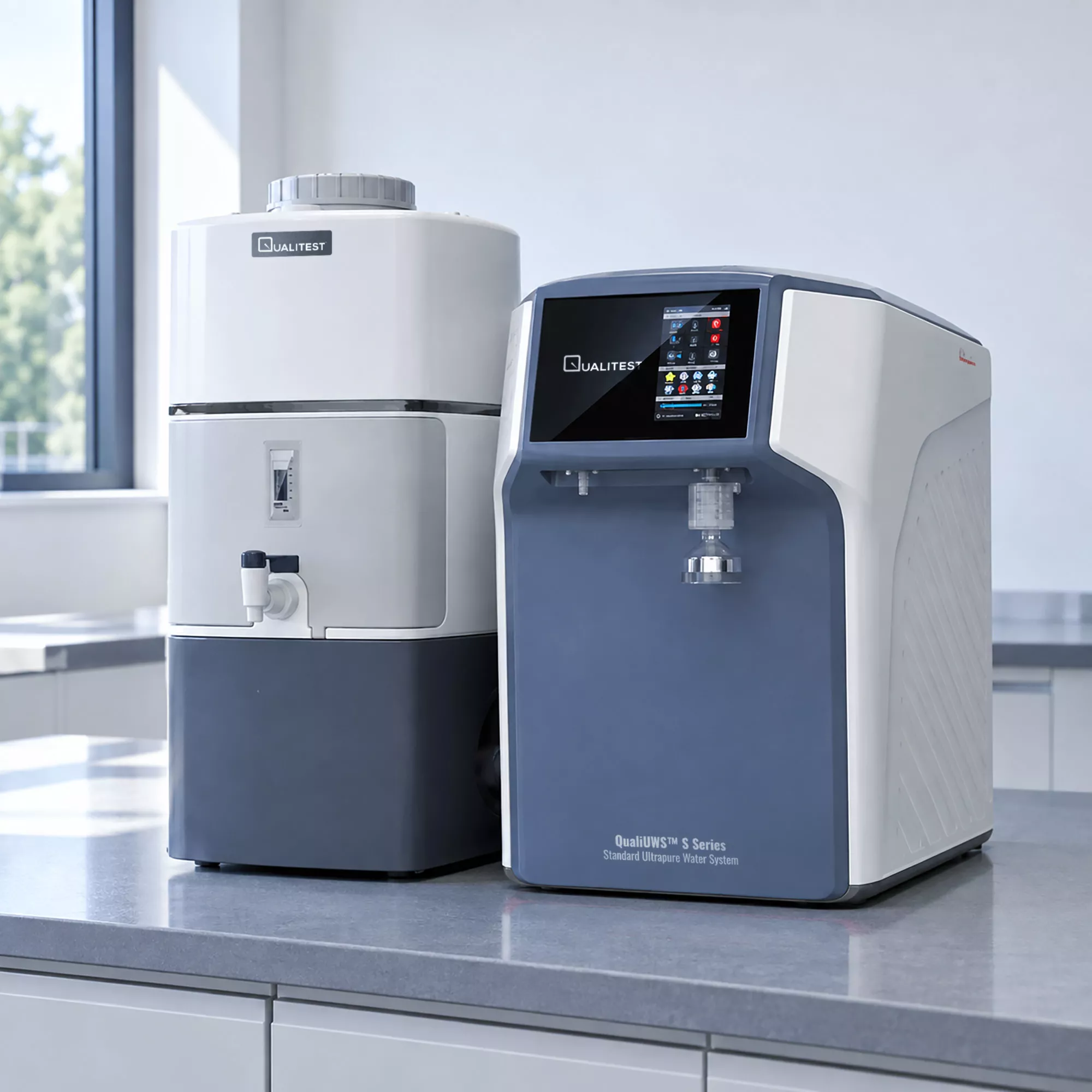

Standard Ultrapure Water System - QualiUWS™ S

QualiUWS™ S standard ultrapure water system gives laboratories Type 1 and high purity water at the bench from an ordinary tap connection. Output options cover 20, 40, and 60 liters per hour, so the same platform suits a single analyst or a shared instrument room. Ultrapure water reaches the dispensing point at 18.2 MΩ·cm, while the deionized stream holds above 16 MΩ·cm. A 5-inch capacitive touchscreen runs the whole process.

Four builds address different contamination concerns. The base unit reports TOC at 5 ppb, which suits buffer preparation, media, and general analytical work. Adding the dual-wavelength UV module pulls TOC down to 2 ppb for chromatography and mass spectrometry. The ultrafiltration build strips endotoxin, RNase, DNase, and protease for cell culture and IVF protocols. The UVF build carries both modules together.

Purification hardware sits behind a controller that logs what it produces. Sensors read feed, RO, DI, and ultrapure water quality continuously, and the TOC module tracks organic carbon down to 0.5 ppb. Records covering dispensing, alarms, and cartridge changes stay on the unit for five years and export as tamper-resistant PDF. USB, Ethernet, and Wi-Fi ports link the system to LIMS or a building management platform.

Standard Ultrapure Water System - QualiUWS™ S Applications

Laboratories select water grade by technique, and the QualiUWS™ S delivers two grades at once so one unit covers most of a bench. The list below reflects the workflows this system was built around.

  • HPLC, UPLC, and LC-MS: mobile phase and rinse water with TOC held low enough to keep chromatographic baselines flat
  • ICP-MS, ICP-AES, and AAS: 18.2 MΩ·cm water for blanks, standards, and sample dilution in trace and ultratrace elemental work
  • Ion Chromatography and TOC Analysis: low-conductivity eluent water where background ions would compete with the analyte signal
  • GC-MS and MALDI-TOF-MS: reagent and extraction water for sample preparation ahead of mass spectrometric detection
  • Cell Culture, PCR, and IVF: nuclease-free and endotoxin-free water from the ultrafiltration build for media, buffers, and reaction mixes
  • Protein Purification and Electrophoresis: buffer and gel water for biochemistry workflows sensitive to trace ionic and organic carryover
  • Proteomics, Genomics, and Immunoassay: consistent reagent water for assay reproducibility across long study timelines
  • Microbial Media and Reagent Preparation: bacteria-free water for culture media, stains, and routine laboratory reagents
  • Electrochemical and Spectrophotometric Determination: stable-resistivity water for electrode conditioning and photometric measurement
  • Laboratory Instrument Feed Water: supply for autoclaves, bottle washers, environmental test chambers, and water baths
Standard Ultrapure Water System

Standards

Reagent water grades for laboratory use are defined by specification bodies and pharmacopeia monographs rather than by a single test method. The QualiUWS™ S is designed to align with the water quality requirements those documents set out, and Qualitest can supply supporting quality and performance documentation on request.

  • ASTM D1193 - Standard Specification for Reagent Water
  • USP - United States Pharmacopeia purified water quality requirements
  • EP - European Pharmacopoeia purified water quality requirements
  • JP - Japanese Pharmacopoeia purified water quality requirements
  • CLSI - Clinical and Laboratory Standards Institute clinical laboratory reagent water grades
  • CAP - College of American Pathologists laboratory water quality guidance

Standard Ultrapure Water System - QualiUWS™ S Key Features

The QualiUWS™ S pairs a single-pass RO stage with high-capacity ion exchange under a touchscreen controller that tracks water quality and consumable life together. Modules can be specified at order to match the purity the application actually needs.

Standard Ultrapure Water System

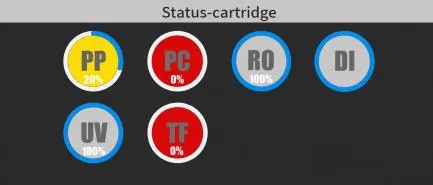

Perfect consumables management

Standard Ultrapure Water System

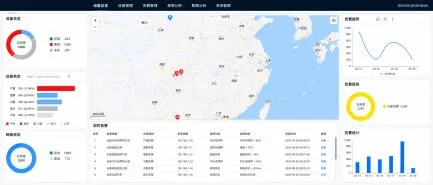

Innovative Internet of Things (IOT) and cloud platform technology

Standard Ultrapure Water System

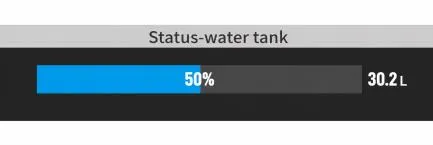

Intuitive tank storage status

  • Two Water Grades Simultaneously: ultrapure water at 18.2 MΩ·cm and high purity DI water above 16 MΩ·cm available together, without a second purifier on the bench
  • Three Dispensing Points: two outlets on the host plus a third at the storage tank, with general and volumetric dispensing modes
  • 5-Inch Capacitive Touchscreen: 800 × 480 color glass panel with dual-language operation and three interface themes
  • Four-Sensor Water Quality Monitoring: feed, RO, DI, and ultrapure streams measured with a 0.01 cm⁻¹ cell constant and 0.1 °C temperature sensitivity, showing compensated and non-compensated values
  • Four Flow Sensors: three channels handle volumetric dispensing while the fourth totalizes feed water consumption
  • Built-In TOC Detection: 0.5 to 999.9 ppb range at ±0.1 ppb accuracy, matched to USP and EP system suitability testing
  • Live RO Rejection Display: ion rejection rate shown and alarmed in real time, giving early warning of membrane decline
  • Dual-Wavelength UV Oxidation: a 185 and 254 nm lamp in a 316L stainless flow cell reduces TOC to 2 ppb and suppresses bacterial growth
  • Ultrafiltration Module: PES membrane above 5,000 Da MWCO with automatic flushing, producing nuclease-free and pyrogen-free water
  • High-Capacity Ion Exchange: 1.36 liters of DuPont resin per 12-inch cartridge and up to three cartridges per host, giving 4.08 liters of total bed volume
  • Patented Cartridge Design: three-chamber packaging, quick clamping, and error-proof keying prevent installing the wrong cartridge in the wrong position
  • Encrypted Cartridge Authentication: long serial number codes confirm genuine consumables and record every installation
  • Consumable Life Tracking: remaining life for each cartridge calculated against water quality, elapsed time, and throughput, then shown as a color-coded percentage with blue, yellow, and red stages
Standard Ultrapure Water System

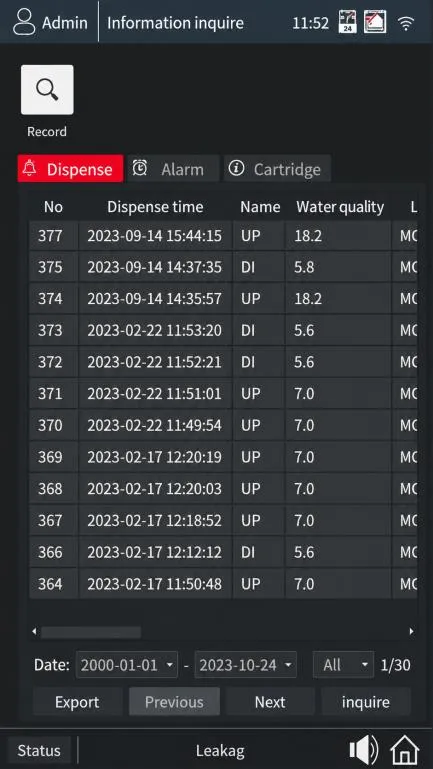

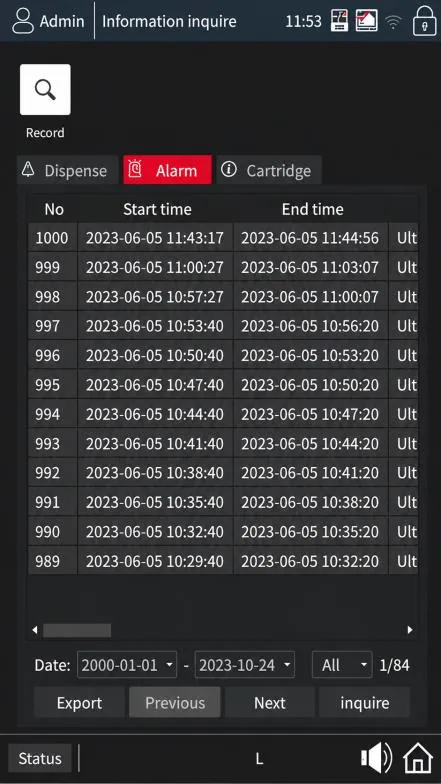

Traceable comprehensive data management

Standard Ultrapure Water System

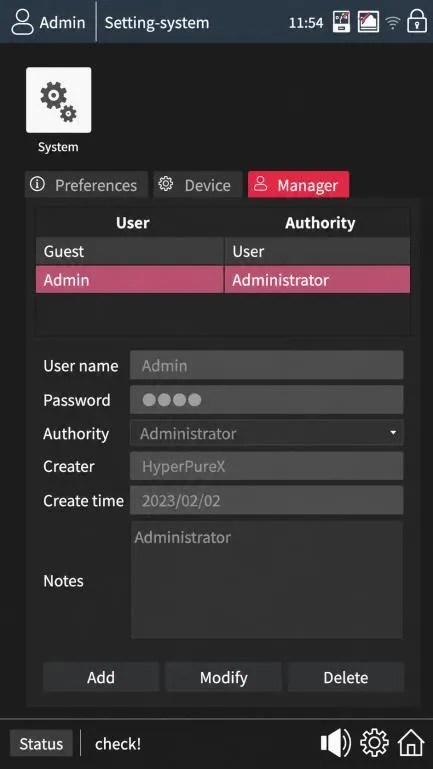

Sharing mode of multi-user management

Standard Ultrapure Water System

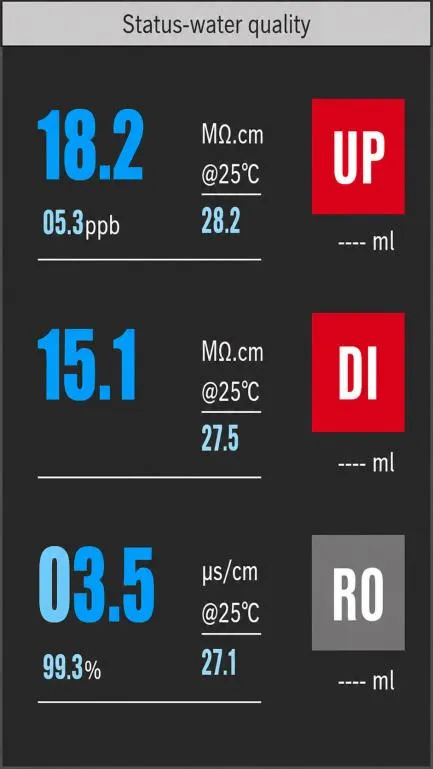

Comprehensive water quality monitoring and alarm

  • Automatic RO and UF Flushing: adjustable flush interval and duration clear scale and foulant, extending membrane life
  • Chemical Sanitization Cycle: dosing-based disinfection of the pure water pipeline with remaining time displayed on screen
  • Ultrapure Recirculation Loop: adjustable interval circulation limits bacterial growth while holding energy use down
  • 60-Liter HDPE Storage Tank: double-wall construction with UV inhibitor in the outer layer, bottom feed to limit CO2 uptake, cone-bottom drain valve, sealed enlarged lid, and compound air filter
  • Tank Level Display: pressure-sensor measurement shown as volume and percentage on both the host screen and the tank-mounted LCD
  • 24 V DC Architecture: low-voltage internal components with double leak detection covering the cabinet interior and the benchtop
Standard Ultrapure Water System

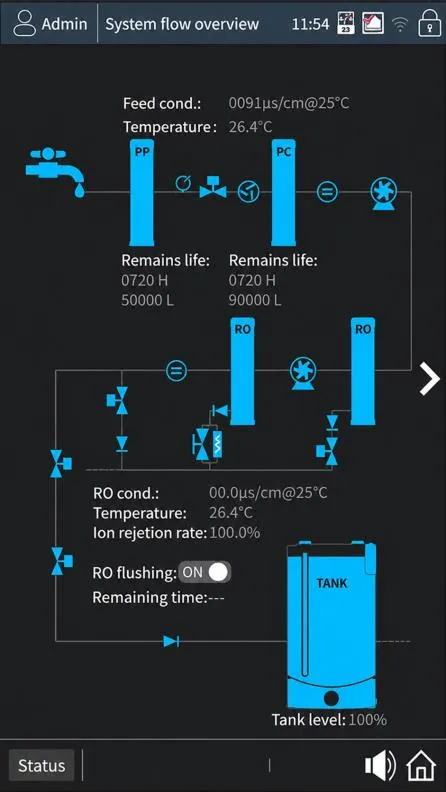

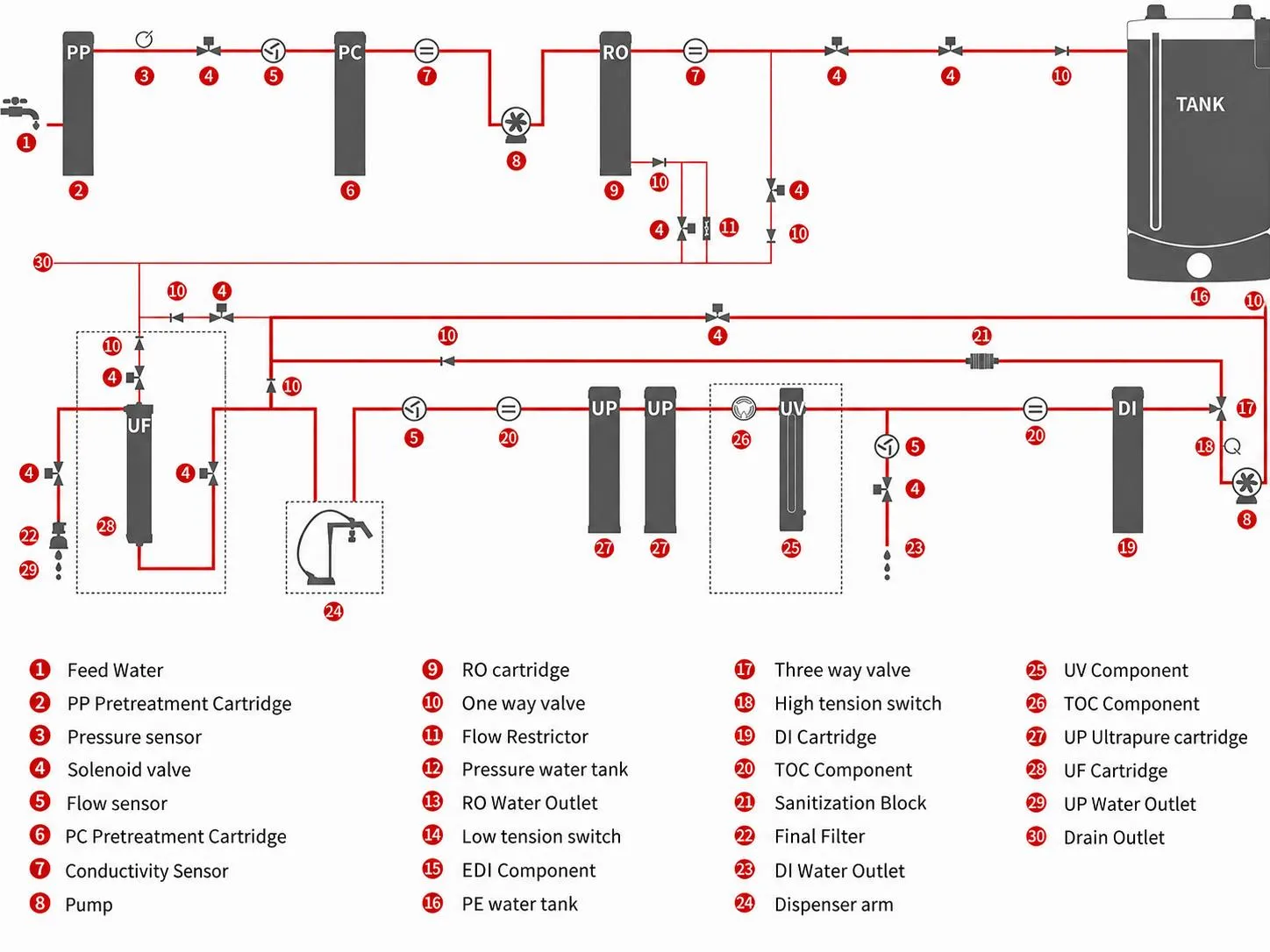

Powerful system overview diagram

Standard Ultrapure Water System

Full security protection

  • Comprehensive Alarm Set: no feed water, low inlet pressure, high system pressure, full tank, out-of-spec feed, RO, DI, or ultrapure quality, and end-of-cartridge-life warnings
  • Three Permission Levels: administrator and operator roles kept distinct, with individual IDs, passwords, and lock-screen user switching
  • Per-User Dispensing Reports: volume and water quality logged against each user ID for cartridge and maintenance cost allocation
  • Five-Year Data Retention: dispensing, alarm, and cartridge records exported by USB or downloaded from the cloud platform as tamper-resistant PDF
  • Optional Dispensing Arm: up to five articulated arms per host, each with its own color display and 360-degree horizontal positioning
  • Optional Terminal Filters: 0.2 μm microfilter or ultrafilter at the dispensing point for bacteria-free and nuclease-free delivery

Theory and Method

Pretreatment protects everything downstream. A 12-inch polypropylene cartridge with a pleated depth membrane captures particles at 5 μm, and a catalytic activated carbon fiber cartridge adsorbs dissolved organics and free chlorine at the same rating. Chlorine degrades polyamide membrane chemistry, so removing it ahead of the pump extends reverse osmosis service life. Pairing a pleated filter with carbon fiber raises throughput per cartridge and lengthens the replacement interval.

The reverse osmosis stage separates on pressure and selectivity. A pump lifts feed pressure past the osmotic pressure, and water molecules diffuse through the dense polyamide layer while hydrated ions and larger organics stay on the concentrate side. The membrane clears 98 to 99 percent of dissolved ions and over 99 percent of organics heavier than 300 daltons. Mixed-bed resin then trades residual cations for hydrogen and anions for hydroxide, which recombine as water and lift resistivity toward 18.2 MΩ·cm at 25 °C.

Optional modules attack what ion exchange cannot reach. Ultraviolet output at 185 nm generates hydroxyl radicals inside a 316L stainless flow cell, and those radicals oxidize trace organics into carbon dioxide and short-chain acids that the final polishing cartridge retains. The 254 nm line acts on microbial nucleic acid and holds bacterial counts down in the loop. An ultrafiltration membrane rated above 5,000 daltons separates pyrogen, endotoxin, and nuclease molecules by size alone.

Standard Ultrapure Water System

Standard Ultrapure Water System - QualiUWS™ S Technical Specifications

ParameterQualiUWS™ SQualiUWS™ S UVQualiUWS™ S UFQualiUWS™ S UVF
ConfigurationStandardLow TOCEndotoxin removalCombined
Production Rate20, 40, or 60 L/h
Dispensing RateUp to 2 L/min
Ultrapure Water Quality
Resistivity (25 °C)18.2 MΩ·cm
Conductivity (25 °C)0.055 μS/cm
TOC5 ppb2 ppb5 ppb2 ppb
Particles<1 /mL (>0.2 μm)
Bacteria<0.01 CFU/mL<0.01 CFU/mL<0.01 CFU/mL<0.01 CFU/mL
EndotoxinNot applicableNot applicable<0.001 EU/mL<0.001 EU/mL
RNaseNot applicableNot applicable1 pg/mL1 pg/mL
DNaseNot applicableNot applicable5 pg/mL5 pg/mL
ProteaseNot applicableNot applicable0.15 μg/mL0.15 μg/mL
DI Water Quality
Resistivity (25 °C)>16 MΩ·cm
Conductivity (25 °C)<0.063 μS/cm
Particles<1 /mL (>0.2 μm)
Bacteria<0.01 CFU/mL
RO Stage Water Quality (single pass)
Ion Rejection Rate98% to 99% (new RO module)
Organic Rejection Rate>99% (MW >300 Da)
Particle and Bacteria Rejection>99%
Feed Water Requirements
Water SourceTap water
Inlet Pressure1 to 6 bar
Inlet Temperature5 °C to 40 °C
Conductivity<2000 μS/cm
Total Hardness (as CaCO3)<300 ppm
TOC<2000 ppb
Free Chlorine<3 ppm
pH4 to 10
Dissolved CO2<30 ppm
General
Power Supply200 to 240 V, 50/60 Hz
Total Power120 W (20 L/h), 240 W (40 and 60 L/h)
Host Dimensions (L × W × H)370 × 623 × 600 mm (14.6 × 24.5 × 23.6 in)
Tank Dimensions (L × W × H)392 × 518 × 772 mm (15.4 × 20.4 × 30.4 in)
Host WeightApprox. 29 kg (64 lb)
Tank WeightApprox. 16 kg (35 lb)

Ultrapure, DI, and RO stage values are typical and shift with feed water composition, inlet pressure, temperature, and RO membrane condition. TOC figures assume inlet TOC below 1000 ppb for standard builds and below 50 ppb for UV builds, with correct sampling technique. Bacteria, endotoxin, RNase, DNase, and protease values require the matching terminal microfilter or ultrafilter.

Standard Configuration

ItemQuantityDescription
Main host1 setPurification unit with 5-inch touchscreen controller, pretreatment, RO, DI, and ultrapure modules
Cartridge set1 setComplete set of purification cartridges matched to the selected model
Pure water tank1 set60-liter HDPE tank with air filter and independent level control module with LCD

Available Options and Accessories

ItemDescription
Dispensing armArticulated arm with color display and connection kit, up to five per host
120-liter pure water tankLarger HDPE storage tank with air filter and level control module with LCD
Tank UV disinfection moduleSterilizes tank contents and suppresses bacterial growth in storage
Terminal microfilter0.45 plus 0.2 μm double-layer PES membrane for particle and bacteria retention
Terminal ultrafilterPES membrane above 15,000 Da MWCO for pyrogen, RNase, and DNase removal
Foot switchHands-free dispensing control through the dedicated switch interface
External leak sensorBenchtop leak detection with alarm through the sensor interface
Automatic water softenerFeed water conditioning for high-hardness supplies (salt required)
Source water pretreatment filterInline cartridge housing for the incoming line
Extended warranty1-year and 3-year coverage beyond the standard term, excluding consumables
Verification serviceIQ, OQ, and PQ documentation and on-site verification in English
Maintenance agreement1-year or 3-year all-inclusive plan covering consumable replacement, service, and calibration
