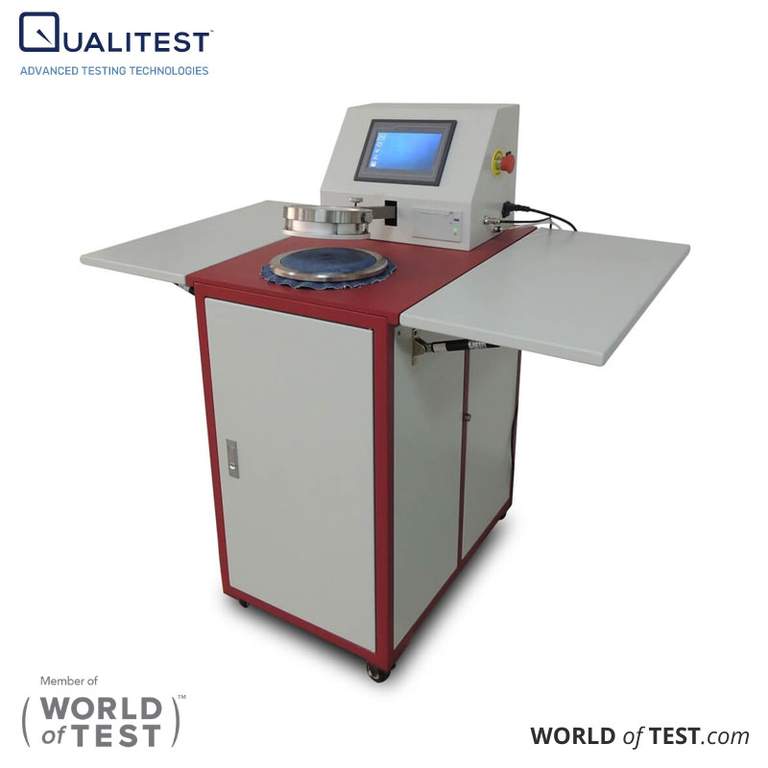

Textile and Fabrics Air Permeability Tester – Permatest Parent Product Air Permeability Tester – AirFicient Product Categories Textile Testing Equipment Application Permeability Testing Standards ASTM D737 ISO 9237 ISO 9073:15 JIS L1096 Item 8.26 BS 3424-16 BS 6F 100 3.13 NWSP 070.1.R0(15) GB/T 24218.15 GB/T 5453 Applications Technical Specifications Textile and Fabrics Air Permeability Tester – Permatest Textile and Fabrics Air Permeability Tester – Permatest is widely used to assess the air resistance of fabrics, including woven, knitted, non-woven materials, and medical masks. It measures the pressure difference needed to move air through the material at a consistent airflow speed, determining its air permeability performance. The Air Permeability Tester complies with standards such as ASTM D737 and ISO 9237. The instrument features an automatic holder for easy placement of test specimens. Simply press the holder to begin testing. The tester uses a vacuum pump to draw air through an interchangeable test head with a circular opening. It automatically maintains the pre-set test pressure, displaying the air permeability results digitally on a touch panel within seconds. If a different test nozzle is required, the system prompts a change. Once the test is complete, releasing the holder shuts off the vacuum pump. Textile and Fabrics Air Permeability Tester – Permatest Technical Specifications Specifications Details Control Can be controlled by the touch panel Display The result of air permeability test is displayed on the touch panel, units can be shifted Printing Equipped with printing function Software Equipped with analyzing software Nozzles 11 nozzles are included Standard Test Heads 20cm² and 38cm² Measuring Range 0.1~9999mm/s (L/m 2s) Test Pressure 1 ~ 4000Pa Max Thickness of Specimen ≤ 8mm Measuring Accuracy <+/-2% Optional Test Heads 5cm², 25cm², 50cm², 100cm² Power 220 / 110 V, 50 / 60 Hz Weight 95kg Dimensions (L*W*H) 1080 mm x 670 mm x 1080 mm RequestQuotation Textile and Fabrics Air Permeability Tester – Permatest First Name Last Name / Surname Position Email Phone Number Company Name Company Type - None -ManufacturerResellerGovernmentUniversity Country - Select -AfghanistanAlbaniaAlgeriaAmerican SamoaAndorraAngolaAnguillaAntarcticaAntigua & BarbudaArgentinaArmeniaArubaAscension IslandAustraliaAustriaAzerbaijanBahamasBahrainBangladeshBarbadosBelarusBelgiumBelizeBeninBermudaBhutanBoliviaBosnia & HerzegovinaBotswanaBouvet IslandBrazilBritish Indian Ocean TerritoryBritish Virgin IslandsBruneiBulgariaBurkina FasoBurundiCambodiaCameroonCanadaCanary IslandsCape VerdeCaribbean NetherlandsCayman IslandsCentral African RepublicCeuta & MelillaChadChileChinaChristmas IslandClipperton IslandCocos (Keeling) IslandsColombiaComorosCongo - BrazzavilleCongo - KinshasaCook IslandsCosta RicaCroatiaCubaCuraçaoCyprusCzechiaCôte d’IvoireDenmarkDiego GarciaDjiboutiDominicaDominican RepublicEcuadorEgyptEl SalvadorEquatorial GuineaEritreaEstoniaEswatiniEthiopiaFalkland IslandsFaroe IslandsFijiFinlandFranceFrench GuianaFrench PolynesiaFrench Southern TerritoriesGabonGambiaGeorgiaGermanyGhanaGibraltarGreeceGreenlandGrenadaGuadeloupeGuamGuatemalaGuernseyGuineaGuinea-BissauGuyanaHaitiHeard & McDonald IslandsHondurasHong Kong SAR ChinaHungaryIcelandIndiaIndonesiaIranIraqIrelandIsle of ManIsraelItalyJamaicaJapanJerseyJordanKazakhstanKenyaKiribatiKosovoKuwaitKyrgyzstanLaosLatviaLebanonLesothoLiberiaLibyaLiechtensteinLithuaniaLuxembourgMacao SAR ChinaMadagascarMalawiMalaysiaMaldivesMaliMaltaMarshall IslandsMartiniqueMauritaniaMauritiusMayotteMexicoMicronesiaMoldovaMonacoMongoliaMontenegroMontserratMoroccoMozambiqueMyanmar (Burma)NamibiaNauruNepalNetherlandsNetherlands AntillesNew CaledoniaNew ZealandNicaraguaNigerNigeriaNiueNorfolk IslandNorthern Mariana IslandsNorth KoreaNorth MacedoniaNorwayOmanOutlying OceaniaPakistanPalauPalestinian TerritoriesPanamaPapua New GuineaParaguayPeruPhilippinesPitcairn IslandsPolandPortugalPuerto RicoQatarRomaniaRussiaRwandaRéunionSamoaSan MarinoSarkSaudi ArabiaSenegalSerbiaSeychellesSierra LeoneSingaporeSint MaartenSlovakiaSloveniaSolomon IslandsSomaliaSouth AfricaSouth Georgia & South Sandwich IslandsSouth KoreaSouth SudanSpainSri LankaSt. BarthélemySt. HelenaSt. Kitts & NevisSt. LuciaSt. MartinSt. Pierre & MiquelonSt. Vincent & GrenadinesSudanSurinameSvalbard & Jan MayenSwedenSwitzerlandSyriaSão Tomé & PríncipeTaiwanTajikistanTanzaniaThailandTimor-LesteTogoTokelauTongaTrinidad & TobagoTristan da CunhaTunisiaTurkmenistanTurks & Caicos IslandsTuvaluTürkiyeU.S. Outlying IslandsU.S. Virgin IslandsUgandaUkraineUnited Arab EmiratesUnited KingdomUnited StatesUruguayUzbekistanVanuatuVatican CityVenezuelaVietnamWallis & FutunaWestern SaharaYemenZambiaZimbabweÅland Islands State/Province Timeline - None -Less than one monthOne to three monthsFour to six monthsLonger than six months Message
