Thermal Camera Analyzer (Advanced) - QualiTCA™ 38

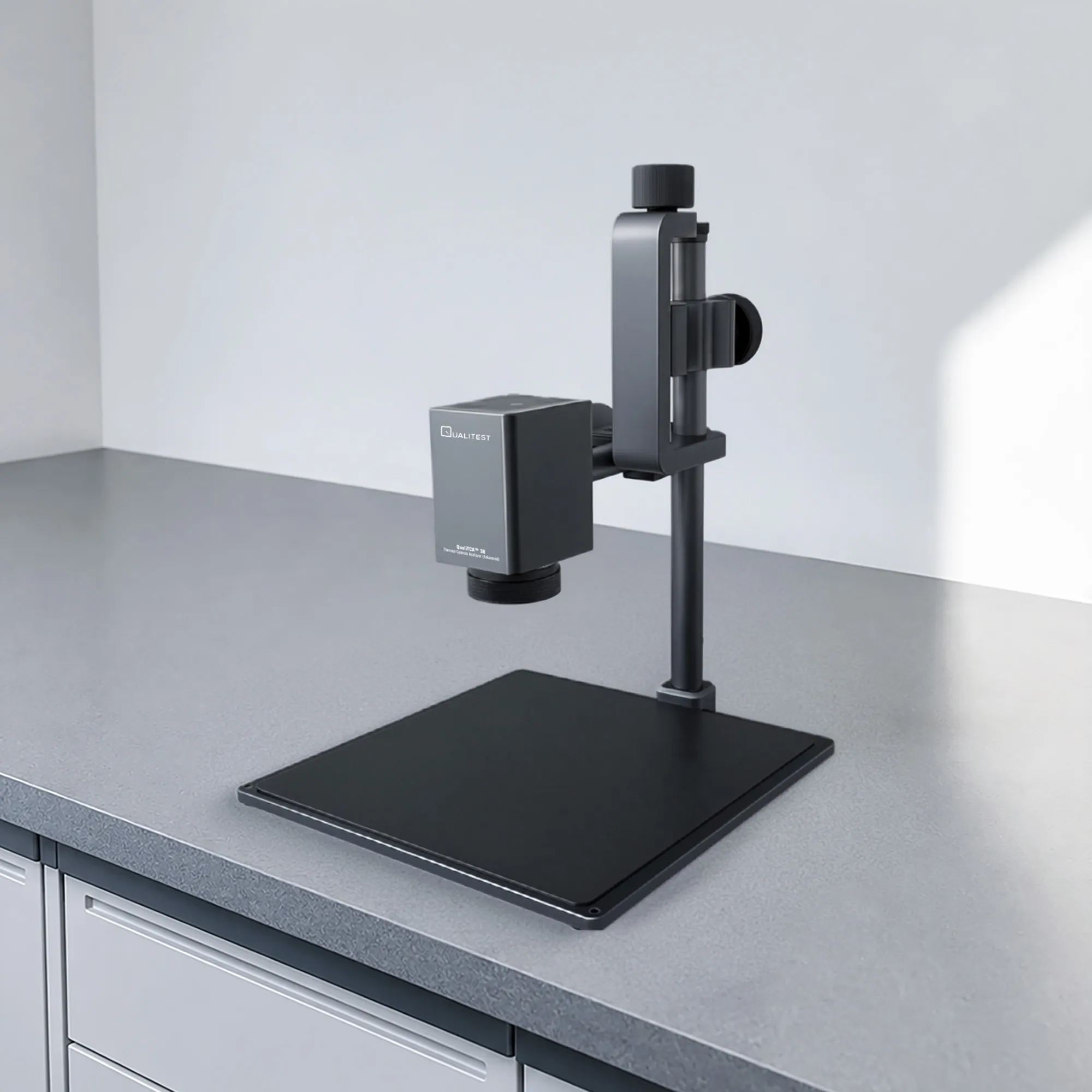

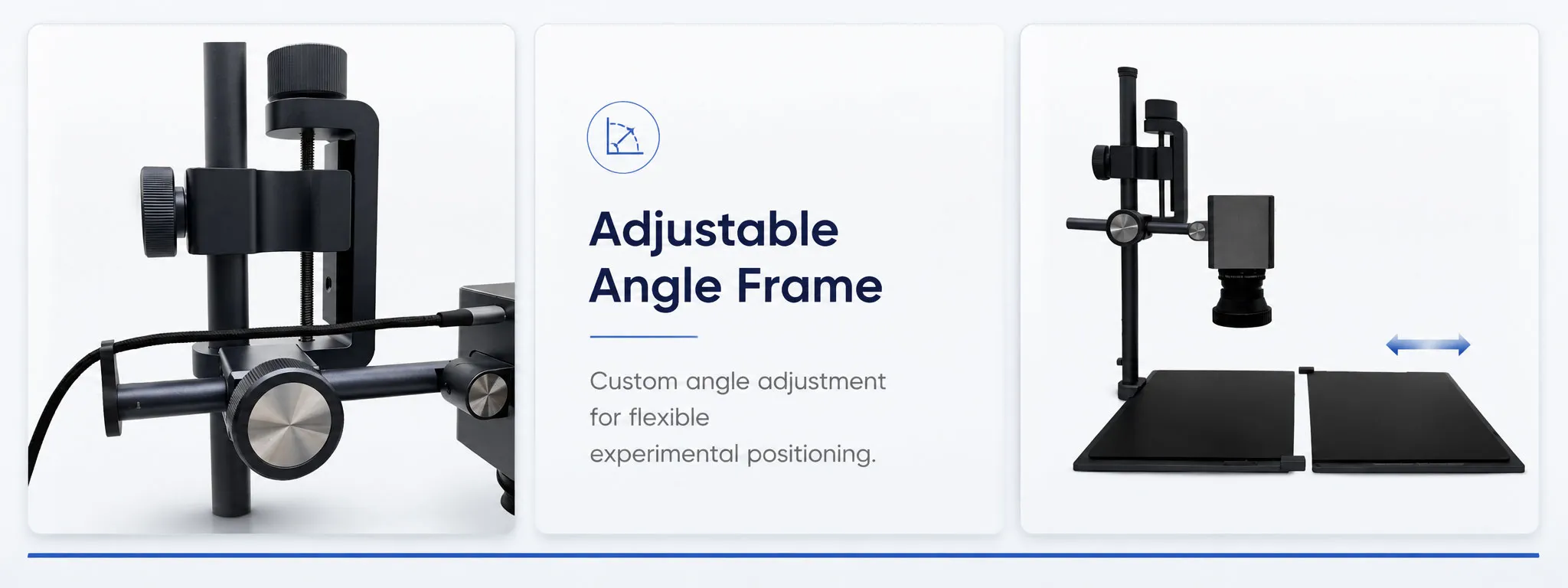

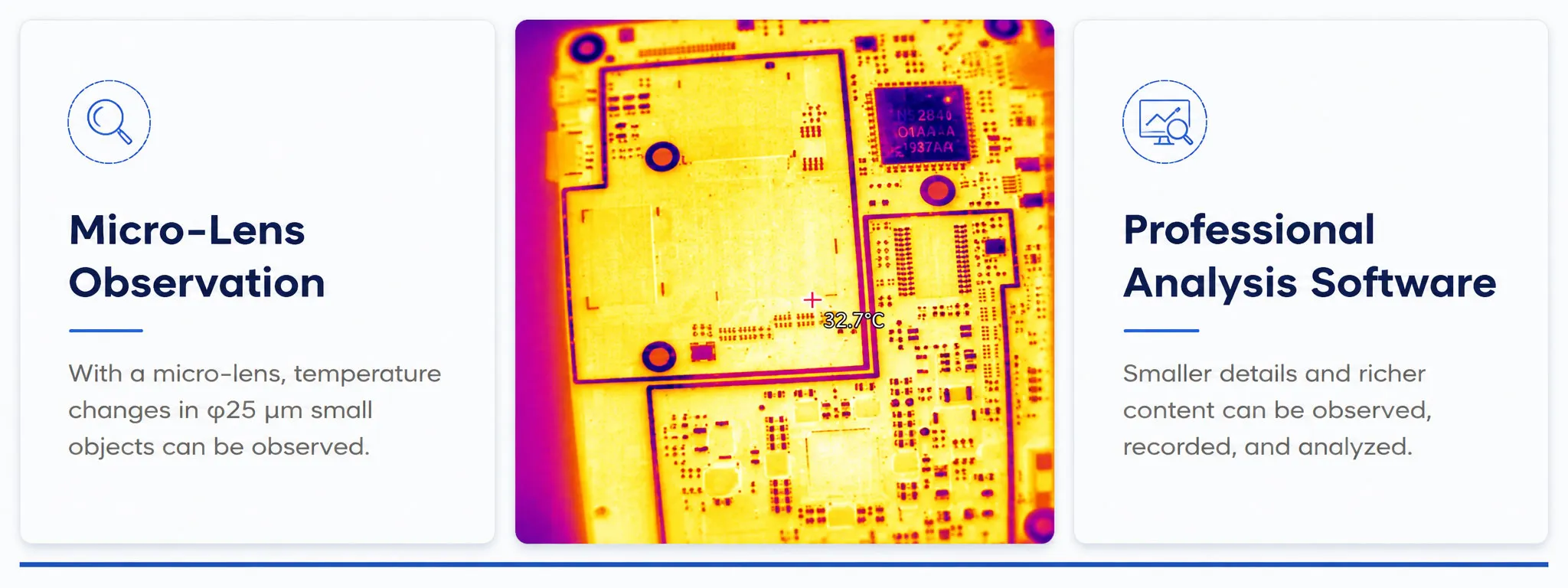

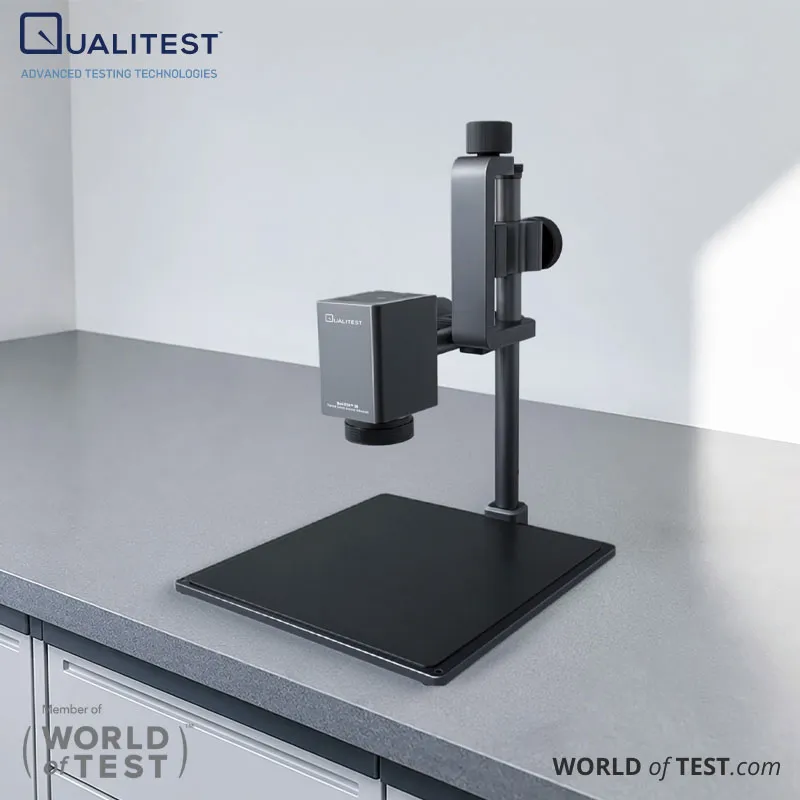

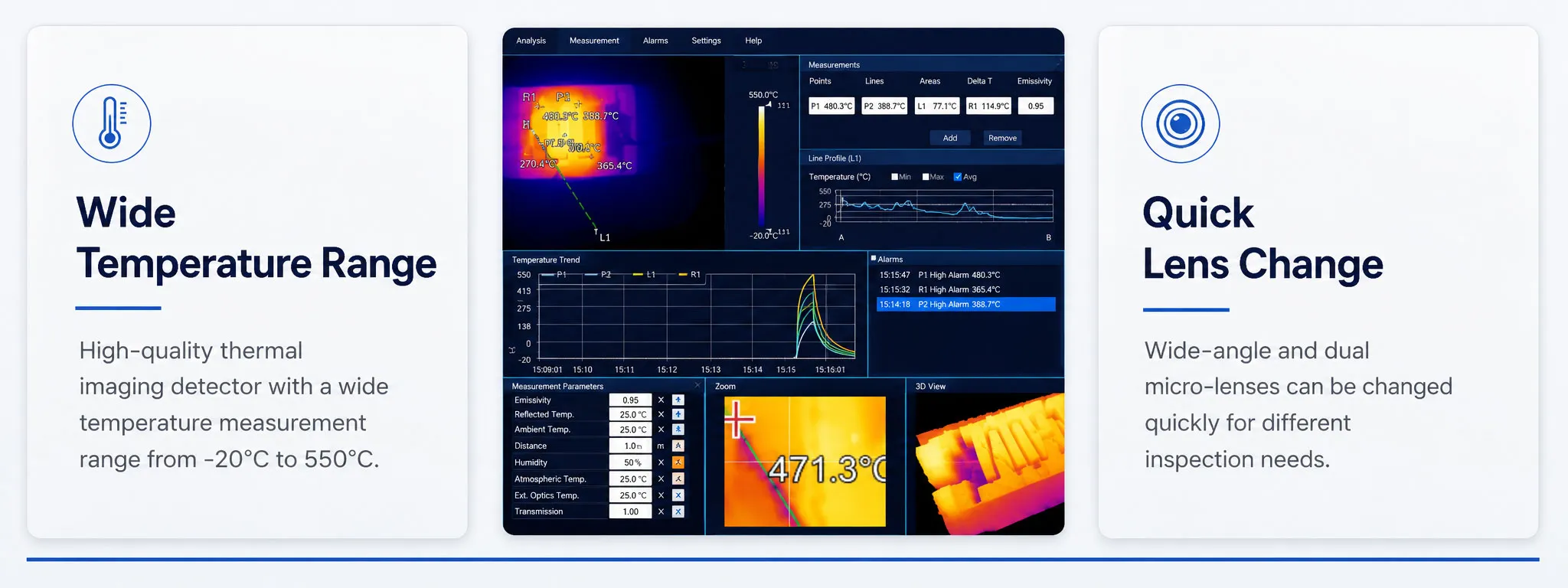

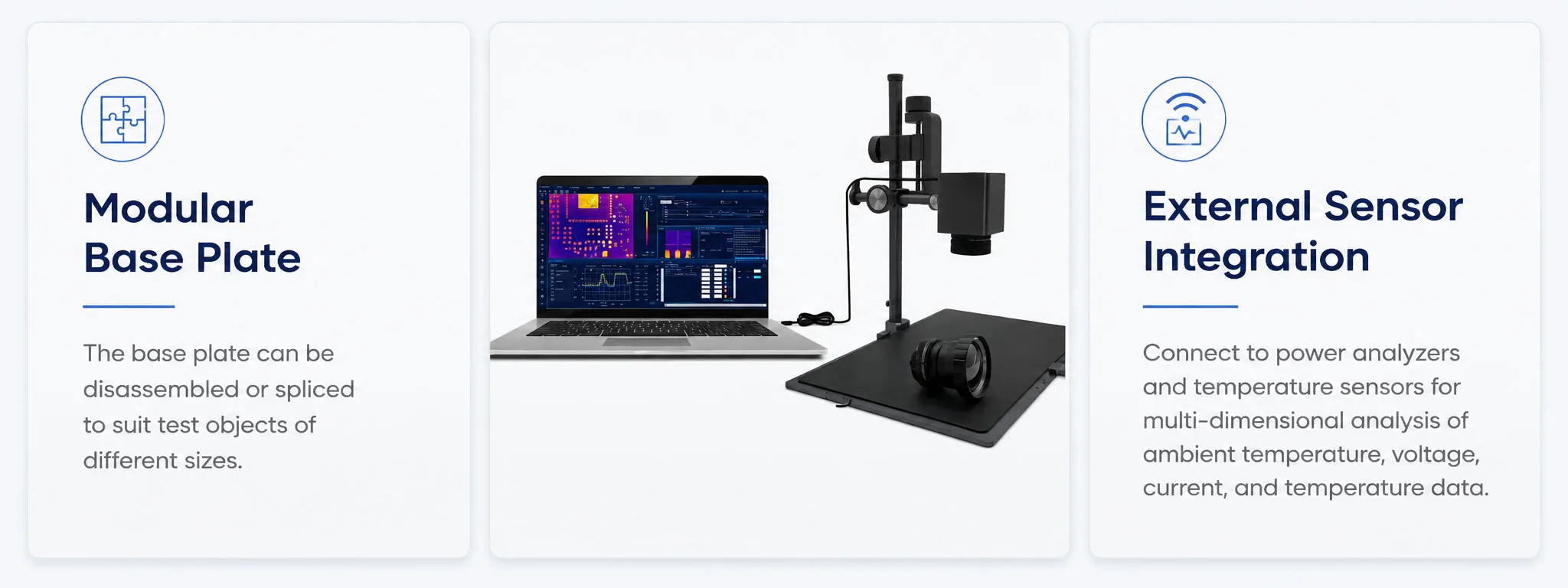

Thermal Camera Analyzer (Advanced) - QualiTCA™ 38 is a precision thermal camera analyzer built for chip, fiber, and fine material analysis. A 384×288 thermal sensor pairs with a quick-change macro lens capable of resolving objects as small as 25 microns, for a close look at an individual IC pin or bond wire. A measurement range of -20°C to 550°C (-4°F to 1022°F) covers both ambient studies and hot component failure analysis. A stable, multi-angle adjustable frame holds the camera steady for repeatable measurements.

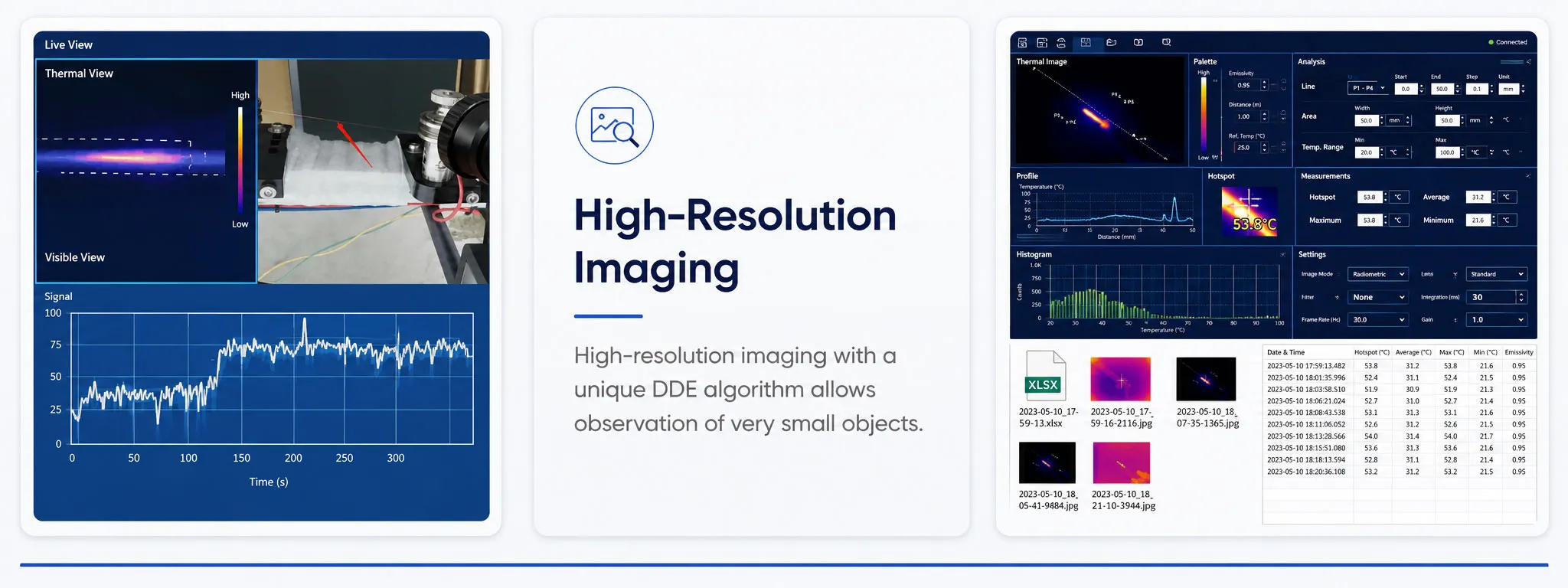

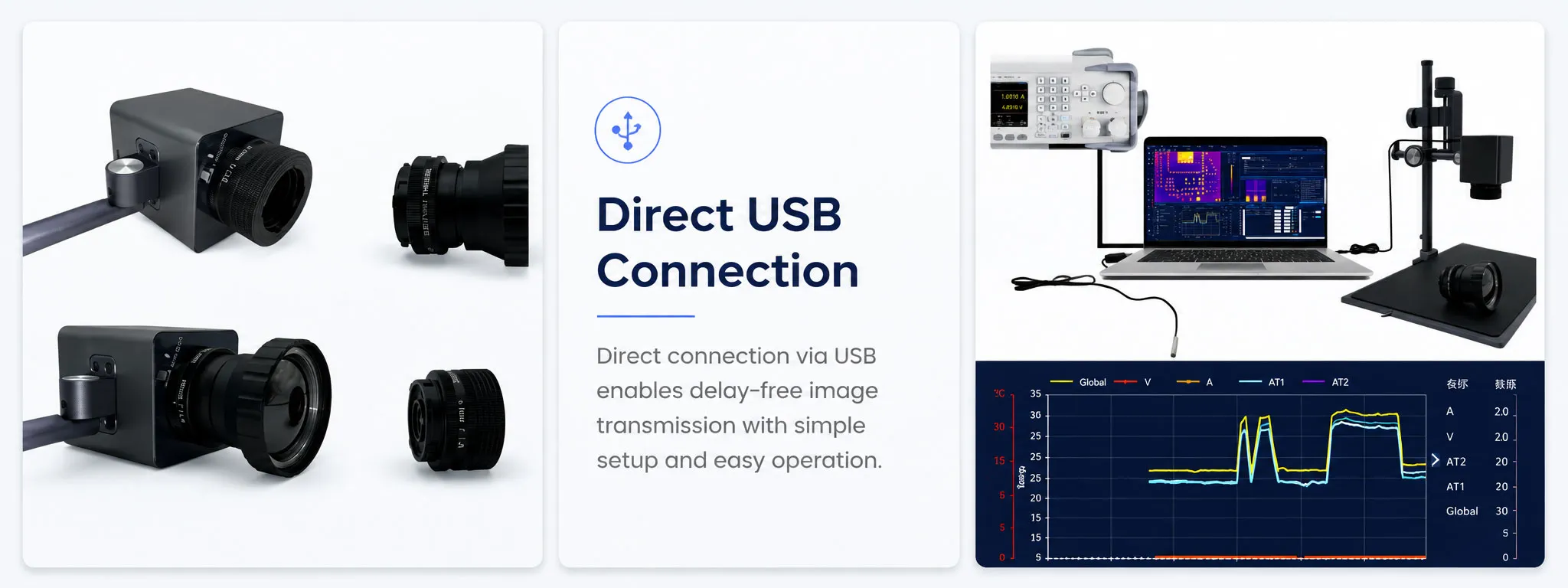

The QualiTCA™ 38 connects to an ambient temperature sensor and a load power meter at the same time, so a test can correlate voltage, current, and temperature on the same timeline. Tiered accuracy of ±2°C or 2% from -20°C to 120°C, tightening to ±3% above that, keeps readings dependable across a wide working range. Separate area emissivity settings from 0.1 to 1.0 correct for different materials in the same frame. A unique DDE algorithm sharpens the displayed image for a clearer look at fine detail.

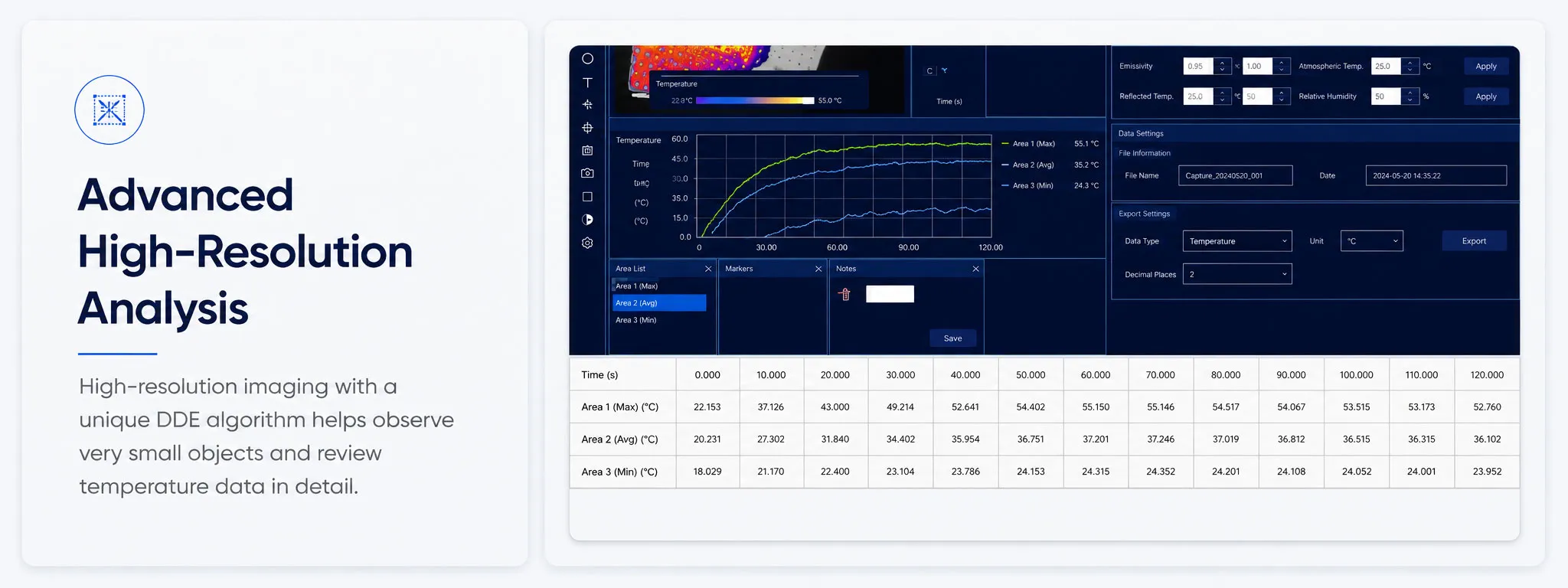

The included Professional Edition software records full radiometric video in a proprietary dyv format alongside standard JPG and MP4 output. An operator can pull a temperature reading from any frame after the test is complete. Curves, isotherms, and point, line, and polygon measurement give several ways to inspect the same sample. A working range of -10°C to 55°C suits a typical lab or workshop bench.
