Total Energy Dart Drop Impact Tester

Total Energy Dart Drop Impact Tester Series DX-8400
Parent Product
Drop Dart Impact Tester
Standards
ASTM D1790
ASTM D4272
View PDF

The DX-8400 series Total Energy Dart Drop Impact Tester is a cutting-edge testing solution designed for evaluating the impact resistance of plastic films and sheets.Tthis series incorporates advanced features for accurate and comprehensive testing. Key highlights include:

  • Versatility
  • Measurement Precision
  • Automation
  • Safety and Innovation
  • Compliance and Capacity
  • User-Friendly Interface

Total Energy Dart Drop Tester  Series DX-8400 Overview

Total Energy Dart Drop Impact Tester

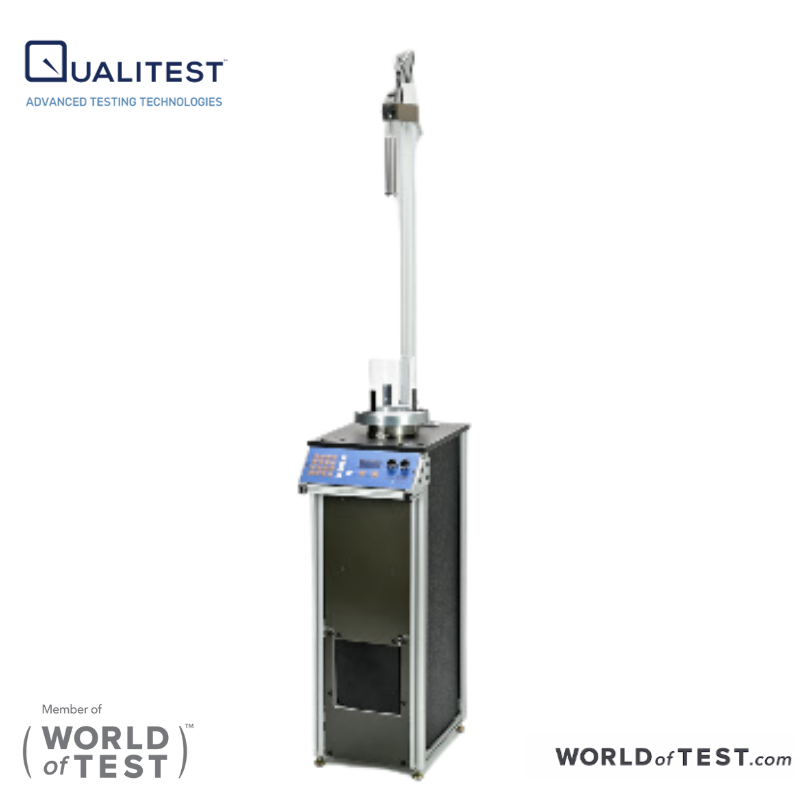

DX-8485-A Total Energy Dart Drop Tester

Introducing the DX-8485-A Total Energy Dart Drop Tester by Qualitest North America - a cutting-edge solution for plastic films and sheets. This high-performance dart drop impact tester comes equipped with total energy capability, revolutionizing the testing process for blown film extruders and flexible packaging manufacturers.

By automatically measuring and recording dart weight, the DX8485-A eliminates the need for manual measurement and/or weighing of darts and data entry – reducing errors and expediting the testing process for both total energy calculations and staircase dart drop computations.

An integrated velocity meter measures dart speed, providing operators the option of conducting total energy testing in addition to traditional pass/fail or staircase dart drop tests. The total energy test delivers an actual impact resistance value with a single dart drop – a notable improvement compared to 5-10 drops for the pass/fail test or up to 25 drops for the staircase test. This innovation enhances efficiency and precision in testing procedures.

DX-8585-A Advanced Dart Drop & Total Energy Impact Tester

High-Performance Dart Drop Impact Tester with High Capacity Total Energy Capability for Plastic Films and Sheets

Qualitest North America proudly presents the DX-8585-A Total Energy Impact Tester, designed with a range of innovative capabilities tailored for blown film extruders and flexible packaging manufacturers. This cutting-edge instrument introduces groundbreaking features for the first time, empowering users to:

  • Accomplish pass/fail, staircase, and total energy dart drop tests with a single test instrument.
  • Measure dart weight information using our DX-8300 Dart Drop Software package, significantly enhancing test accuracy and speed.
  • Make process improvements with graphical information displaying dart impact strength alongside pass/caution/fail test conditions.

By automatically measuring and recording dart weight, the DX-8585-A eliminates the need for manual measurement and/or weighing of darts for data entry.

A laser-based velocity meter measures dart speed, offering operators the flexibility to perform total energy tests in addition to traditional pass/fail or staircase dart drop tests. The total energy test provides actual impact resistance values with a single dart drop – a significant improvement compared to the 5-10 drops required for the pass/fail test or up to 25 drops for the staircase test.

Total Energy Dart Drop Tester DX-8485-A Key Features:

  • Streamlined testing: Achieve pass/fail, staircase, and total energy dart drop tests seamlessly with a single test instrument.
  • Enhanced data accuracy and speed: Utilize our DX-8300 Dart Drop Software package to measure dart weight information, significantly improving test precision and efficiency.
  • Informed decision-making: Make process improvements confidently with graphical displays showcasing dart impact strength alongside pass/caution/fail test conditions.

Experience unprecedented testing efficiency and accuracy with the DX-8485-A, setting new standards for dart drop testing in the industry

Total Energy Dart Drop Tester DX-8585-A Key Features:

Meets both ASTM D-4272 “Total Energy Impact of Plastic Films by Dart Drop” and D-1709 “Impact Resistance of Plastic Film by the Free-Falling Dart Method”.

  • Accommodates heavier loads for Brittleness Testing of plastic sheet, increasing test capacity to 4500 grams.
  • New Integral Tube-Mounted Speed Sensor Assembly eliminates vibration effects from heavier dart loads.
  • Innovative pneumatic, control-integrated, dash-pot dart capture bucket handles dart loads up to 5000 grams. Safety interlocks prevent the dart from being released unless the capture bucket is in place and ready to accept the dropped dart.
  • Safety features and guards enhance safe operation during sample loading and dart guiding during testing.
  • Added a Load Cell to our Updated Pneumatic Dart Release system to not only enter the (5) standard missile weights used with traditional Total Energy Dart Drop testing but also allows keypad-entered selection of missile weights from 1500 gr. to 4500 gr. as required when testing plastic sheet up to 25 mils thickness.

Model DX-8300 Dart Drop Software

For use with both pneumatic and electronic Dart Drop Impact Testers, Qualitest North America's DX-8300 Dart Drop Software stands as the industry standard for data collection and reporting, meeting the stringent requirements of ASTM D-1709 and ISO 7765-1 for dart drop impact testing of films. This software ensures precise and reliable results, reflecting Qualitest's commitment to quality and compliance with international testing standards.

Total Energy Dart Drop Impact TesterTotal Energy Dart Drop Impact Tester



 Total Energy Dart Drop Impact Tester Specifications:

Model DX-8485-A

SpecificationsModel DX-8485-A
Mode of operationOff-line testing/lab use Pass/fail dart drop testing Staircase dart drop testing Total energy impact testing
MaterialsPlastic Films
Test MethodMethod A
Drop Height:26-inch (66 cm)
Actuation MethodElectronic
Dart Release MechanismPneumatic
Sample Clamp MechanismPneumatic
Dart Capture MechanismPivoting Bucket with Lever
Dart Set Included for ASTM D-1709 Dart Drop Test:

Method A with Phenolic Dart Head:

  • (412 g)
  • (2) 120 g
  • (1) 60 g
  • (1) 30 g
  • (2) 15 g
Dart Set Included for
ASTM D-4272 Total Energy Test:

Method A with Integral Aluminum Dart Heads:

  • 0.5 lb (227 g)
  • 1.0 lb (454 g)
  • 1.5 lb (681 g)
  • 2.0 lb (908 g)
  • 2.5 lb (1,135 g)
Accessories

1000-gram Velocity Calibration Dart

  • Model DX-8300 Dart Drop Software
  • Model DX-8300 Pass/Fail Interface System, Top Mounted Pass/Fail Push-buttons
  • Electronic Footswitch Actuator Option for Sample Clamp
  • Electronic Footswitch Actuator Option for Dart Release
Options
  • Optional Two-Button, Safety Actuated, Electronic Sample Clamp, Side Mounted
  • Optional Side Mounted Pass/Fail Push-buttons with Pass/Fail Interface System
Air Requirements90 psi, dry & filtered
Power Requirements115 VAC or 230 VAC
Overall DimensionsHeight 84 inches, Weight 72 lb
Important Note(Due to continuous product improvement, all specifications are subject to change without notice.)



Model DX-8585-A

SpecificationsModel DX-8585-A
Mode of operationOff-line testing / lab use; Pass/Fail dart drop testing; Staircase dart drop testing; Total Energy impact testing
MaterialsPlastic Film & Plastic Sheet
Test MethodMethod A
Drop Height26 inch (66 cm)
Actuation MethodElectronic
Dart Release MechanismPneumatic
Sample Clamp MechanismPneumatic
Dart Capture MechanismPneumatic w/ Interlocks
Dart Set Included for ASTM D-1709 Dart Drop Test:

Method A:


  • (412 g)
  • (2) 120 g
  • (1) 60 g
  • (1) 30 g
  • (2) 15 g
Dart Set Included for ASTM D-4272 Total Energy Test:

Method A:

  • 0.5 lb (227 g)
  • 1.0 lb (454 g)
  • 1.5 lb (681 g)
  • 2.0 lb (908 g)
  • 2.5 lb (1,135 g)
Optional Stem, Dart Head & Dart Weight Set for Brittleness Testing

1,000 g Method A

  • Aluminum Method A Dart Head
  • Aluminum Method A Total energy Dart Stem
  • (1) 1000 g Method A Weight

4,000 g Method B

  • Stainless steel Method B Dart Head
  • Steel Method B Notched 16-inch Total Energy Dart Stem
  • (8) 500 g Method B Weights
Optional Dart Set Incl. ASTM D-5628N/A
Dart Head Material ProvidedAluminum (Method A); Stainless Steel (Method B)
Optional Dart Head MaterialsPhenolic (Method A)
Accessories
  • Model DX-8300 Dart Drop Software
  • Model DX-8300 Pass/Fail Interface System, Top Mounted Pass/Fail Push-buttons
  • Electronic Footswitch Actuator(s) Option for Sample Clamp and for Dart Release
Options
  • Optional Two-Button, Safety Actuated, Electronic Sample Clamp, Side Mounted
  • Optional Side Mounted Pass/Fail Push-buttons with Pass/Fail Interface System
Air Requirements90 psi, dry & filtered
Power Requirements115 VAC or 230 VAC
Overall DimensionsHeight 108 inches, Weight 85 lb
