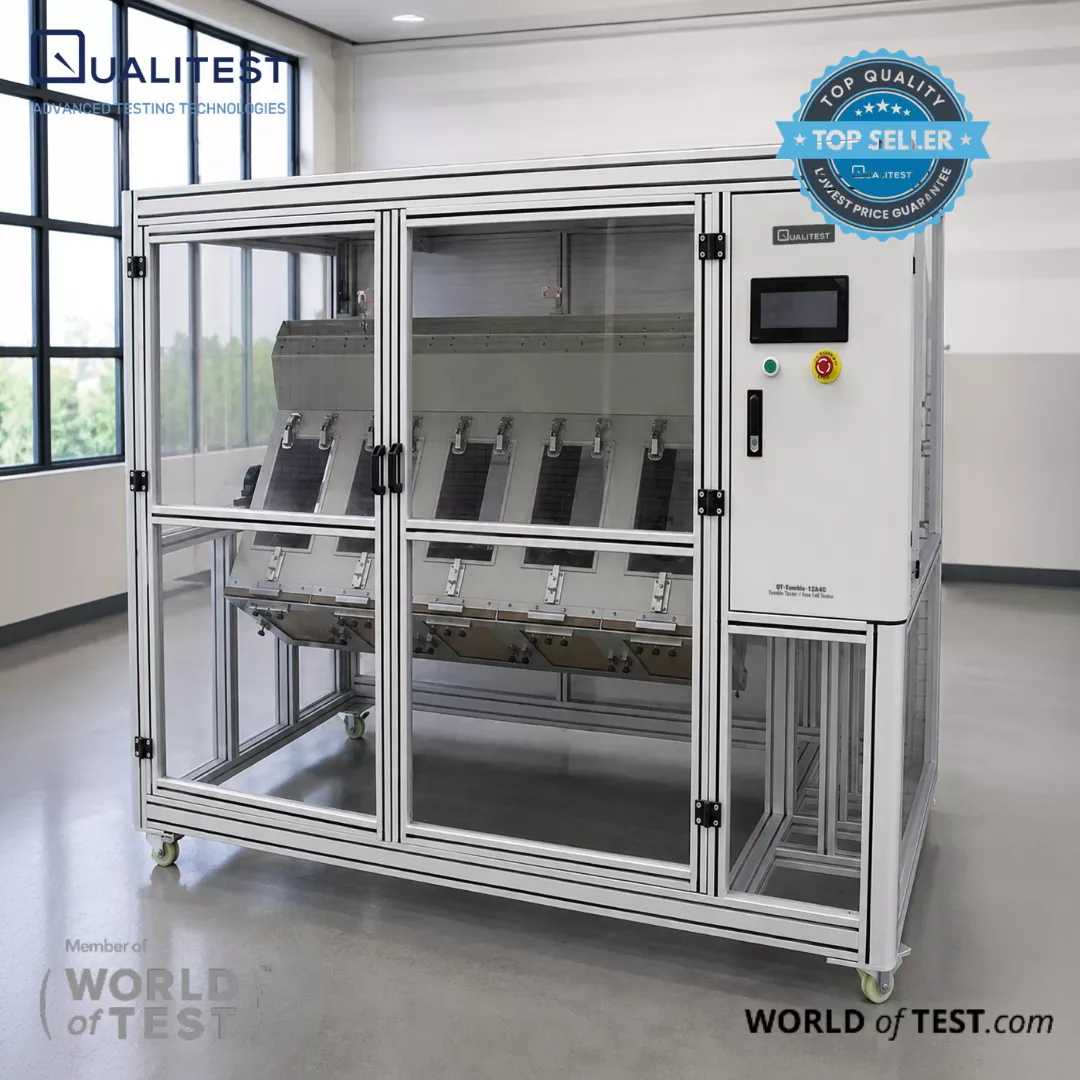

Tumble Tester – Free Fall Tester
Parent Product
The Tumble Tester – Free Fall Tester by Qualitest adheres to the IEC 60068-2-31 and IEC 60068-2-32 test standards. This Tumble Tester – Free Fall Tester is specifically designed to conduct repetitive tumble free fall tests and continuous rotation drop tests for electronic products like mobile phones, PDAs, remote controls, MP3 players, tablets, and more. It utilizes a standardized drop, repeated for a set number of operations using a suitable apparatus, such as a tumbling barrel with specified dimensions. This test is commonly referred to as the tumble mobile or tumble drums drop test.
Applications
Applications
Tumble Tester – Rotating Free Fall Tester
What is a Tumble Tester?
Tumble Tester / Free Fall Tester from Qualitest, meeting MIL-SPEC drop tests, complies with the IEC 60068-2-31 test standard. The rotational tumble tester is especially designed for mobile phones (or other small electronic products) to undergo repetitive free fall tests, also known as tumble mobile or tumble drums drop tests. Our tumble tester has a reliable structure and is suitable for various types of mobile phones, PDAs, and other electronic devices.
Features/Advantages
Features
Tumble Tester – Rotating Free Fall Tester Features:
Our uniquely designed tumble tester can accommodate drop height tests of 500 or 1000mm and can simultaneously test two mobile phones. The Qualitest tumble tester uses a high-quality speed motor drive for precise rotation speed control. The synchronous pulley/transmission ensures low noise during start and stops, providing smooth operation.
Qualitest as standard delivers our Tumble Tester with a safety enclosure shield made of aluminum and acrylic. The cylinder material can be delivered in stainless steel or acrylic. Please specify with order.
Technical Specifications
Technical Specifications
|
Model |
QT-Tumble-12A |
|
Test Sets |
2 sets or 4 sets |
|
Drop Width |
350mm |
|
Drop Height |
500mm or 1000mm |
|
Test Speed |
5~20 times/min |
|
Test Cycle |
1~999999 times (can set) |
|
Dimension (WxDxH) |
1250 x 1500 x 1680 (mm) |
| Weight |
250 (kg) |
|
Power Supply |
AC 220V 50 Hz 5A or specified by user |
Accessories
There are 2 barrels in the tester, 1 barrel with 0.5m height, and another barrel with 1.0m height.
