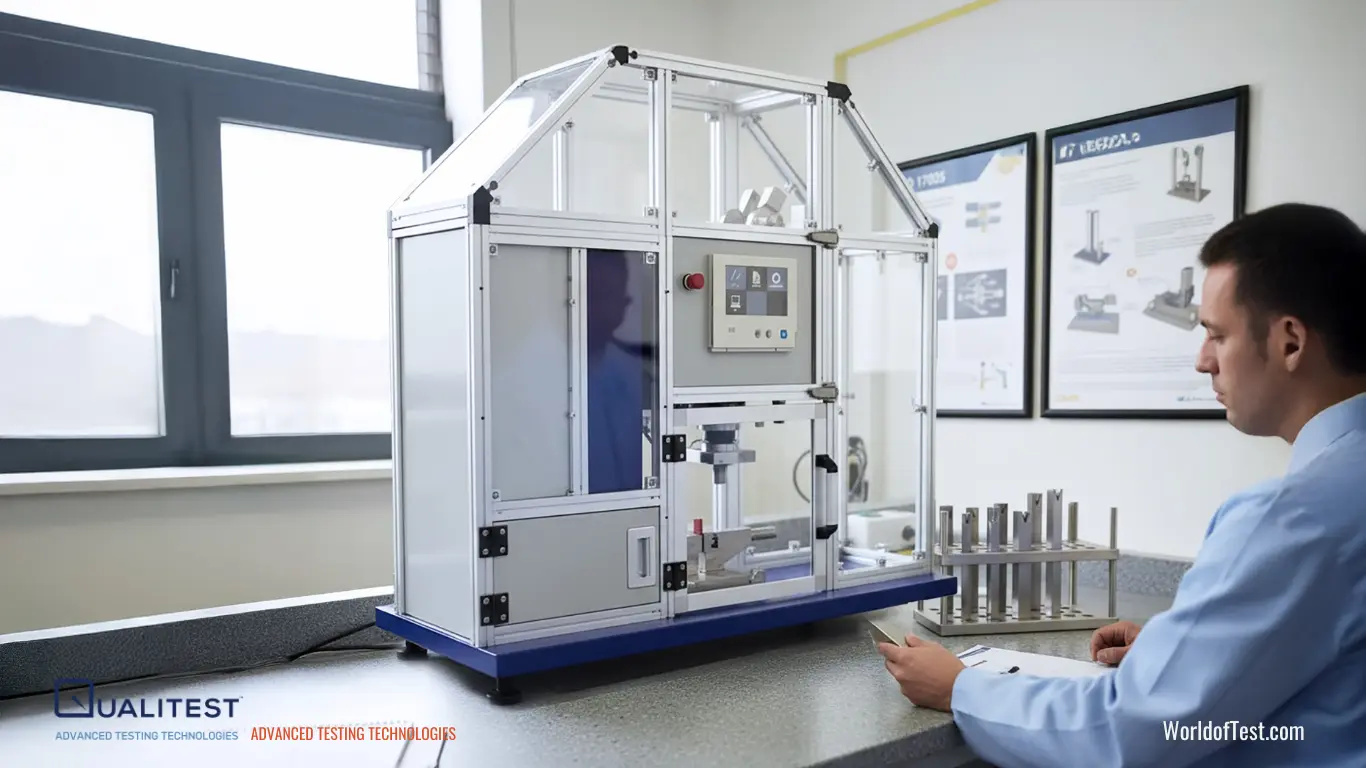

Instrumented vs Non Instrumented Impact Testing Guide

Nobody can afford a critical component snapping in half when the pressure is on.

Getting a firm grip on exactly how a sample reacts when you hit it with a sudden shock is a non-negotiable requirement in this industry. Breaking things to determine toughness and brittleness is the standard procedure, but here is the reality: not every test delivers the full picture. If you are trying to select the right hardware for your facility, the primary debate always lands on one comparison: Instrumented vs non-instrumented impact testing.

At Qualitest, we get it. Deciding between these two setups is a headache because it hinges on what you are actually testing, the budget you have allocated for the project, and how granular you need to get with the metrics. To save you some time, we have analyzed the specific differences, the operational benefits, and since we have been in this business for years, where each method truly shines.

So, What Is the Actual Difference?

Here is the bottom line. The main distinction comes down to the data the machine generates after the impact.

• Non-Instrumented (The Conventional Route): This method typically measures only the absorbed energy or damage post-impact without capturing real-time dynamic data (Sunarno & Zainuddin, 2023). It confirms that the material failed and tells you how much force was required, but it remains silent on how the failure occurred.
• Instrumented Testing: This advanced setup involves measuring dynamic responses such as strain, force, and displacement during impact events (Zainuddin et al., 2024). By using sensors like strain gauges or piezoelectric load cells mounted on the striker, it records a force-time curve that acts like a heartbeat. It reveals the entire fracture event, detailing every millisecond of the structural failure.


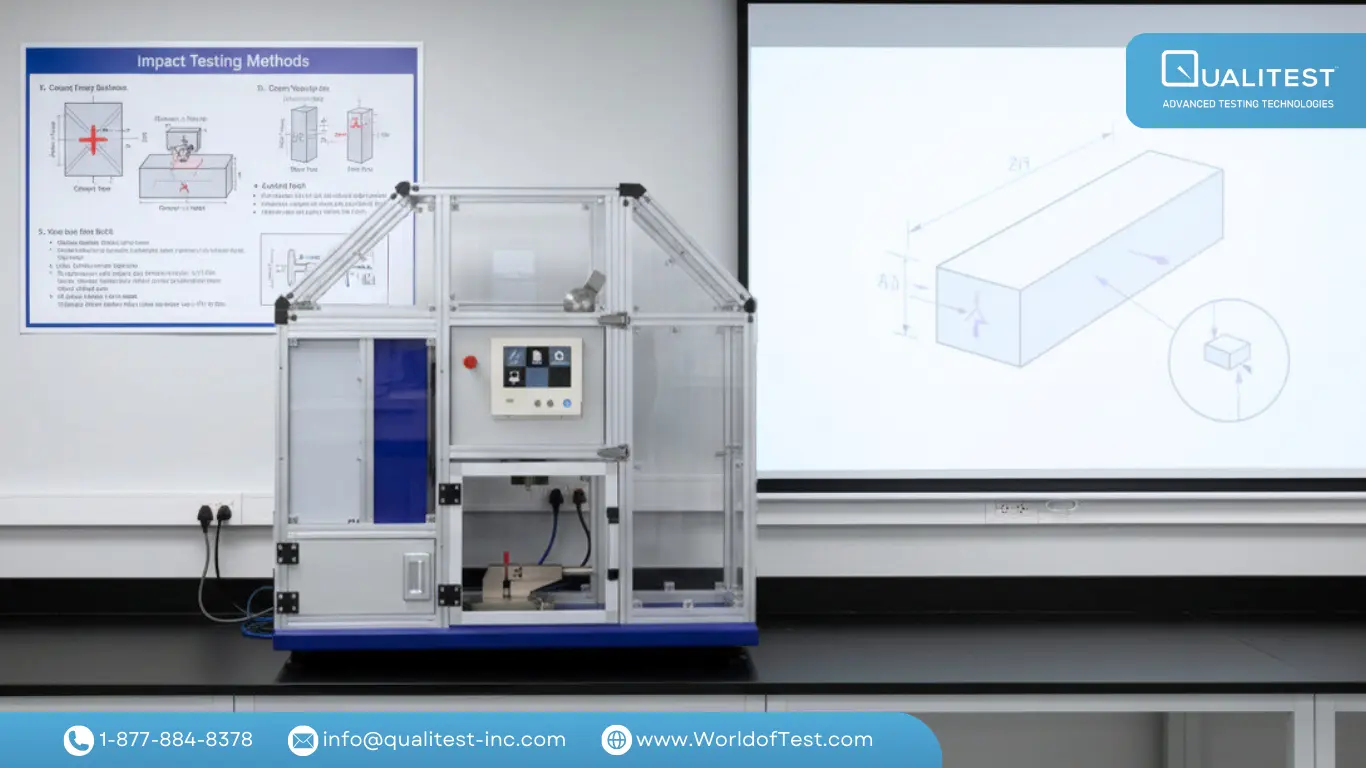

Non-Instrumented Impact Testing: The Production Powerhouse

Non-instrumented testing is the traditional approach used for standard Charpy and Izod protocols. You swing the heavy pendulum, it strikes the specimen, and the system calculates the energy loss based on the height the arm reaches after the collision.

For example: Take a pipeline manufacturer operating in a freezing climate. They are not interested in the nuances of a yield curve. They just need absolute certainty that their heavy-duty steel pipe won't shatter like glass at -40°C. They need a simple number to certify the batch and ship it out.

So, why is this the industry standard? It comes down to pure utility. As studies note, these traditional tests focus primarily on material ductility and toughness (Sunarno & Zainuddin, 2023). This approach outputs the total absorbed energy, typically in Joules or foot-pounds, which is exactly what you need for routine Quality Control and strict Pass/Fail acceptance checks.

For manufacturers producing plastics by the thousands, a straightforward workhorse like our Q-Impact Series is often the ideal solution because it is durable, simple to operate, and provides that one "bottom line" figure needed to certify the batch without over-complicating the process.

Instrumented Impact Testing: The Analytical Expert

When the discussion shifts to instrumented vs non-instrumented impact testing in an R&D environment, the instrumented method is usually the superior choice. By tracking the load on the sample throughout the entire impact, these testers separate the energy consumed during different phases of the break.

For example: Consider an automotive engineer designing a new polymer for a car bumper. They need to know if the plastic absorbs energy smoothly to protect a pedestrian, or if it stays rigid until it suddenly snaps. That is a distinction only the instrumented data from a system like the QualiGIT-Galaxy Series can reveal.

Decoding the Data: What Does the Curve Reveal?

The real value of instrumentation is that detailed "Force-Time" graph.

Instead of a single digit, the curve tells a story. Instrumented tests offer richer insights into material behavior under impact, revealing differences in energy absorption and strain patterns that non-instrumented tests cannot capture (Zainuddin et al., 2024; Sunarno & Zainuddin, 2023).

You can trace the elastic deformation as the material stretches before damage sets in, spot the exact yield point where plastic deformation begins, and identify the maximum force the specimen sustains before collapse. Finally, the tail of the curve reveals the brittle vs. ductile fraction, showing you if the break was a clean snap or if the material stretched significantly before tearing apart.

While standard instrumented pendulums are the norm, the field is evolving. Advanced setups, such as spring-actuated low-velocity devices and laser-induced projectile testing, now provide tunable conditions to simulate real-world scenarios more precisely (Kucuk et al., 2024; Wang et al., 2024).

However, for most industrial applications, a high-quality instrumented Charpy tester remains the most practical tool for understanding performance beyond just failure energy.

Our Honest Take: In our experience, this granular level of insight is often the difference between a successful market entry and a costly product recall. If you are formulating new metal alloys, we consider the instrumented data to be essential. It is the only way to truly "see" inside the fracture mechanics.

Comparing the Two: Which One Do You Need?


To visualize the choice, think of a car accident investigation.

• Non-instrumented is knowing the vehicle hit a wall at 50mph and was totaled.
• Instrumented is possessing the black box recording that confirms exactly when the driver applied the brakes, when the bumper crumpled, and when the chassis twisted.


Quick Comparison: Instrumented vs Non-Instrumented Impact Testing

Seeing It in Action: Who Uses What?

To make this concrete, let's look at a few distinct industries where these machines typically live:

• The Construction Supplier: A firm providing steel rebar for a skyscraper generally uses Non-Instrumented testers. They follow a strict ASTM standard that requires the steel to absorb a specific amount of energy. They typically rely on a high-capacity dial machine, such as the Quali-Impact M300 or M450, to verify the steel is safe. If it passes, it goes into the concrete. End of story.
• The Aerospace Engineer: When building landing gear for a commercial jet, "good enough" is not an option. These teams typically lean towards Instrumented systems. They need to verify exactly how materials behave under extreme dynamic stress to ensure catastrophic failure is statistically impossible.
• The Tech Manufacturer: A company designing the casing for the next flagship smartphone typically uses Instrumented testers. They might deploy a QualiHIT or QPI-D Series tester to understand exactly how the casing yields when dropped to ensure the glass screen inside doesn't crack. They need the curve, not just the break point.
• The High-Volume Foundry: Picture a facility churning out thousands of cast iron parts daily. For them, speed is the priority. They almost exclusively rely on Non-Instrumented units like the Quali-Impact M150 to perform rapid batch checks. If the sample breaks within the acceptable energy limit, the batch ships.


Which One Should You Actually Buy?

If your clients demand detailed failure forensics or if you are developing novel alloys and polymers, the capital for instrumentation is easily justified. However, for standard production lines verifying that a known material meets a minimum energy spec, the non-instrumented approach remains the most cost-effective solution.

Think of it this way: If you are running a third-party testing house that handles generic certifications for hundreds of different clients, a durable non-instrumented machine is likely your bread and butter. But if you are a university lab publishing papers on fracture mechanics, you simply cannot do your job without instrumentation.

Our Recommendation: We believe you should not pay for complex charts you will never interpret. If you do not have a team of engineers dedicated to analyzing force-time curves, the ROI on an instrumented machine might not be there for you.

Meeting the Standards

Whether you are running quick non-instrumented checks or deep-dive instrumented analysis, regulatory compliance is critical. Using the wrong equipment is a guaranteed way to fail an audit. Our Qualitest systems are built to keep you fully aligned with critical industry benchmarks like:

• For Metals: ASTM E23, ISO 148, EN 10045.
• For Plastics: ASTM D256 (Izod), ISO 179 (Charpy), ISO 180 (Izod).
• For Instrumentation: ISO 14556, ASTM E2298.


Ensuring Accuracy: The Role of Sample Prep

Regardless of whether you select an instrumented or non-instrumented system, the validity of your results relies entirely on the quality of your specimen notch. Sample preparation plays a crucial role in impact testing accuracy. This is especially true for complex materials like composites, where factors such as specimen size relative to fiber weave and fixturing can affect damage modes and toughness measurements (Ficker et al., 2025).

We cannot emphasize this enough: In our view, even the most expensive instrumented tester is effectively useless if the sample preparation is poor. This is why we suggest verifying your notch cuts with high-precision optical hardware, such as our Q50X Charpy Impact Specimen Notch Projector. This ensures your samples are geometrically perfect before the test even begins, guaranteeing you are not testing a machining error.

Find the Right Solution for Your Lab

Sorting through the technical details of instrumented vs non-instrumented impact testing does not have to be a nightmare. Whether you need a simple workhorse for pass/fail checks or a high-performance analyzer for fracture science, we have the right tool for the job.

At Qualitest, we pride ourselves on offering a diverse range of testing equipment that handles both routine QC and advanced research. We provide products that are cost-effective but still deliver satisfyingly precise accuracy:

• For Metal Applications: Testing high-strength steel or alloys? Our Quali-Impact M-Series is built to withstand high-energy impacts while delivering exact readings, available in both dial/digital (non-instrumented) and fully instrumented configurations.
• For Plastic and Polymer Applications: Do you need a system for lower energy testing suited for plastics? Our Q-Impact Series offers the flexibility required for ASTM D256 and ISO standards, ensuring you get reliable data for your polymer grades.

We are here to help you identify a solution that performs without draining your budget. Contact our team today to discuss how we can help upgrade your quality control process.

References:

• Kucuk, M., Hejazi, M., & Sari, A. (2024). A Novel Spring-Actuated Low-Velocity Impact Testing Setup. Applied System Innovation. doi.org/10.3390/asi7060108
• Wang, X., Yao, C., Zhang, B., Zhang, D., Shi, C., Tao, Y., & Sun, D. (2024). Roentgenoscopy of laser-induced projectile impact testing. Journal of Synchrotron Radiation, 31, 910 - 915. doi.org/10.1107/s1600577524003898
• Zainuddin, H., Ali, M., Zakaria, K., Paijan, L., Mamat, M., & Bakar, M. (2024). Investigation of Impact Properties under Instrumented Charpy Test. Journal of Engineering and Technological Sciences. doi.org/10.5614/j.eng.technol.sci.2024.56.3.2
• Ficker, M., Misukanis, N., Perez, D., Poglayen, L., Kosmoski, J., & Kerr-Anderson, E. (2025). A NOVEL FIXTURE DEVELOPMENT TO CHARACTERIZE COMPRESSION AFTER IMPACT DAMAGE OF UNIDIRECTIONAL THERMOPLASTIC COMPOSITE LAMINATES. SAMPE 2025 Technical Proceedings. doi.org/10.33599/nasampe/s.25.0160
• Sunarno, S., & Zainuddin, Z. (2023). Impact Test Analysis on Steel Metal Materials and Aluminum. Journal of Social Research. doi.org/10.55324/josr.v2i7.1198
