Mounting Press Selection Guide: Compare Press Options

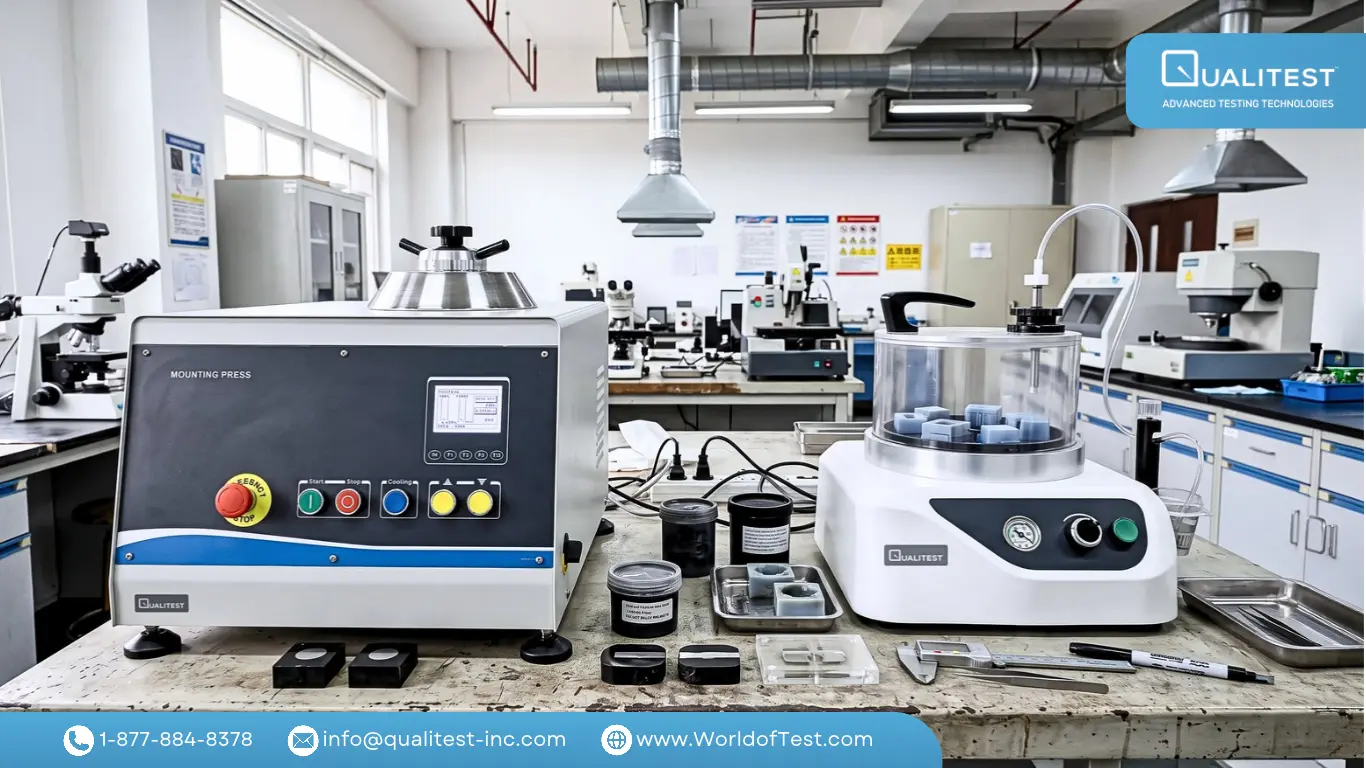

Compromising your specimen mount before reaching the grinding stage compromises hours of microstructure evaluation. Juggling sample counts, cycle inconsistencies, and capital budgets can frustrate any laboratory team.

That is why we engineer hardware that preserves crisp, dead-flat edges without operational friction. This mounting press selection guide evaluates mechanical, hydraulic, and vacuum technologies to help you specify the exact configuration your facility requires.

Key Takeaways

• Drive System Selection: We will state it plainly: mechanical units reduce acquisition costs and eliminate hydraulic oil maintenance, whereas hydraulic systems deliver automated force regulation up to 36 MPa (~5,200 psi) for continuous, high-volume workloads.
• Repeatable Automation: Programmed hydraulic sequencing removes operator-to-operator variation and trims overall preparation time, while an intermediate ram allows the QualiMount 5 to encapsulate two specimens concurrently.
• Downstream Alignment: Verify that your mount diameter (from Φ22mm up to Φ50 mm) aligns with your grinding and polishing holders to prevent operational bottlenecks.
• Material Considerations: Standard alloys benefit from hot thermosetting compression, whereas fragile, porous, or heat-sensitive specimens require gentle vacuum resin infiltration.
• Budget Optimization: Our cost-effective products, such as the mechanical QualiMount 2B, demonstrate our perspective that dependable encapsulation does not require complex hydraulic infrastructure for routine preparation.


Drive Mechanisms: Mechanical vs Hydraulic Systems

Selecting how consolidation force is delivered represents a primary engineering decision. Published research shows that basic, non-automated press setups keep acquisition capital remarkably low (historically between 500 to 5,000 USD) through uncomplicated mechanical components, though they demand longer active heating and cooling cycles with manual tracking.

On the other hand, automated presses represent a larger capital commitment (5,000 to 10,000 USD or more) and incorporate roughly 100 internal components across hydraulic and heating assemblies, but academic research demonstrates that automated sequencing can significantly shorten heating and cooling cycles alongside traceable digital feedback.

While published academic research frequently examines custom experimental frames or simplified shop fixtures, our commercial QualiMount series delivers these mechanical and hydraulic principles in purpose-built, heavy-duty laboratory machinery.

QualiMount 2B: Mechanical Compression

We will state it plainly: mechanical presses are far from an outdated compromise. When manufactured with high structural rigidity, mechanical compression runs day in and day out while giving your maintenance staff a welcome break from fluid checks.

Built for facilities seeking cost-effective products, the QualiMount 2B provides a practical, cost-effective mechanical solution for the final preparation stage prior to polishing, delivering up to 16 MPa (~2,320 psi) of stable clamping without hydraulic upkeep.

It focuses strictly on thermosetting materials and accommodates small, irregular, or difficult-to-hold specimens without requiring hydraulic fluid maintenance. Operators set the punching temperature to match the specific characteristics of the material, operating within a heating range of 90-200™C and a holding time range of 0-999(s), followed by slow Cooling.

Research confirms that while experimental simplified press setups have been evaluated at pressures up to 29 MPa and 140 °C with cooling below 50 °C, commercial mechanical units such as the QualiMount 2B achieve effective consolidation within their verified mechanical ratings of 3.8 to 16 MPa.

QualiMount E2: CPU-Controlled Mechanical Press

In our assessment, pairing CPU automation with a mechanical drive hits the sweet spot for facilities wanting digital consistency without managing hydraulic fluid. The QualiMount E2 integrates mechanical compression with complete CPU process control.

The internal microprocessor manages heating, constant pressure application, cooling, and the finished cycle automatically. Operators track preparation stages via a 7-inch LCD screen displaying real-time data for temperature, holding time, and cooling temperature. The system can press, heat, and stabilize thermal conditions within a minute. For process security, it features a manual stop button and automatically signals an alarm, releases pressure, and initiates cooling once cycle preparation concludes.

QualiMount 5: Automated Hydraulic Press

The QualiMount 5 features an integrated hydraulic drive that automatically regulates heating temperatures (90-190 °C / 194-374 °F), holding durations, and applied force up to 36 MPa (~5,200 psi) throughout the entire cycle, easily exceeding standard industrial mounting targets of 4,000 psi. Structural rigidity here is verified by finite element analysis: under maximum operating pressures of 29 MPa to 36 MPa, mold cylinder walls experience a peak stress of roughly 80 MPa.

Machined from 304 stainless steel with a 170 MPa yield threshold, the assembly provides a 2.1 static safety factor and a 3.75 fatigue safety factor for multi-shift production. Automated cycles incorporate a 5-minute thermal dwell to ensure uniform resin cross-linking across 25 mm to 50 mm molds before chilling below 50 °C under sustained clamping force. It includes an intermediate ram as standard equipment, allowing technicians to prepare 2 specimens simultaneously.

To address diverse sample geometries, operators can select between 4 distinct specification patterns based on specimen difficulty.

Hot Compression vs Cold Vacuum Impregnation

Beyond the drive mechanism, selecting mounting equipment requires evaluating single-head versus dual-head configurations, as well as considering castable vacuum mounting for sensitive samples.

Single-Head vs Dual-Head Configurations

Hot compression encapsulates samples inside a cylindrical chamber filled with thermosetting resin (such as standard phenolic, transparent acrylic, or mineral-filled epoxy). In standard metallographic workflows governed by ASTM E3 (Standard Guide for Preparation of Metallographic Specimens), mounting serves as the vital bridge between sectioning and abrasive grinding. Delivering repeatable temperature, pressure, and cooling is precisely what makes an ASTM E3 preparation sequence reproducible from technician to technician.

Heating melts the resin, applied consolidation force secures the mount, and controlled cooling yields a hard, flat specimen for microstructural examination. High-throughput characterization facilities rely on automated specimen preparation to keep automated microscopes and quantitative image analysis systems continuously supplied with planar, artifact-free mounts. Standardizing these cycles is essential when daily sample volume and consistency govern overall facility output.

Within our QualiMount family, chamber architecture determines operational pace:

The single-head QualiMount I provides a compact, space-conscious configuration built for smaller metallurgical laboratories handling delicate, intricate, or oddly shaped specimens one mount at a time. Meanwhile, the dual-head QualiMount II doubles active chamber capacity, enabling high-throughput testing facilities to process multiple samples simultaneously and eliminate preparation backlogs.

Vacuum Impregnation Technology: QualiMount CMV

Attempting to force porous or thermally sensitive samples into a hot compression cylinder is a losing battle (you end up with crushed internal voids and thermal damage). That is where cold vacuum infiltration is indispensable for porous castings, thermal barrier coatings, delicate electronic packages, mineral cores, and fracture analysis surfaces.

The QualiMount CMV (Castable Mounting Vacuum Machine - Cold Mounting System) features a thick, transparent PMMA cover shell and structural ABS injection housing connected to an external vacuum pump. It achieves a maximum vacuum of -85kpa to evacuate air from open micro-cracks and draw castable resin into internal pores.

The unit includes a patented 360° arbitrary rotating rocker and a motorized rotating disk (operating at a pallet speed of 5RPM) controlled by a single key, allowing operators to fill multiple molds inside the vacuum chamber without spilling resin.

Technical Selection Criteria

Before selecting a specific mounting press, laboratories should evaluate three operational criteria: downstream equipment compatibility, consumable chemistry, and facility utilities.

Downstream Equipment and Mold Sizing

A mounting press must integrate directly with your downstream grinding and polishing systems. Studies on automated sample preparation confirm that automated sequencing reduces human error by eliminating manual handling inconsistencies. In specialized evaluations, automated preparation reduced total specimen preparation time by up to 62.6% while maintaining a 91% process reliability rating.

Regulated pressure is vital because untracked manual force fails to ensure uniform polymer consolidation across the mount. In our view, technicians often fault polishing abrasives for rounded edges when uneven mounting pressure or mismatched mold sizing was the actual cause.

Mount diameter is determined by the specimen holder dimensions of your downstream semi-automatic or automatic grinder/polisher. Specifying an incompatible diameter leads directly to production delays. Our mold diameters include:

• QualiMount 2B: One size of Φ22mm, ϕ30mm, ϕ45mm
• QualiMount E2: One size of Φ22, 30, 40, 45mm
• QualiMount 5: Φ25, 30, 40, 50 mm (4 sizes)

For North American facilities, these metric cylinders approximate common imperial dimensions: Φ25 mm (~1 in), Φ30 mm (~1.18 in, often paired alongside 1.25 in setups), Φ40 mm (~1.57 in), and Φ50 mm (~1.97 in). Because automated polishing holder rings use strict machining tolerances, always verify whether your drive plates accept true metric mounts or require imperial cavities to prevent insertion binding.

As a general metallurgical rule, size your specimen to fill roughly 50 to 70 percent of the mold diameter, maintaining at least 3 to 5 mm of resin margin between the specimen edge and the mold wall. A resin wall thinner than 3 mm chips and pulls away under aggressive grinding papers, while an undersized specimen can tip or displace as molten resin flows under compression.

The automated hydraulic control on the QualiMount 5 preserves edge retention and prevents specimen abrasion during downstream mechanical polishing. For thin sheets, small pins, or irregular slivers prepared in the QualiMount CMV, stainless steel and PET roll sliced clips keep specimens vertically aligned during resin pouring.

Consumable Compatibility

Aligning resin chemistry with your equipment ensures solid adhesion, edge retention, and minimal shrinkage:

• Hot Mounting Thermosetting Resins: Compatible across all QualiMount presses, with chemistry dictating edge retention:
  • Edge Retention Hierarchy: Glass-filled epoxy and diallyl phthalate (DAP) eliminate shrinkage gaps best, mineral-filled compounds sit in the middle, and standard phenolics serve general-purpose inspection.
  • Compaction Requirements: High-viscosity DAP and glass-filled compounds require 28 to 35 MPa, pairing best with the automated hydraulic force of the QualiMount 5.
  • SEM and EDS Analysis: Specify copper-filled or graphite-filled conductive compounds to ground the mount and prevent electron beam charging.
• Cold Vacuum Epoxies: The QualiMount CMV works with conventional epoxy and acrylic cold resins, as well as specialized formulations:
  • LYK(Transparent) Epoxy: Low viscosity with minimal exotherm; achieves cure at 25°C - 25 minutes.
  • HSK(Transparent) Fast Epoxy: High hardness, clear transparency, and sharp edge retention; achieves cure at 25°C - 1 hour.
• Cold Inlay Fixtures: The QualiMount CMV utilizes reusable circular soft silicone molds and hard plastic (POM) circular molds, paired with stainless steel and PET roll sliced clips for challenging part geometries.


Facility Infrastructure and Installation Requirements

Before installing a new press, verify these utility and bench specifications:

• Electrical Connections: Single-phase 220V 50HZ (110V optional) is standard for the QualiMount 2B (800w heating draw), QualiMount E2 (450~1000w heating draw), and QualiMount 5 (1600W heating draw). The QualiMount CMV requires 220v/110V for the main unit (6w) and its accessory vacuum pump (750w).
• Cooling Utilities: The QualiMount 2B uses slow Cooling without external water hookups. The QualiMount E2 connects for Water / Slow Cooling modes (20°C90°C range). The QualiMount 5 features an integrated cooling mode operating across 40-90°C with cooling times adjustable from 10s2999s.
• Hydraulic Fluid Maintenance: Mechanical presses (2B, E2) and the cold CMV system require zero hydraulic oil. The hydraulic QualiMount 5 includes a 10L oil tank and requires adding 6-7L 46# Standard hydraulic oil prior to initial operation.
• Benchtop Space and Weight: Space-efficient models include the QualiMount 2B (440 x 253 x 310 mm; 32kg) and QualiMount E2 (350 x 400 x 465mm; 48kg). The hydraulic QualiMount 5 requires a reinforced bench (700 x 550 x 515mm; 110kg). The QualiMount CMV requires bench space for a chamber size of Φ 260x125 with a cover shell area up to 452 cm2.


Technical Specifications Comparison

The table below provides a consolidated four-column technical comparison across the QualiMount product line:

(Note: QualiMount I and QualiMount II represent single-head and dual-head hot compression options for dedicated single-specimen or concurrent multi-specimen workflows; specific numerical limits are available upon quote request).

Equipment Selection by Laboratory Profile

To evaluate which configuration matches your laboratory operations, review your daily workflows against these representative testing applications:

Low-Volume Routine Preparation

This setup fits testing facilities seeking cost-effective products to handle basic encapsulation before polishing, where benchtop footprint is constrained and workflows arrive in small batches. Educational, conservation, and low-volume industrial testing facilities regularly rely on mechanical clamp setups to keep acquisition capital low and repairs straightforward.

Typical examples include checking structural steel weld beads, inspecting standard fastener cross-sections, or examining forged machinery brackets where sample volumes are intermittent and direct mechanical operation meets daily inspection needs.

• Recommended Configuration: QualiMount 2B
• Operational Verdict: In our view, the QualiMount 2B is a sensible, cost-effective mechanical press solution. It eliminates hydraulic fluid maintenance, gives operators direct dial control over punching temperatures (90-200°C), cools down via slow Cooling, and fits onto compact benchtops with its 32kg build and 440 x 253 x 310 mm footprint.


Academic and Institutional Quality Control

University teaching laboratories, research institutes, and manufacturing quality bays regularly require automated cycle execution, clear digital tracking, and live status readouts without introducing hydraulic plumbing. Common applications include material engineering coursework and institutional alloy research where students or researchers prepare small alloy pucks, bronze castings, or lithofacies rock slices that demand repeatable cycle times without fluid maintenance {clean-room environments will appreciate this}.

• Recommended Configuration: QualiMount E2
• Operational Verdict: We consider the QualiMount E2 to be an outstanding balance of digital automation and mechanical simplicity. It puts the CPU in charge of heating, pressure holds, and cooling. Technicians can check numbers on a crisp 7-inch LCD screen, lock down heating parameters within a minute, take advantage of a 90mm mechanical stroke, and rely on an automated alarm and pressure dump paired with Water / Slow Cooling modes.


High-Volume Industrial Production

Metallographic inspection lines processing demanding daily sample volumes require automated pressure regulation, edge retention, and standardized preparation patterns. In high-volume operations, automated cycle tracking eliminates operator variability and ensures consistent resin consolidation.

Typical setups include round-the-clock heat-treatment lines checking case-hardened transmission gears, induction-hardened pins, or critical alloy fasteners. In facilities conducting microindentation hardness traverses to ASTM E384, edge retention is just as vital as sample flatness, because any resin shrinkage or rounded edge skews the critical near-surface readings of a case-depth curve.

Similarly, for automated steel quality control operating to ASTM E768 (Standard Guide for Preparing and Evaluating Specimens for Automatic Inclusion Assessment of Steel), automated hydraulic pressure ensures the planar boundary support needed for high-speed automated optical scanning.

• Recommended Configuration: QualiMount 5
• Operational Verdict: From our perspective, the QualiMount 5 is the premier choice when process consistency and high sample throughput dictate laboratory productivity. Its automated hydraulic drive delivers sample preparation pressures up to 36 MPa on 25 mm molds, scaling down to 9 MPa on 50 mm molds, while the standard intermediate ram allows two specimens to be mounted concurrently across four mold sizes (Φ25, 30, 40, 50 mm). With 4 preset specification patterns, it preserves edge protection and prevents downstream grinding and polishing from eroding critical edge boundaries.


Scaled Hot Mounting Operations

Facilities establishing dedicated hot compression preparation cells select equipment based on mold chamber capacity and throughput targets to support analytical instruments. Common scenarios range from specialized failure analysis benches examining individual broken shafts with unique geometries, over to active industrial production facilities preparing uniform round metal mounts to keep automatic grinding tables running without delay.

• Recommended Configurations: QualiMount I (Single-Head) or QualiMount II (Dual-Head)
• Operational Verdict: We recommend the compact QualiMount I for smaller metallurgical setups handling delicate, intricate, or uniquely shaped parts one mount at a time. Select the dual-head QualiMount II for high-throughput production floors that need to process multiple mounts simultaneously to keep downstream grinding tables completely loaded. When choosing between our dual-specimen options, base your decision on recipe flexibility versus batch uniformity:
  • Select the QualiMount 5 when both mounts share an identical recipe: its intermediate ram encapsulates two samples inside one cylinder on a single automated cycle across four preset specification patterns and sample preparation pressures up to 36 MPa (~5,200 psi).
  • Select the dual-head QualiMount II when your daily workload mixes different materials: each cylinder operates with independently adjustable temperature, pressure, and timing settings, allowing you to run two different thermal cycles or mold diameters concurrently.


Fragile and Porous Materials

Testing environments evaluating specimens that cannot tolerate compression heat or mechanical force require castable cold vacuum infiltration. Typical applications include examining porosity in plasma-sprayed ceramic coatings, sectioning multilayer electronic circuit assemblies and micro-connectors, or inspecting friable geological core slices where hot clamp pressure would crush internal pores or cause thermal fracture lines.

• Recommended Configuration: QualiMount CMV
• Operational Verdict: In our technical assessment, the QualiMount CMV provides a dedicated cold mounting vacuum impregnation setup that is mandatory for fragile microstructures. Operating down to a maximum vacuum of -85kpa with a 50L/min vacuum pump, its 360° arbitrary rotating rocker and motorized 5RPM turntable let operators fill multiple cups without spilling resin in the vacuum chamber. It pairs with LYK Transparent epoxy (25°C - 25 minutes cure) and HSK Fast epoxy (25°C - 1 hour cure) to preserve delicate internal cavities and microscopic structures.


Consultation and Support

Whether your testing facility requires a cost-effective mechanical press, an automated dual-specimen hydraulic mounting system, or castable cold vacuum impregnation hardware, our engineering team at Qualitest is ready to assist your selection process.

Contact Qualitest today to discuss your laboratory preparation workflow or request a quote on our QualiMount series.
