Rubber Hardness Testing Guide: Methods & Standards

Could your rubber components hold the key to a more reliable product line? We’re going to call it as it is: getting the firmness profile exactly right is the secret magic behind every high performing product.

At Qualitest, we believe the specific way a material reacts when pressed is the true decider of quality success. This guide shows you how to get results that are sheer perfection so your testing stays satisfyingly spot on for years.

Key Takeaways

• Getting the exact firmness profile of your rubber parts directly dictates how long they will survive in high-stakes jobs.
• Matching your material to the correct measuring scale is totally non-negotiable. Shore works well for standard rubber, while IRHD is the absolute best choice for tiny or curvy pieces like O-rings.
• Sticking closely to official testing rulebooks like ASTM D2240 and ISO 48 is the only way to get numbers your clients will actually trust.
• Flawless sample preparation, a perfect vertical testing angle, and strict wait times are absolute requirements for true accuracy.
• Upgrading to digital testing gear and solid operating stands wipes out human guessing and keeps your quality control satisfyingly spot on.


Why Rubber Hardness is Critical for Industrial Performance

We think of rubber firmness as a tug-of-war between being beautifully flexible and staying rock-solid. It is the specific way a piece of material stands its ground when a heavy force tries to leave a mark or push deeply into the surface. Research confirms that mixing time and specific recipes directly affect this firmness, which in turn dictates fatigue resistance and overall performance.

From what we’ve gathered working with businesses across the globe, this one number tells the entire story of how a part will hold up over its working life. It is a make-or-break factor for plenty of high-stakes jobs:

Auto Components

We see tire makers constantly balancing road-hugging grip with a long life, while rubber bushings in a suspension need to be exactly stiff enough to soak up every bump without turning to mush.

Hardness is a central design parameter here, governing resistance to indentation under heavy mechanical loads. If a bushing's firmness drifts by just five tiny marks on the scale, a smooth highway cruise turns into a bone-rattling nightmare.

Energy Sector Gear

We are convinced that when things get heavy underground, the difference between a seal that holds and a massive failure is often down to a tiny O-ring. ASTM D2240 Type A and Type M readings for fluorocarbon O-rings show no simple correlation, and measurement variation can consume up to 60% of a typical tolerance band.

We tackle this head-on with tools like our Automatic Durometer and Hardness Tester for O-Rings (Laser Revolution-Drive), which is specifically built for highly accurate testing on curvy elastomer samples.

Medical Equipment

We often notice that soft tubes for IVs need to be gentle enough to move but tough enough not to kink. For highly specific jobs in this field, we lean on software-controlled units like the Auto PharmaCheck for testing gelatine capsules and soft gels so everything is satisfyingly spot on.

Factory Machinery

From belts that move tons of rock to checking the massive rubber rollers on paper machines with a P&J Plastometer (Pusey & Jones Hardness Tester), hardness acts as the ultimate shield against parts getting tired and cracking open. Pre-service hardness on these rolls is a highly critical metric.

Additionally, hardness serves as a highly practical, non-destructive indicator of degradation over time, as rubbers naturally stiffen and lose damping capacity as they age.

Selecting Accurate Hardness Scales and Compliance Standards

We’ve found that picking between "Shore" and "IRHD" is where most teams trip up and end up with messy results. Because indentor geometries, applied forces, and test times differ entirely, readings across these scales are not directly interchangeable.

Shore vs. IRHD: Comparing Methodologies

• Shore Hardness: We find this is the "old reliable" method for most everyday rubber and plastic. It uses a little needle pushed by an internal spring. To cover all your bases, the latest generation Digital Shore Durometer Hardness Tester - DRIVE Series gives you versatile options across the Shore A, Shore D, Shore OO, and Shore AO scales.
• IRHD: We think this is the better way to go for tiny, curvy, or weirdly shaped bits. It uses a steady dropping weight instead of a spring. Tools like our IRHD Micro Hardness Tester even feature a laser centering system, giving you a result that is thick and craggy with detail, even on an O-ring that’s hard to pin down.

While standardized durometry can be linked to Young’s modulus to connect firmness with stiffness, this mathematical relationship is non-linear and can be extremely misleading for very hard or very soft rubbers.

Essential International Testing Protocols

We are sure that getting data you can trust means sticking to the standard testing guides. We mostly look at:

• ASTM D2240: This is the big North American rulebook for using a tester. We see it as the absolute standard for anyone wanting their parts to be top-tier.
• ISO 48, ISO 7619, and ISO 868: These define the exact test conditions for IRHD and Shore scales, ensuring testing remains completely uniform across aging studies and global supply chains.

Equip Your Lab with the Right Gear! Your data is only as good as the tool in your hand. Check out the Qualitest range of Shore and IRHD testers for results that are sheer perfection every single time.

7 Essential Practices for Verifiable Hardness Data

We see the whole testing process as a highly effective way to stay consistent. Whether you’re inventing something brand new or just checking the daily batch of parts, we believe these seven moves are the secret to getting rid of frustrating errors:

1. Optimize Sample Preparation

We honestly feel that the way you prep your rubber is the most frequently skipped step. The testing surface has to be completely clean and as flat as a board. Furthermore, testing a thick button will yield systematically different results than testing a thin O-ring or an in-situ component.

2. Match the Scale to the Material Profile

We often see folks on the floor trying to use a Shore A tool for stuff that’s as hard as a rock or as soft as jelly. Always pick the scale that matches the material's specific feel.

More importantly, do not attempt to use simple formulas to convert Type A to Type M or static hardness to dynamic hardness without considering elastic limits, as this creates massive material-dependent errors.

3. Maintain Perpendicular Alignment

We’re absolutely certain that the angle you hold the tool is the biggest reason for bad numbers showing up on the screen. The device has to come down at a perfect ninety-degree angle. If you tilt it even a tiny bit, the internal needle catches on its own housing.

4. Ensure Steady, Even Pressure

We strongly suggest pushing the tool down with a smooth, even touch. Large interlaboratory programs show that operator influence severely damages repeatability when applied load and technique are not tightly controlled. Let the tool's own inner mechanics do the heavy lifting.

5. Allow Time for Viscoelastic Stabilization

Rubber is a weird, stubborn material. It actually fights back and then slowly relaxes after you poke it. We highly recommend strictly maintaining the standard dwell time before you write down the final number to keep everyone on the exact same page.

6. Average Results Across Multiple Test Points

Because rubber mixtures can be a bit different from one inch to the next, we suggest testing five completely different spots and averaging those numbers out. Ideally, establish plant-specific correlations between these averages and key performance measures like fatigue life to make your tolerances technically meaningful.

7. Implement Regular Verification and Calibration

In our opinion, a testing machine is only as good as the last time it was thoroughly checked for accuracy. We suggest doing quick, daily check-ups on the floor against precise Rubber Reference Materials & Test Blocks to ensure your system performance is exactly where it needs to be.

If you need to officially verify the forces applied by your testers in strict accordance with ISO 18898, bringing in a proper Durometer Calibration Device is the ultimate safety net.

Investing in Long-Lasting Testing Infrastructure

We believe that professional testing labs need to move away from cheap, unverified tools. When you’re looking at testing gear, we suggest looking for items that are built like a tank.

For a versatile, everyday solution, the Shore Durometer (Standard Model HD3000) features a large, non-reflective display that makes reading the numbers ridiculously easy on the eyes.

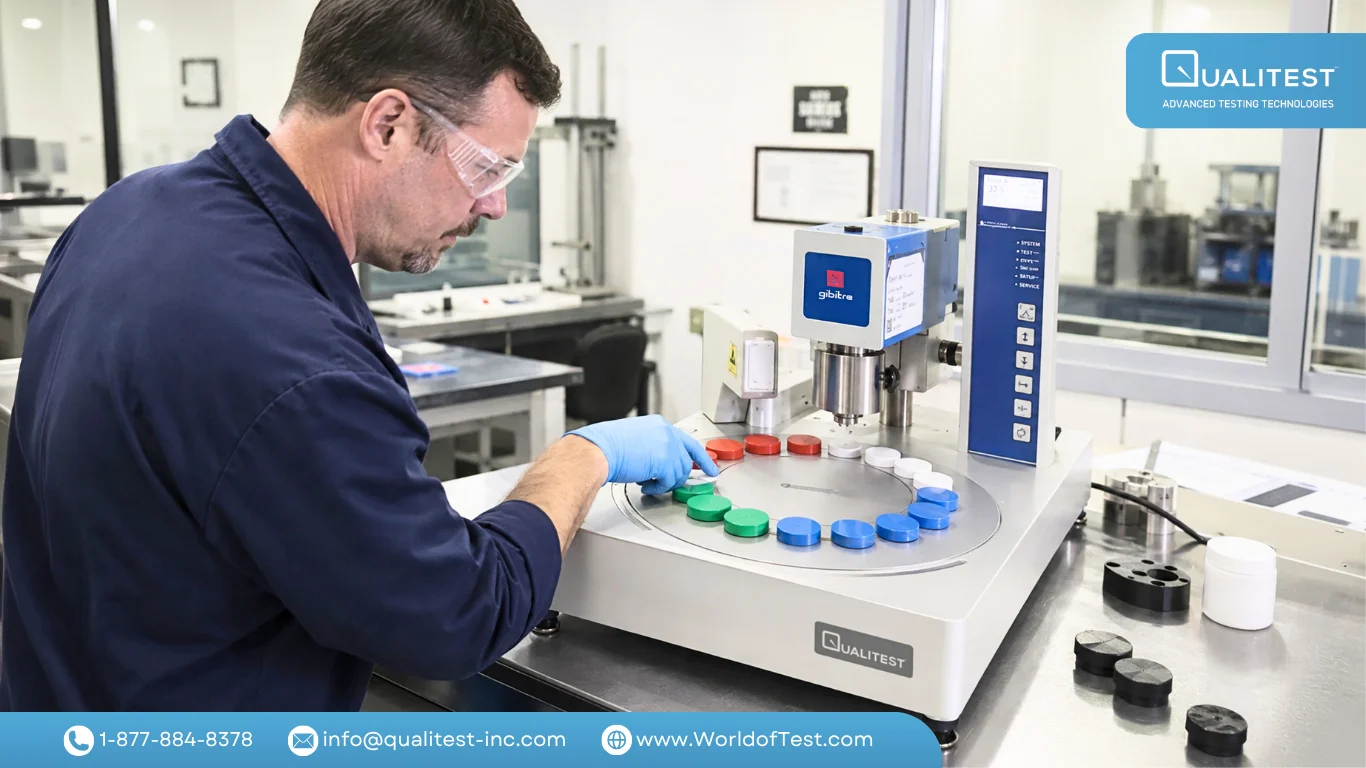

While some folks like the old-school dial look, we think going digital is the way to go because it stops the operator from "guessing" what the jumping needle says. Putting a precision-driven Automatic Shore IRHD Hardness Tester Durometer - DRIVE Series on a solid operating stand completely wipes out human error, heavily improving precision compared to manual testing.

Essential Accessories for Verifiable Accuracy

Even with the best gear, we think a shaky hand is the biggest threat to your data. At Qualitest, every inch of our equipment is built to be insanely sturdy, with control bits that feel incredibly solid.

We’ve engineered them so they stay precisely within international standards requirements, and the absolute best part is they are built to require almost no calibration for many years after purchase. For extra peace of mind, models like the DRIVE series even come backed with a solid 2-year warranty.

Precision Rubber Hardness Testing by Qualitest

From keeping the testing room at the right temperature to making sure your rubber is thick enough, we believe getting a highly accurate hardness score takes a real commitment. But we also feel like even the best plan will fall apart if you’re using gear that’s just "okay."

Go ahead and look through our full list of Durometers and IRHD Testers right now, or get in touch with our tech team to get a customized quote that is perfectly suited for what you need.
