Dedicated machines like the Blacks CNM integrate custom fixtures specifically for Charpy specimen preparation. While they excel in this single function, their limited versatility means customers often need additional specialized machines for other specimen types. This increases long-term costs. Additionally, sub-size fixtures for the Blacks CNM are optional add-ons, meaning customers must purchase extra fixtures for different specimen sizes.
In contrast, Qualitest's universal Mini CNC Milling Machines (such as the QualiMill M4 Desktop Mill and QualiMill-220 Desktop Mill) offer greater flexibility. These machines can process Charpy impact test specimens along with other workpieces, thanks to programmable adjustments and fixture swaps. This adaptability significantly enhances cost efficiency and operational flexibility.
Adaptation Strategy: Smooth Integration with Existing and New Fixturing
A. Supporting Existing Fixtures
Facilities that have already invested in fixture designs for the Blacks CNM system don’t have to start from scratch. Qualitest offers technical support to evaluate existing fixtures and determine their compatibility with the Mini CNC platforms.
In many cases, minor modifications or adapter components can enable seamless integration, allowing labs to transition to a more flexible machining solution without losing the value of their current tooling investments. This approach minimizes downtime, reduces the learning curve for operators, and supports a cost-effective equipment upgrade.
B. Optimized for New Fixture Solutions
Qualitest Mini CNC machines are engineered with versatility in mind and can be equipped with a wide range of fixture options to accommodate multiple specimen types. Whether preparing Charpy impact test specimens, tensile bars, dog-bone profiles, or custom research samples, these systems are highly adaptable.
Custom fixturing can be developed based on the dimensional and geometrical requirements of your test standards or unique application needs. The CNC platform’s programmable controls ensure repeatable, high-precision cuts, while modular fixture designs allow for easy swapping and expansion as testing requirements evolve.
This flexibility in fixturing makes Qualitest Mini CNC systems a practical long-term solution for labs looking to expand capabilities, streamline operations, and reduce the number of specialized machines required on the shop floor.
So, here’s the summary:
- For Existing Fixture Compatibility: If customers already have fixture designs from Blacks CNM, Qualitest can verify their compatibility with our Mini CNC machines.
- For New Fixtures: Qualitest's Mini CNC machines are designed to accommodate various fixtures, making them ideal for Charpy impact specimens, tensile test specimens, and other sample types.
Recommended Models: Precision CNC Solutions for Every Lab

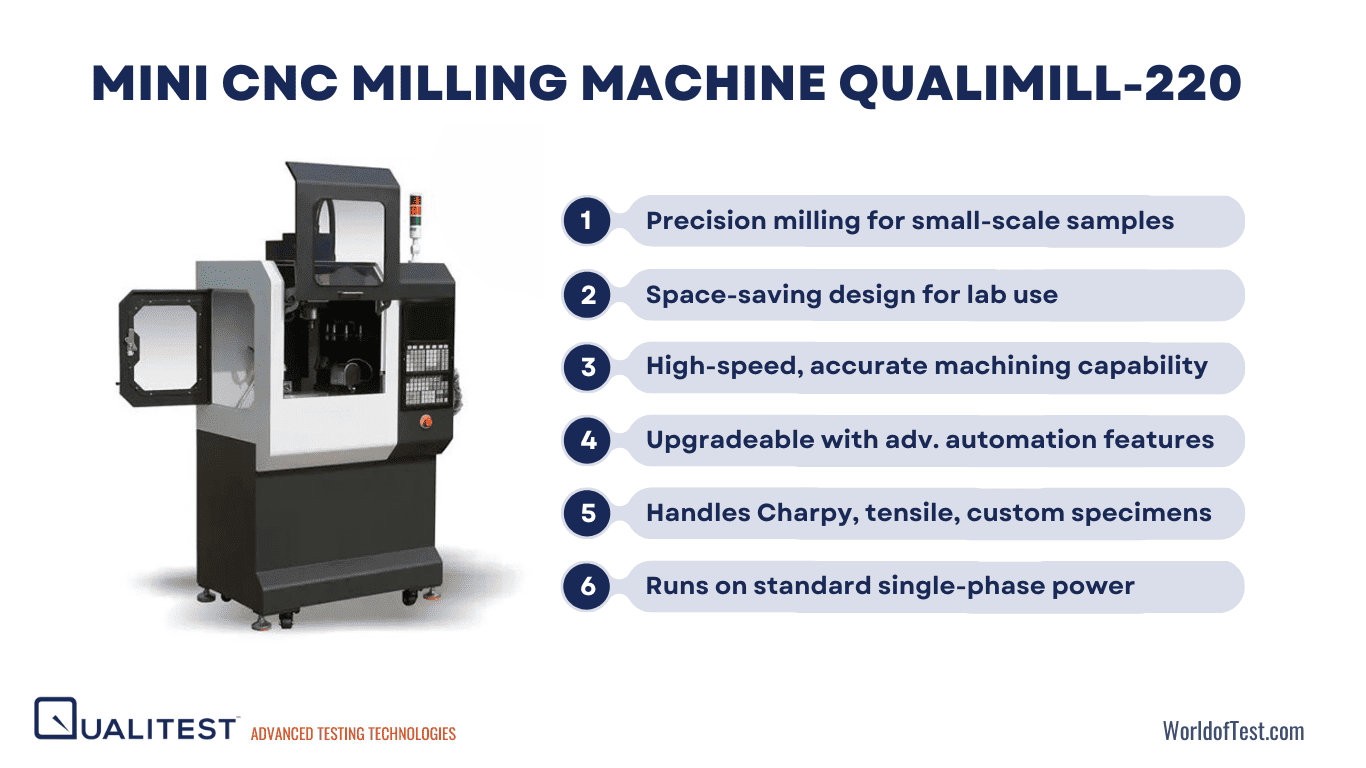

1. QualiMill-220 Desktop Mill
The QualiMill-220 is a high-performance, compact CNC milling machine designed for precise sample preparation across a wide range of materials. With a high-speed spindle (up to 24,000 RPM), premium linear guides, and programmable controls, it delivers industrial-grade precision in a lab-friendly footprint.
Optional features like a 4th/5th axis, automatic tool changer (ATC), and coolant system make it ideal for advanced applications requiring multi-surface machining and higher throughput.
Key Highlights:
- Ideal for small-scale sample processing with high precision
- Compact footprint, suitable for laboratory environments
- High-speed, high-precision milling
- Expandable with ATC, 4th/5th axis, and alignment tools
- Perfect for Charpy, tensile, and custom specimens
- Operates on standard single-phase power

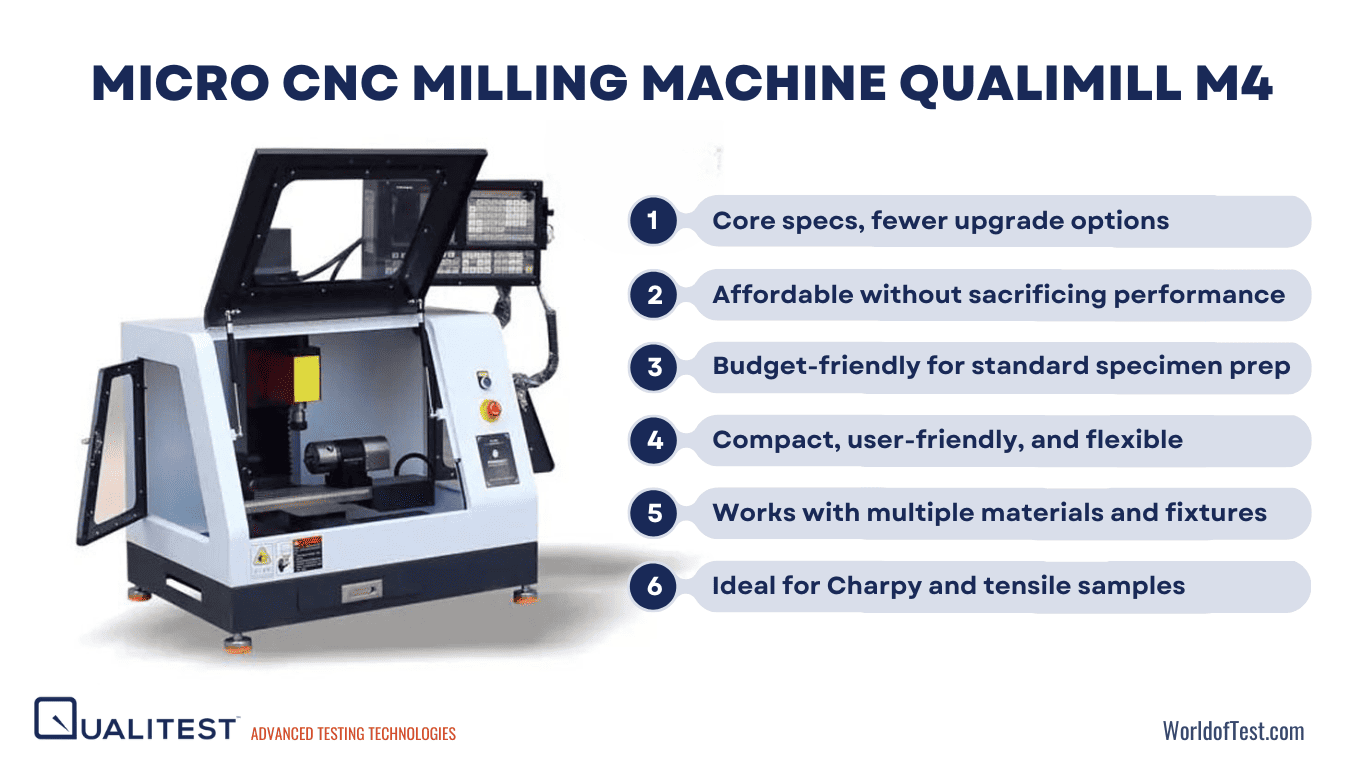

2. QualiMill M4 Desktop Mill
The QualiMill M4 offers reliable performance and flexibility at a more economical price point. It shares core technical features with the 220 model, including a 4-axis controller, high-speed spindle, and compatibility with standard fixture systems.
Ideal for R&D labs, education, and routine sample prep, the M4 is a smart choice for those who need precision without the added cost of advanced upgrades.
Key Highlights:
- Similar technical parameters to the QualiMill-220 but with fewer optional upgrades
- More economical while still offering excellent performance
- Cost-effective solution for standard specimen machining
- Compact, easy-to-use, and versatile
- Compatible with a variety of materials and fixtures
- Excellent for Charpy, tensile, and general-purpose milling
Why Choose the Qualitest Mini CNC Machines?
- Multi-purpose Functionality: Capable of producing Charpy, tensile, and various custom specimens using a single platform.
- Lower Long-term Cost: Reduces the need for multiple specialized machines and minimizes long-term equipment investment.
- Fixture Adaptability: Compatible with existing CNM-style fixtures and configurable for new or custom designs.
- Precision Engineering: Delivers high repeatability and accuracy with every cut—critical for meeting ISO, ASTM, and other global standards.
- Compact Design with Industrial Power: Ideal for labs with limited space, yet powerful enough for demanding machining applications.
- Future-Proof Investment: Expandable features such as 4th/5th axis upgrades, automatic alignment tools, and servo motor options ensure longevity and scalability.
Final Thought
For those seeking an efficient, cost-effective alternative to dedicated Charpy specimen milling machines, Qualitest Mini CNC Machines deliver an adaptable, high-precision solution. Unlike single-purpose systems, these versatile desktop mills support a wide range of specimen types, reducing equipment costs while increasing lab flexibility.
With advanced programmability, multi-specimen capability, and a compact footprint, QualiMill systems are built to grow with your testing needs. Streamline your operations and maximize ROI with a smarter approach to specimen preparation.
Contact Qualitest now to explore integration options, custom fixturing, and expert support tailored to your lab.
