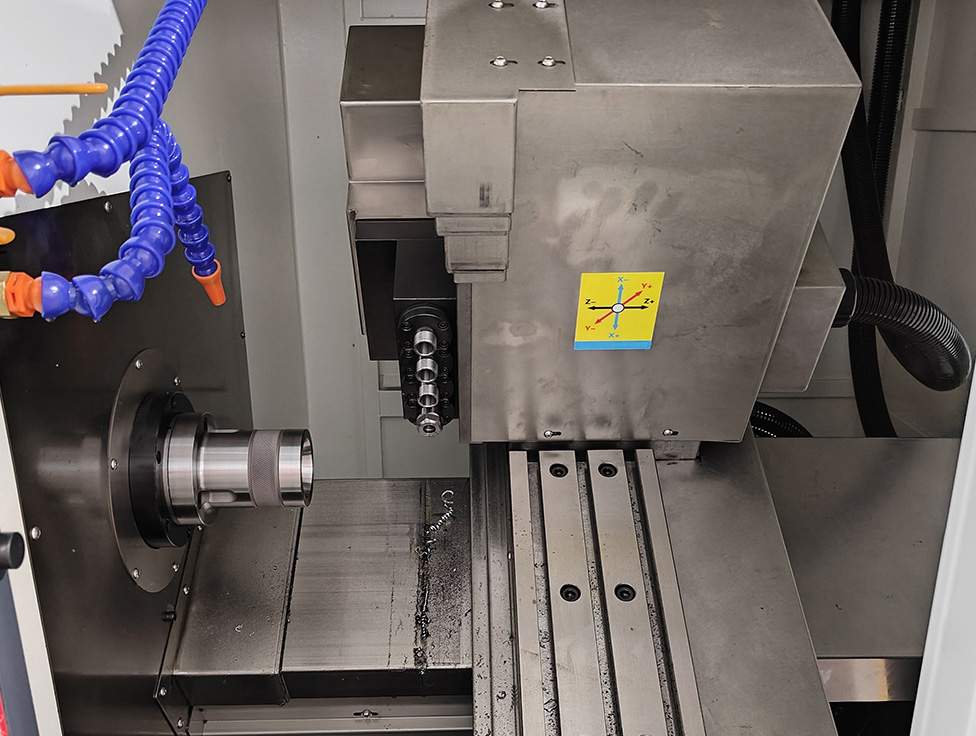

CNC Turn Mill Machine - QualMill-TM500 Technical Specifications
|
Max Spindle Speed
|
rpm
|
3500 (4000 max)
|
|
Finish after machining
|
|
1.6Ra
|
|
Spindle hole
|
mm
|
25
|
|
Repeat positioning accuracy
|
mm
|
±0.01
|
|
Unilateral cutting amount
|
mm
|
2mm (3mm max)
|
|
Spindle Power
|
kw
|
3.7Kw Servo motor
|
|
X/Z Axis Motor
|
|
1.2Kw Servo motor
|
|
Y Axis Motor
|
|
1.2Kw Servo motor
|
|
Power head
|
|
3 tools standard
|
4 tools optional
|
|
X Axis Travel
|
mm
|
500
|
|
Z Axis Travel
|
mm
|
180
|
|
Fast feed rate
|
m/min
|
20m/min (30m/min max)
|
|
Clamping Diameter
|
mm
|
Hydraumatic φ40mm(φ50 max)
|
|
Cutting Feed Rate
|
mm/rev
|
0.001-500
|
|
Cutting Length
|
mm
|
180
|
|
Cutting Length With Lathe Center Frame
|
mm
|
120
|
|
Machine Bed Inclination
|
°
|
30
|
|

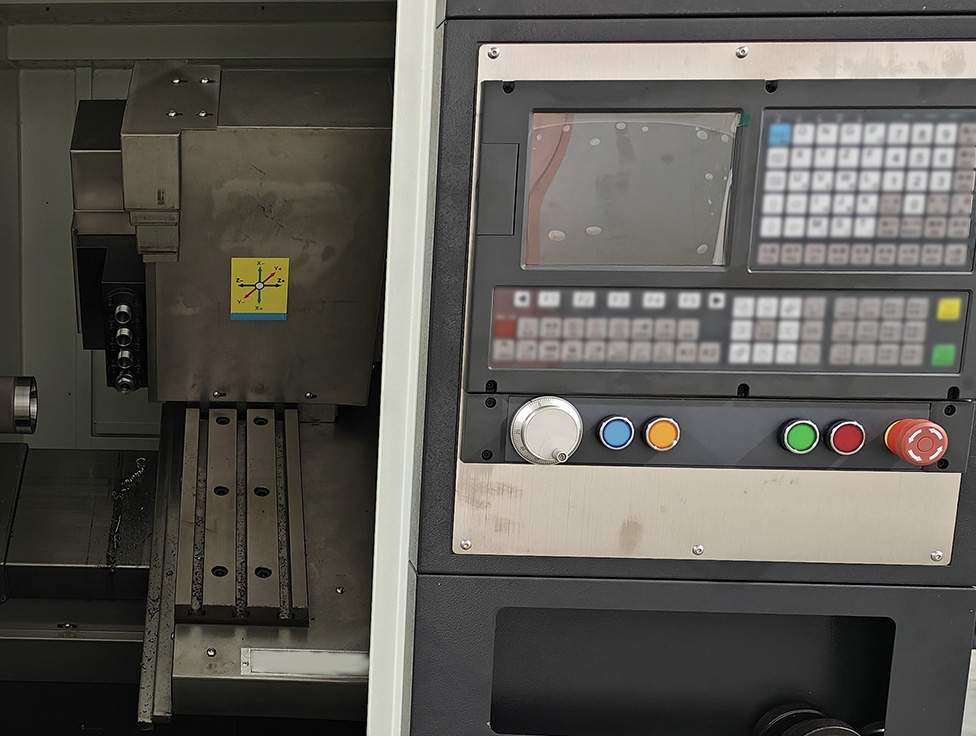

Controller
|
KY
|
Industrial CNC Controller
|
|
Ball Screw
|
|
Taiwan P4
|
|
Linear Guide
|
|
Taiwan P4 Linear Guide rail
|
|
Weight
|
kg
|
1800-2200
|
|
Machine Size
|
Mm
|
1700x1200x1800
|
|
Packing Size
|
Mm
|
1950x1300x2050mm
|
Standard accessories: Hydraulic pressure clamping system, Hydraulic collet, working lamp, workpiece cooling system, auto lubricating system, Tool holders, Hexagon wrench set.
Optional accessories: Hydraulic Chuck, Cutting tool set, Drilling/Milling tool set.
