A slight waviness defect on a body panel can generate a supplier dispute, a warranty claim, or a costly rework order. Subjective visual inspection cannot resolve that dispute. For US automotive paint shops and their tier-one suppliers, an orange peel wave scan meter in the USA converts surface appearance into objective, repeatable data that both parties can verify and act on.

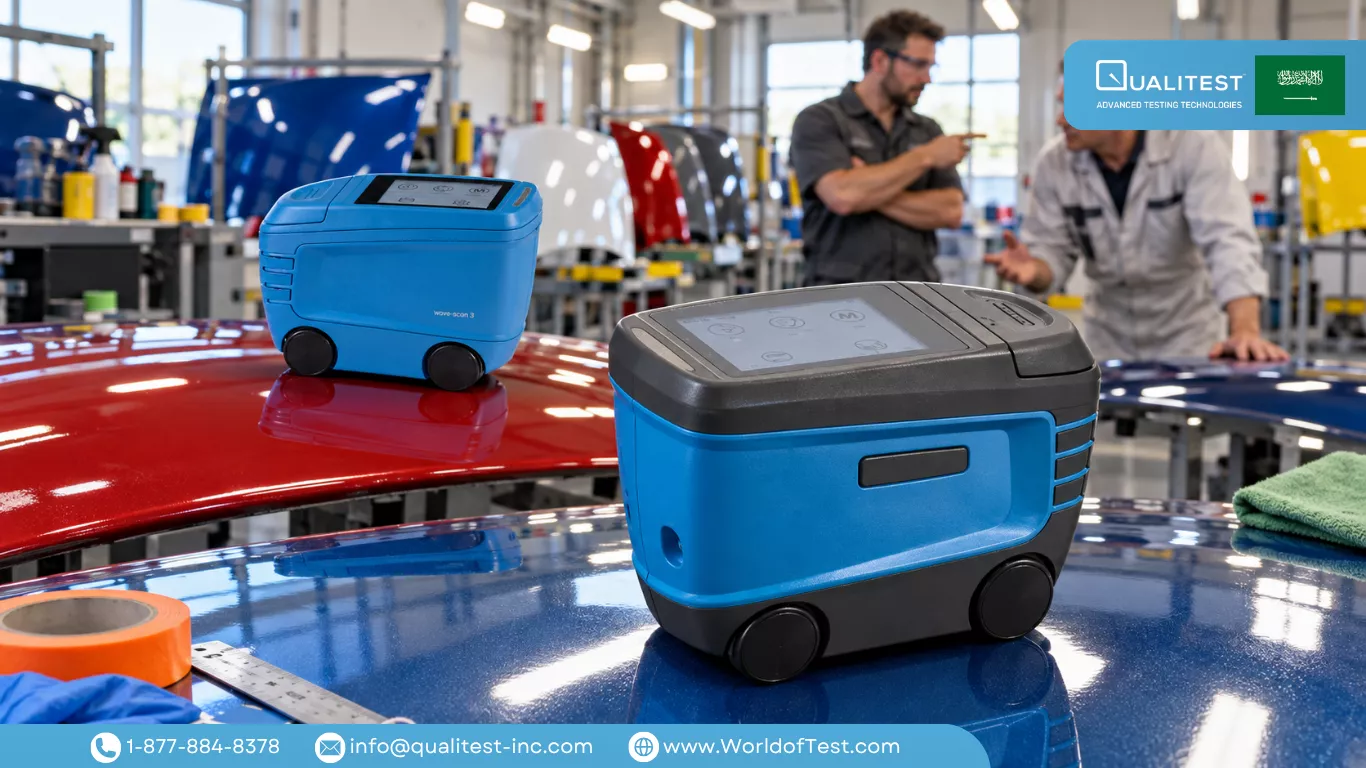

American OEMs have built company-specific appearance scales around numeric long-wave (LW) and short-wave (SW) waviness targets. When both the assembly plant and the supplier run the same Wave-Scan 3 orange peel meter, those numbers align, disputes disappear, and corrective action starts with data. Qualitest North America supplies the complete Wave-Scan 3 family to paint shops, tier-one suppliers, and industrial coating labs across the United States.
Why US Paint Shops Depend on Wave-Scan Technology
America's automotive manufacturing base is expanding and diversifying rapidly. Legacy operations in Michigan, Ohio, Indiana, and Kentucky continue to hold high production volumes. New facilities are reshaping the national footprint: Hyundai's Metaplant America near Savannah, Georgia, targets up to 500,000 vehicles per year, and Tesla's Texas Gigafactory runs accelerated paint operations for its highest-volume models. Rivian, Lucid, and a growing cluster of EV-focused plants across the Southeast need quantitative appearance control from the start.
The visual quality of a vehicle's paint finish shapes how buyers judge overall build quality. Waviness structures between 1 mm and 30 mm produce the visible orange peel effect that most consumers notice at a glance. Structures below 0.3 mm reduce the sharpness of the reflected image, lowering Distinctness of Image (DOI) without creating obvious texture. Neither defect responds to a calliper or a surface roughness probe. Both show up immediately on a wave-scan measurement.
US automakers have formalized appearance requirements through company-specific scales built on years of visual correlation studies. These scales carry defined LW and SW pass/fail limits that vary by brand and model line. A tier-one supplier shipping body panels or plastic trim to multiple customers must support several OEM-specific scales on one instrument. The Wave-Scan 3 calculates classical LW and SW values alongside those customer-specific scales directly from the device menu. Measurement results feed into Smart-chart software for SPC analysis, documentation, and centralized limit management.
Applications Across US Coating Industries
Demand for an orange peel wave scan meter in the USA extends beyond final assembly. The same waviness measurement capability serves a wide range of coating and production environments.
Assembly Plants and Tier-One Suppliers
Paint shops use the wave-scan at each process step: from e-coat and primer through basecoat and clearcoat. Quality engineers track which layer introduces a waviness defect, allowing corrective action before the problem compounds downstream. Tier-one suppliers in the Midwest and Southeast automotive cluster depend on wave-scan data to confirm that panels meet OEM pass/fail limits before shipment leaves the dock. This layer-by-layer approach reduces rework costs and shortens troubleshooting time from hours to minutes.
Small and Curved Add-On Parts
Fuel doors, mirror housings, door handles, and decorative trim cannot be measured with a standard full-size instrument. The Micro-Wave-Scan 3 handles curvatures greater than 300 mm and requires a minimum sample size of just 25 mm x 40 mm. It maintains strong correlation with Wave-Scan 3 Dual results, making it the preferred tool for add-on parts that cycle through multiple US plastic and metal component suppliers.
Aerospace Coatings
Commercial aviation production facilities, general aviation manufacturers, and MRO (maintenance, repair, and overhaul) operations across the US apply surface appearance requirements to aircraft fuselage panels, nacelle coatings, and interior composite panels. Consistent waviness measurement data supports finish qualification and incoming inspection at these facilities.
Wave Scan Orange Peel Meter Options for US Operations
The right configuration depends on surface gloss range, part geometry, production environment, and data workflow. The table below maps each model to its primary use case:
| Model | Primary Use Case | Gloss Range |
|---|
| Wave-Scan 3 | Handheld high-gloss topcoat inspection | Up to 40 units dullness |
| Wave-Scan 3 Dual | Layer-by-layer QC across high and semi-gloss | Up to 65 units dullness |
| Micro-Wave-Scan 3 | Curved and small add-on components | High-gloss, radius above 300 mm |
| Wave-Scan 3 Robotic | Automated in-line production measurement | High-gloss, non-contact |
US paint shops pursuing Industry 4.0 integration will find the Wave-Scan 3 Robotic particularly relevant. Mounted on a robotic arm, it measures at scan speeds of 50 to 150 mm per second without touching the surface. LAN connectivity links the instrument to plant automation systems and enables AI-driven correlation between waviness data and paint process variables.
ASTM E284 and OEM Appearance Specifications
ASTM E284 defines the core terminology for surface appearance: orange peel as the surface irregularity resembling the skin of an orange, and DOI as the sharpness of a reflected image on a coated surface. These definitions form the vocabulary for quality discussions between US OEMs, tier-one suppliers, and independent testing laboratories.
No single published ASTM test method prescribes a universal orange peel measurement procedure. Instead, major US automakers have developed company-specific appearance specifications through structured visual correlation studies. The Wave-Scan 3 family calculates those OEM-specific numeric scales directly on the instrument, making it the recognized tool across American automotive supply chains for Class A surface acceptance and supplier harmonization.
Source Your Wave-Scan 3 from Qualitest North America
Paint shops building a new QC program and facilities upgrading existing inspection equipment both benefit from selecting an instrument their OEM customers already accept. An orange peel wave scan meter in the USA is often a stated requirement in tier-one supplier qualification agreements, not simply a recommendation.
Qualitest North America provides instrument selection support, OEM scale configuration, and application guidance matched to your production environment and throughput requirements. Whether your operation needs a handheld unit for a receiving inspection lab or a robotic system for a high-volume paint line, the Wave-Scan 3 family covers it. Contact Qualitest to discuss your appearance measurement requirements and configure the right model for your US paint shop.
