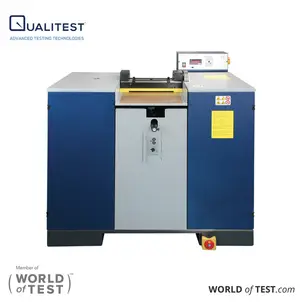

Rubber Splitting Machine

Name: Rubber Splitting Machine
Brand: Qualitest North America
Availability: InStock
Rating: 4.84 (287 reviews)

Product Categories

Rubber & Elastomer Testing Equipment

View PDF

Rubber Splitting Machines | Band Knife Splitting for ASTM D3183 and ISO 23529 Test Pieces and Production Sheet

A rubber splitting machine cuts rubber, polyurethane, and other elastomers into flat layers of a set thickness. A horizontal band knife does the cutting while feed rollers drive the material into the edge. Labs use it to prepare test pieces from finished products under ASTM D3183 and ISO 23529. Converters use it to calibrate sheet stock before die cutting.

Qualitest offers two configurations. A compact laboratory model handles thin test pieces from hoses, cables, and tires. A high capacity model splits wide, thick slabs for production. Both use the same band knife principle, with fine thickness control and built-in blade sharpening.

Why Choose Qualitest for Your Rubber Splitting Machine

Qualitest North America supplies testing and measurement equipment to laboratories, quality teams, and manufacturers, backed by responsive technical support and calibration service. The rubber splitting machine range is built for reliable, standards-driven results, so you can source confidently from a single partner. Our team helps you match the right configuration to your samples, applicable standards, and throughput, then supports you through installation and beyond.

Request a Quote

Tell us your material, part thickness, and required width, and we will recommend the right rubber splitting machine. Contact the Qualitest team for pricing, power options, and lead times.

Applications

Rubber splitting serves both quality labs and production floors. The common thread is a need for elastomer material at a controlled, uniform thickness.

Rubber Hose and Cable Testing: separates individual layers of multilayer hoses and cable sheaths for tensile and aging tests
Tire Compound Analysis: removes tread, sidewall, and liner layers for physical testing and benchmarking
Footwear Production: splits rubber, PU, and EVA sheet to sole and midsole thickness before die cutting
Gasket and Seal Fabrication: produces calibrated rubber sheet for die-cut gaskets, washers, and seals
Polyurethane Elastomer Processing: slices cast PU slabs into sheet for wear liners, pads, and screen panels
Foam and Cellular Rubber Converting: cuts sponge rubber, neoprene, and PU foam into thin, even layers
Failure Analysis: isolates layers of a returned part for comparison against the original specification

Rubber Splitting Machine Range

The two models share a band knife design but target different sample sizes and throughput. Choose by part thickness, working width, and whether you prepare test pieces or production sheet.

Laboratory Rubber Splitting Machine (QualiRSM™ 300)

A benchtop-scale splitter for test piece preparation from finished products. It handles parts up to 300 mm wide and cuts slices from 8 mm down to 0.5 mm, with a 0.01 mm digital thickness readout. It suits compounds from 30 to 75 Shore A and offers three feed speeds, so QC and R&D labs can repeat a target thickness sample after sample.

High Capacity Rubber Splitting Machine (QualiRSM™ 520)

A production-grade splitter for polyurethane, rubber, plastic, and elastomer sheet up to 520 mm wide and 60 mm thick. It splits down to 0.2 mm within a 0.1 mm cutting tolerance, with separate digital displays for upper and lower layer thickness. Automatic knife wear compensation and a 1 to 20 m/min inverter feed keep long runs consistent.

How to Choose the Right Rubber Splitting Machine

For test pieces from hoses, cables, and tires: choose the QualiRSM™ 300 for its 0.01 mm resolution and lab-scale footprint.
For slabs thicker than 8 mm: choose the QualiRSM™ 520, which accepts material up to 60 mm thick.
For sheets wider than 300 mm: choose the QualiRSM™ 520 and its 520 mm working width.
For very thin layers: choose the QualiRSM™ 520, which splits down to 0.2 mm depending on the material.
For high-volume production with minimal resets: choose the QualiRSM™ 520 for automatic knife wear compensation and variable feed speed.
For occasional sampling on a limited budget and floor space: choose the QualiRSM™ 300.
