Compare ASTM D93 vs D92 vs D56 Flash Point Methods

Could an incorrect flash point method trigger regulatory penalties or misclassify your hazardous cargo?

While ASTM D56, ASTM D92, and ASTM D93 dominate hydrocarbon quality control, each standard functions under distinct cup geometries, heating dynamics, and viscosity thresholds. Resolving the technical trade-offs among ASTM D93 vs D92 vs D56 protects product compliance while preventing costly analytical errors.

Here is the operational breakdown your facility needs to select the right testing protocol.

Key Takeaways

• Closed vs. Open Systems: Closed-cup methods (ASTM D56 and ASTM D93) trap volatile vapors to measure conservative transport hazards, while open-cup testing (ASTM D92) allows vapors to escape to reflect unconfined open-air fire conditions.
• ASTM D93 (Pensky-Martens): Serves as the versatile benchmark for diesel, biodiesel blends, and standard lubricants (40°C to 370°C), using continuous mechanical stirring to prevent thermal lag.
• ASTM D92 (Cleveland Open Cup): Built for heavy fluids such as lubricating base oils and asphalt binders (79°C to 400°C), and functions as the only standard that measures sustained fire points.
• ASTM D56 (Tag Closed Cup): Restricted to water-thin, clean solvents and aviation kerosene flashing below 93°C, requiring a strict fluid viscosity ceiling under 5.5 cSt at 40°C without mechanical agitation.
• Automation and Compliance: Published interlaboratory research confirms automated analyzers achieve statistical equivalence with manual apparatuses, significantly reducing technician bench time without compromising audit readiness.


Open Cup vs. Closed Cup Testing Principles

The primary technical distinction across these standards comes down to vapor containment. Closed-cup instruments (ASTM D56 and ASTM D93) seal the sample to trap light-end vapors in the headspace, generating lower, more conservative flash temperatures required for transport safety and regulatory hazard classification.

Open-cup systems (ASTM D92) leave the liquid surface exposed to ambient air, allowing volatile vapors to escape during heating. This produces flash temperatures typically 5°C to 20°C higher across general petroleum products, narrowing to roughly 5 K to 8 K for closely related fuel chemistries. This open configuration also permits analysts to measure sustained fire points.

Because fluid dynamics differ drastically between sealed and open environments, matching the correct cup configuration to your sample is critical. For an in-depth technical analysis of vapor loss, pool-fire modeling, and apparatus mechanics, read our dedicated guide on flash point open cup vs closed cup testing.

Open-Cup Testing: Atmospheric Exposure

In open-cup testing such as ASTM D92, the specimen is poured into a wide-mouthed cup with no lid whatsoever. As the heating element warms the fluid, the most volatile fractions evaporate freely into the surrounding room.

Consequently, your recorded flash temperature will be noticeably higher, often by 5°C to 20°C (or 5 to 8 K for identical fuel chemistries), because volatile molecules drift away before ignition. The notable advantage here is that analysts can also record the sustained fire point, which is the precise temperature where the fluid supports continuous combustion for at least five full seconds.

In our assessment, utilizing an open cup procedure for light, volatile fuels introduces unnecessary compliance risk. Those early volatile vapors vanish into the room air unnoticed, producing an artificially high number that misrepresents real-world transport hazards. Open cup testing better reflects unconfined pool-fire behavior rather than vapor containment hazards.

ASTM D92 vs D93: Method Comparison

When analytical teams evaluate ASTM D92 vs D93, they are comparing the open-surface Cleveland Open Cup (COC) against the sealed, actively mixed Pensky-Martens Closed Cup (PMCC).

ASTM D92: Cleveland Open Cup (COC)

The Cleveland Open Cup apparatus is built for heavy, slow-pouring liquids that resist flashing until reaching elevated temperatures, starting at 79°C (175°F) and reaching all the way to 400°C. It is the standard method for heavy base stocks, engine crankcase lubricants, thick gear oils, hydraulic fluids, and sticky highway bitumen. It is explicitly not permitted for volatile fuel oils such as diesel or kerosene.

Laboratories run these evaluations using either straightforward manual benches like our QualiCFPT™ OC or fully automated systems like our QualiCOCFPT™ Auto, which features an 8-inch color touchscreen display, dual ignition systems (electronic and gas), rapid cooling, and programmable heating rates (5 to 6°C/min and 14 to 17°C/min). Its definitive capability is reporting both a flash point and a fire point on a single analytical run.

ASTM D93: Pensky-Martens Closed Cup (PMCC)

The Pensky-Martens Closed Cup uses a sealed cup equipped with a motorized mechanical stirrer rotating at 90 to 120 rpm for general fluids under Procedure A, or 250 rpm for heavy residual fuels under Procedure B.

For renewable fuels, Procedure C governs biodiesel blends and specified fuel mixtures, applying a regulated heating ramp of 3.0 ± 0.5°C per minute. That continuous mixing keeps dense or non-homogeneous fluids in constant motion, preventing cool zones or baked surface skins from forming.

While the general ASTM D93 standard defines an overall scope from 40°C up to 370°C, commercial testing instruments feature defined hardware ranges. Automated units such as our QualiFPT™-CC-Auto manage this testing sequence across a 40°C to 300°C measurement range, supporting Procedures A, B, and C with closed-loop heating control, motorized stirring, and automated ignition. This covers the operational envelope for middle distillate fuels, diesel, commercial biodiesel blends, and common lubricating oils.

Application Criteria: ASTM D92 vs D93

When establishing baseline safety data sheets, we consider ASTM D93 the far more dependable benchmark in the ASTM D92 vs D93 comparison because it flags volatile contamination early. However, lab managers must pay close attention to viscosity behaviors.

Research demonstrates that fluids with kinematic viscosities above 13 mm²/s at 40°C experience thermal lag during ASTM D93 Procedure A, which can produce artificially depressed flash points. For heavier fuels and viscous oils, switching to Procedure B provides the equilibration time needed to eliminate that thermal lag.

In our view, screening incoming fluid viscosity on a companion instrument like our QualiAKVT™ D445 automated kinematic viscosity tester helps operators verify beforehand whether their sample requires Procedure A or Procedure B. If your daily testing revolves around high-temperature gear lubricants or asphalt binders where a verified fire point is contractually required, ASTM D92 remains the necessary standard.

ASTM D56 vs ASTM D93: Low vs. Broad Viscosity

The next key comparison is ASTM D56 vs ASTM D93. While both methods keep the lid firmly shut, their mechanical handling of fluid dynamics is completely different.

ASTM D56: Tag Closed Cup (TCC)

The Tag apparatus is built strictly for water-thin, crystal-clear liquids with flash points below 93°C (200°F). It carries a strict viscosity limit: the fluid must measure below 5.5 centistokes (cSt) at 40°C (or below 9.5 cSt at 25°C).

There is zero mechanical agitation in this setup. The sample remains completely static while gentle, uniform warmth transfers from a liquid bath or surrounding heating jacket. Target samples include aviation turbine fuels (Jet A and Jet A-1), high-purity chemical solvents, naphtha, and clean paint thinners.

Interestingly, for thin liquids within its intended range, ASTM D56 displays far less viscosity sensitivity than ASTM D93 Procedure A because it bypasses agitation altogether.

Technical Differences: ASTM D56 vs ASTM D93

The primary distinction comes down to sample handling and thermal range. If you place a liquid thicker than 5.5 cSt or a suspension containing particulate into an ASTM D56 cup, the lack of stirring produces uneven heat distribution and unreliable data. That is an immediate technical signal to transition to ASTM D93, which blends the sample continuously.

Furthermore, ASTM D56 operates within a lower temperature window (ambient down to sub-ambient up to 93°C). For flammable waste solvents flashing below 40°C, the Tag method is often the required approach, whereas ASTM D93 functions across a broad spectrum from 40°C up to 370°C.

When we evaluate ASTM D56 vs ASTM D93, we believe the Pensky-Martens setup represents a more practical, flexible investment for general petroleum testing labs. Unless your bench exclusively handles high-purity aviation turbine fuels or thin chemical solvents, ASTM D93 covers significantly more analytical ground.

Specification Matrix: ASTM D93 vs D92 vs D56

Here is the technical matrix of ASTM D93 vs D92 vs D56 side by side, clarifying operational parameters and interlaboratory precision figures documented across published standards:

We frequently caution laboratory directors against attempting to use empirical math formulas to convert values across ASTM D93 vs D92 vs D56. In our opinion, attempting to calculate a closed-cup result from an open-cup test using a mathematical multiplier is unacceptable for regulatory compliance. Thermodynamic models show that vapor-liquid equilibrium assumptions hold true in closed cups, but they break down in open systems where volatile components continuously escape into the surroundings.

(For facilities handling rapid batch screening where specimen volume is strictly limited, alternative closed-cup methods like ASTM D6450 run on specialized micro testers like our QualiMRFPT™ D6450 can evaluate samples using just 1 mL of fluid, though standard D93 remains the regulatory baseline).

To distill the ASTM D93 vs D92 vs D56 choice into practical lab rules:

• Use ASTM D56 for low-viscosity, clean solvents and aviation kerosene.
• Use ASTM D93 as the primary workhorse for distillate fuels, blended biodiesels, and standard lubricants.
• Use ASTM D92 whenever open atmospheric conditions apply or when client contracts require sustained fire point data.


Regulatory Flash Point Thresholds: OSHA, DOT, and GHS

Federal agencies do not view method selection as an arbitrary laboratory preference; they write these testing standards directly into occupational and transportation law. Under GHS criteria enforced by OSHA (29 CFR 1910.106), liquid flammability is divided into four distinct regulatory tiers:

• Category 1: Flash points below 23°C with an initial boiling point at or below 35°C.
• Category 2: Flash points below 23°C with an initial boiling point above 35°C.
• Category 3: Flash points from 23°C to 60°C (covering standard fuels like diesel).
• Category 4: Flash points above 60°C up to 93°C (covering combustible solvents and light lubricants).

Similarly, US DOT hazardous materials regulations (49 CFR 173.120) define a Class 3 flammable liquid as any material with a closed-cup flash point at or below 60°C (140°F). Materials flashing between 60°C and 93°C fall into the regulated combustible category.

Crucially, OSHA 29 CFR 1910.106(a)(14) mandates the exact closed-cup apparatus by name. Liquids with a viscosity under 45 Saybolt Universal Seconds (SUS), roughly 5.5 to 5.8 cSt at 100°F (37.8°C), flashing below 93°C must be tested via ASTM D56. The moment a fluid reaches 45 SUS or higher, carries suspended solids, or tends to form a surface film, federal law mandates the Pensky-Martens closed tester (ASTM D93).

Using an open-cup method like ASTM D92 for these classifications is illegal under federal shipping rules because escaping vapors produce artificially high numbers, risking misclassified cargo and severe regulatory fines.

Industrial Applications & Case Studies

To see how the selection criteria apply on the bench, consider three standard industrial testing requirements:

Case 1: Used Engine Oil & Fuel Dilution

In commercial transport fleets, marine vessels, and backup electrical generator sets, unburnt diesel fuel can bypass piston rings and enter the crankcase oil. A 2% diesel dilution typically reduces a 15W-40 engine oil's closed-cup flash point by 20°C to 30°C, dropping it from roughly 220°C into the 190°C to 200°C range. Most condition-monitoring programs treat any reduction greater than 20°C from the new-oil baseline as an immediate alarm condition, as fuel dilution thins the lubricant film and creates severe engine wear risks.

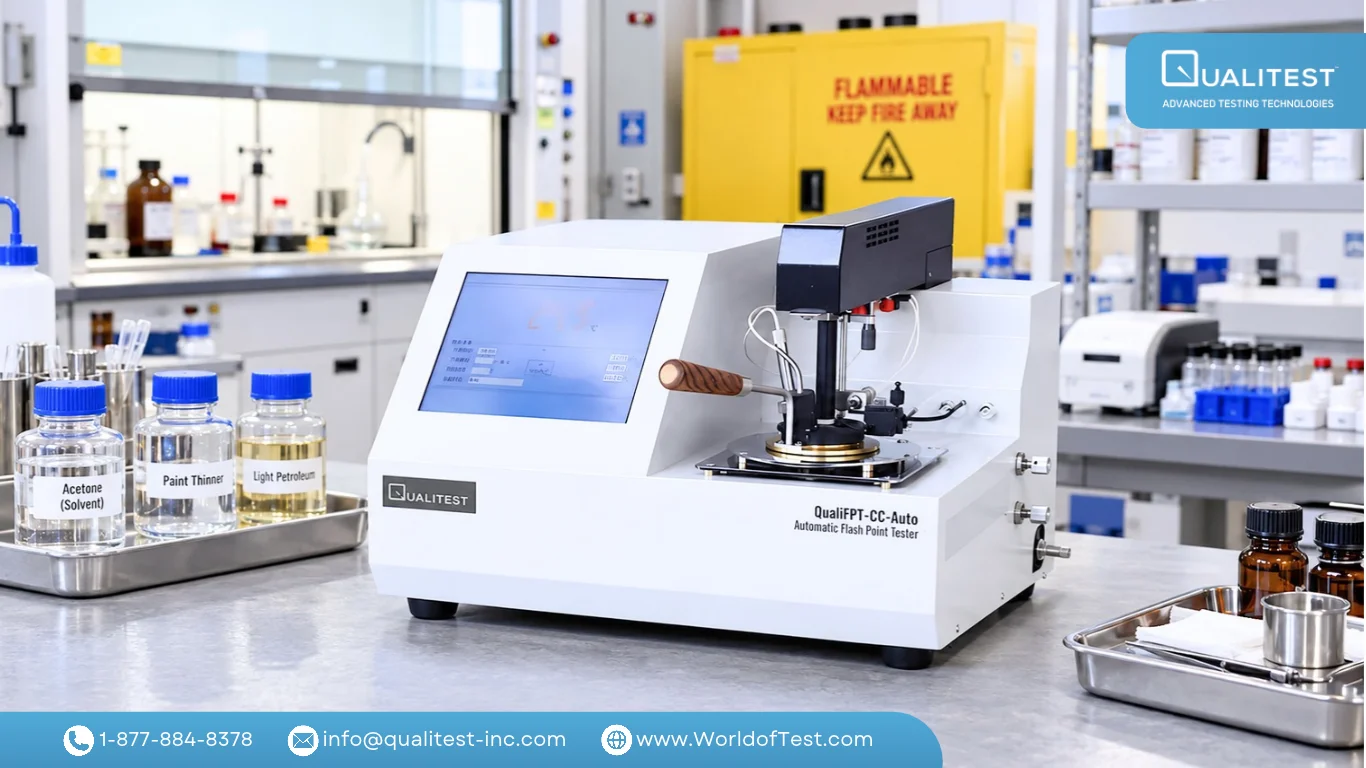

The Solution: ASTM D93 is mandatory here. Using an automated closed system like the QualiFPT™-CC-Auto traps volatile diesel fractions until the test flame introduces ignition. Because the critical alarm threshold is a subtle 20°C shift, an open cup test like ASTM D92 would allow those telltale vapors to escape into the room undetected, completely concealing a dangerous engine condition until severe mechanical failure occurs. In our opinion, running open cup tests for engine condition monitoring is a serious procedural mistake.

Case 2: Aviation Turbine Fuel Certification

Commercial aviation specifications (such as ASTM D1655) require a strict minimum flash point boundary of 38°C (100°F) to prevent vapor ignition during ground handling, transport, and pressurized aircraft fueling.

The Solution: ASTM D56 is the standard of choice. Aviation fuel is clean, uniform, and exceptionally thin. The static Tag cup provides steady, repeatable temperature measurements without an agitator generating unwanted vapor foaming or composition shifts during repeated analysis.

Case 3: High-Temperature Lubricants & Asphalt Binders

Industrial reduction gearboxes, metal processing equipment, and hot-mix asphalt storage vessels operate at elevated temperatures in open or semi-vented spaces. Plant safety managers need to verify the initial flash point and the temperature where sustained combustion occurs.

The Solution: ASTM D92 is non-negotiable. The Cleveland Open Cup measures both flash point and sustained fire point up to 400°C. Utilizing an automated tester like the QualiCOCFPT™ Auto provides the automated flame sweep and temperature recording necessary to satisfy facility insurance underwriters and industrial safety regulations.

International Standards Equivalency

When managing export agreements or international testing contracts, laboratories must align ASTM procedures with foreign standard bodies:

While Tag is standard in North America, European facilities often mandate IP 170 or ISO 13736 (the Abel Closed Cup method). For laboratories required to run IP 170 / ISO 13736 on volatile fuels and solvents, our automated QualiAbel™ FPT-170 covers an expansive measurement band from -30°C to +110°C, utilizing a dedicated circulating refrigeration machine for sub-ambient accuracy and dual ignition options.

In our view, selecting an automated instrument equipped with multi-standard firmware eliminates the capital expense of purchasing separate instruments for regional standards.

Manual vs. Automated Testing: Operational ROI

Once your team determines whether your laboratory requires an apparatus for ASTM D92 vs D93 or ASTM D56 vs ASTM D93, you face a critical procurement choice: manual hardware or an automated analyzer?

Extensive interlaboratory studies demonstrate that automatic and manual apparatus produce statistically equivalent results across ASTM D56, ASTM D92, and ASTM D93 within 95% confidence intervals. This scientific consensus gives testing facilities full confidence to transition toward automated testing without compromising regulatory compliance or audit readiness.

We are going to speak candidly: assigning an experienced chemist to sit beside a manual burner, monitor a mercury thermometer, and manually dip an ignition wand every sixty seconds for forty minutes is an inefficient use of technical labor. While entry-level manual testers like our QualiCFPT™ OC serve educational and low-volume facilities well, high-throughput labs face distinct economic realities:

Technician Efficiency & Throughput

Manual procedures demand uninterrupted technician attention for 35 to 45 minutes per test. Automated analyzers like the QualiFPT™-CC-Auto provide push-button operation: the technician loads the specimen, initiates the program, and turns attention to other revenue-generating bench tasks. Running eight tests daily frees up four to five technician hours per shift.

Measurement Precision & Repeatability

Automated optical sensors and differential thermal detectors register flash events without human reaction bias. ASTM D92 carries the widest variability band of the three methods, with reproducibility spanning 13°C to 18°C because an open cup remains exposed to room drafts that an operator cannot fully regulate.

Automated flame positioning, controlled sweep speed, and electronic optical detection on the QualiCOCFPT™ Auto eliminate the technician-dependent variables, such as sweep timing, flame presentation height, and visual reaction delays, standardizing the test procedure as closely as the open-cup method permits.

Laboratory Safety & Fire Mitigation

Heating flammable hydrocarbons creates inherent laboratory hazards. Automated testers feature thermal sensors and automatic fire extinguishing shutters that smother unexpected flashes instantly, keeping safety teams and facility insurers confident.

In our assessment of laboratory capital expenditure, the labor savings alone offset the purchase price difference of an automated instrument within six to nine months for medium-volume facilities.

Procurement Checklist: Technical Criteria

When reviewing technical specifications and vendor proposals for automated flash point equipment, we recommend confirming these five core capabilities:

• Automated Barometric Pressure Normalization: Flash points vary depending on local atmospheric pressure. Closed-cup flash point predictions at sub-atmospheric pressure show small deviations of 0.18°C to 1.25°C, whereas open-cup methods show swings up to 12.55°C. Furthermore, ambient pressure near 101.3 kPa alters correction slopes from 0.25 to 0.20. Instruments like our QualiAbel™ FPT-170 and QualiFPT™-CC-Auto feature integrated barometric sensors that normalize test results to standard sea-level pressure automatically.
• Heating Rate Precision: Research indicates that heating rate variations significantly shift observed flash points, with non-standard heating rates causing deviations of up to 40°C in challenging specimens. Verify that your instrument utilizes closed-loop electronic heating control to adhere strictly to ASTM ramp rates (such as the standard 5°C to 6°C/min ramp programmed into the QualiCOCFPT™ Auto).
• Dual Ignition Flexibility: Can the instrument operate with both an electric heating filament and a standard gas flame? Our automated lineup, including the QualiCOCFPT™ Auto, the QualiAbel™ FPT-170, and the QualiFPT™-CC-Auto, provides dual-ignition capabilities (electronic and gas), delivering the operational flexibility needed when clean analytical spaces restrict gas plumbing while referee standards mandate a gas flame.
• Cooling Cycle Turnaround: How quickly does the heating block cool down after completing a 300°C asphalt run? Look for integrated rapid-cooling capabilities, such as those built into our automated Cleveland and Pensky-Martens analyzers, to avoid lengthy waiting periods between consecutive samples.
• Maintenance and Cup Cleaning Access: How simple is it to remove the lid assembly, stirrer paddle, and temperature probe for routine cleaning? If cleaning heavy asphalt residues requires extensive disassembly with hand tools, sample turnaround times will suffer.
