Core Principles of Hardness Measurement
Modern hardness testers evaluate material resistance to permanent plastic deformation under a regulated force. By driving a hardened indenter into a component, these instruments measure the resulting impression size, penetration depth, or dynamic rebound response to produce an accurate, standardized hardness value.
When evaluating structural metals, standard static loading techniques (specifically Brinell, Rockwell, Vickers, and Knoop) remain the industry standard for lab verification. For instance, benchtop setups like the Qualitest QualiRock-R (Regular Rockwell) and QualiRock-RS (Twin Regular & Superficial) utilize deadweight load systems with an Extended Indenter Nose to test hard-to-reach spaces, such as internal ring surfaces (>23mm) and outer cylinder curves (>3mm), under ASTM E18 and ISO 6508 standards.
For field inspections where heavy lab tools cannot travel, compact handheld hardness testers, such as the pocket-sized QualiTip Lite (110g) or the dual-mode UCI-4100DM Dynasonic, allow rapid on-site inspection of large components without damaging finished parts.
Qualitest equipment relies on three primary testing methodologies:

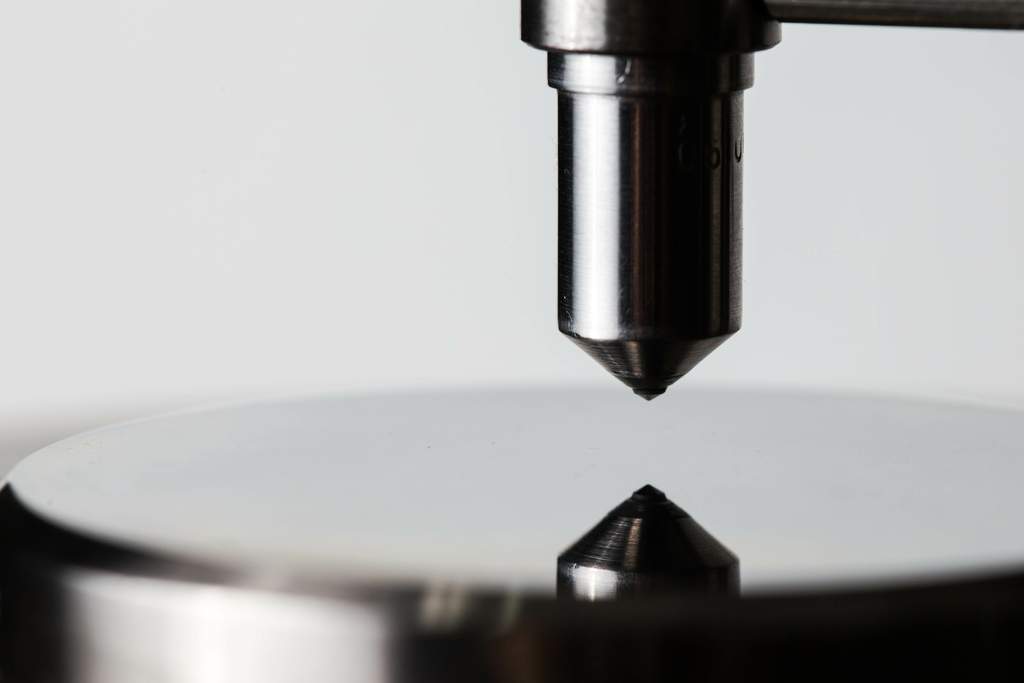

- Controlled Indentation Testing: Applied in benchtop systems (including the QualiRock series, Brinell deadweight units, and Vickers/Knoop microhardness models) using a static load through a steel ball, diamond cone, or pyramid indenter.
- Dynamic Rebound Testing (Leeb): Utilized in portable units like the QualiTip series (QualiTip Plus, QualiTip Lite, QualiTip II-Plus, and QualiTip III), measuring the rebound velocity ratio of an impact body as it bounces off a rigid component.
- Ultrasonic Contact Impedance (UCI): Applied in non-destructive handheld units like the UCI-1100H, UCI-3000, and dual-mode UCI-4100DM, measuring acoustic frequency shifts of a diamond-tipped rod pressed lightly against thin layers, molds, or finished parts under ASTM A1038 guidelines.
Standard Hardness Testing Workflow
- Surface Preparation: Clean and smooth the test face so surface scale, plating burrs, or grinding marks do not distort readings.
- Method & Equipment Selection: Choose Rockwell, Brinell, Vickers, Knoop, Leeb, or UCI based on component mass, geometry, and ASTM/ISO standard specs.
- Force Application: Drive the indenter into the specimen using controlled deadweight, load-cell, or spring-loaded impact forces (ranging from micro-gram loads up to 3,000 kgf).
- Impression Formation: The indenter displaces material, forming a measurable residual mark or depth change.
- Data Measurement: Calculate indentation width, depth jump, acoustic frequency shift, or rebound velocity.
- Hardness Scale Conversion: Convert raw readings into standardized HRC, HRB, HB, HV, or HK values via built-in automatic conversion software.
- Calibration Verification: Check machine accuracy against certified reference test blocks before running production batches.
Testing Methods and Qualitest Equipment Configurations
| Method | Operational Mechanism | Key Qualitest Models & Specs | Primary Applications | Operational Requirements |
|---|
| Rockwell | Measures the differential depth jump between a light preload and a major force using a diamond cone or carbide ball. | QualiRock-R & QualiRock-RS featuring an Extended Indenter Nose, digital LCD display, and RS-232 data export. | High-speed batch evaluation on finished machining parts, heat-treated steels, and cylindrical stock under ASTM E18 / ISO 6508. | Requires clean, rigid seating on specialized anvils to prevent frame deflection. |
| Brinell | Drives a hard carbide ball into the material under heavy forces (up to 3,000 kgf), measuring the indentation diameter. | Benchtop Brinell Series adhering to ASTM E10 and ISO 6506 standards. | Heavy forgings, rough castings, and coarse-grained alloys where large impressions average out structural variations. | Leaves a noticeable impression; unsuitable for thin parts or hardened surface layers. |
| Vickers & Knoop | Applies a square-based pyramid or elongated rhombic diamond indenter under precise light to medium forces. | Micro & Macro Vickers Series meeting ASTM E92 and ASTM E384 standards. | Delicate micro-structures, thin metal foils, carburized layers, case depth profiling, and brittle components. | Requires thorough mirror-smooth surface polishing prior to optical evaluation. |
| Leeb Dynamic | Measures the rebound velocity ratio of a spring-driven impact body striking the material surface. | QualiTip Plus, QualiTip Lite (110g), QualiTip II-Plus, and QualiTip III with built-in printers. | On-site field inspections on massive steel structures, heavy piping, installed pressure vessels, and large molds under ASTM A956. | Components must meet minimum mass and thickness thresholds to absorb impact energy properly. |
| Ultrasonic (UCI) | Measures acoustic frequency shifts of a vibrating rod tipped with a Vickers diamond pressed lightly into the surface. | UCI-1100H (2-second readings), UCI-3000 Series, and UCI-4100DM dual-mode (UCI + Leeb). | Near non-destructive testing on narrow welds, gear teeth, electroplated chrome layers, and polished injection molds under ASTM A1038. | Requires smooth surface contact; less suitable for rough, unmachined cast surfaces. |
Accuracy Factors and Equipment Upgrades
Achieving consistent quality control data requires matching part geometry with modern machine technology:
- Thorough surface preparation: Surface rust, heavy scale, or improper anvil support causes soft readings. Utilizing solid base fixtures and flat surface prep guarantees accurate force transfer.
- Standard block checks: Relying on unverified machinery creates unnecessary risk. Routine verification using certified reference blocks keeps your equipment fully accountable and compliant with international standards.
- Correcting surface tilt variations: When a test piece rests at an angle, diamond indenters create asymmetrical marks. Software integrated into QualiRock and UCI units automatically adjusts geometric calculations to correct minor operator tilt.
- Closed-loop load control & automation: Modern benchtop hardness testers incorporate load-cell force application, motorized camera turrets, high/low QC alarm limits, and direct data export (via RS-232, USB, Bluetooth, or WiFi) to remove operator bias.
- On-site portability: Compact wireless units like the METALTEST MKII and pocket-sized QualiTip Lite bring laboratory-grade accuracy directly to raw material receiving yards and field sites.
Practical Applications for Quality Assurance
Hardness testing provides a rapid, semi-quantitative assessment of material heat treatment, wear resistance, and structural uniformity. While simple single-point indentation does not replace full destructive tensile testing, instrumented hardness testers supply vital quality assurance data for incoming batch inspection, heat-treat verification, and component certification.
Matching these theoretical principles with your specific alloy specs, component geometries, and ASTM/ISO standards ensures long-term testing accuracy across your quality control workflow. Qualitest manufactures and supplies over 100 specialized hardness testers, ranging from automated benchtop Rockwell and Brinell systems to versatile handheld Leeb, UCI, and universal units, ensuring your facility meets all international testing standards with complete confidence.
