When working with materials like rubber or plastics, how do you ensure they're just the right hardness for your application? That’s where a durometer comes in, an instrument designed to measure hardness accurately and reliably. From soft silicone seals to rigid plastic components, understanding what a durometer is helps you make informed decisions about material performance.
In this article, you’ll learn what a durometer is, how to perform a shore durometer hardness test, and the key differences between tools like the Shore A hardness tester and Shore D hardness tester. Armed with this knowledge, you can confidently select the right tester for accurate and repeatable results.
What is a Durometer?
A durometer is a specialized tool used to measure the hardness of materials such as rubber, elastomers, and plastics. It works by evaluating a material’s resistance to indentation, providing a numerical value on a standardized durometer scale. These values help determine whether a material is suitable for specific applications, from soft silicone seals to rigid plastic components.
The durometer definition originates from the Shore hardness system, developed in the 1920s by Albert Ferdinand Shore. Today, it’s recognized worldwide as the go-to method for hardness testing in non-metallic materials. When someone asks, “What is durometer hardness?”, the answer lies in the tool’s ability to provide consistent and reliable hardness measurements, essential across industries.
Beyond simply providing hardness values, durometers offer insight into material behavior under stress, as demonstrated by Boyce’s study on stress-strain relationships in elastomers (Rubber Chemistry and Technology).
Related article: Elevating The Quality of Rubber Samples: Qualitest's Solution for Sika's Testing Needs
How Durometers Work?
A durometer measures material hardness by pressing an indenter into the surface and calculating the resistance. The result is displayed on a durometer scale, with different scales like Shore A for soft rubbers and Shore D for harder plastics. Each scale uses specific indenters and spring forces to match the material properties, ensuring accurate readings.
Understanding the differences between Shore A and Shore D scales is crucial for accurate testing. Studies on scale interconversion provide clear guidance on interpreting results across scales (Mix & Giacomin, ASTM Journal of Testing and Evaluation).
During a shore durometer hardness test procedure, a flat sample of sufficient thickness is prepared to avoid the "anvil effect." The durometer is applied perpendicular to the surface, and the hardness value is immediately displayed. Analog models are simple and durable, while digital versions offer features like precise readings and data storage.
A durometer is a comparative tool, not an absolute measure. Its value lies in providing consistent, repeatable results across materials, helping you ensure quality and performance for your application.
Understanding Durometer Scales
Durometer scales are standardized systems used to measure material hardness, tailored to different types of materials. The most common scales are Shore A and Shore D, which cater to soft and hard materials, respectively. These scales allow precise comparisons within similar material categories, such as rubber, elastomers, and plastics.
- Shore A Durometer Scale: Ideal for flexible materials like rubber bands, seals, and soft polymers. The scale ranges from 0 (very soft) to 100 (very hard). For instance, a car tire typically falls around 65-70 Shore A.
- Shore D Durometer Scale: Used for harder materials, including rigid plastics and thermoplastics. It overlaps with the higher end of the Shore A scale, with values starting from 50 up to 100.
Other less common scales, like Shore OO for soft gels and foams, or Shore O for textile windings, expand the versatility of durometers. While these scales are specialized, Shore A and Shore D durometers remain the industry standard.
The durometer Shore A hardness tester and Shore D hardness tester use different indenter tips and spring forces to accommodate material properties. For example, the Shore A tester employs a truncated cone-shaped indenter with 822 grams of force, while the Shore D tester uses a sharper cone with 10 pounds of force.
Each scale is designed for specific material categories. For instance, the study 'Exact Analytical Durometer Hardness Scale Interconversion' provides methodologies to translate hardness readings across scales, ensuring compatibility and consistency when comparing different materials.
Understanding the correct scale for your material is essential for accurate testing. Misusing scales can lead to false readings, affecting material performance in applications.
Read more: Understanding the Shore Hardness Test: Method, Formula & Diagram
Types of Durometers
Durometers come in various types, each tailored for specific testing needs and materials. Understanding the different options ensures accurate measurements and improved efficiency in quality control. Let’s explore the key types, including the increasingly popular automatic durometer.
1. Analog Durometers
Analog durometers are the traditional choice for measuring hardness. They feature a simple mechanical gauge that displays the reading and are known for their durability and straightforward operation. Analog models are widely used in environments where advanced features are unnecessary, offering reliable performance for standard applications.

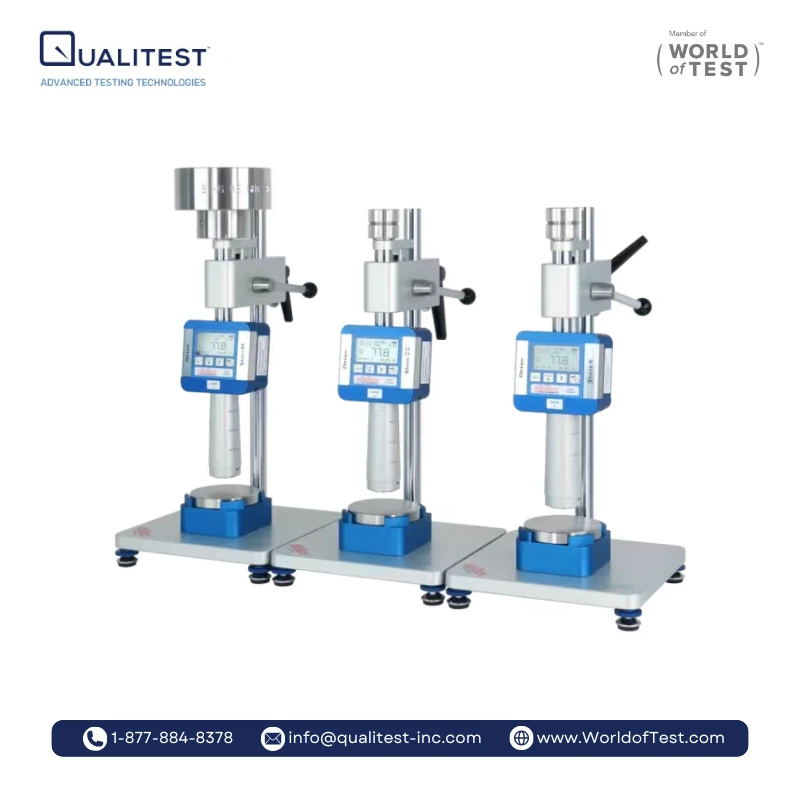

2. Digital Durometers
Digital durometers enhance precision and user convenience. Equipped with an electronic display, they provide accurate readings and often come with advanced features like data storage, automatic averaging, and connectivity to external systems. Digital models are ideal for applications requiring detailed documentation or where quick, repeatable results are critical.
3. Automatic Durometers
Automatic durometers streamline testing with features like motorized indentation and programmable settings. Integrated IoT capabilities enable real-time data collection, analysis, and reporting, making them indispensable for industries like aerospace and manufacturing.
Related article: Next-Level Hardness Testing: Unveiling The Automatic Durometer – Automatic Shore IRHD Hardness Tester
4. Specialized Durometers
Specialized durometers are designed for unique materials and testing scenarios:
- Shore A Hardness Tester: Perfect for softer materials like rubber, elastomers, and soft plastics. Commonly used for seals, O-rings, and shoe soles.
- Shore D Hardness Tester: Best suited for harder materials such as rigid plastics and thermoplastics, including items like golf balls and industrial components.
- Shore OO Durometer: Ideal for extremely soft materials such as foams, gels, and sponges.
- Micro Durometers: Designed for thin materials or small samples, ensuring precise results without interference from underlying surfaces.
5. Portable Durometers
Portable durometers are lightweight and easy to use in field applications. They allow for on-site hardness testing without requiring a lab setup, making them ideal for quality control in manufacturing and construction environments.
Applications Across Industries
Durometers play a vital role in ensuring the quality, performance, and durability of materials across various industries. By providing accurate hardness measurements, they help manufacturers select and evaluate materials suited for specific applications. Here’s how durometers are applied in different fields:
1. Rubber and Elastomer Testing
The Shore A durometer is widely used in the rubber industry to measure the hardness of materials like O-rings, gaskets, and seals. These components need precise hardness to ensure flexibility, durability, and leak-proof performance in applications such as automotive and plumbing systems.
In elastomer testing, Shore hardness values offer insight into how materials behave under stress. A study published in Rubber Chemistry and Technology maps Shore A and D hardness to stress-strain performance, emphasizing the practical value of these tests in automotive and industrial applications
Related article: How to Measure Rubber Hardness: Methods, Tools, and Best Practices
2. Plastics and Thermoplastics
In the plastics industry, the Shore D durometer is essential for testing the hardness of rigid and semi-rigid materials. Products like automotive parts, appliance components, and packaging materials benefit from consistent hardness measurements to maintain structural integrity and reliability.
3. Foam and Gel Applications
Specialized scales like Shore OO are used to test soft materials, including foams, gels, and sponges. These materials are critical in industries such as bedding, medical cushioning, and consumer goods, where softness and comfort are key considerations.
4. Automotive Industry
The automotive sector relies on durometers for components like tires, bushings, and seals. Accurate hardness measurements ensure that these parts can withstand stress, reduce noise, and provide a smooth driving experience. Both Shore A and Shore D hardness testers are used depending on the material’s flexibility.
5. Aerospace and Defense
In aerospace, material hardness directly impacts performance and safety. Durometers test elastomers used in seals and insulation, as well as rigid plastics and composites for structural components. The precision of tools like the automatic durometer helps maintain high standards in this critical industry.
6. Consumer Products
Everyday items such as shoe soles, phone cases, and sporting goods are tested for their hardness to ensure durability and user satisfaction. For example, soft materials used in shoe soles require a durometer Shore A hardness tester, while hard skate wheels benefit from Shore D hardness tests.
7. Medical and Healthcare
Durometers are indispensable in testing medical-grade silicones and elastomers for products like tubing, implants, and seals. Hardness plays a key role in ensuring biocompatibility and functionality in demanding medical environments.
8. Construction and Infrastructure
In construction, materials like sealants, adhesives, and insulation require accurate hardness testing to ensure they meet the demands of structural integrity and longevity. Portable durometers are often used on-site for quick evaluations.
Testing Procedures and Best Practices
Accurate hardness testing with a durometer requires following standardized procedures to ensure reliable results. From preparing the sample to interpreting the measurements, each step plays a vital role in achieving consistency and repeatability.
1. Sample Preparation
- Ensure the material is flat and at least 6 mm (¼ inch) thick. Stack layers if needed to prevent interference from the surface below.
- Clean the sample to remove debris or irregularities that could affect accuracy.
2. Performing the Test
- Position the durometer perpendicular to the sample surface.
- Apply consistent pressure for manual models; automatic durometers handle this process for improved accuracy.
- Hold steady until the reading stabilizes (1–2 seconds) and record the result.
- Record the measurement displayed on the shore durometer hardness tester.
3. Shore Durometer Hardness Test Procedure
- Match the appropriate scale to the material (e.g., Shore A for soft materials, Shore D for harder ones).
- Test multiple sample locations and calculate the average for accuracy.
- Avoid testing near edges to prevent inconsistent readings.
4. Calibration and Maintenance
- Regularly calibrate the durometer to maintain accuracy.
- Protect the device when not in use and inspect the indenter tip for wear.
5. Tips for Accurate Testing
- Let the material acclimate to the testing environment, as temperature can affect results.
- Use specialized durometers (e.g., Shore OO for soft foams) for unique materials.
- Follow recognized standards like ASTM D2240 for consistent outcomes.
6. Common Mistakes to Avoid
- Testing samples that are too thin or uneven.
- Applying inconsistent force with manual durometers.
- Ignoring calibration, leading to unreliable results.
- Comparing hardness values across different scales (e.g., Shore A vs. Shore D), as these scales are not interchangeable.
By adhering to these best practices, you can maximize the accuracy and reliability of your hardness tests.
Final Thoughts
As supported by studies such as 'Standardized Polymer Durometry' and 'Durometer Hardness and the Stress-Strain Behavior of Elastomeric Materials,' durometers provide a scientifically validated method to ensure material performance and quality.
A durometer is important for anyone working with materials like rubber, plastics, or elastomers. By understanding the differences in scales, such as Shore A and Shore D, and choosing the right shore durometer hardness tester, you can guarantee accurate and repeatable results.
Whether you rely on a basic analog model or a high-tech automatic durometer, this tool is a foundation for quality assurance. Proper usage, calibration, and innovative features ensure you’re equipped to meet industry demands with confidence.
References:
- Mix, A. W., & Giacomin, A. J. (2011). Standardized polymer durometry: On the relation between Young's modulus and indentation in polymers. Journal of Testing and Evaluation, 39(4), 696–705. https://doi.org/10.1520/JTE103255
- Mix, A. W., & Giacomin, A. J. (2018). Exact analytical durometer hardness scale interconversion: Shore, Barcol, Rockwell, and IRHD. Journal of Testing and Evaluation, 46(5), 1995–2011.
- Boyce, M. C. (2003). Durometer hardness and the stress-strain behavior of elastomeric materials. Rubber Chemistry and Technology, 76(2), 419–435. https://doi.org/10.5254/1.3547745
