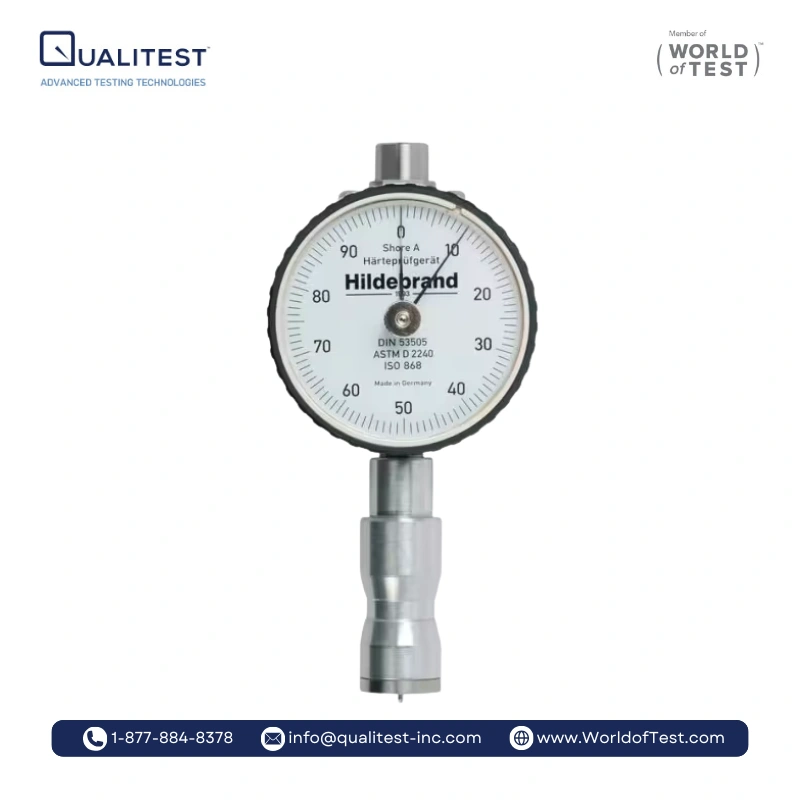

Shore Durometer

To put it plainly, a material failure can do more than just stop a project in its tracks; it can damage your reputation and your bottom line.

In our experience, many of these failures begin with a simple misunderstanding of material properties. The most common point of confusion we see is the tensile strength vs durometer issue. They sound related, but they measure entirely different characteristics, and the choice between them is a critical decision.

We believe that clarifying this durometer vs tensile strength distinction is the foundation of excellent quality control. This isn't just about dry technical data; it's about producing components that perform correctly in the real world. So here is the definitive guide to help you make the right call.

What is Durometer? The Surface Hardness Side of the Equation

Durometer is the industry-standard number that tells you how hard a material is, specifically how well its surface resists being indented.

The hardness test itself is straightforward: an indenter is pressed into the material, and the depth of the indentation gives you a reading from 0 to 100. A higher value means a harder material.

This property is essential for any application where surface interaction is key, which is a core part of the tensile strength vs durometer consideration. To give you a practical sense of the scale:

• A gel insole might be Shore A 20
• A rubber band is typically Shore A 40
• An automotive tire tread is around Shore A 70
• A shopping cart wheel is harder, around Shore D 50
• A construction hard hat is very rigid, at about Shore D 75


Read more: Durometer Hardness: Shore A vs Shore D Differences

While it's a fantastic method for a quick quality check, we always advise that durometer only gives you part of the story. To get a reliable reading, you need the correct instrument for the material class you're testing. We offer a full range of durometers to cover any application, from portable units to automated systems for absolute consistency.

What is Tensile Strength? Measuring a Material's Core Strength

Tensile strength is a completely different measurement that tells you about a material's fundamental structural integrity. This is where we find out how much of a pulling force a material can withstand before it fractures.

This is where the tensile strength vs durometer debate becomes clearest; one is about the skin, the other is about the bones. The data from this destructive test reveals a material's elasticity, elongation, and overall toughness.

The range of values can be enormous:

• Silicone Rubber: ~10 MPa (1,450 psi)
• Nylon: ~75 MPa (10,800 psi)
• Aluminum: ~250 MPa (36,000 psi)
• Structural Steel: ~400 MPa (58,000 psi)

While the ultimate breaking point is a key specification, we've found that modulus is often a more practical figure. Modulus tells you how much a material will stretch under a normal load. Our tensile testing machines provide you with the full data set, so you get a complete performance profile.

The Decisive Difference: Durometer vs. Tensile Strength


While both properties speak to a material's toughness, they are not interchangeable. Durometer is a non-destructive test of surface hardness, while tensile strength is a destructive test of internal strength.

In our view, the most significant mistake in the durometer vs tensile strength analysis is to assume hardness equals strength. A high durometer reading does not guarantee high tensile strength. This table breaks down the comparison:

Real-World Applications in the Tensile Strength vs. Durometer Debate

You can see where these properties make a difference in countless products. Getting the specification right is what separates a reliable component from a costly failure.

• For Automotive Tires, the key property is durometer. The entire performance of the tire is a function of getting the hardness right. Tire manufacturers use Shore A Durometers constantly.
• In Medical Tubing, tensile strength and elongation are the primary concerns. The material must be strong enough to handle internal pressure without failing. Our Single-Column Tensile Testers are ideal for this.
• With Gaskets and Seals, durometer is again the focus. A proper seal relies on the material's ability to compress and then exert a sealing force. Digital Durometers provide a fast and accurate way to confirm this.
• For Printing and Industrial Rollers, the critical property is durometer. The hardness of a roller's surface directly controls the quality of the final product.
• In Safety Equipment like harnesses, the single most important metric is tensile strength. For a product designed to save a life, its ability to withstand extreme pulling forces is its entire reason for being. This is a clear case where one side of the durometer vs tensile strength argument is non-negotiable.
• For Conveyor Belts, performance depends on tensile strength and modulus. These components are under constant load and tension, making their internal strength, tested with our Dual-Column Universal Testing Machines, the most important specification.

Selecting the Right Tester: A Durometer vs. Tensile Strength Breakdown


Once you've identified the critical property, you can select the right instrument. The choice in the tensile strength vs durometer dilemma depends entirely on what you need the material to do.

You should select a durometer if:

• Your primary concern is the surface characteristics of a material, such as its resistance to wear or indentation.
• You are working with elastomers or plastics for applications like seals, O-rings, or rollers.
• You need a fast, non-destructive method for quality control checks.
• The physical "feel" or softness of a product is a key quality attribute.


You absolutely need a tensile tester if:

• The structural integrity of the component is the top priority, and failure under a load would be unacceptable.
• The part will be subjected to pulling or stretching as part of its normal function, such as in belts, cables, or straps.
• You need a complete performance profile of a material, including its ultimate breaking point and modulus.
• Your goal is to qualify new materials or perform failure analysis, where comprehensive data on core strength is essential.


Qualitest: Your Tensile & Durometer Test Partner

At Qualitest, our goal is to provide effective solutions. We have spent years helping clients navigate the durometer vs tensile strength decision, and we are committed to providing cost-effective testing machines that deliver the data you need. Getting these specifications right means better products and fewer failures.

If you are looking to improve your in-house quality control, let's have a conversation about your application. Our experts can help you define your testing needs and find the right solution to ensure your materials perform exactly as expected.

Getting the hardness of your rubber components exactly right is a fundamental part of a successful product.

In a manufacturing setting, the performance of a final assembly often hinges on the physical properties of its smallest parts. From our position in the industry, we know that a seemingly minor deviation can lead to significant problems. That's why it is so important to have a clear picture of the two primary methods for measuring material firmness, a topic often simplified to IRHD vs Shore.

These two approaches are the established ways to get a value for hardness, and they are both vital in modern quality control. However, they are not interchangeable. Knowing how and when to use each is a key piece of knowledge that separates a good quality process from a great one.

IRHD vs Shore: How These Two Measurement Methods Function


These two ways of checking hardness both produce a number, but they arrive at that result through different mechanical processes.

The mechanical difference is the key to the entire IRHD vs Shore discussion. This is a critical point of friction for teams who might assume the values can be swapped one-for-one without consequence.

Shore Durometers

This method uses a spring-loaded indenter that is pushed into the rubber. How deep that tip penetrates the surface gives you the hardness value.

The most common scales are Shore A, for softer materials, and Shore D, for harder materials. The portability and speed of our Qualitest Shore Durometers make them the proper tool for immediate checks right on the production floor, offering instant feedback without creating a bottleneck.

IRHD Testers

This is a more controlled, precise instrument typically used in a lab setting. It uses a spherical tip that is first applied with a light "minor" load to establish a zero-point, then a heavier "major" load is applied. The difference in indentation depth is what determines the hardness. This two-stage process removes surface irregularities from the equation. For laboratory work that requires data you can depend on, we believe the results from our IRHD Hardness Tester lineup are more consistent.

The physical difference in the instrument tips—the Shore's pointed cone versus the IRHD's rounded ball—is a useful way to remember their primary roles in the IRHD vs Shore debate. One is for direct, rapid assessment; the other is for controlled, analytical measurement.

Related article: Durometer: Accurate Hardness Testing for Rubber and Plastic

How to Select the Right Instrument for Your Application?


Selecting the correct method in the IRHD vs Shore debate is a function of your specific application, the material's form, and the standards you are required to meet. Based on our experience, here is our guidance with some clear examples:

• For O-rings, seals, or other non-flat components: The IRHD method is, in our opinion, the superior choice. Think of the critical hydraulic seals in aerospace landing gear or the tiny, precise O-rings used in a medical device. On a curved surface, a Shore durometer can give a misleading reading, but the IRHD’s spherical tip is made for that exact job.
• For flat, thick rubber sheets and general production-line checks: We consistently recommend a Shore durometer. Consider the thick rubber on a conveyor belt or an anti-vibration pad for industrial machinery. For these applications, you need a fast, reliable reading to confirm a batch is within spec, and a Shore instrument provides that immediate feedback.

• For compliance with specific standards (ISO, ASTM): The standard dictates the method. For instance, the widely-used automotive standard ASTM D2240 explicitly calls out the procedure for Shore testing. If your client requires adherence to that document, the choice is already made for you. We build our equipment to be fully compliant with these governing standards.

  Related article: Elevating The Quality of Rubber Samples: Qualitest's Solution for Sika's Testing Needs

A Word of Caution on Conversion Charts like an IRHD to Shore A Conversion Table

While you will find tables online that offer conversions, they should not be treated as a substitute for direct testing. We have seen quality issues arise from teams relying on these approximations for final validation. This is why any irhd to shore a conversion table or irhd to shore d conversion table must be used with caution.

The reason is simple: the pointy Shore indenter and the rounded IRHD ball stress the material in different ways. Two materials could have the same Shore A value but show different IRHD readings due to their unique chemical composition. For any application where the result truly matters, using the correct instrument is the only way to be certain.

Below is a standard irhd to shore a conversion table for general reference.

Disclaimer: This table is for estimation purposes only.

Similarly, this irhd to shore d conversion table provides approximations for harder materials.

Disclaimer: This is an approximation. Use a dedicated Shore D instrument for accurate measurements.

Solve IRHD vs Shore with Qualitest

Ultimately, we provide more than just equipment; we provide confidence in your results. We know that selecting the right material is just the first step—verifying its properties with the right instrument is how you protect your quality standard. Our full range of durometers and hardness testers is built to meet the real-world needs of our clients.

Don't let inconsistent hardness data or confusion over IRHD vs Shore put your product's performance at risk. Investing in the correct testing procedure is far more cost-effective than dealing with a single product recall. Contact us to discuss the specific challenges you face. Our team of experts will help you find the perfect, cost-effective solution to solidify your quality control process.

Getting a material's hardness right is a critical factor for product performance.

An incorrect value can lead to a component that feels substandard or fails prematurely. This is the precise challenge the ASTM D2240 durometer test method was made to solve. Consider it the official procedure for a specific type of indentation test that confirms how resistant or pliable your materials are.

We’re going to outline this standard, look at its variations, and explain how you can achieve truly consistent numbers from your ASTM D2240 durometer.

So, What's the Idea Behind ASTM D2240?


At its core, this standard is about creating a common language. When a component supplier and a manufacturer agree on a hardness value, they need to be certain they are talking about the exact same thing. ASTM D2240 is the definitive rulebook that ensures everyone is on the same page.

The test itself uses a compact device called an ASTM D2240 durometer. This instrument has a pin that sticks out from a flat foot, connected to a spring. When you press the foot firmly against your material, the pin retracts, and the distance it retracts is shown on a dial or digital display.

But this is about more than just a pass/fail number. That number tells a story about the material’s likely performance. The hardness of a rubber seal relates to how well it will stop leaks; the hardness of a plastic casing points to its durability.

Related article: Understanding the Shore Hardness Test: Method, Formula & Diagram

At Qualitest, we guide clients to see this test as an essential first line of defense against material inconsistency. It's how you can spot a bad batch of raw material before it gets into your production process, saving a great deal of time and expense.

The Two Most Common Scales in ASTM D2240: Shore A and Shore D

The ASTM D2240 standard includes several scales, but the most common are ASTM D2240 Shore A and ASTM D2240 Shore D. Selecting the correct scale is absolutely essential.

• ASTM D2240 Shore A: This is the proper choice for softer, pliable materials like rubber seals and flexible silicones. The pin on an ASTM D2240 Shore A durometer has a flat tip, preventing it from puncturing the surface.
• ASTM D2240 Shore D: This scale is reserved for harder items like safety helmets and rigid plastics. The pin on an ASTM D2240 Shore D instrument is exceptionally sharp, a defined cone designed to make an impression on resistant surfaces.

Read more: Durometer Hardness: Shore A vs Shore D Differences

Based on the hundreds of labs we've equipped, we find that a straightforward, easy-to-read dial gauge like our Shore Durometer Model HD3000 is often the most practical and cost-effective instrument for most quality departments. For operations that require digital precision and data output, our Digital Shore Durometer DRIVE Series is an effective setup.

Global Standards: A Look at ISO 868 vs ASTM D2240

For manufacturers with a global client base, the conversation will eventually include ISO 868. This is the other major global standard for hardness, leading to the frequent ISO 868 vs ASTM D2240 discussion.

While the basic principle is the same, there are important distinctions a business needs to be aware of. The most significant difference in the ISO 868 vs ASTM D2240 comparison is scope: ASTM D2240 covers a very wide assortment of materials, while ISO 868 is specifically focused on plastics and ebonite.

From our standpoint, having the ability to test and certify to both standards is a powerful business advantage. It removes friction from international trade and streamlines supply chain conversations immensely; it's a topic our team frequently advises on.

Related article: Elevating The Quality of Rubber Samples: Qualitest's Solution for Sika's Testing Needs

A Process for Accurate ASTM D2240 Durometer Results


A reliable durometer is the starting point, but the accuracy of your results depends entirely on a disciplined process for your ASTM D2240 durometer.

Prepare the Specimen

Your material sample must be a minimum of 6mm thick with a completely flat surface. The reason for this thickness is to avoid the "sink-in" effect where the hard benchtop influences the reading. This is one of the first things we check when a client calls with inconsistent results.

Condition the Environment

A material's properties can be noticeably affected by temperature. The standard calls for testing in a controlled environment of 23°C ± 2°C (73.4°F ± 3.6°F) for this very reason. We consider this step fundamental for generating comparable data.

Apply the Instrument

The durometer’s base must sit perfectly flush with the material surface. You apply force quickly and firmly, but without any shock. This single action is the largest source of operator error we see. It is why we so strongly suggest an Operating Stand. It brings the durometer down onto the sample with a controlled speed and a consistent weight, taking the human variable completely out of the test and delivering the kind of reliability our clients expect.

Take the Reading

You should record the value within one second of full contact. For some materials, you will notice the needle "creep" backwards. If testing a material like this, you must use a consistent time delay for every test. Consistency is what separates a professional measurement from a guess.

Related article: Next-Level Hardness Testing: Unveiling The Automatic Durometer – Automatic Shore IRHD Hardness Tester

ASTM D2240 Durometer Solutions from Qualitest

Our entire focus at Qualitest is on removing the guesswork from quality control. We operate on the principle that your success depends on data you can fully trust. Our line of cost-effective ASTM D2240 durometer products delivers the accuracy you require, and our operating stands help ensure every measurement is repeatable.

We invite you to explore our collection of Shore durometers to see how our equipment can bring a higher degree of confidence to your manufacturing process. Get in touch, and one of our experienced engineers can help you identify the right solution for your specific needs.

In the manufacturing sector, getting material properties right is a fundamental requirement for success.

We have consistently seen that a product's performance, safety, and lifespan are directly tied to the pliability or rigidity of the materials used. For this reason, anyone specifying materials must have a firm grasp of the difference between Shore A and Shore D hardness.

At Qualitest, we believe clarifying the details of durometer Shore A vs Shore D is essential for preventing critical, and often costly, production errors. Understanding the nuances of shore hardness a vs d is the first step toward material excellence.

What Exactly is Shore Hardness?

At its core, Shore hardness is a straightforward measure of a material's resistance to being indented.

A device called a durometer applies a controlled force through a specific indenter. The depth of the resulting indentation is measured; the less of a mark it leaves, the higher the material’s hardness rating.

It’s an effective, non-destructive method for assigning a quantitative value to a material’s firmness—a principle that underpins the entire Shore D vs Shore A measurement system.

The Decisive Difference Between Shore A and Shore D Hardness


Let's address the specifics of Shore Hardness A vs D, as this is where mistakes are most frequently made. The main distinction is that these two scales are intended for entirely different classes of materials, and as such, they use different indenter shapes and spring forces.

Shore A

The Shore A scale is the industry standard for materials that are expected to be soft and flexible. These are materials that need to bend and stretch to function correctly. Understanding this is the first step in the durometer Shore A vs Shore D comparison.

To give you a practical frame of reference, a common rubber band is around 25A, while the tread on a vehicle's tire is typically 60-70A. This scale is the appropriate choice for:

• Soft rubbers and elastomers
• Silicone seals, gaskets, and O-rings
• Flexible plastics and tubing
• Conveyor belt rollers
• Printing rollers

The Shore A testing device uses an indenter with a blunted cone shape, allowing for an accurate measurement on softer surfaces.

Shore D

The Shore D scale is reserved for hard, rigid materials where you want minimal to no flex. These are often materials chosen for their structural integrity and impact resistance.

For a real-world comparison, a shopping cart wheel is approximately 50D, and a construction hard hat is a very firm 75D. This scale is built for items such as:

• Hard rubbers and solid polymers like HDPE
• Plexiglass sheets and other hard plastics
• Protective headwear and safety casings
• Solid polyurethane wheels for forklifts
• Automotive interior trim and structural components

The durometer for the Shore D vs Shore A test uses a much sharper, pointed tip and applies a significantly greater spring force, necessary to create a measurable indentation on these tougher surfaces.

Related article: How to Measure Rubber Hardness: Methods, Tools, and Best Practices

A Note on Shore D Shore A Conversion Charts


Regarding a Shore D Shore A conversion, we hold a strong opinion: proceed with caution.

Conversion charts are widely available, but we always advise clients against relying on them for specifications. The reason a direct and reliable Shore A and Shore D conversion is not truly possible is because the two scales measure material response in different ways.

At Qualitest, we believe there is no substitute for testing a material on the correct scale to get a true, actionable reading.

(These values are for estimation and material family comparison only.)

Related article: Next-Level Hardness Testing: Unveiling The Automatic Durometer – Automatic Shore IRHD Hardness Tester

Reliable Shore Hardness Results with Qualitest

You cannot achieve dependable measurements or maintain tight quality control with substandard equipment. For accurate benchtop readings, our Shore Durometer Model HD3000 is an excellent choice. For components with complex geometries, the HD3000L offers specialized probes to ensure versatility.

Working through the specifications of Shore D vs Shore A is a critical part of the production process. At Qualitest, our experience provides us with a unique perspective on these challenges. We offer a full range of cost-effective hardness testers, from our versatile Digital Shore Durometer DRIVE Series to fully automated systems.

If you are looking for a supplier who can provide the reliable equipment needed to verify your materials, contact our team. Let us help you build superior, more consistent products.

Shore hardness test is typically used for measuring different materials, especially the softer ones like rubbers, elastomers, and certain softer plastics, such as vinyls, polyolefins, and fluoropolymers. This method evaluates how resistant a material is to indentation, providing valuable insight into its flexibility, surface durability, and potential performance under load.

This testing helps to determine whether a material is tough enough to endure certain exposure. The next section outlines the Shore test method, its measurement process, and how to interpret the results.

Here, Qualitest will walk you to understand Shore tests through its method, formula, and its diagram. Let's dive into the explanation below.

What Is Shore Hardness Testing?

Take a look at manufacturing shoe soles. To ensure comfort, flexibility, and durability, the materials (often rubber or thermoplastic elastomers) must strike the right balance between softness and resistance.

If the sole is too soft, it may wear out quickly. While, if it’s too hard, it could feel uncomfortable or even crack under stress. This is where the Shore hardness test becomes important, since it helps quantify just how firm or flexible these materials are.

Shore hardness testing is a standardized method used to measure the resistance of elastomers, soft plastics, and polymers to indentation. It tells you how a material responds when pressure is applied, whether it yields slightly or remains firm. The result is given as a number from 0 to 100, with higher values indicating a harder material.

Related article: Durometer: Accurate Hardness Testing for Rubber and Plastic

Shore Hardness Testing Method

The Shore hardness test measures the resistance of a material to indentation using a calibrated durometer. The measurement can be taken either immediately upon contact (initial indentation) or after a specified dwell time, depending on the material behavior and testing objective.

Some durometers include a maximum reading indicator to capture peak values, but it's important to note that these indicators may result in slightly lower readings compared to real-time indentation measurements.

Standard Shore durometers are used for general-purpose testing on flat specimens, typically with a thickness of at least 6 mm. For thinner or smaller samples, especially those with a cross-sectional diameter as small as 1.25 mm, Type M (micro) durometers are employed.

These are specifically designed to test small or narrowly shaped specimens that conventional durometers cannot accurately assess.

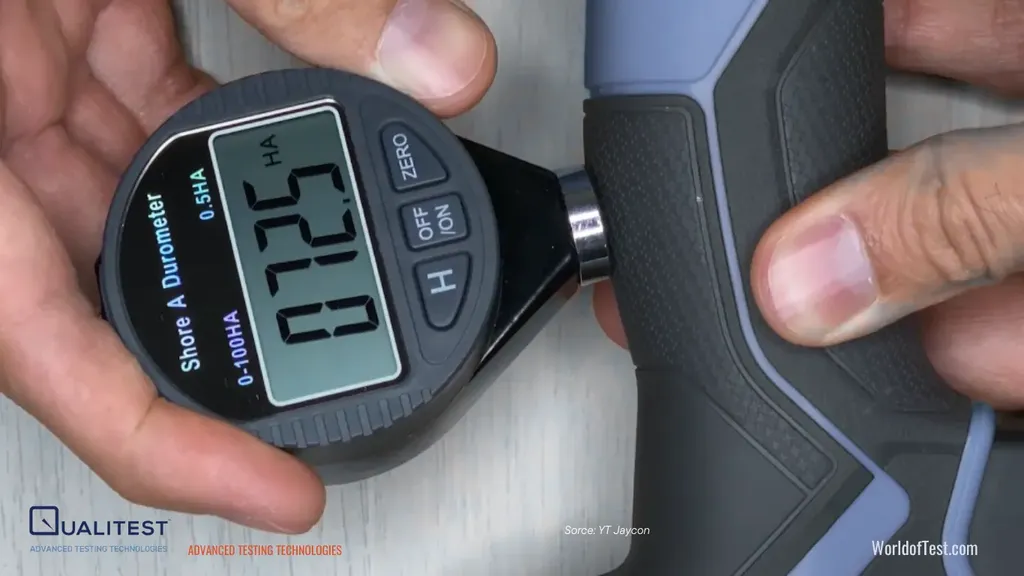

Here’s how the procedure works:

1. Sample Preparation: For standard tests, specimens should be at least 6 mm thick. Type M allows testing on thinner materials, down to 1.25 mm.

2. Test Execution: The indenter is applied perpendicularly to the sample using spring-loaded force. The type of indenter and force level depend on the Shore scale being used (A, D, or M).

3. Reading the Result: Hardness is displayed on the durometer as a value from 0 to 100. The reading may reflect either the instantaneous indentation depth or the value after a defined dwell time, offering flexibility in evaluating viscoelastic materials.

All tests should be conducted in a controlled environment, as variables like sample orientation, surface texture, and temperature can significantly affect the results.

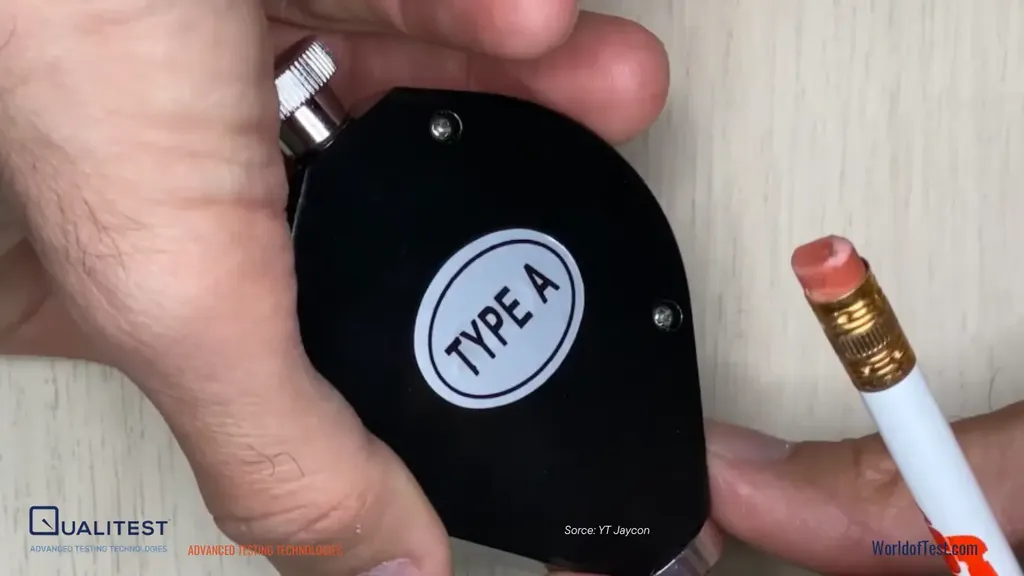

Shore Hardness Testing Formula


Unlike conventional hardness tests that rely on mathematical formulas involving load and area, Shore hardness testing does not use a direct algebraic formula. Instead, it is based on a mechanical relationship between the depth of indentation made by a calibrated indenter and the spring force applied to the material.

The Shore hardness value, ranging from 0 (deep penetration) to 100 (no penetration) serves as an index that reflects the resistance of a material to indentation under a specific force.

Each Shore hardness scale (A, D, M, OO, etc.) corresponds to a different indenter geometry and spring calibration, which means the same numerical reading across two different scales does not reflect the same force or material behavior.

According to the ASTM D2240 standard, this relationship is governed by precise calibration tolerances. The spring force exerted by the durometer must align with the expected indentation resistance for each scale. For example:

• On the Type A scale (used to measure rubber hardness, elastomers, and soft plastics), a hardness value of 50 corresponds to an applied force of 4.3 N.
• On the Type D scale (for hard plastics and dense polymers), the same value (50) represents a force of 22.225 N, due to the stiffer spring and sharper indenter.
• For microhardness testing using Type M, which is designed for very small or thin specimens, the forces range much lower, with a value of 50 equating to 0.544 N.
• Softer materials such as gels and foams require even gentler measurement tools, such as Type OO, OOO, or OOO-S, with corresponding forces calibrated between 0.167 N and 1.932 N depending on the scale and reading.

Here’s a breakdown based on the durometers calibration chart:

Although there’s no "formula" to calculate a Shore hardness value post-test, the calibrated mechanical system within the durometer ensures that the dial reading correlates with a specific indentation resistance.

This makes it a reliable and repeatable method for comparing the hardness of materials (from thick rubber pads to small polymer components) without requiring additional calculations.

Related article: IRHD vs Shore: A Complete Guide for Professionals

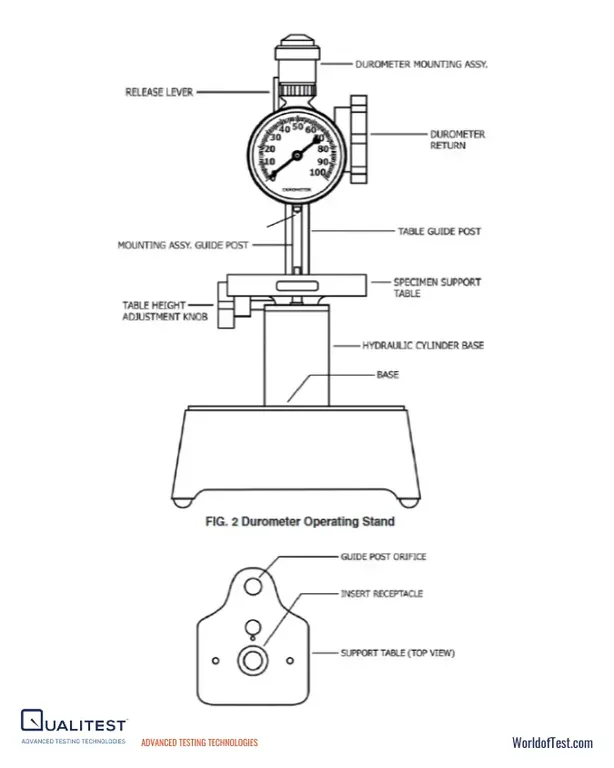

Shore Hardness Machine Specification

Shore hardness testers commonly referred to as durometers. Depending on your application needs, these machines range from handheld analog durometers for field inspection to advanced digital benchtop models for quality control labs.

Though designs may vary slightly between brands and models, most Shore hardness testing machines follow these core specifications:

1. Measurement Scale Support

Shore hardness testers are categorized by scale types, each optimized for specific material groups:

• Shore A: For flexible rubbers, elastomers, and soft plastics (e.g., tires, shoe soles).
• Shore D: For harder plastics (e.g., ABS, polycarbonate).
• Shore M: Micro-scale testing for thin or small specimens.
• Shore OO, OOO, OOO-S: For extremely soft materials like gels and sponge foams.

Some benchtop systems are multi-scale compatible. It allows interchangeable indenters and spring modules to test across several Shore types.

Related article: Shore A vs Shore D Differences

2. Indenter and Spring Force Calibration

The core principle of Shore testing is to measure the material's resistance to indentation under a calibrated spring force. Each Shore type has a distinct indenter shape and spring force range, calibrated as per ASTM D2240:

• For instance, Shore A applies up to 8.05 N at 100 hardness, while Shore D applies up to 44.45 N.
• Shore M uses significantly smaller forces, ideal for testing specimens down to 1.25 mm in thickness.

Durometers must maintain calibration within strict tolerances—such as ±0.075 N for Type A or ±0.0176 N for Type M—to ensure repeatability and accuracy.

3. Measurement Resolution

Most modern Shore hardness testers provide digital or analog readings from 0 to 100. Digital models often feature 0.1 unit resolution, auto-hold functions, and max reading indicators to capture peak values, especially useful for viscoelastic materials that change under prolonged load.

4. Display and Interface

Digital durometers come equipped with LCD or OLED screens, and many include USB/Bluetooth connectivity for data export and report generation. High-end lab models may integrate with quality control software for traceability and compliance tracking.

5. Sample Compatibility

Standard Shore durometers are designed to test materials with a minimum thickness of 6 mm. For thinner or more intricate parts, micro (Type M) durometers are used with precision anvils or clamps to secure small samples without distortion.

Optional accessories include:

• Custom test stands for consistent vertical application
• Time dwell control modules
• Fixtures for curved or irregular surfaces

6. Portability and Test Stand Integration

Handheld durometers are ideal for field testing or production lines, offering quick readings with minimal setup. For higher precision, testers can be mounted on a mechanical or motorized test stand, which ensures consistent force application, perpendicular alignment, and optional dwell-time control.

7. Compliance and Standards

Reliable Shore hardness testers conform to ASTM D2240 and ISO 868, ensuring consistency and compatibility across different testing labs and industries. Calibration should be verified regularly using standardized test blocks with known hardness values.

Shore Hardness Testing Diagram

Typical setup requires a standardized durometer stand. The figure below presents a schematic of the Shore durometer operating stand used for testing soft materials.


This diagram demonstrates how force is applied and controlled during the Shore hardness test using a mechanical stand. The Shore durometer stand minimizes user influence and improves the repeatability of measurements by standardizing test orientation, load application, and specimen support.

Durometer Testing Procedure (with Stand)

The Shore hardness test begins with the test specimen being placed on the specimen support table, located centrally on the base of the stand. The table height adjustment knob allows the operator to align the specimen precisely with the indenter tip of the mounted durometer.

Once aligned, the release lever is engaged, allowing the durometer to descend in a controlled and perpendicular motion guided by the mounting assembly guide post and table guide post. The indenter makes contact with the surface of the specimen under the combined effect of the durometer’s internal spring force and gravity-assisted alignment via the stand.

During testing, the indenter penetrates the material, and the depth of indentation is resisted by the material’s surface hardness. The dial gauge on the durometer registers the Shore hardness value, which corresponds to how much the indenter is resisted by the material. A higher value indicates a harder surface with less indentation.

Standardized Force Application

The force applied during testing is dictated by the spring calibration force within the durometer itself, which varies by Shore type. For example:

• Shore A uses a calibrated force of 0.075 N per unit, reaching 8.05 N at 100 durometer units.
• Shore M, intended for very thin materials, uses only 0.0044 N per unit, achieving 0.765 N at maximum scale (see Table 1 from ASTM D2240).

The operating stand ensures that the force is applied vertically and uniformly, reducing potential variability due to hand pressure or angle misalignment—an integral factor when testing materials sensitive to surface deformation or pressure duration.

Measurement Readout

The hardness value is displayed on the durometer dial, which is reset between each test via the durometer return mechanism. This return mechanism ensures that the indenter fully retracts, allowing for accurate baseline conditions before subsequent measurements.

Common Applications and Best Practices


1. Automotive Industry

In automotive manufacturing, elastomeric materials like seals, gaskets, bushings, and tires must meet stringent performance standards. Shore test helps manufacturers evaluate flexibility, compressibility, and wear resistance which are critical for components that must withstand high temperatures and dynamic stresses.

2. Medical Device Manufacturing

Devices such as catheters, syringes, and flexible tubing rely on specific tactile and mechanical properties. Shore 00 or Shore M scales are frequently used for these ultra-soft materials. It enables manufacturers to precisely control material softness for patient safety and comfort.

The test results help verify that polymers meet biocompatibility and flexibility standards, to minimize risks during clinical use.

3. Consumer Electronics and Wearables

Soft-touch buttons, silicone keypads, and wearable device straps must offer both comfort and durability. Shore A or Shore D testing is used based on the material type.

In this industry, Shore hardness test assesses how materials feel to the touch while ensuring resistance to compression or abrasion. The data collected from the test supports design decisions for optimal user experience while reducing product returns due to premature wear.

Related article: Elevating The Quality of Rubber Samples: Qualitest's Solution for Sika's Testing Needs

Get the Right Hardness Tester from Qualitest – Trusted by Industry Leaders Worldwide

Selecting Shore hardness testers is critical to maintaining product quality, meeting regulatory standards, and improving manufacturing efficiency. Qualitest, a global leader in material testing solutions, offers a comprehensive range of Shore durometers and automated hardness testing systems designed for diverse industrial needs.

Whether you're testing ultra-soft gels with Shore 00 or rigid thermoplastics using Shore D, Qualitest provides:

• Manual and digital durometers calibrated to ASTM D2240
• Precision durometer stands for improved repeatability and minimized operator bias
• Automated hardness testers for high-throughput production environments
• Custom testing solutions tailored for specialized materials or complex geometries

Investing in the right Shore hardness testing equipment from Qualitest means fewer production errors, better quality assurance, and long-term cost savings.

Discover our durometers catalog today and get ready to meet your most demanding testing challenges.
