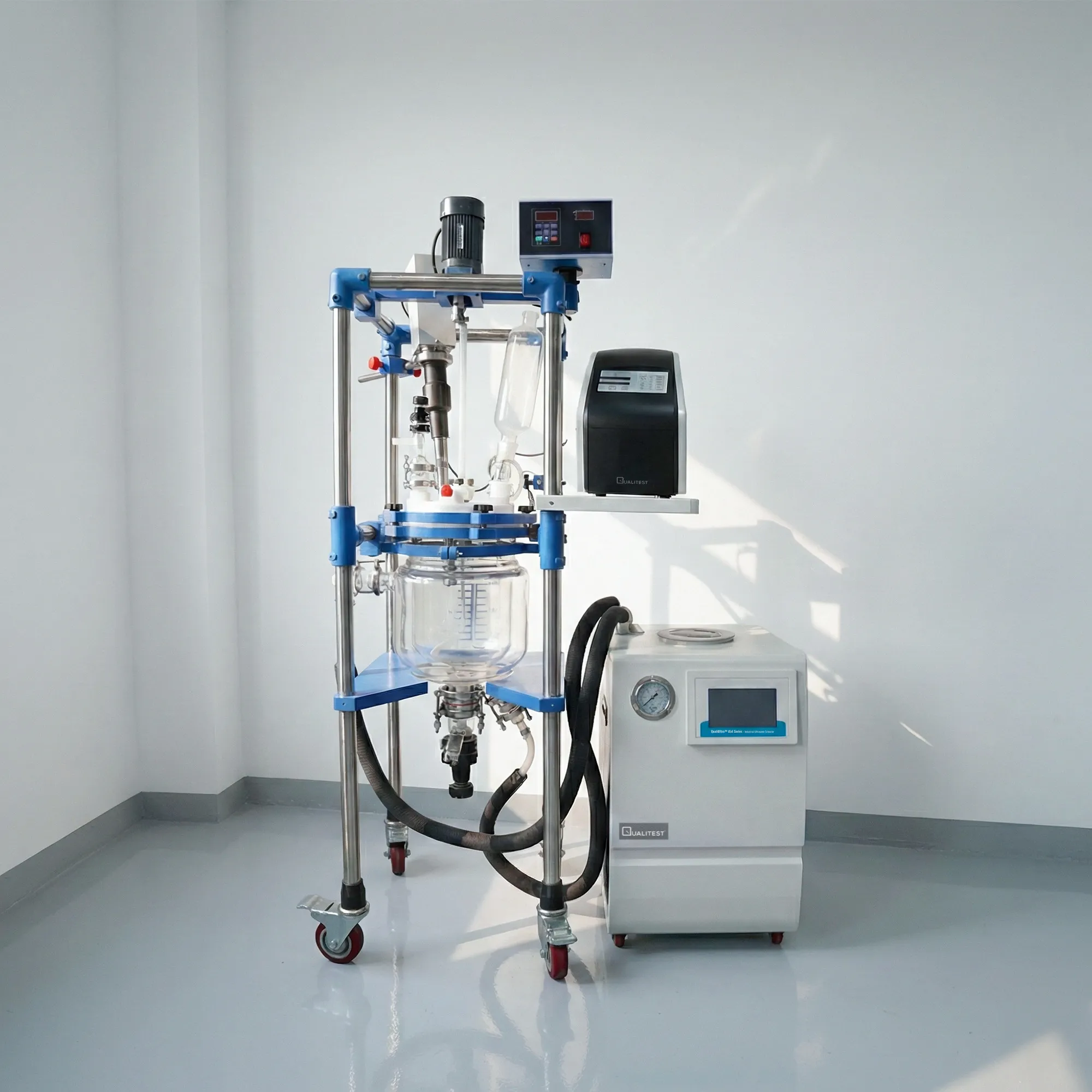

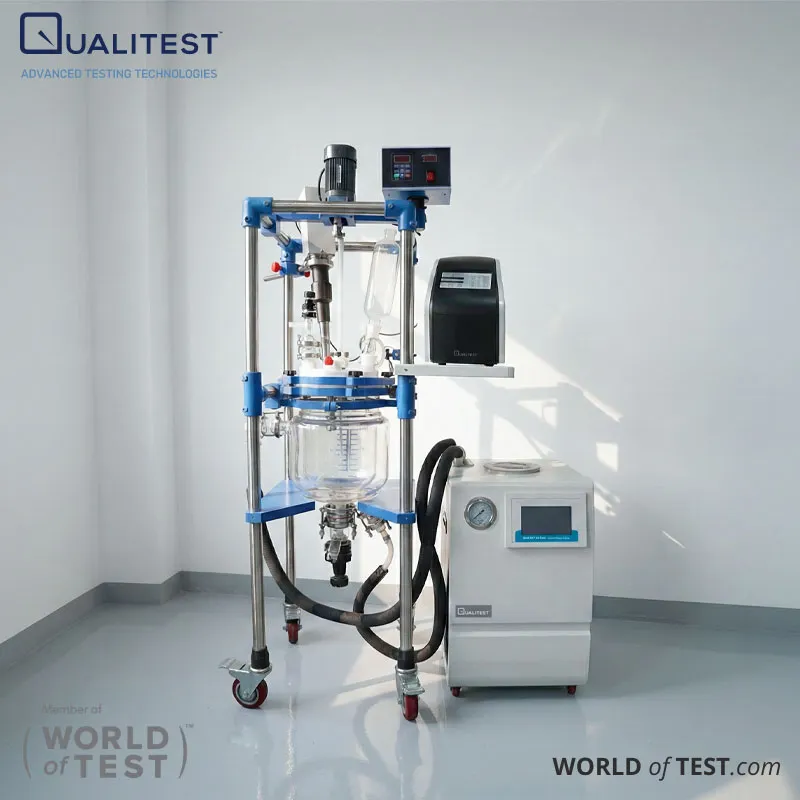

Industrial Ultrasonic Extractor Parent Product Ultrasonic System Standards IEC 61010-1 IEC 61326-1 ISO 20427 Industrial Ultrasonic Extractor – QualiUltra™ iExt SeriesAn Ultrasonicator in the QualiUltra™ iExt Series is an industrial ultrasonic extractor system that combines probe sonication, controlled stirring, and cooling support for extraction and reaction workflows. This platform is designed for larger working volumes than typical lab sonicators, which helps teams move from small beakers to pilot-scale batches. Adjustable ultrasonic power lets you tune cavitation intensity for different solvents, solids loading, and target compounds. Integrated stirring improves bulk mixing, which helps keep extraction conditions uniform. Cooling circulation support helps manage temperature rise during longer runs.QualiUltra™ iExt Series supports ultrasonic-assisted extraction in reactor volumes from 5 L up to 50 L. The system uses a large-diameter ultrasonic probe to deliver acoustic energy directly into the process liquid. Cavitation and micro-mixing help accelerate mass transfer, which can reduce extraction time compared with passive soaking or simple stirring. A dedicated stirring motor supports stable mixing speeds across different viscosities. Cooling circulation hardware is included by model to support temperature control during heat-sensitive processes. Applications Features/Advantages Theory/Method Technical Specifications Industrial Ultrasonic Extractor – QualiUltra™ iExt Series ApplicationsBotanical and natural product extractionUltrasonic cavitation helps break plant tissue and improves solvent penetration. This supports extraction of active compounds from herbs, roots, and botanical solids. Temperature control can help protect heat-sensitive fractions during longer runs.Food and flavor processing R&DUltrasonication supports extraction of flavors, pigments, and functional components from food-grade materials. Stirring helps keep solids suspended during processing, improving repeatability across batches. Cooling support helps stabilize conditions when volatile or temperature-sensitive compounds are present.Pharmaceutical and API intermediate researchUltrasonic-assisted extraction can speed up screening of solvents and process conditions during method development. Controlled mixing supports consistent contact between solvent and solids, which improves comparability across trials. Larger reactor options help scale up once the method is stable.Environmental and analytical sample prepUltrasonication supports extraction from soils, sediments, and particulate samples when contaminants or organics must be transferred into a solvent phase. Consistent mixing and controllable power help improve repeatability for prep protocols. Cooling support helps limit unwanted losses in longer processing cycles.Chemical processing and dispersion tasksThis Ultrasonicator system can support dispersion and slurry conditioning steps tied to extraction or reaction workflows. Sonication helps reduce agglomerates, while stirring maintains uniform distribution. This can help stabilize downstream filtration or separation behavior.StandardsIEC 61010-1: Safety requirements for electrical equipment for measurement, control, and laboratory use.IEC 61326-1: EMC requirements for measurement, control, and laboratory equipment.ISO 20427: Guidance for ultrasonic dispersion methods that supports standardized process documentation. Industrial Ultrasonic Extractor – QualiUltra™ iExt Series Key FeaturesReactor-scale ultrasonic extractionSupports 5 L to 50 L reactor volumes across the series, suitable for pilot-scale batches.Adjustable ultrasonic power ranges by modelPower control supports method tuning for different materials, solvents, and solids loading.Large-diameter probe optionsProbe sizes scale with reactor volume to support effective energy transfer into larger batches.Integrated stirring for uniform processingBuilt-in stirring power supports stable suspension and more consistent extraction conditions.Cooling circulation supportModel-specific cooling circulators help manage temperature rise during longer runs.Process-friendly operating rangesStirring speed control supports common extraction workflows without complex setup. Theory and MethodUltrasonic-assisted extraction relies on cavitation created by high-frequency vibration at the probe tip. Cavitation bubbles form and collapse, generating localized shear and micro-jets that help disrupt solids and improve solvent contact. Stirring handles bulk mixing so solids remain suspended and extraction stays uniform across the reactor volume. Power level and time settings control energy input, which affects extraction rate and temperature rise. Cooling circulation helps hold a tighter temperature window when target compounds are heat-sensitive.A typical method starts by loading solvent and solids into the reactor and setting the stirring speed for stable suspension. Select an ultrasonic power range and process time, then run sonication while monitoring temperature. Adjust power and mixing based on extraction yield targets and solvent behavior. After completion, separate solids by filtration or centrifugation and move the extract to downstream concentration or analysis steps. Industrial Ultrasonic Extractor – QualiUltra™ iExt Series Technical SpecificationSpecificationQualiUltra™ iExt 60QualiUltra™ iExt 90QualiUltra™ iExt 120Ultrasonic power range20–1000 W (max 1200 W)200–1500 W (max 1800 W)250–2400 WReactor volume5 L (10 L option)15 L (30 L option)50 LProbe diameterØ30 mmØ30 mm (Ø50 mm option)Ø50 mmStirring power60 W90 W (120 W option)120 WStirring speed10–600 rpm RequestQuotation Industrial Ultrasonic Extractor First Name Last Name / Surname Position Email Phone Number Company Name Company Type - None -ManufacturerResellerGovernmentUniversity Country - Select -AfghanistanAlbaniaAlgeriaAmerican SamoaAndorraAngolaAnguillaAntarcticaAntigua & BarbudaArgentinaArmeniaArubaAscension IslandAustraliaAustriaAzerbaijanBahamasBahrainBangladeshBarbadosBelarusBelgiumBelizeBeninBermudaBhutanBoliviaBosnia & HerzegovinaBotswanaBouvet IslandBrazilBritish Indian Ocean TerritoryBritish Virgin IslandsBruneiBulgariaBurkina FasoBurundiCambodiaCameroonCanadaCanary IslandsCape VerdeCaribbean NetherlandsCayman IslandsCentral African RepublicCeuta & MelillaChadChileChinaChristmas IslandClipperton IslandCocos (Keeling) IslandsColombiaComorosCongo - BrazzavilleCongo - KinshasaCook IslandsCosta RicaCroatiaCubaCuraçaoCyprusCzechiaCôte d’IvoireDenmarkDiego GarciaDjiboutiDominicaDominican RepublicEcuadorEgyptEl SalvadorEquatorial GuineaEritreaEstoniaEswatiniEthiopiaFalkland IslandsFaroe IslandsFijiFinlandFranceFrench GuianaFrench PolynesiaFrench Southern TerritoriesGabonGambiaGeorgiaGermanyGhanaGibraltarGreeceGreenlandGrenadaGuadeloupeGuamGuatemalaGuernseyGuineaGuinea-BissauGuyanaHaitiHeard & McDonald IslandsHondurasHong Kong SAR ChinaHungaryIcelandIndiaIndonesiaIranIraqIrelandIsle of ManIsraelItalyJamaicaJapanJerseyJordanKazakhstanKenyaKiribatiKosovoKuwaitKyrgyzstanLaosLatviaLebanonLesothoLiberiaLibyaLiechtensteinLithuaniaLuxembourgMacao SAR ChinaMadagascarMalawiMalaysiaMaldivesMaliMaltaMarshall IslandsMartiniqueMauritaniaMauritiusMayotteMexicoMicronesiaMoldovaMonacoMongoliaMontenegroMontserratMoroccoMozambiqueMyanmar (Burma)NamibiaNauruNepalNetherlandsNetherlands AntillesNew CaledoniaNew ZealandNicaraguaNigerNigeriaNiueNorfolk IslandNorthern Mariana IslandsNorth KoreaNorth MacedoniaNorwayOmanOutlying OceaniaPakistanPalauPalestinian TerritoriesPanamaPapua New GuineaParaguayPeruPhilippinesPitcairn IslandsPolandPortugalPuerto RicoQatarRomaniaRussiaRwandaRéunionSamoaSan MarinoSarkSaudi ArabiaSenegalSerbiaSeychellesSierra LeoneSingaporeSint MaartenSlovakiaSloveniaSolomon IslandsSomaliaSouth AfricaSouth Georgia & South Sandwich IslandsSouth KoreaSouth SudanSpainSri LankaSt. BarthélemySt. HelenaSt. Kitts & NevisSt. LuciaSt. MartinSt. Pierre & MiquelonSt. Vincent & GrenadinesSudanSurinameSvalbard & Jan MayenSwedenSwitzerlandSyriaSão Tomé & PríncipeTaiwanTajikistanTanzaniaThailandTimor-LesteTogoTokelauTongaTrinidad & TobagoTristan da CunhaTunisiaTurkmenistanTurks & Caicos IslandsTuvaluTürkiyeU.S. Outlying IslandsU.S. Virgin IslandsUgandaUkraineUnited Arab EmiratesUnited KingdomUnited StatesUruguayUzbekistanVanuatuVatican CityVenezuelaVietnamWallis & FutunaWestern SaharaYemenZambiaZimbabweÅland Islands State/Province Timeline - None -Less than one monthOne to three monthsFour to six monthsLonger than six months Message
