Ultrasonic System

Parent Product

Life Sciences & Biotechnology Instruments

Ultrasonicator

QualiUltra™ series covers Ultrasonicator and Ultrasonic Extractor platforms built around ultrasonic cavitation. Cavitation creates localized shear and micro-mixing that helps disrupt cells and tissues, disperse particles, homogenize liquids, and accelerate mass transfer for extraction workflows.

Across the lineup, QualiUltra™ systems focus on repeatable energy delivery through adjustable power and timing, with options that add temperature monitoring, enclosures, contactless processing, or constant-temperature extraction control.

Applications

Common lab and pilot applications across QualiUltra™ series – Ultrasonicator and Ultrasonic Extractor solutions include:

Cell and tissue lysis for proteins, enzymes, DNA/RNA, and intracellular components.
Bacteria and virus disruption for extraction, characterization, or controlled inactivation studies.
Emulsification and formulation mixing where droplet size consistency impacts results.
Nanomaterial and pigment dispersion to reduce agglomeration and improve suspension uniformity.
Particle size reduction and homogenization for viscous liquids and multi-phase blends.
Environmental sample preparation (soil, sediment, rock, particulates) to improve extraction and analytical repeatability.
Ultrasonic-assisted extraction for botanicals, food compounds, pharma R&D, and solvent-based sample prep, with scalable reactor options.

Comparison Table

Below is a practical comparison to help you choose the right QualiUltra™ series approach for sonication vs extraction.

QualiUltra™ family	What it is	Best fit for	Typical working scale	Temperature approach	Notes
QualiUltra™ Probe Series	Probe ultrasonicator (direct cavitation)	Fast lysis, dispersion, emulsification, homogenization	Micro-volume up to larger beakers depending on model (example range shown 100 µL–1000 mL across models)	Temperature monitoring and alarms available	Flexible probe tips for different viscosities/volumes

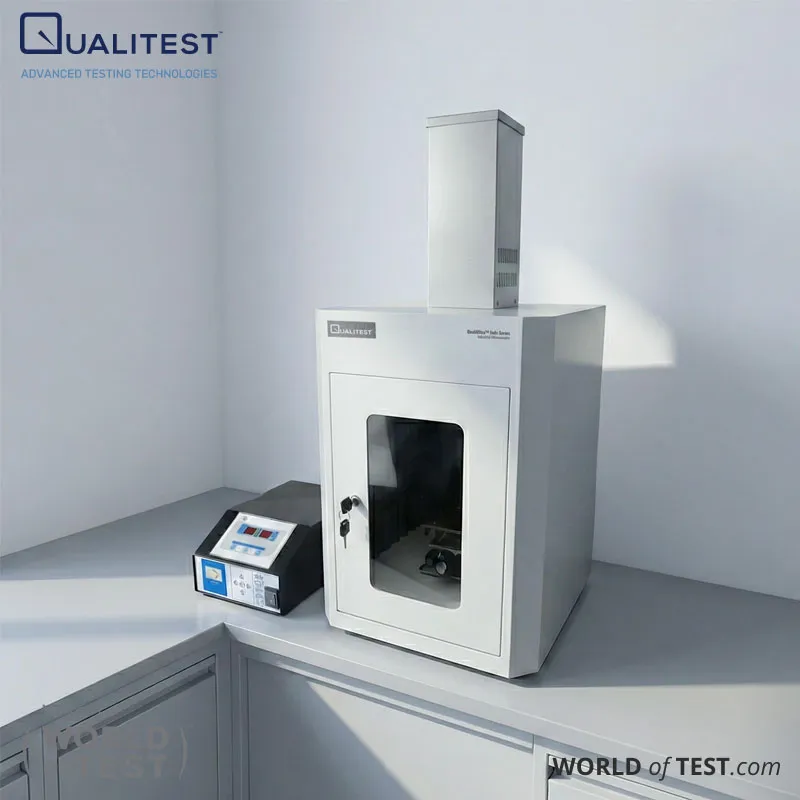

QualiUltra™ Intre Series	Integrated probe ultrasonicator with enclosure and lifting	Daily benchtop workflows that need safer, cleaner operation	100 µL to mid-volume processing (model dependent)	Temperature monitoring and alarms	Built-in enclosure helps reduce perceived noise and clutter
QualiUltra™ Smart Series	Smart probe ultrasonicator with frequency tracking and method storage	Repeatable protocols, parameter security, multi-user labs	Small to large volumes across lineup	Time and temperature control features	Automatic frequency tracking and impedance adaptation
QualiUltra™ NC / CL Series	Non-contact sonication in sealed tubes (tube racks or cup-type)	Ultra-trace, sterile workflows; reduce cross-contamination	Multi-tube batch processing, small volumes	Temperature display; chiller pairing supported	Sample never touches a probe, supports contamination-controlled prep
QualiUltra™ Ext Series	Ultrasonic Extractor with constant-temperature bath and probe sonication	Solvent extraction and reaction support that needs controlled temperature	250 mL, 500 mL, 1000 mL vessels	PID temperature control; dual-channel monitoring (reaction + bath)	Stable output via real-time frequency tracking
iExt Series	Industrial ultrasonic extractor with stirring and cooling circulation	Scale-up extraction from lab beakers to pilot batches	Reactor volumes 5 L to 50 L	Cooling circulation support by model	Integrated stirring improves uniformity
MES Series	Ultrasonic-microwave extractor system (combined energy inputs)	Faster extraction and reaction workflows with programmable modules	Batch sample volumes listed as customizable	Non-contact IR temperature measurement not for heated processes	Coordinated control of microwave + ultrasound + stirring

Why you should choose QualiUltra™

A lineup that matches your workflow, not the other way around. You can choose classic probe sonication, enclosed systems, contactless tube processing, or constant-temperature extraction, then scale up to reactor-based extractors when volumes grow.
Better repeatability for R&D and QC. Adjustable power and programmable timing support method development and consistent day-to-day operation.
Cleaner handling options for sensitive samples. Non-contact platforms keep samples sealed, reducing probe-to-sample contact and cross-contamination risk.
Temperature management built into the decision. Many systems include temperature monitoring, alarms, or constant-temperature control to protect heat-sensitive targets and stabilize extraction conditions.
Standards-aligned documentation support. Several QualiUltra™ systems reference widely used lab safety and EMC frameworks, plus dispersion-focused method guidance such as ISO 20427:2023 (ultrasonic dispersion procedures).
