Theoretical Basis: Fick’s First Law of Diffusion
Water vapor permeability (WVP) measures the mass rate of water vapor moving across a uniform material driven by a vapor pressure difference between its two faces under constant temperature. At the core of this physical transport process is Fick’s First Law of Diffusion, establishing that moisture naturally moves from regions of high concentration toward areas of low concentration:
J = -D · (dC / dx)
Where:
- J = Mass flux of water vapor moving per unit area per second
- D = Diffusivity, or how easily vapor moves through the material matrix
- dC / dx = Concentration slope across the specimen thickness
Combining diffusivity, molar weight, gas constants, and absolute temperature produces the Water Vapor Permeability Coefficient (P). Commercial testing facilities convert this value into Water Vapor Transmission Rate (WVTR), expressed as grams of water vapor passing through one square meter over twenty-four hours, g/(m²·24h). The entire Qualitest Water Vapor Permeability Tester Series automates this calculation across both gravimetric weight reduction and infrared sensor measurement systems.
Gravimetric vs. Infrared Detection
Qualitest instruments utilize two primary international testing principles: the classic gravimetric cup method and high-precision infrared sensor detection.
1. Gravimetric Cup Testing Method (ASTM E96 / ISO 2528)
The gravimetric cup method tracks the rate of water vapor transfer by measuring periodic weight change across a sealed specimen. A specimen seals over a test dish containing either a moisture-absorbing desiccant (dry cup) or a liquid water solution (wet cup).
- Upright Cup Approach (ASTM E96 / ISO 12572): The sealed assembly sits inside a climate chamber. Automated internal balances record weight changes over time to calculate steady-state flux. This approach suits thicker materials or moderate barrier sheets.
- Inverted Cup Approach (ISO 2528): The cup is turned upside down so the liquid solution directly contacts the inner specimen face, accelerating vapor movement through high-flux samples.
- Qualitest Gravimetric Hardware: The Qualitest QT-WVP-300 Series automates both upright and inverted cup methods in compliance with ASTM E96, ISO 2528, TAPPI T464, DIN 53122-1, and JIS Z0208. Featuring multi-chamber configurations with up to 12 independent cells, the QT-WVP-300 series enables concurrent batch testing with automatic weight recording. For general laboratory testing across plastic films, coated sheets, and packaging foils, the QT-Q301-WVTR and QT-Q303-WVTR systems supply accurate, repeatable gravimetric evaluations.
2. Infrared Sensor Permeation Method (ASTM F1249 / ISO 15106-2)
For high-barrier materials like pharmaceutical blister foils, multilayer packaging films, and flexible electronics, gravimetric cup testing takes too long. Instrumental infrared sensor technology solves these operational delays by directly detecting water vapor molecules carried in a dry gas stream.
- Operating Principle: A test chamber splits the specimen into a humidified upper chamber and a dry lower chamber. Permeated water vapor mixes into a dry nitrogen sweep gas and travels into a dedicated infrared sensor, plotting real-time transmission curves until equilibrium is reached.
- Single-Cell Infrared Testing: The Qualitest QT-Q401-WVTR utilizes a patented high-precision infrared sensor core paired with intelligent temperature and humidity control, offering low-maintenance single-cell analysis for research and quality verification.

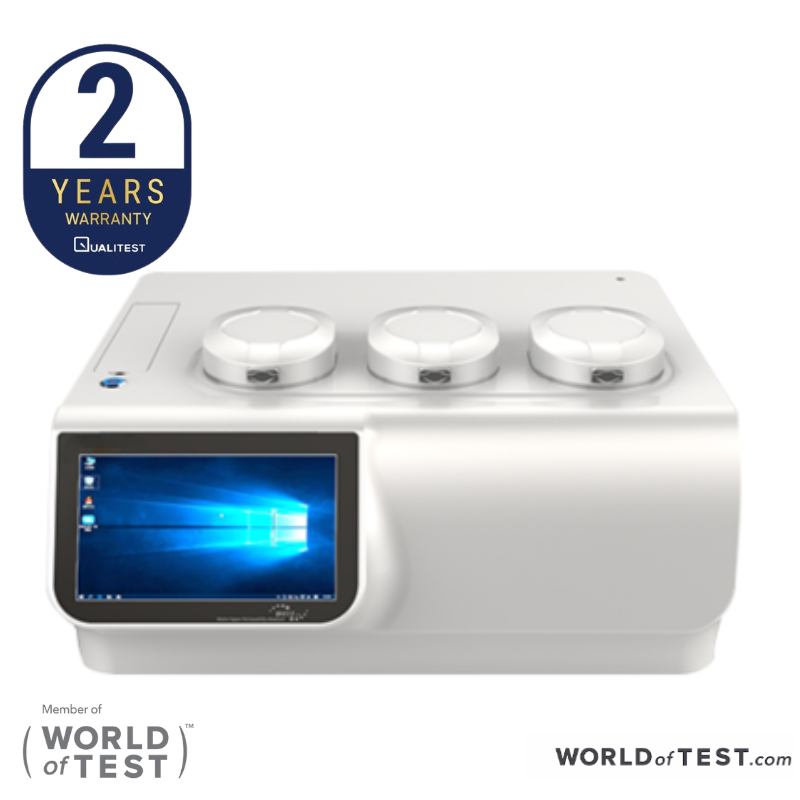

- High-Throughput Infrared Testing: The Qualitest QT-Q413-WVTR employs a multi-cell infrared array for high-volume packaging production lines, accelerating daily quality control workflows with automated data processing.
Method Comparison for the Qualitest Product Line
| Method / Technology | Primary Standards | Operating Principle | Qualitest Product Series | Ideal Material Applications |
|---|
| Gravimetric Cup Method (Weight Reduction) | ASTM E96, ISO 2528, TAPPI T464, DIN 53122-1, JIS Z0208 | Periodic mass loss or gain measurement across a sealed dish inside a controlled chamber | QT-WVP-300 Series (up to 12 chambers)
QT-Q301-WVTR / QT-Q303-WVTR | Paper, textiles, building membranes, thick sheets, and general packaging films |
| Infrared Sensor Method (IR Absorption) | ASTM F1249, ISO 15106-2 | Infrared spectral detection of water vapor carried by dry nitrogen sweep gas | QT-Q401-WVTR (Single Cell)
QT-Q413-WVTR (Multi-Cell Array) | High-barrier plastic films, pharmaceutical blister foils, aluminum-laminated sheets, and flexible electronics |
Solving Traditional Testing Errors with Qualitest Instruments
Interlaboratory studies reveal significant reproducibility issues in manual cup testing due to human weighing interference and unstable chamber dynamics.
Key measurement pitfalls include:
- Internal Relative Humidity Drift: Desiccants inside manual cups saturate over time, altering driving vapor pressure and distorting results by 5% to 450%.
- Boundary-Layer Air Resistance: Stagnant air layers above the sample reduce driving pressure, causing standard ASTM E96 calculations to underestimate permeability on breathable films.
- Manual Handling Errors: Removing cups from climate chambers to perform manual weighing introduces temperature shocks and humidity spikes.
How Qualitest Eliminates Measurement Drift:
- Automated Environmental Control: The QT-WVP-300 Series manages chamber climate automatically and logs cup mass internally across 12 cells, eliminating manual handling errors and humidity fluctuations.
- Patented Infrared Core Sensors: The QT-Q401-WVTR and QT-Q413-WVTR measure transmission rates down to 0.001 g/(m²·24h) without relying on desiccant absorption, avoiding saturation errors completely.
