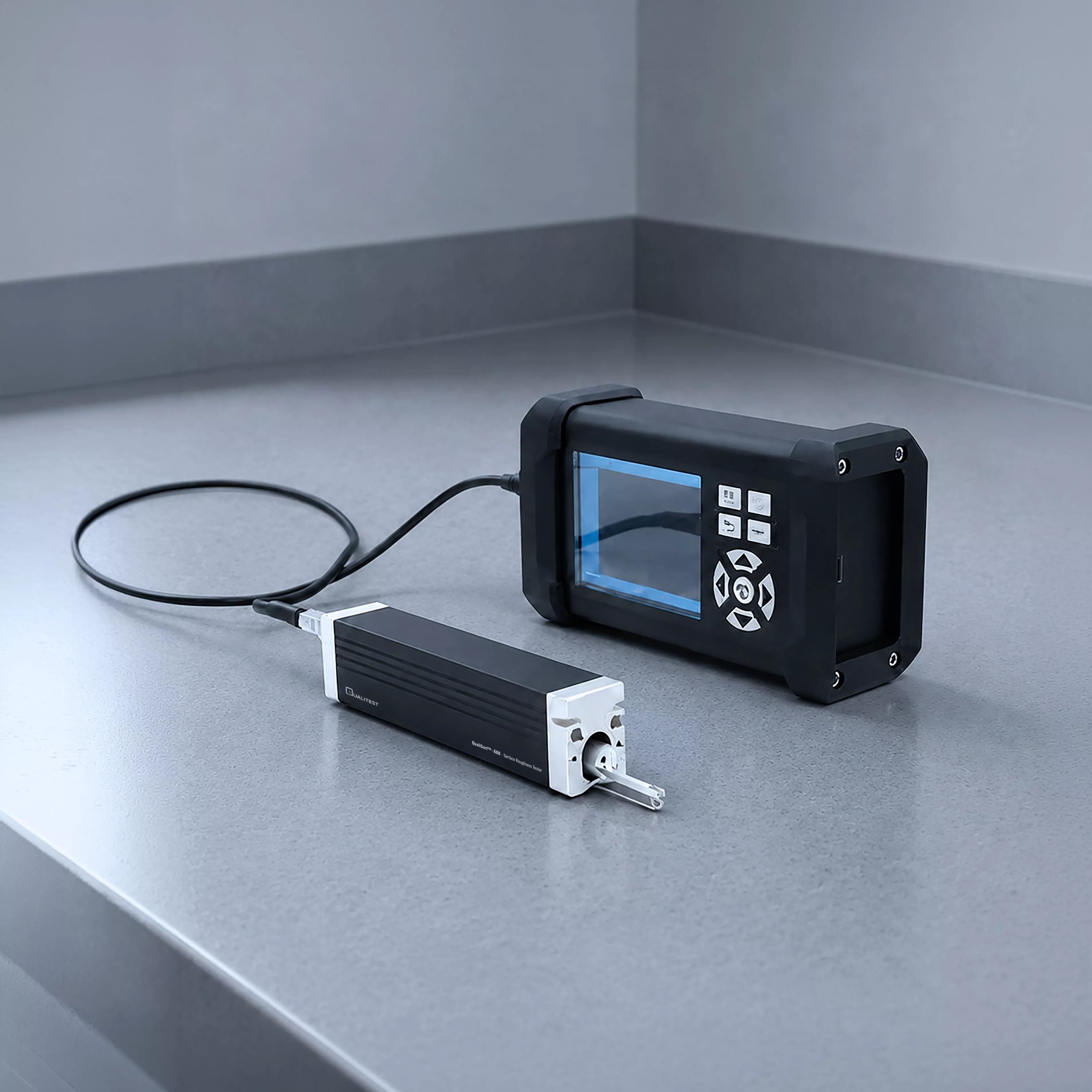

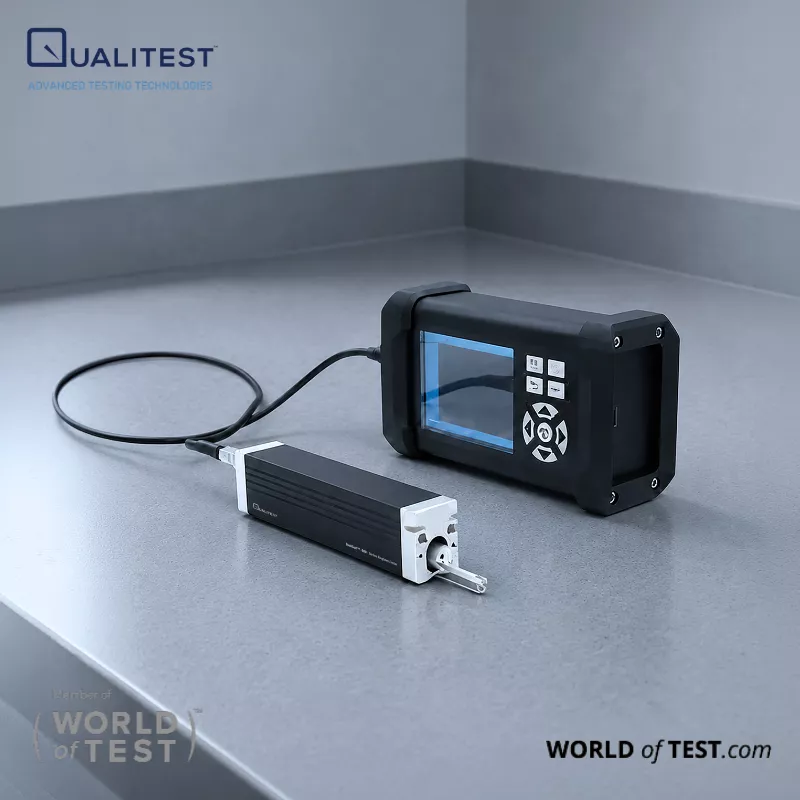

Surface Roughness Tester – Profilometer – Split-type with separate probe – QualiSurf-600 is a high-precision, portable surface inspection tool designed for flexibility and ease of use. Its split-type structure separates the main unit from the measuring probe, allowing for accurate readings in tight or complex spaces. The device offers quick setup when both the instrument and the workpiece are stationary and features one-touch automatic stylus zeroing. It’s well-suited for inspecting large bearings, gearboxes, ceramics, turbine blades, crankshafts, semiconductors, and more.

Surface Roughness Tester – Profilometer – Split-type with separate probe – QualiSurf™-600Surface Roughness Tester – Profilometer – Split-type with separate probe – QualiSurf™-600Surface Roughness Tester – Profilometer – Split-type with separate probe – QualiSurf™-600Surface Roughness Tester – Profilometer – Split-type with separate probe – QualiSurf™-600
ModelMeasurement RangeAccuracyDescription
Standard Sensor0.005-16μm0.001μmMeasures flat surfaces and shafts. For internal bore surfaces, applicable to holes >6mm diameter with max depth of 22mm.
Small Bore Sensor0.005-16μm0.001μmMeasures internal surfaces of holes >2mm diameter (max depth: 9mm), flat/cylindrical surfaces. Compatible with measurement platforms.
Deep Groove Sensor0.005-16μm0.001μmMeasures grooves >3mm width and <10mm depth, or step surfaces <10mm height. Also suitable for flat/cylindrical surfaces.
Curved Surface Sensor0.005-16μm0.001μmMeasures convex/concave surfaces with curvature radius >3mm, as well as compatible flat/cylindrical surfaces.
Extension RodN/AN/AExtends sensor length by 50mm (max 2 rods) for deep-hole measurements.
Adapter RodN/AN/AEnables lateral movement for specialized measurements.
Marble Measuring PlatformN/AN/AProvides precise alignment between instrument and workpiece, ensuring stable operation. Essential for complex shapes (small holes, deep grooves, curved surfaces).
Cast Iron Measuring PlatformN/AN/AEnhances positioning accuracy and stability for conventional workpieces.
Mini PlatformN/AN/AUsing a measuring platform allows for more precise adjustment of the position between the instrument and the workpiece under test, making the operation more reliable and stable.

Surface Roughness Tester – Profilometer – Split-type with separate probe – QualiSurf™-600 Features

One-Click Stylus Zeroing & Real-Time Waveform Scaling
Instantly resets the stylus with a single touch and displays surface profiles in real-time for clear, detailed roughness visualization.

Versatile Applications
Ideal for inspecting large bearings, gearboxes, ceramics, turbine blades, crankshafts, and semiconductor components.

Full-View Color Display
All-in-one interface with true-color visuals for comprehensive parameter data and graphical representations.

Split-Type Probe Design
Detachable probe allows for precise measurements in hard-to-reach areas like pipe interiors, gear gaps, and micro-holes.

Ultra-High Accuracy
Delivers measurement accuracy down to 0.001 μm.

Comprehensive Parameter Support
Measures a wide range of roughness parameters including: Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, Rz (JIS), Rs, Rsk, Rsm, Rku, Rmr, Ry (JIS), Rmax (Rt).
Advanced models also include: RPc, RK, RpK, RvK, Mrl, Mr2, and more.

Standards Compliance
Meets international standards including ISO, DIN, ASME, and JIS.

Surface Roughness Tester – Profilometer – Split-type with separate probe – QualiSurf™-600 Technical Specifications

ItemStandard ModelHigh-End Model
Measurement RangeVertical Axis (Z)QualiSurf-600-160 with Z axis range: 160μmQualiSurf-600-320 with Z axis range: 320μm
Horizontal Axis (Y)17.5mm (0.71inch)
ResolutionVertical Axis0.002µm ±20µm
0.004µm ±40µm
0.008µm ±80µm
ItemParametersRa Rz==Ry(JIS) Rq Rt==Rmax; Rp Rv R3z R3y Rz(JIS); Rs Rsk Rku Rsm Rmr; Rpc Rk Rpk Rvk Mr1 Mr2;
StandardsISO 4287 International Standard, ANSI B46.1 American Standard,
DIN 4768 German Standard, JIS B601 Japanese Standard
GraphicsRoughness profile, Bearing ratio curve, Filtered waveform, Primary profile
Indication Accuracy0.001µm
Indication Error± (5mm ± 0.1A)
(A: Reference value of multi-line standard sample Ra)
Indication Variability≤ 3%
Residual Profile≤ 0.01µm
Power SupplyBuilt-in lithium-ion rechargeable battery
Operating EnvironmentTemperature: -20°C to 40°C
Humidity: <90% RH
