Component longevity hinges entirely on getting your surface finish right. We are going to call it, as obnoxious as it is, seasoned quality engineers know that even a microscopic trace of friction-induced wear ruins an otherwise satisfyingly smooth finish.
Meeting strict Ra and Rz tolerances requires reliable testing equipment, but training your operators on the exact setup process can be highly challenging. This practical guide demonstrates how to use a profilometer to achieve dead-on accurate measurements on the production floor.
Operational Setup Cheat Sheet (By Manufacturing Process)
Busy engineers need immediate answers. This quick reference guide provides standard setup parameters based on common manufacturing processes.
| Process / Surface Type | Typical Ra Range (μm) | Standard Cutoff Length | Standard Evaluation Length | Measurement Direction | Recommended Qualitest Unit |
|---|
| Fine Grinding / Polishing | 0.05 to 0.20 | 0.25 mm | 1.25 mm | Perpendicular to grind marks | TR-200 Plus (Highly sensitive) |
| Standard Turning / Milling | 1.6 to 6.3 | 0.8 mm | 4.0 mm | Perpendicular to cutter path | QualiSurf™ II / 200 (Standard) |
| Medium-Coarse Machining | 3.2 – 10.0 | 2.5 mm | 5.0 mm | Perpendicular to tool lay | QualiSurf™ I (Pocket-sized) |
| Deep Bores, Pipes, & Tubes | Variable | Match process | Match process | Internal axial direction | QualiSurf™ II-S / -600 (Split probe) |
Contact vs. Non-Contact Metrology: Selecting the Correct Method
Determining the correct sensor style is the first step in your testing routine. Portable surface roughness testers operate exceptionally well under industrial or field conditions, though results remain sensitive to operator handling, setup stability, and environmental conditions.
- Skidded Stylus: A small metal guide-pad slides along the solid specimen, keeping the physical tracing needle perfectly steady. Handheld units like the Surface Roughness Tester – Profilometer QualiSurf™ 200 or the DSP chip-powered TR-200 Plus are highly dependable workhorses built for quick daily assessments.
- Skidless Stylus: The stylus relies on an ultra-precise internal reference beam. Operating how to use profilometer models of this variety, such as the advanced QualiSurf™ III-Plus with its extensive 1000μm range, is necessary for capturing deeper waviness profiles.
- Non-Contact Optical: These methods are incredibly fast and capture broad areas, but they remain highly sensitive to reflectivity, part orientation, and digital image noise. Reflective surfaces need extra caution because intense glare can heavily distort the final results. Furthermore, for smooth or soft metals like aluminum and copper, physical stylus probes can scratch the surface or produce artificially low readings, making optical methods a significantly more accurate choice.
Step-by-Step Procedure for Accurate Surface Roughness Inspection
Ready to measure? Let us walk through the actual physical steps on how to use a profilometer in a highly systematic way.
Step 1: Clean the Machined Specimen
Thoroughly clean the metal component being evaluated. Any residues from heavy cutting fluids, sticky anti-rust storage oils, or workshop dust can create physical obstructions, causing false spikes in your microscopic readings. Give the metal a thorough wipe with a fast-evaporating cleaning liquid.
Step 2: Verify Against a Standard Reference
Do not simply trust the instrument blindly. Verify the machine against a certified roughness specimen to confirm instrument accuracy before beginning your shift. Standard high-precision, scratch-resistant optical glass calibration blocks, like the one included with the QualiSurf™ 200, provide the ultimate baseline reference for this daily process.
Step 3: Configure Your Software Settings
Set your mathematical evaluation parameters based on your strict target tolerances. If you are operating a highly economical, pocket-sized device like the QualiSurf™ I, configure the standard Ra, Rz, Rq, or Rt parameters. For highly complex technical assessments, a touch-screen model like the Portable Surface Roughness Tester QualiSurf™ II allows you to choose from 45 different surface parameters.
In the scientific literature, measuring a standard turned steel component with an expected 1.6 to 6.3 micron Ra requires a precise 0.8 mm cutoff length and a 4.0 mm evaluation length to mathematically filter out unwanted macro-surface waviness.

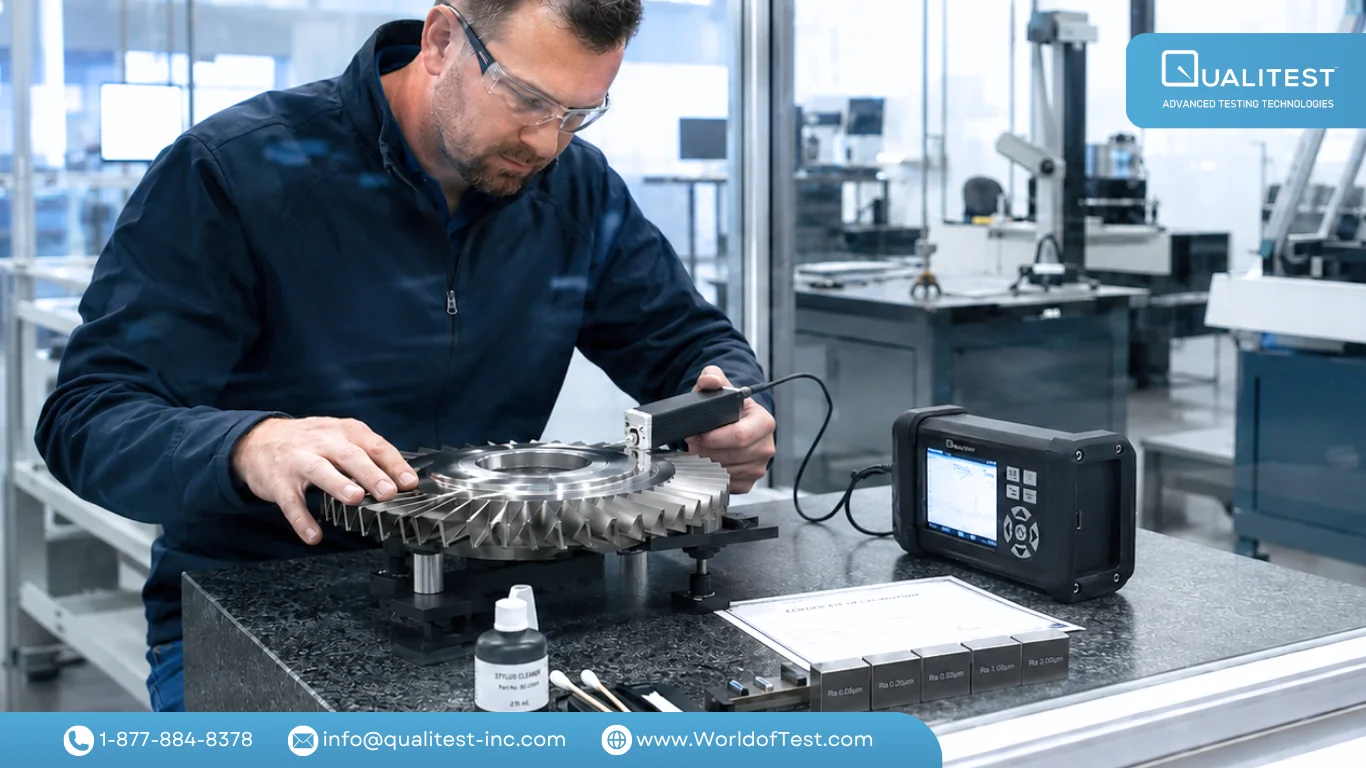

Step 4: Align the Stylus Perpendicular to the Surface Lay
Gently lower the highly sensitive contact probe onto the surface, ensuring the tracing needle runs completely perpendicular to the grinding or sanding marks. Slight angular misalignments quickly create a cosine error that artificially smooths out your visual readings on anisotropic surfaces.
Step 5: Execute the Measurement and Conduct Replicate Scans
Start the machine, and the needle will crawl slowly across the metal. You must use replicate measurements rather than relying on a single lazy pass. Because single traces can capture localized material anomalies, you should measure three separate tracks and mathematically average the readings to completely eliminate random errors.
Common Profilometry Errors and Preventive Measures
When teaching a team how to use surface roughness tester units, there are a few classic mistakes you will want to avoid completely.
- Running the Needle Parallel to the Lay: If you slide the needle parallel to the machining grooves, it simply rides inside a single continuous valley. Your display screen will report that the metal is highly polished when it is actually totally out of specification. Always cross those grooves at a strict 90-degree angle.
- Manual Head Handling: Hand-holding the probe can drastically alter results, so utilizing fixed or mechanically guided positioning is significantly more reliable. This is exactly why instruments designed with one-click automatic stylus zeroing and real-time waveform scaling, such as the QualiSurf™-600, are incredibly practical for minimizing operator-induced physical errors and maintaining accuracy down to 0.001μm.
- Scratching Delicate Materials: Contact stylus methods can accidentally scratch highly delicate surfaces or be heavily limited by tight accessibility constraints. In these specific situations, utilizing an optical profilometer performs much better and preserves the workpiece.
Obtaining Reliable Readings Outside the Laboratory
Measuring in a quiet, climate-controlled laboratory is exceptionally simple. Getting perfectly accurate readings on a noisy, high-vibration factory floor requires much more calculated care.
- Secure the Setup Completely: Basic portable mounts can be terribly slow to level and height-adjust, which severely worsens measurement accuracy. Use highly stable support structures, built-in level bubbles, or a custom physical fixture to completely reduce handling and positioning errors.
- Operate Flexibly: Sometimes heavy parts cannot be moved. In those cases, having a tool like the QualiSurf™ I is highly advantageous because it is engineered to test in any position, whether horizontal, vertical, or even completely upside down.
- Utilize a Split-Style Tool: Instruments featuring a separate, plug-in probe make it much simpler to reach inside tight cavities without attempting to cram the entire display unit inside. A perfect example is the QualiSurf™ II-S, which includes an external transducer with an extended connection cable specifically configured for reaching deep inside pipes and tubes.
Instrument Maintenance and Traceable Calibration
If you want your highly sensitive testing gear to remain perfectly functional for years, a strict calibration and maintenance routine is absolutely necessary. Calibrating surface roughness testers requires traceable standards, comprehensive axis checks, software verification, and highly repeated measurements.
Calibrate with Traceable Standards
Calibration requires comparing your instrument readings against certified roughness or step standards with clearly known values. For traceable systems, you must calibrate both the vertical axis and the lateral axis.
For physical stylus systems, operators successfully perform z-axis calibration using step-height standards, while dynamic profile calibration requires specific roughness standards like ISO 5436-1 type D1.
Define Your Calibration Frequency Schedule
Determining how often to calibrate surface roughness tester units depends on your specific operational environment and audit compliance standards. Best practice dictates a strict two-tier schedule: perform a daily functional verification using your certified reference specimen block before every production shift or new job setup, and schedule a formal ISO/IEC 17025 accredited recalibration every 12 months (or every 6 months for tools operating under heavy daily use in harsh factory conditions).
Lock in Your Settings
Keep the exact measurement conditions perfectly fixed during calibration, including your cutoff length, evaluation length, traverse length, and speed, because the reported roughness heavily depends on those specific configuration settings.
Account for Environmental Variables
Environmental factors like extreme temperature fluctuations, shifting humidity, heavy air flow, ambient noise, and poor manual handling will physically shift your calibration results. Always let your metal parts acclimate to ambient room temperature before initiating a test.
Optical System Compensation
If you operate an optical sensor, your calibration procedure must also meticulously account for surface reflectivity, digital noise, scanning angle, and scan speed, because those variables rapidly shift your Ra and Rz error rates.
Verify Software and Data Systems
Software calculations matter just as much as physical hardware checks. Interlaboratory comparisons consistently prove that acceptable calibration factor ranges are highly specific to individual laboratories rather than being universally applied. Use dedicated internal memory, like the QualiSurf™ III-Plus Windows Operating System, to securely store up to 10,000 sets of data and actively monitor historical uncertainty budgets.
Industrial Applications with Strict Surface Finish Tolerances
Why do we emphasize these microscopic surface ridges so heavily? Because in highly demanding fields, a poorly machined surface finish is a direct path to catastrophic component failure:
- Automotive Manufacturing: If heavy-duty piston walls are not textured correctly, they will completely fail to retain the necessary fluid-barrier coating, causing the expensive engine block to seize up permanently.
- Aerospace Engineering: Massive turbine blades spin at extreme operational velocities. A single micro-roughness flaw can quickly lead to deep stress cracks that compromise the entire flight assembly.
- Medical Technology: Joint replacement implants require incredibly precise, highly controlled finishes to actively promote proper living tissue integration and aggressively resist dangerous bacterial buildup.
Qualitest Surface Roughness Measurement Solutions
Our professional testing instruments provide outstanding value for your operational budget. There is not a trace of cheap, flimsily built plastic components anywhere, and our prices are satisfyingly fair. We supply incredibly durable hardware configurations that make daily inspection routines an absolute breeze.
We offer an exceptionally reliable range of cost-effective Surface Roughness Testers and Profilometers that get the job done right the first time. Contact our technical sales team today, and we will gladly help you select the exact configuration that perfectly fits your specific industrial needs.
References (Click to expand)
- Dai, G., Jung, L., Koenders, L., & Krüger-Sehm, R. (2005). Calibration of stylus profilometers using standards calibrated by metrological SFMs. Journal of Physics: Conference Series, 13, 236–239.
- Lishchenko, N., O'Donnell, G., & Culleton, M. (2023). Contactless Method for Measurement of Surface Roughness Based on a Chromatic Confocal Sensor. Machines, 11(8), 836.
- Lu, E., Zhang, R., Liu, J., Yin, S., & Ohmori, H. (2022). Observation of ground surface roughness values obtained by stylus profilometer and white light interferometer for common metal materials. Surface and Interface Analysis, 54(10), 587–599.
- Rahman, A., Alfiyati, N., Novyanto, O., Kartika, N., & Amdani, R. Z. (2021). The acceptable range of roughness instrument calibration factor. Journal of Physics: Conference Series, 1816, 012028.
- Ružbarský, J. (2023). The Difficulty of Measuring the Roughness of Glossy Surfaces Using the Triangulation Principle. Applied Sciences, 13(8), 5155.
- Stępień, K., & Țălu, Ș. (2019). The Study on Influence of the Method of Handling of Measuring Head on Measurement Results Obtained with the Use of a Portable Profilometer. Tehnički vjesnik - Technical Gazette, 26(3), 643–647.
- Zhang, J., Cui, Y., Yang, H., Wang, L., & Qian, J. (2025). Roughness Evaluation of Bamboo Surfaces Created by Abrasive Belt Sanding. Forests, 16(1), 66.
