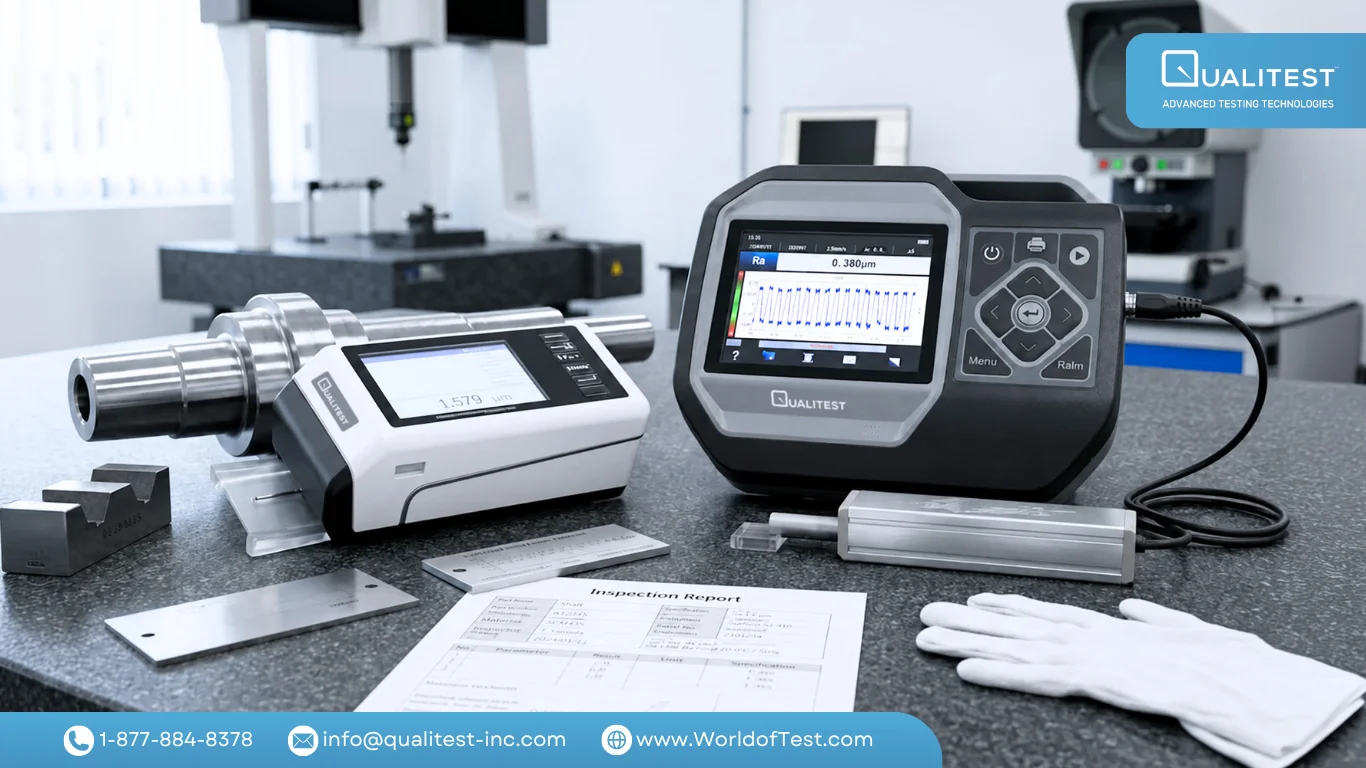

Surface Roughness Testers: Technical Selection Guide

Want to optimize the physical performance of your manufactured components? Achieving fine-tolerance dimensions on your parts protects against premature wear and ensures long-term operational success.

Because newly machined surfaces contain microscopic peaks and grooves, quantifying these features is key. Profilometers provide the precise, repeatable measurements needed to secure paint adhesion, control friction, and prevent machine wear.

This guide outlines critical parameters, industry-specific applications, and essential factors for selecting the best surface roughness testers and profilometers for your facility.

Key Takeaways

• Surface texture dictates mechanical lifespan: Fine-tolerance surface finish is critical to protect components from premature wear, ensure coating adhesion, and prevent bacterial colonization.
• Look beyond average height parameters: While Ra is the baseline metric, high-precision applications require additional parameters (such as Rz, Rt, or the Rk group) to accurately predict sealing and lubrication performance.
• Match equipment to your testing environment: Handheld, portable profilometers (such as the TR-200 Plus) are ideal for quick, on-the-go shop floor checks, whereas lab-grade benchtop systems are required for vibration-free analysis.
• Align stylus design with component geometry: Standard skidded testers are highly cost-effective, but complex shapes (such as screw threads or curved turbine blades) require advanced skid-less systems (such as the QualiSurf™ III-Plus).
• Factor in long-term calibration and compliance: Regular verification using calibration blocks secures repeatable measurements and protects your testing stylus from premature wear.


The Industrial Impact of Surface Finish

While macro-dimensional accuracy is highly prioritized in quality control, treating surface finish as a secondary concern is a critical mistake. Surface finish directly impacts mechanical properties, making testing an absolute, non-negotiable requirement for high-precision manufacturing.

Automotive Friction and Wear Control

The complex science of sliding friction and contact wear relies entirely on surface texture. Sliding parts, including engine cylinders, camshafts, and pistons, need a very specific, carefully balanced level of roughness to hold onto lubricating oil.

If the surface is too rough, it generates excess heat and wears out rapidly; if it is too smooth, the oil slides off, and the components can seize. For instance, in a honed cylinder liner, precise microscopic cross-hatching is required to lock in lubricating oil while allowing the piston rings to slide smoothly.

Aerospace Coating Adhesion

Spray-on coatings, powder coats, and anodized outer layers need a certain amount of microscopic "teeth" to grab onto securely. Checking jet turbine blades and landing gears prevents protective coatings from flaking away mid-flight.

In practice, a titanium compressor blade in a jet engine requires a highly specific surface texture so that protective thermal barrier coatings do not lift off under extreme thermal cycles. Inconsistent evaluation can compromise quality, especially since surface topography can fluctuate by up to fivefold across technical surfaces.

Our Recommendation for Aerospace QA: For checking curved or complex jet parts, we suggest using specialized tools like the Surface Roughness Tester QualiSurf™-600, which features a split-type separate probe perfect for inspecting tight spaces like turbine blades and gearboxes with an accuracy down to 0.001 μm.

Medical Device Sanitation

In hospitals and food processing facilities, tiny microscopic valleys are the perfect hiding spots for dangerous bacteria. Ensuring surgical hardware, such as titanium hip joint replacements, has an ultra-smooth finish is the only way to keep them fully sterile and safe inside a human body.

For example, a cobalt-chrome femoral head in a joint replacement requires an extremely low Sa value to prevent both wear on the plastic socket and bacterial colonization.

Key Surface Roughness Parameters

To evaluate surface finishes properly, engineers use standard metrics. While there are dozens of acronyms, the parameters below are the most critical for industrial manufacturing:

Ra (Roughness Average) and Sa (The 3D Areal Average)

These are the baseline indicators of overall roughness quality. Relying solely on Ra is a risk because it is too general to describe true surface function. Two different surfaces can share the same Ra yet have entirely different crater geometry, meaning Ra can miss functionally important differences.

For example, while Ra is sufficient for a simple milled mounting bracket, it is far too simple for complex sealing surfaces. Devices like our pocket-sized Portable Surface Roughness Tester QualiSurf™ I offer quick checks for basic parameters (Ra, Rz, Rq, Rt) right on the shop floor.

Rq and Sq (The Square Root Average)

These are very similar to Ra but use a mathematical formula that emphasizes larger deviations. One grinding study identified Rq as the most relevant parameter for capturing process-driven topography changes. This is commonly observed during the high-precision grinding of transmission shafts.

Maximum-Height Metrics (Rz, Rt, Sz, Sp, Sv)

These capture the most extreme peaks and valleys, which matter for coatings, sealing, and lubrication retention. For instance, in an elastomer O-ring sealing groove, a single high peak can pierce the seal and cause pressurized fluid leaks.

Ssk and Sku (Distribution Shape)

These track height distribution symmetry and sharpness. More negative Ssk and higher Sku are associated with lower friction in textured steel, and wear studies argue that optimization should move beyond Sa alone. This is highly useful when qualifying textured bearings for heavy machinery.

Functional Volume Metrics (Vmp, Vv, Vvv, Rk group)

We recommend tracking these volume parameters to ensure sliding components, such as cylinder walls, retain lubricating oil over time. Plateau honing in engine cylinders is the classic industry example where these volume metrics are used to measure the reservoir capacity of micro-valleys.

To measure these advanced parameters, instruments like the QualiSurf™-200 or the TR-200 Plus are exceptionally valuable, as they calculate an extensive range of metrics (including the Rk family) using advanced DSP chips.

Buyer's Guide: Profilometer Selection

Choosing a profilometer depends on the surface type, the roughness scale to resolve, and whether you need a single line profile or a 3D area map. Here is how to evaluate your options:

1. Contact Stylus vs. Non-Contact Optical Systems

Deciding between tactile contact probes and non-contact optical systems depends on your material hardness, testing speed requirements, and surface geometry. Traditional stylus profilometers remain the standard choice for shop-floor metal machining, providing dependable 2D line measurements on hard components without complex setup procedures.

In contrast, optical systems utilize light reflection to map 3D topographies. They are preferred when measuring delicate materials that a physical needle might scratch, or when analyzing complex areal patterns. However, optical methods can be sensitive to surface reflectivity and ambient lighting, which requires careful tuning.

Want to know which measurement technology fits your specific quality control workflow? Read our complete comparison guide.

2. Portable vs. Benchtop Profilometry

We suggest analyzing where measurements will physically take place. If you must check large, heavy castings directly on the manufacturing floor, a rugged handheld unit is the most practical choice.

For inspecting a massive wind turbine gear directly on the production floor, a device like the TR-200 Plus provides incredible utility, offering internal storage for 100 groups of data and an OLED display for immediate material ratio curve evaluation. Conversely, analyzing micro-gears for watches requires the vibration-free environment of a laboratory setup.

Quick Comparison:

3. Skidded vs. Skid-less Systems

For standard machining checks, a Skidded Tester, where a guide skid moves along the workpiece next to the stylus, is reliable and accurate. However, if you are measuring small engine valves, delicate electronics, or screw threads, we recommend a Skid-less Profilometer, such as the QualiSurf™ III-Plus.

This advanced model runs on a Windows Operating System and offers an expansive 1000μm measuring range. Since the stylus moves independently of the part's surface, the skid will not interfere with complex geometries. A clear example of this is measuring a deeply threaded lead screw or a steep, curved turbine blade where a conventional skid would simply get caught.

4. Specialty Probes and Geometry Compatibility

Because manufactured parts are rarely completely flat, probe compatibility is crucial. If your facility measures inside small engine bores, deep grooves, or across gear teeth, confirm that your chosen profilometer can be fitted with interchangeable, specialized stylus tips.

A typical example is when QA teams must inspect deep, narrow grooves inside specialized transmission gears. For these tasks, the QualiSurf™-600 with its split-type separate probe offers unmatched access to tight spaces, while the Portable Surface Roughness Tester QualiSurf™ II-S features an extended connection cable specifically designed for measuring roughness deep inside pipes and tubes.

5. Digital Data Logging

Modern quality control relies on statistical tracking. We recommend choosing roughness testers equipped with USB or RS232 interfaces, much like the QualiSurf™ II and TR-200 Plus. This allows inspectors to export data directly to PC software, perform Statistical Process Control (SPC), and generate clean quality reports without the risk of manual writing errors.

6. Compliance and Calibration

Compliance with international standards is mandatory. Verify that your gear meets global rules, including ASTM B46.1, ISO 1997, ANSI, and JIS 2001.

Additionally, factor in long-term calibration. Tactile profilometers require verification using roughness calibration blocks (reference specimens). Because the diamond stylus tip physically contacts the workpiece, it is susceptible to wear.

In our experience, buying a high-grade machine from a trusted source ensures longer stylus life, keeping your maintenance costs exceptionally low.

Select Your High-Precision Qualitest Profilometers

Choosing the correct surface parameters and matching the right profilometer to your specific workflows protects your components from wear and saves substantial time and resources. Our lineup includes pocket-sized devices for immediate shop floor measurements, split-type probes for hard-to-reach interiors, and highly versatile skid-less systems for your most demanding geometries.

Ready to make your quality checks painless? Explore our Surface Roughness Testers and Profilometers here, or speak with our technical team today to find the exact instrument for your shop.
