Surface Profilometry Theory & Measurement Methods
Microscopic surface roughness dictates friction levels, wear rates, seal performance, and coating adhesion across manufactured components. To comply with global standards (like ISO 21920, ISO 4287, ANSI B46.1, or ISO 25178), surface profilometers quantify micro-topography using either Contact Stylus (Tactile) or Non-Contact (Optical) measurement methodologies.
Contact Stylus Profilometry Theory

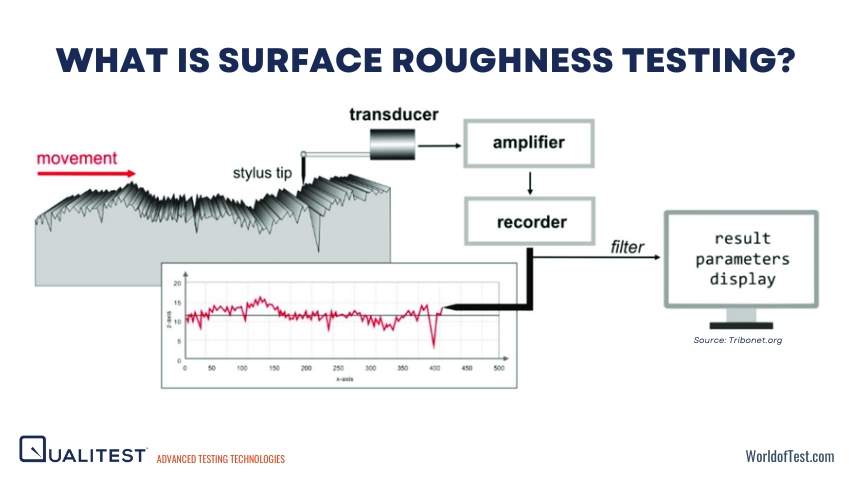

Tactile profilometry relies on a precision diamond stylus physically traversing a component surface at a controlled velocity. As the stylus rises over micro-peaks and descends into valleys, an inductive or piezoelectric transducer converts vertical displacement into electrical signals to generate a 2D surface profile.
Skidded vs. Skidless Drive Mechanics

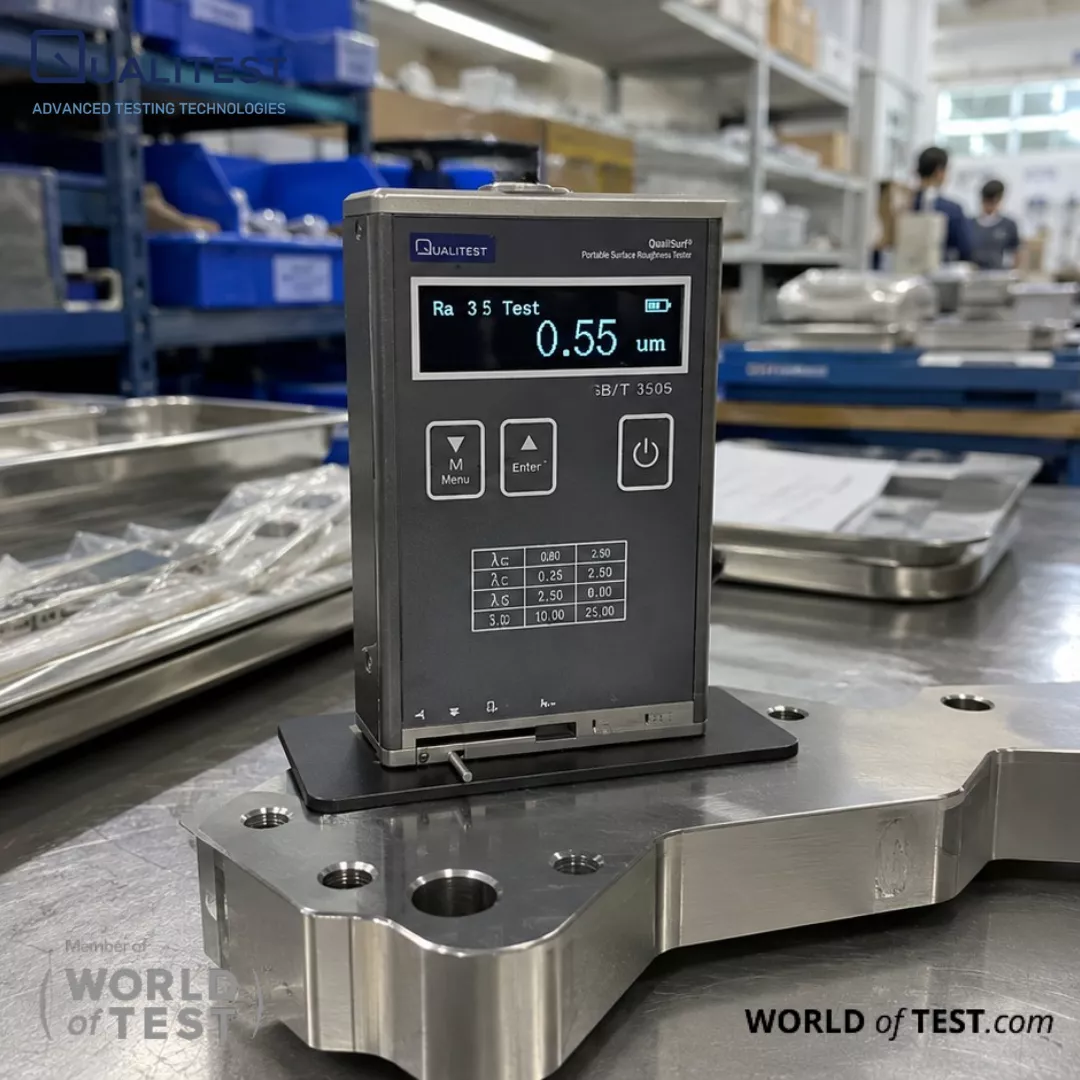

- Skidded Profilometry (Mechanical High-Pass Filtering): Skidded drive units place a curved metal shoe beside the stylus tip. The skid mechanically absorbs broad surface tilts and long-wavelength waviness, allowing compact instruments, such as the QualiSurf™ I, to directly evaluate primary roughness parameters (Ra, Rz, Rq, Rt) across standard cutoff lengths (0.25 mm, 0.8 mm, 2.5 mm).

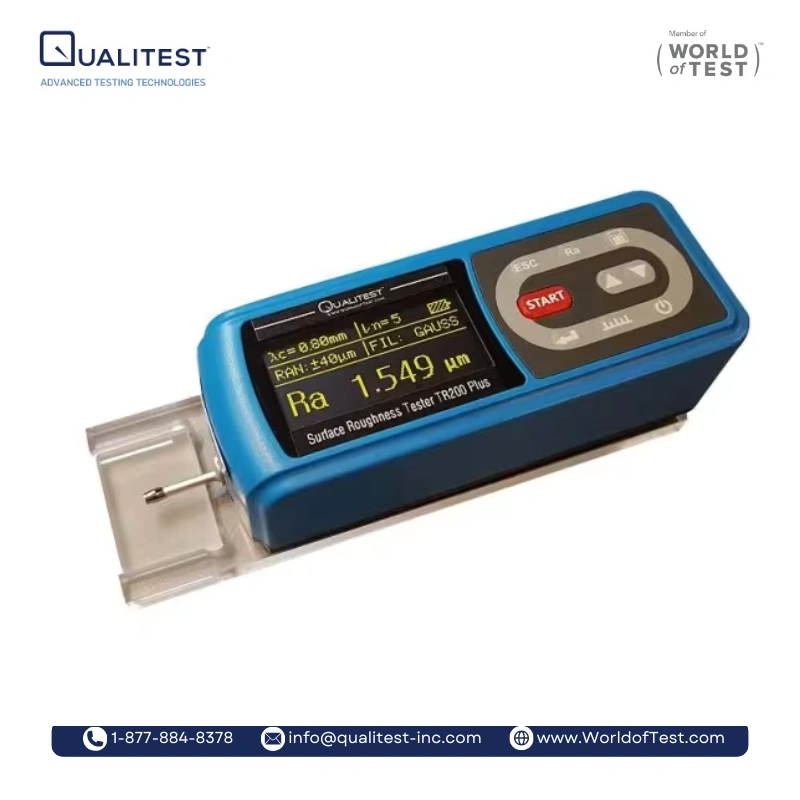

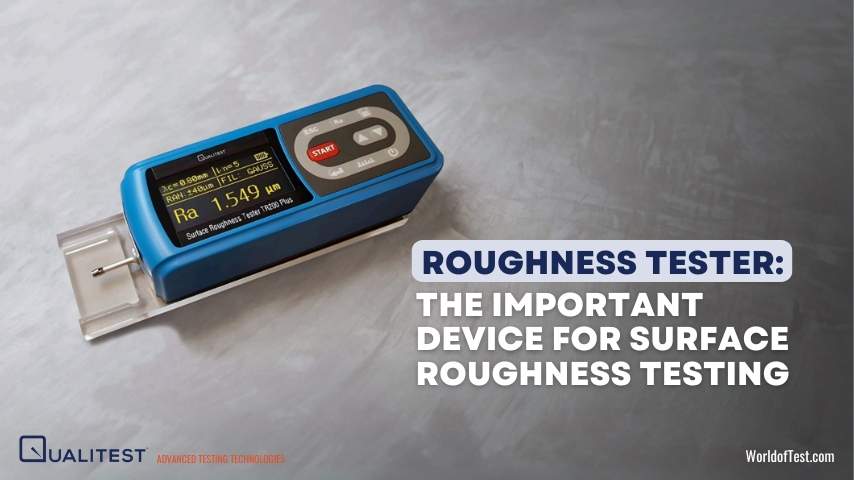

- Multi-Parameter Field Profilometry: High-precision digital systems, such as the TR-200 Plus, utilize a 5 µm inductive diamond stylus paired with digital signal processing (DSP). This setup evaluates over 20 parameters, including the bearing kernel group (Rk, Rpk, Rvk) and material ratio curves (Mr1, Mr2), storing up to 100 profile wave groups.
- Detachable & Extended Bore Transducers: Modular configurations, such as the QualiSurf™-200 and QualiSurf™-600, feature split probes to access cramped internal holes and conical shapes. For deep internal tube and pipe walls, the QualiSurf™ II-S uses an extended transducer cable to measure up to 45 distinct profile parameters inside hard-to-reach bores.
- Skidless Profilometry (Datum-Referenced Profile Separation): Systems like the QualiSurf™ III-Plus move the stylus along an internal precision datum track without a resting skid. This isolates the raw Primary Profile (P), Waviness (W), and Roughness (R) independently, which is essential for evaluating screw threads, turbine blades, and curved valve seats.
Non-Contact Optical Profilometry Theory
Optical profilometers replace physical stylus contact with light beams, capturing complete surface patches to compute 3D areal topographies (Sa, Sz) under ISO 25178 without scratching delicate substrates. Seriously, what quality manager wouldn't prefer capturing a complete 3D surface map in seconds?? {Tactile purists are excused!}
- Chromatic Confocal Profilometry: Directs white light through a lens that focuses individual color wavelengths at distinct vertical heights. The specific wavelength reflected back in focus determines elevation, resolving steep surface slopes and varied material reflectivities without surface damage.
- Coherence Scanning Interferometry (CSI) & Focus Variation: CSI splits light paths to measure wave interference patterns, achieving sub-nanometer vertical depth resolution on smooth optical components. Focus Variation combines depth-of-field image stacking to profile rougher, steep-sided components like carbide cutting tools and additive parts.
Side-by-Side Breakdown of Product Metrology Methods
| Profiling System & Model | Operating Principle | Core Metrology Capabilities | Ideal Industrial Applications |
|---|
| Pocket Skidded Tester (QualiSurf™ I) | Piezoelectric diamond stylus guided by a resting skid shoe | Ra, Rz, Rq, Rt; selectable 0.25/0.8/2.5 mm cutoffs | Fast shop-floor checks on flat plates, turned shafts, and open castings |
| Multi-Parameter Portable (TR-200 Plus) | 5 µm inductive diamond stylus with DSP wave processing | 20+ parameters (Rk, Rpk, Rvk, Mr1/Mr2); wave profile storage | Incoming vendor auditing, field inspection, and ISO/ANSI/DIN compliance |
| Bore & Split-Probe Tester (QualiSurf™ II-S / 600) | Detachable transducer with extended connection cable | Up to 45 parameters; live on-screen profile wave display | Deep internal pipe walls, curved tubing, inner holes, and large machinery parts |
| Skidless Benchtop System (QualiSurf™ III-Plus) | Diamond stylus driven along an internal precision datum track | Separates Primary (P), Waviness (W), and Roughness (R) profiles | Screw threads, curved turbine blades, precision valve seats, and sealing faces |
| 3D Optical Profilers (Confocal / Interferometry) | Non-contact split chromatic focus / light wave interference | Sub-nanometer Z-depth; Sa, Sz 3D areal parameters (ISO 25178) | Ultra-polished optics, injection mold inserts, delicate films, and additive parts |
Mathematical Filtering & Parameter Selection Theory
Raw surface profile data contains a mixture of macro-geometry, machine vibration, and micro-flaws. Proper mathematical filtering separates these components before parameters are calculated.
Profile Decomposition via Cutoff Filters

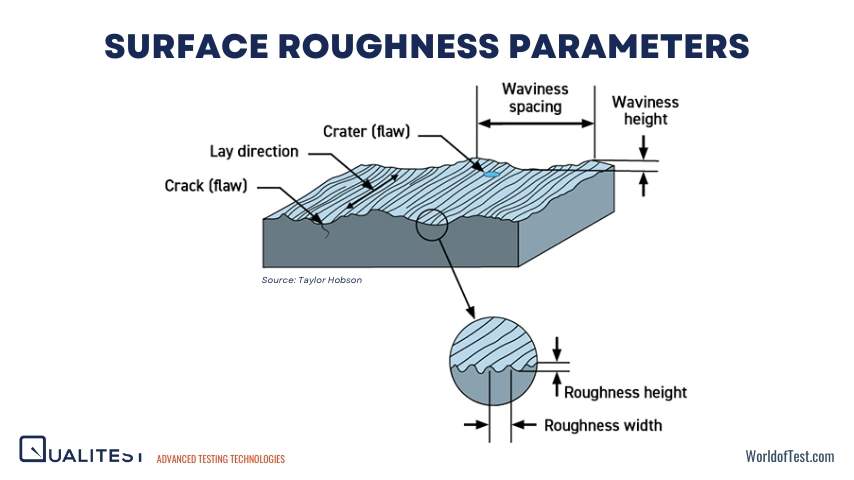

A raw measured profile contains three distinct spatial structures:
- Form (Shape Error): Broad dimensional slope or macro-curvature.
- Waviness (W): Medium-wavelength waves caused by lathe chatter or thermal expansion.
- Roughness (R): Fine micro-irregularities left by cutting tool edges or abrasives.
Standard Gaussian cutoff filters (λc) remove form and long-wavelength waviness to isolate pure micro-roughness traces.
Why Ra Is Incomplete On Its Own
Ra (Arithmetic Average Roughness) averages all peak and valley deviations into a single figure. Two surfaces with identical Ra values can exhibit completely different functional performance:
- Peak vs. Valley Distribution: Sharp peaks tear fluid seals, whereas rounded valleys retain lubricant. Evaluating Rz (maximum height), Rk (core roughness depth), and Mr1/Mr2 (fluid retention ratio) prevents performance failures.
- 2D Trace vs. 3D Areal Data: Single line traces can miss localized surface pits. Evaluating 3D Areal Parameters (Sa, Sz) provides complete surface coverage for complex additive parts and optical surfaces.
