The slipperiness level of a surface can determine whether the material you choose is truly fit for its intended purpose. Many international manufacturers follow established standards to assess this, and one of the most common being the Coefficient of Friction (COF) test. However, understanding how to measure Coefficient of Friction can sometimes be challenging.
That’s what we’re going to discuss here. We’ll walk you through the methods and step-by-step process for conducting COF testing. Let’s get into the details.
Why Measure the Coefficient of Friction?
If you know how to measure Coefficient of Friction, you can precisely predict materials performing under daily-like conditions. In short, this measurement quantifies the resistance between two surfaces in motion. This test aims to ensure safety, functionality, and longevity of a product’s applications.
Spanning from plastic films in packaging to tires in automotive, measuring the coefficient of friction helps determine how reliably materials interact with other surfaces. For instance if we’re talking about industries like aerospace, electronics, and sports equipment, they rely on accurate friction data to enhance grip, control wear, and optimize surface behavior.
In bearings, for instance, precise COF values are essential to reduce energy loss and extend component life. Simply put, this test is indispensable wherever friction matters in material performance.
Methods of Measuring Coefficient of Friction

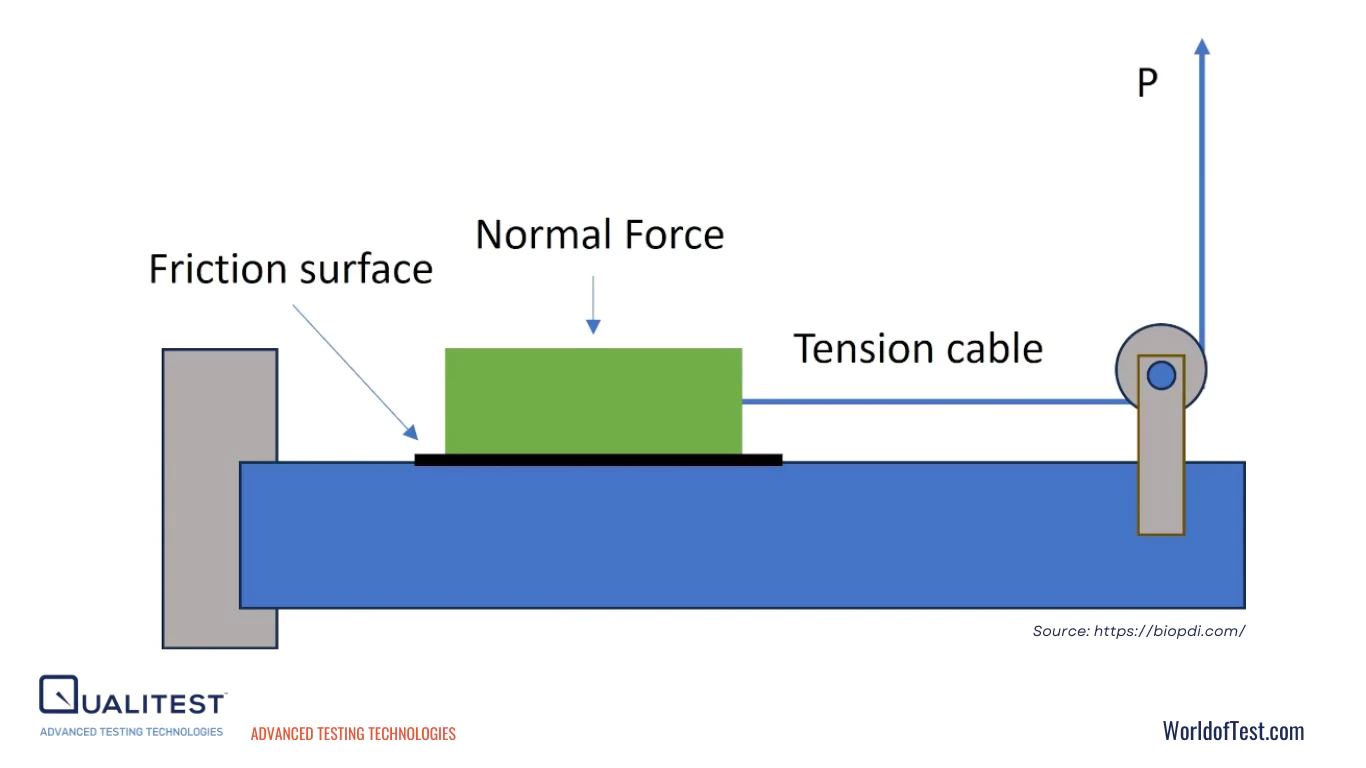

Now that we’re digging into how to measure Coefficient of Friction, it’s important to know there are two primary types involved: static and kinetic. Both are commonly assessed using a sled-based method, which helps determine how easily two surfaces slide against each other.
For static friction, the test measures the force required to initiate movement of a weighted sled resting on the test material. That force is then divided by the sled's weight to calculate the static CoF. Kinetic friction, on the other hand, evaluates the resistance during steady, continuous sliding.
The average force recorded during this motion is divided by the sled’s weight to determine the kinetic CoF. Be it using a moving sled or a moving plane, both approaches are valid according to ASTM standards. This method provides accurate insights into surface slip behavior of your specimen.
How to Measure Coefficient of Friction Using a Tester
Now, let’s answer how to measure Coefficient of Friction. To do this, a tester can help to measure two key forces: the frictional force (Ff) and the normal force (Fn). Once both are recorded, the coefficient is calculated using the simple formula:
μ = Ff / Fn
Here, μ (mu) represents the Coefficient of Friction, which is a dimensionless number indicating the ratio between the force resisting motion and the force pressing the surfaces together.
Follow the step-by-step below:
1. Prepare the Specimens and Surface
Begin by selecting and preparing the material specimens according to the test standard. Ensure that both the test material (often mounted on a sled) and the base surface are clean, dry, and free of debris, as surface contaminants can affect results.
2. Set Up the Tester

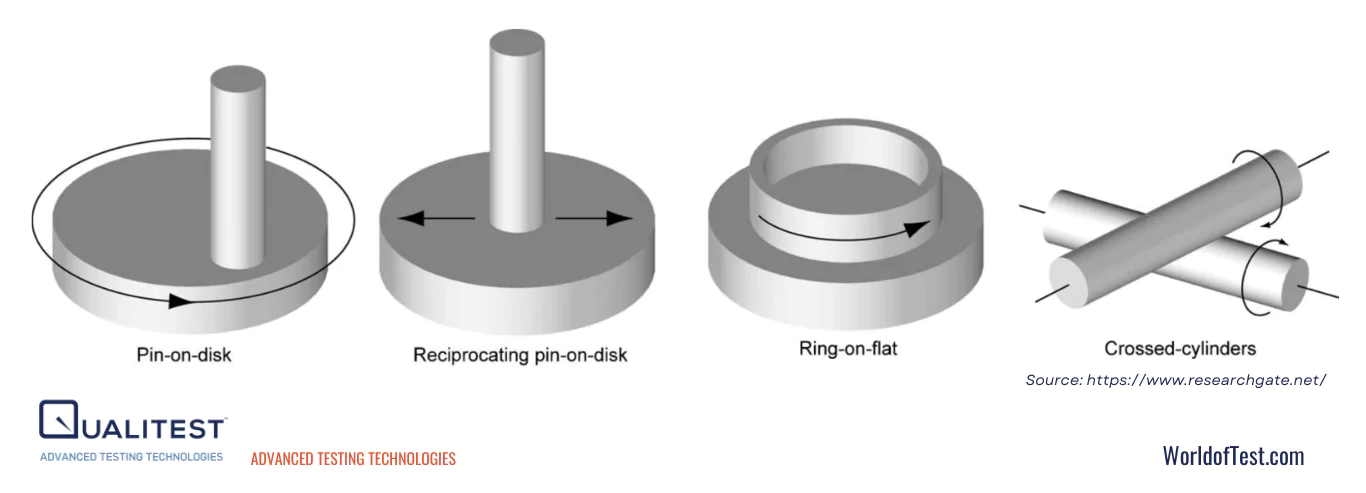

You can use a horizontal pull tester, a tribometer, or a pin-on-disk system. But, one thing for sure, secure the test sample properly onto the sled or fixture. Calibrate the machine to zero to ensure accuracy before running the test.
3. Apply the Normal Force
Most testers apply a defined vertical load, either through the sled's own weight or additional calibrated weights. This force represents the normal force (Fn) and must remain consistent throughout the test.
4. Initiate Movement
The testing machine either pulls the sled across the test surface (for static and kinetic friction) or rotates a disk in contact with a fixed pin (for pin-on-disk tests). A sensor records the frictional force (Ff), which the resistance is generated as the materials interact.
5. Calculate the Coefficient
Once both forces are measured, apply them to the formula μ = Ff / Fn. Take example, if the frictional force is 5 Newtons and the normal force is 10 Newtons, the Coefficient of Friction is 0.5.
6. Record and Analyze Results
Many testers provide a digital readout or software interface to log data automatically. Depending on the test method, results can represent static CoF (before movement begins) or kinetic CoF (during continuous motion). This distinction helps you understand both the initial grip and ongoing resistance of the material.
Choosing the Right Coefficient of Friction Tester
Selecting the right Coefficient of Friction (CoF) tester should be started by aligning your test method with the material characteristics and operational goals. Below are five key considerations to guide your choice:
- Define Your Friction Type: Static, Kinetic, or Both
Start by identifying whether you need to measure static friction (resistance before movement) or kinetic friction (resistance during movement). Some testers are designed to capture both, while others specialize in one.
- Match the Tester to Your Material and Surface Interaction
Different testers handle different materials better. If you're testing flexible films, a horizontal sled-based system might be suitable. But for metals or coatings, a tribometer or pin-on-disk tester may provide more accurate readings.
- Check for Compliance with Industry Standards
Whatever sector you’re in, industry standards like ASTM D1894 or ISO 8295 often dictate how CoF should be measured. So, make sure your tester complies with the required standard. - Evaluate Automation and Data Output Features
If your workflow demands high throughput or traceable documentation, consider looking for models that offer software integration, adjustable test speeds, and real-time analytics.
- Consider Calibration and Maintenance Support
Reliable results require consistent calibration. Therefore, choose a tester from a provider that offers clear calibration procedures, routine maintenance support, and access to technical expertise like Qualitest.
Final Thoughts
By understanding the methods and how to measure the Coefficient of Friction, you can significantly elevate your product development process and stay aligned with global industry standards. It’s one step toward setting a high-performance benchmark that exhibits your product’s quality in customers' eyes.
However, achieving this level of precision and consistency is only possible when you're equipped with the right tools and expert guidance. Qualitest is a trusted partner to companies around the world. We offer certified equipment and technical support tailored to your testing needs.
Connect with our experts to get personalized recommendations, and explore our full range of advanced testing equipment to complete your quality assurance process.
