The slipperiness level of a surface can determine whether the material you choose is truly fit for its intended purpose. Many international manufacturers follow established standards to assess this, and one of the most common being the Coefficient of Friction (COF) test. However, understanding how to measure Coefficient of Friction can sometimes be challenging.
That’s what we’re going to discuss here. We’ll walk you through the methods and step-by-step process for conducting COF testing. Let’s get into the details.
Why Measure the Coefficient of Friction?
If you know how to measure Coefficient of Friction, you can precisely predict materials performing under daily-like conditions. In short, this measurement quantifies the resistance between two surfaces in motion. This test aims to ensure safety, functionality, and longevity of a product’s applications.
Spanning from plastic films in packaging to tires in automotive, measuring the coefficient of friction helps determine how reliably materials interact with other surfaces. For instance if we’re talking about industries like aerospace, electronics, and sports equipment, they rely on accurate friction data to enhance grip, control wear, and optimize surface behavior.
In bearings, for instance, precise COF values are essential to reduce energy loss and extend component life. Simply put, this test is indispensable wherever friction matters in material performance.
Methods of Measuring Coefficient of Friction
Now that we’re digging into how to measure Coefficient of Friction, it’s important to know there are two primary types involved: static and kinetic. Both are commonly assessed using a sled-based method, which helps determine how easily two surfaces slide against each other.
For static friction, the test measures the force required to initiate movement of a weighted sled resting on the test material. That force is then divided by the sled's weight to calculate the static CoF. Kinetic friction, on the other hand, evaluates the resistance during steady, continuous sliding.
The average force recorded during this motion is divided by the sled’s weight to determine the kinetic CoF. Be it using a moving sled or a moving plane, both approaches are valid according to ASTM standards. This method provides accurate insights into surface slip behavior of your specimen.
How to Measure Coefficient of Friction Using a Tester
Now, let’s answer how to measure Coefficient of Friction. To do this, a tester can help to measure two key forces: the frictional force (Ff) and the normal force (Fn). Once both are recorded, the coefficient is calculated using the simple formula:
μ = Ff / Fn
Here, μ (mu) represents the Coefficient of Friction, which is a dimensionless number indicating the ratio between the force resisting motion and the force pressing the surfaces together.
Follow the step-by-step below:
1. Prepare the Specimens and Surface
Begin by selecting and preparing the material specimens according to the test standard. Ensure that both the test material (often mounted on a sled) and the base surface are clean, dry, and free of debris, as surface contaminants can affect results.
2. Set Up the Tester
You can use a horizontal pull tester, a tribometer, or a pin-on-disk system. But, one thing for sure, secure the test sample properly onto the sled or fixture. Calibrate the machine to zero to ensure accuracy before running the test.
3. Apply the Normal Force
Most testers apply a defined vertical load, either through the sled's own weight or additional calibrated weights. This force represents the normal force (Fn) and must remain consistent throughout the test.
4. Initiate Movement
The testing machine either pulls the sled across the test surface (for static and kinetic friction) or rotates a disk in contact with a fixed pin (for pin-on-disk tests). A sensor records the frictional force (Ff), which the resistance is generated as the materials interact.
5. Calculate the Coefficient
Once both forces are measured, apply them to the formula μ = Ff / Fn. Take example, if the frictional force is 5 Newtons and the normal force is 10 Newtons, the Coefficient of Friction is 0.5.
6. Record and Analyze Results
Many testers provide a digital readout or software interface to log data automatically. Depending on the test method, results can represent static CoF (before movement begins) or kinetic CoF (during continuous motion). This distinction helps you understand both the initial grip and ongoing resistance of the material.
Choosing the Right Coefficient of Friction Tester
Selecting the right Coefficient of Friction (CoF) tester should be started by aligning your test method with the material characteristics and operational goals. Below are five key considerations to guide your choice:
- Define Your Friction Type: Static, Kinetic, or Both
Start by identifying whether you need to measure static friction (resistance before movement) or kinetic friction (resistance during movement). Some testers are designed to capture both, while others specialize in one.
- Match the Tester to Your Material and Surface Interaction
Different testers handle different materials better. If you're testing flexible films, a horizontal sled-based system might be suitable. But for metals or coatings, a tribometer or pin-on-disk tester may provide more accurate readings.
- Check for Compliance with Industry Standards
Whatever sector you’re in, industry standards like ASTM D1894 or ISO 8295 often dictate how CoF should be measured. So, make sure your tester complies with the required standard. - Evaluate Automation and Data Output Features
If your workflow demands high throughput or traceable documentation, consider looking for models that offer software integration, adjustable test speeds, and real-time analytics.
- Consider Calibration and Maintenance Support
Reliable results require consistent calibration. Therefore, choose a tester from a provider that offers clear calibration procedures, routine maintenance support, and access to technical expertise like Qualitest.
Final Thoughts
By understanding the methods and how to measure the Coefficient of Friction, you can significantly elevate your product development process and stay aligned with global industry standards. It’s one step toward setting a high-performance benchmark that exhibits your product’s quality in customers' eyes.
However, achieving this level of precision and consistency is only possible when you're equipped with the right tools and expert guidance. Qualitest is a trusted partner to companies around the world. We offer certified equipment and technical support tailored to your testing needs.
Connect with our experts to get personalized recommendations, and explore our full range of advanced testing equipment to complete your quality assurance process.
If you work with plastics, films, or packaging materials, understanding how these materials slide or resist motion on other surfaces can make a big difference in your products’ performance. The Coefficient of Friction Testing gives you a measure of resistance between surfaces, helping you choose materials that prevent slippage, improve handling, and ensure reliability in real-world use.
Whether you’re working with plastic film that needs to glide smoothly on a production line or designing packaging that stacks securely, CoF testing provides valuable data to guide your choices. Let’s dive into the essentials of CoF testing, including the methods and tools you’ll need, and see how it can support the performance and safety of your plastic films, industrial packaging, and more.
What is the Coefficient of Friction Testing?
The coefficient of friction, or CoF, quantifies the resistance encountered between two surfaces in contact. This value is the ratio of the force needed to slide an object over a surface to the force pressing them together. With CoF testing, a coefficient of friction tester measures both static and kinetic friction, showing how a material will perform in different conditions.
A low CoF indicates a smoother, low-resistance interaction, while a higher CoF suggests more grip between surfaces. For plastics and films used in packaging, a cof testing machine typically evaluates these materials against a sled with a specific weight load, often tested in dry conditions to simulate handling.
The ASTM D1894 coefficient of friction test is a common cof test method used to ensure consistent CoF measurements for films and packaging materials.
Static and Kinetic Coefficient of Friction: What Do They Indicate?
A CoF tester generally provides two main results: static and kinetic coefficients of friction. Each reveals different material behaviors that are valuable in real-world applications.
1. Static Coefficient of Friction
This measures the force required to overcome a stationary object’s resistance to motion. For packaging and plastic films, the static coefficient shows whether materials will slide or “stick” on contact. In testing, this force is recorded as the initial peak needed to get a sled moving, divided by the sled’s weight.
2. Kinetic Coefficient of Friction
After overcoming static friction, kinetic friction measures the resistance during ongoing motion. The kinetic coefficient is calculated by averaging the force required to keep the sled moving, without including the initial peak force. ASTM CoF testing helps manufacturers gauge this ongoing friction, which is useful for films or plastic surfaces in constant motion, such as conveyor systems.
Both static and kinetic friction levels offer insights that guide material selection for packaging or plastic films, making the coefficient of friction test critical in ensuring reliable handling.
CoF Test Procedure: How Does it Work?
Curious about how to test coefficient of friction effectively? A typical coefficient of friction test procedure begins with preparing a material sample, usually attached to a weighted sled. The sled, generally sized at 64 mm square (2.5 in), is pulled across a larger surface (254 mm x 127 mm or 10 x 5 in) at a controlled speed of 150 mm per minute.
The coefficient of friction testing machine measures the force required to start the sled’s motion (static friction) and the force needed to keep it moving (kinetic friction).
The coefficient of friction test equipment captures data via a load cell connected to a sled by a cable that moves across a pulley. As the sled moves, the load cell records the resistance force, which is then divided by the sled’s mass to determine the CoF.
Following an accurate coefficient of friction test method and maintaining proper calibration ensures consistent results that match industry standards, such as the ASTM D1894 coefficient of friction test.
Equipment for CoF Testing: Essential Tools and Setup

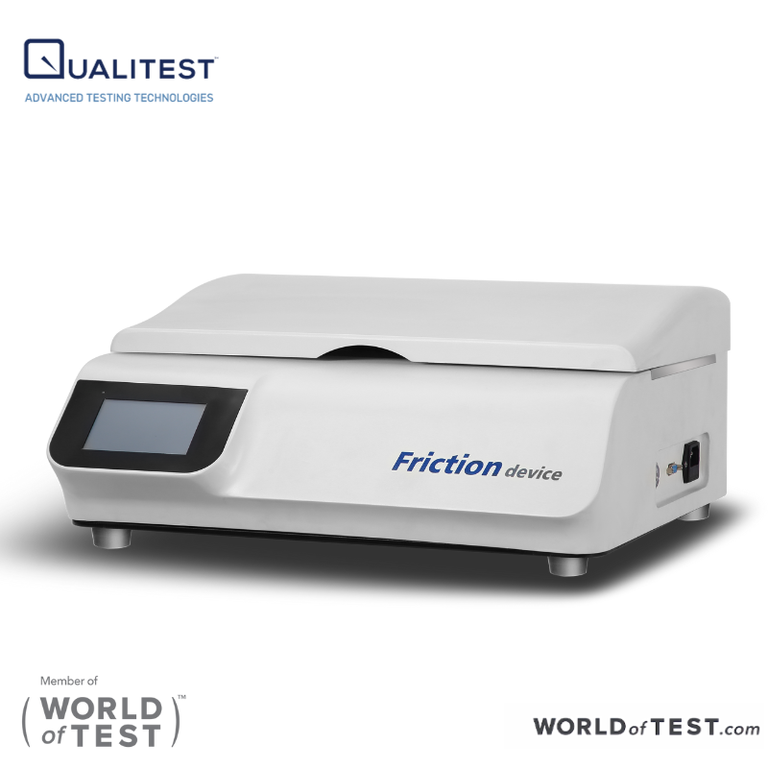

The success of CoF testing depends on using the right coefficient of friction testing equipment. Common cof testing machines include sled-type testers and inclined plane testers, both designed to simulate real-world conditions.
A sled-type cof tester pulls a sled over the test surface, capturing resistance as the sled moves. Inclined plane testers, on the other hand, allow the test material to slide down a slight incline, with sensors capturing the friction levels. Each coefficient of friction tester serves unique needs, and choosing the right equipment helps improve testing accuracy for different plastic and film applications.

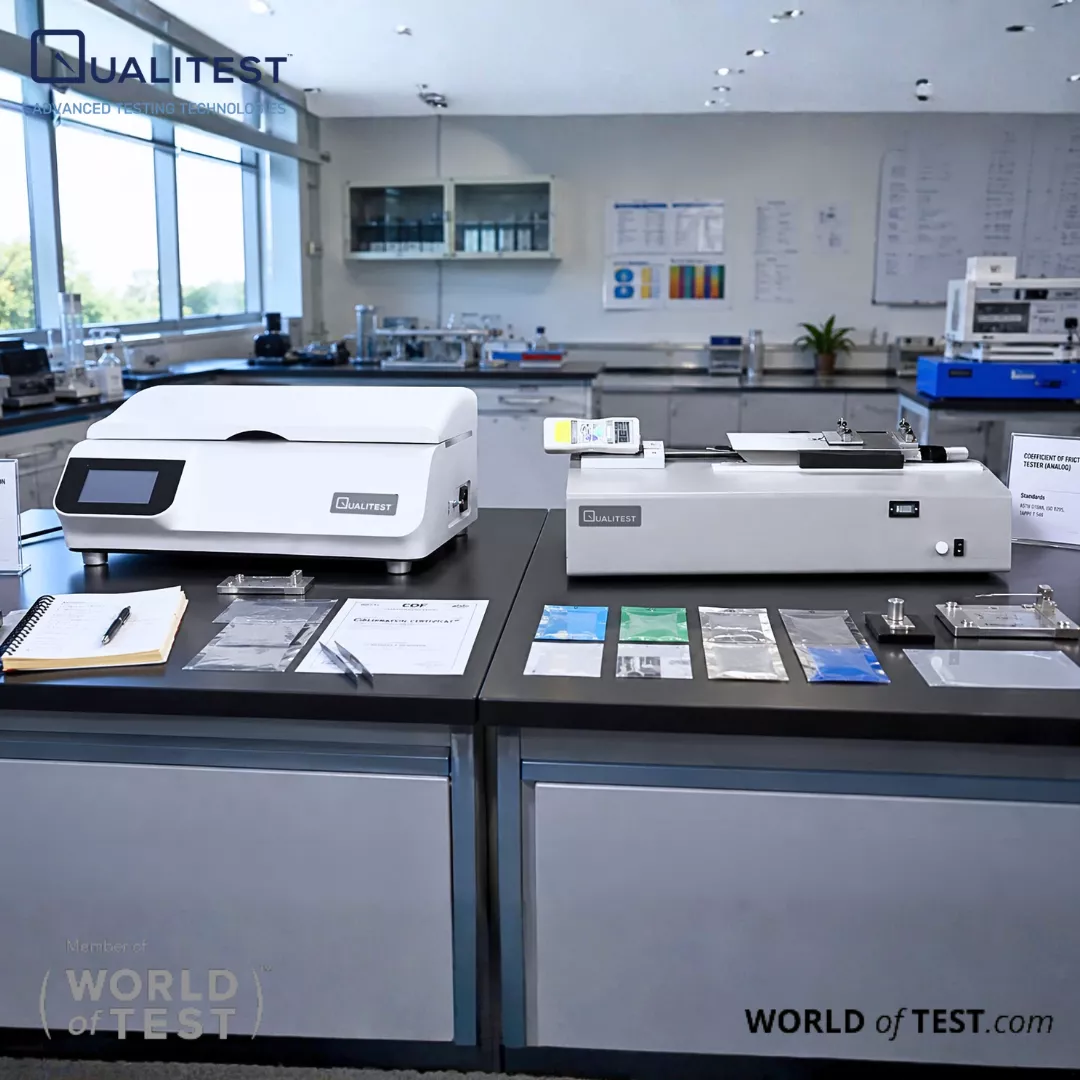

Proper sample preparation and regular calibration of coefficient of friction testing machines ensure that testing coefficient of friction remains reliable, whether you’re in a dedicated coefficient of friction testing lab or an on-site facility.
Applications of CoF Testing in Plastics, Films, and Packaging
With coefficient of friction testing, manufacturers gain valuable insights for various materials. In packaging, CoF data informs design choices that affect handling ease, stability, and stacking. Coefficient of friction testing labs often work with packaging companies to ensure the right balance of static and kinetic friction, reducing risks of slipping or sticking in storage and transit.
For plastic films used in industrial settings, knowing CoF values is equally essential. A low CoF may be preferred in automated lines, helping to prevent material jamming. Conversely, higher CoF levels are often needed in applications where stability is a priority, such as with heavy-duty plastic sheets used in construction.
With the data from coefficient of friction testing, manufacturers can select the right materials, enhancing performance and reliability.
Final Thought
The coefficient of friction testing gives you measurable insights into how plastics, films, and packaging materials interact with various surfaces. Using specialized coefficient of friction test equipment, such as sled-type or inclined plane testers, lets you accurately assess both static and kinetic friction values.
With this data, you can make informed material choices that enhance product handling, stability, and performance, meeting the specific needs of your industry.
For reliable testing solutions, Qualitest offers an extensive range of CoF Testers designed to deliver precise and consistent results. With the right equipment, you can confidently optimize material choices, improve product quality, and ensure a smoother, more efficient workflow.
